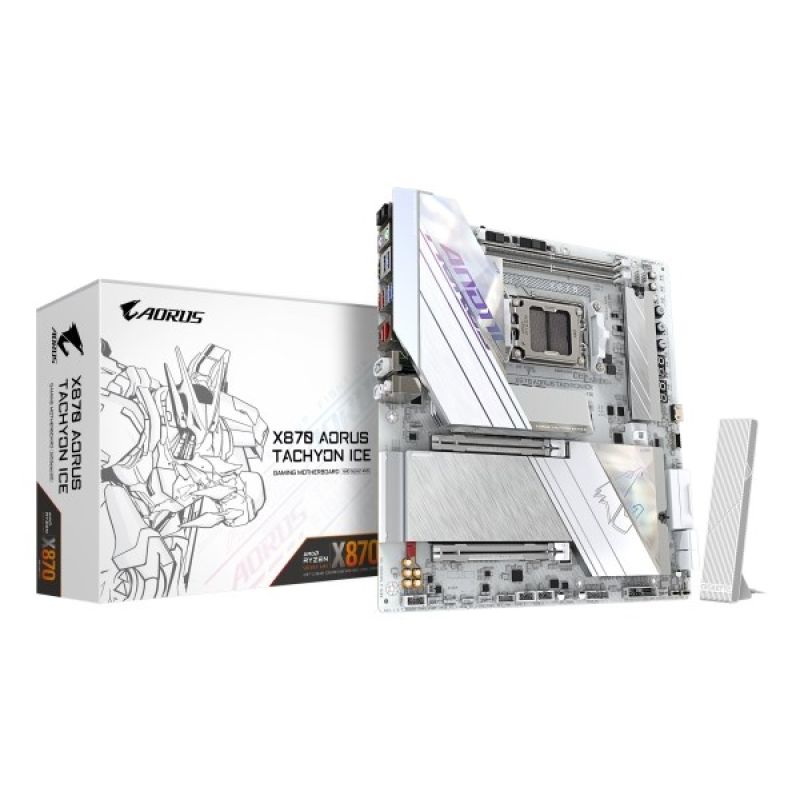

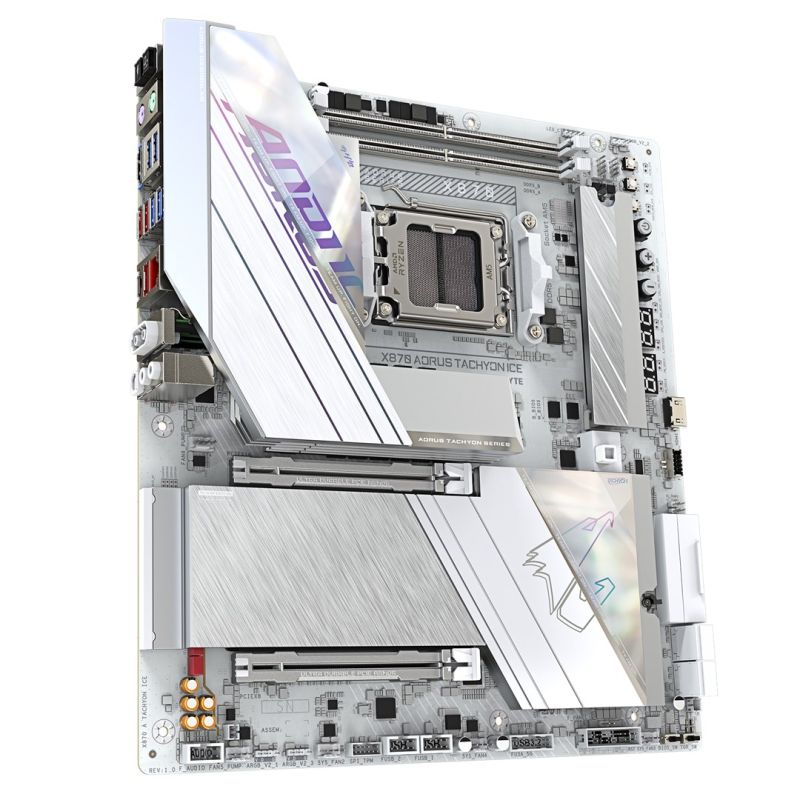

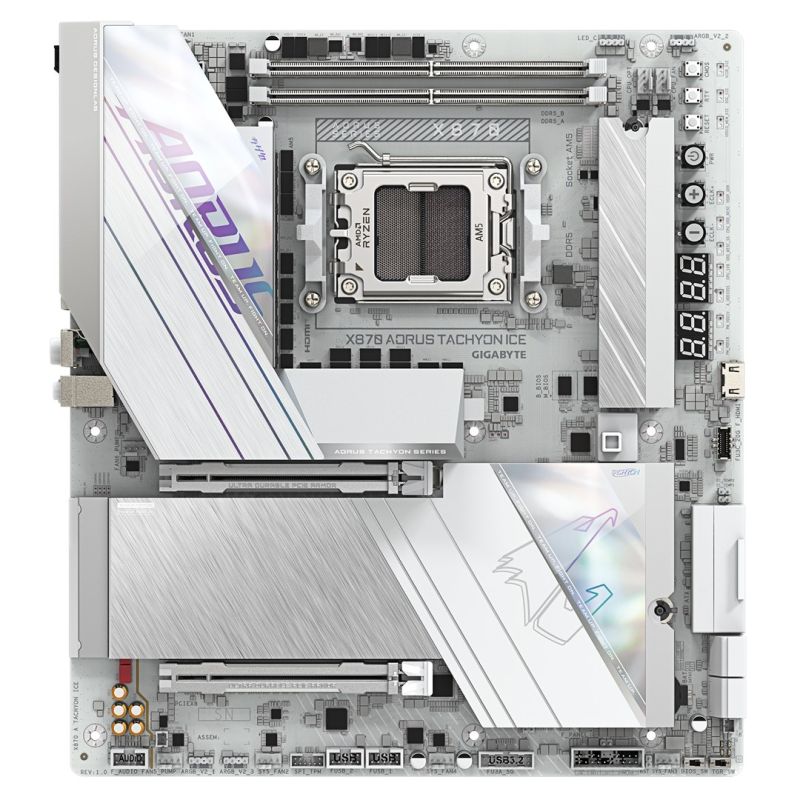

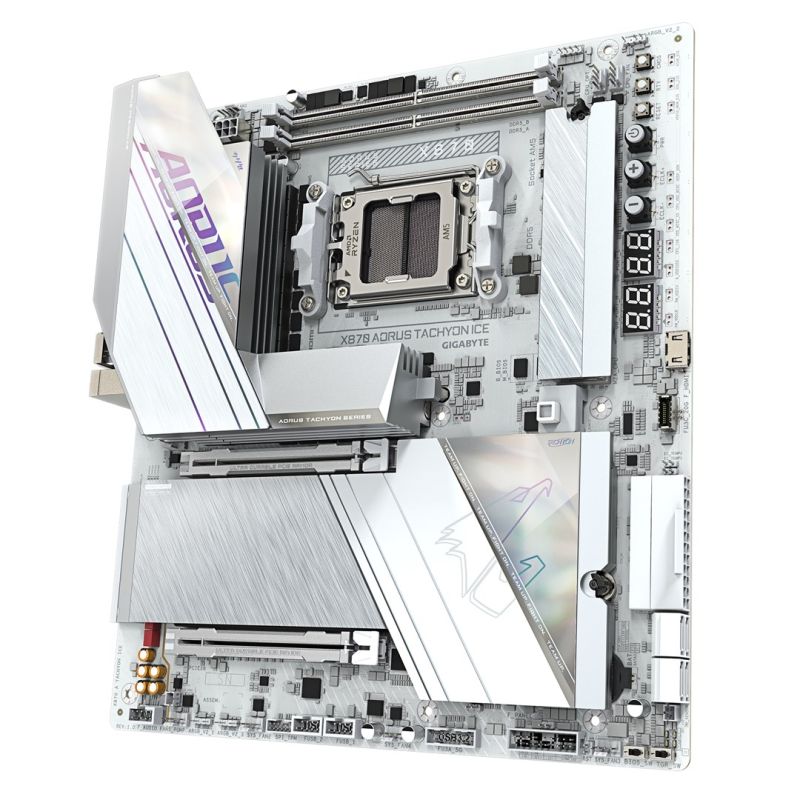

GIGABYTE X870 AORUS TACHYON ICE AMD X870 Socket AM5 Extended ATX
GIGABYTE X870 AORUS TACHYON ICE AMD X870 Socket AM5 Extended ATX
GIGABYTE X870 AORUS TACHYON ICE AMD X870 Socket AM5 Extended ATX
PRICE:
1002,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor socket: Socket AM5
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 9000 Series
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Graphics
- HDCP: Yes
- DirectX Version: 12.0
- Maximum resolution: 4096 x 2160 px
- Parallel Processing Support: Not Supported
- Memory
- Maximum internal memory per slot: 64 GB
- Supported memory clock speeds
- 6666 MHz
- 5200 MHz
- 7200
- 7600
- 6200 MHz
- 5600 MHz
- 6400 MHz
- 4800 MHz
- 7000
- 7800
- 8400
- 9600
- 4400 MHz
- 6600
- 6800 MHz
- 9200 MHz
- 8800
- 8600
- 8000 MHz
- 6000 MHz
- 8200 MHz
- Supported memory clock speed (max): 9600 MHz
- Maximum memory capacity: 128 GB
- Number of memory slots: 2
- ECC Compatibility: ECC or Non-ECC
- Unbuffered memory: Yes
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Characteristics
- Intended use: PC
- Motherboard Layout: AMD X870
- Audio chip: Realtek ALC1220-VB
- Audio output channels: 7.1 ch.
- Motherboard format: Extended ATX
- Product color: White
- Power supply type: ATX
- Chipset Board Family: AMD
- Cooling type: Passive
- Supported Windows operating systems: Windows 11 x64
- Monitoring computer status
- Fan
- Temperature
- Water cooling
- Tension
- Weight and dimensions
- Product height: 35 mm
- Product depth: 275 mm
- Product width: 305 mm
- Internal I/O
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Front panel audio connector: Yes
- Number of USB 2.0 ports: 2
- EPS power supply connector (8-pin): Yes
- Number of case fan connectors: 6
- TPM Connector: Yes
- RGB LED: Yes
- Number of SATA III connectors: 2
- Number of temperature sensor headers: 2
- Number of RGB LED connectors: 4
- Number of EPS power connectors (8-pin): 2
- USB 3.2 Gen 2x2 ports: 1
- 12V power connector: Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of water pump connections: 3
- Number of noise detection headers: 1
- Network
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- LAN controller: Realtek RTL8126
- Bluetooth: Yes
- Wired LAN: Yes
- WLAN controller model: Realtek RTL8922AE
- Ethernet network interface type
- Fast Ethernet
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- Bluetooth version: 5.4
- BIOS
- ACPI version: 5.0
- BIOS memory size: 512 Mbit
- System BIOS (SMBIOS) version: 2.7
- Desktop Management Interface (DMI) Version: 2.7
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- Packaging data
- Package width: 400 mm
- Weight with packaging: 3.91 kg
- Package height: 430 mm
- Package depth: 335 mm
- Package contents
- Batteries included: Yes
- Antenna Included: Yes
- Screws Included: Yes
- Memory drivers
- RAID Service: Yes
- RAID levels
- 1
- 5
- 10
- 0
- Supported drive types: HDD & SSD
- Number of supported storage drive sizes: 7
- Number of supported HDDs: 4
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III

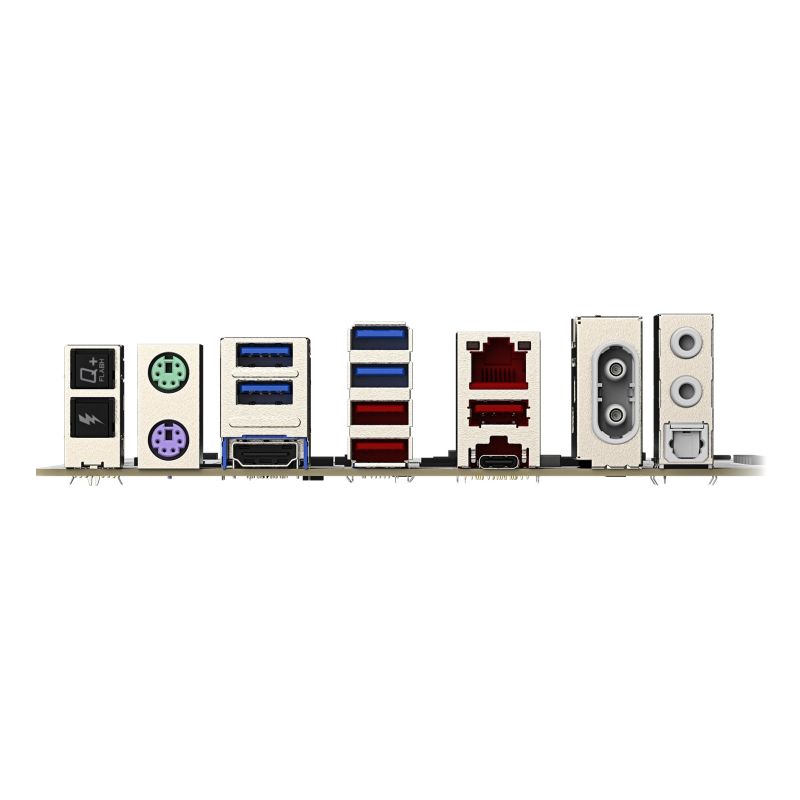

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- S/PDIF Output Port: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Line Input: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- WiFi-AP Antenna Jack Plug: 2
- HDMI version: 2.1
- Number of PS/2 ports: 2
- Number of USB4 Gen 3x2 ports: 1
- Digital audio input: 1
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 3
- Expansion slots
- 2nd largest M.2 key size: 22110
- Number of M.2 (M) slots: 3
- 3. largest M.2 key size: 22110
- 1. M.2 highest generation PCI Express: 5.0
- 3. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 25110
- 2. M.2 highest generation PCI Express: 4.0
- PCI Express x16 (Gen 5.x) slots: 2
- Battery
- Supported battery type: CR2032
- Battery weight: 3 g
- Number of battery compartments: 1
- Lithium battery weight: 0.07 g
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Other functions
- Product weight: 3.32 kg
- Logistics data
- Country of origin: Taiwan
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
