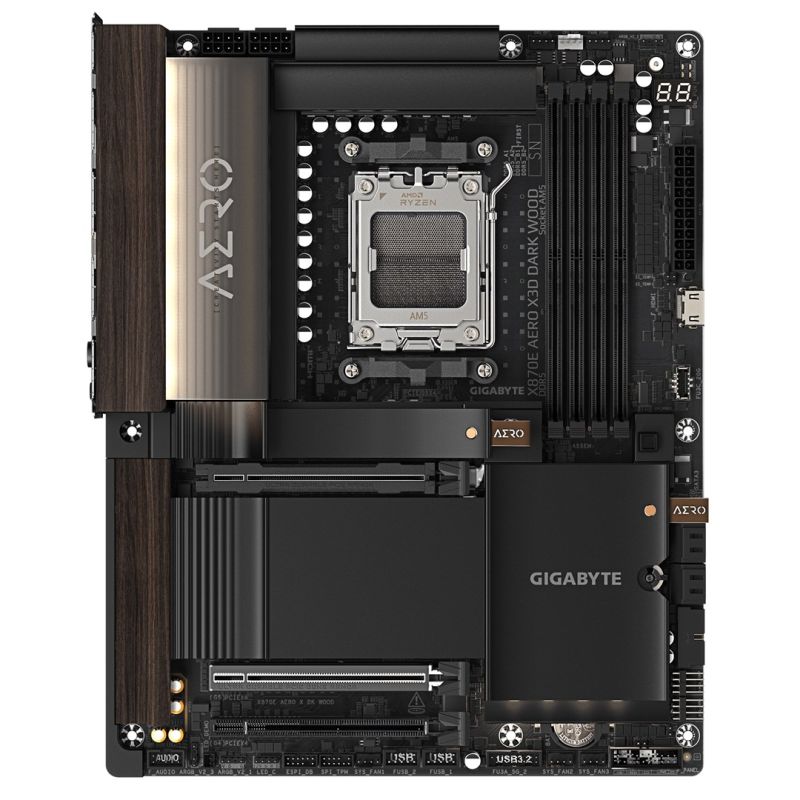

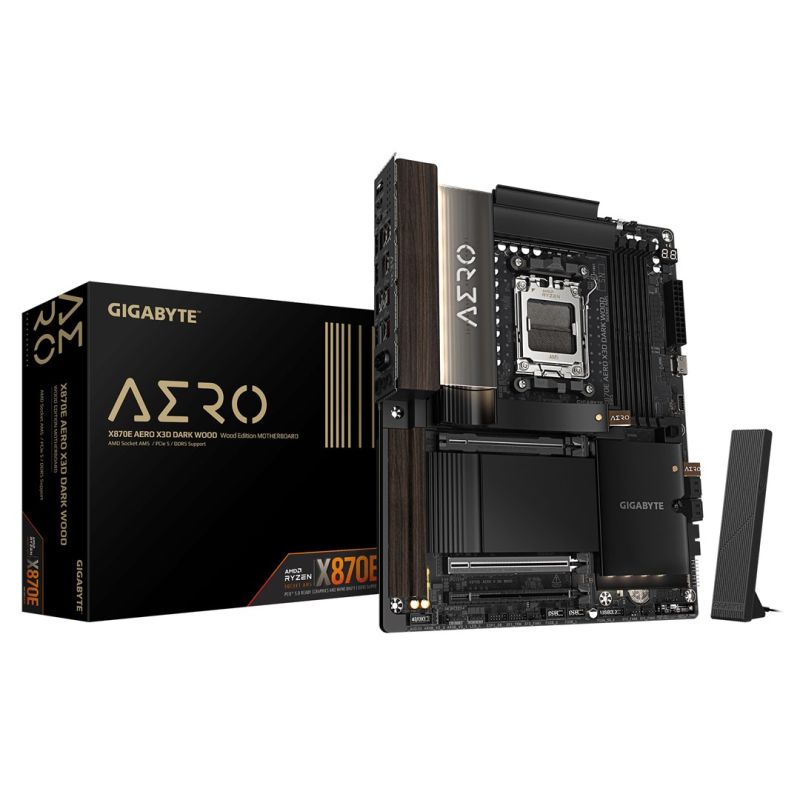

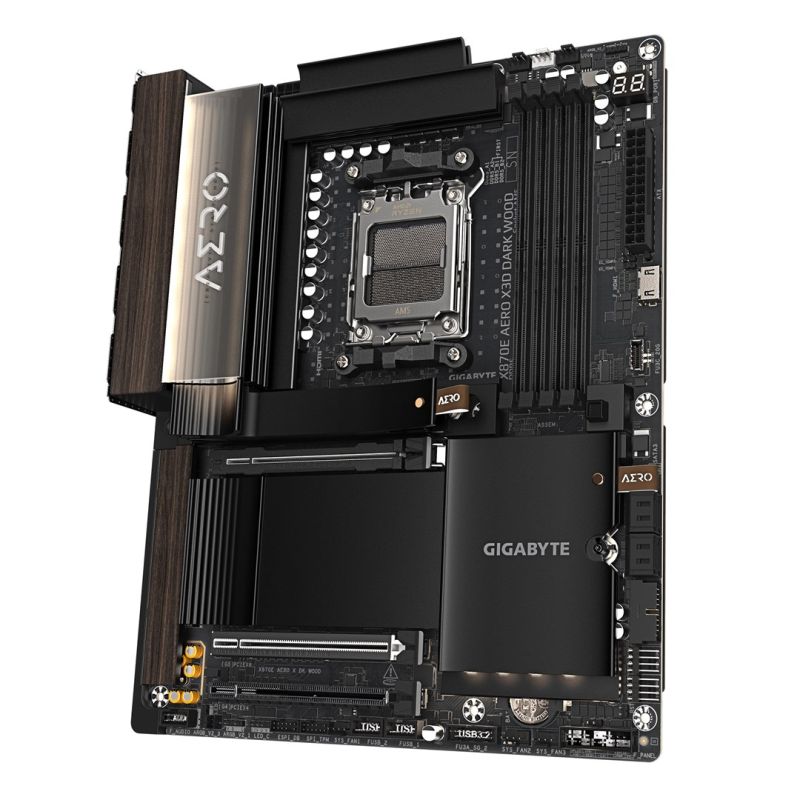

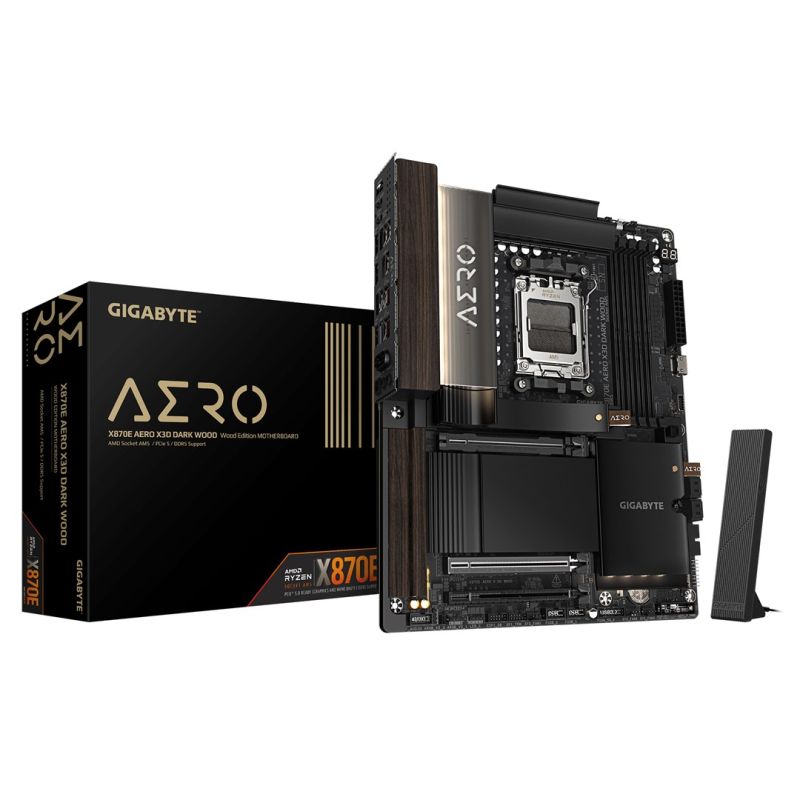

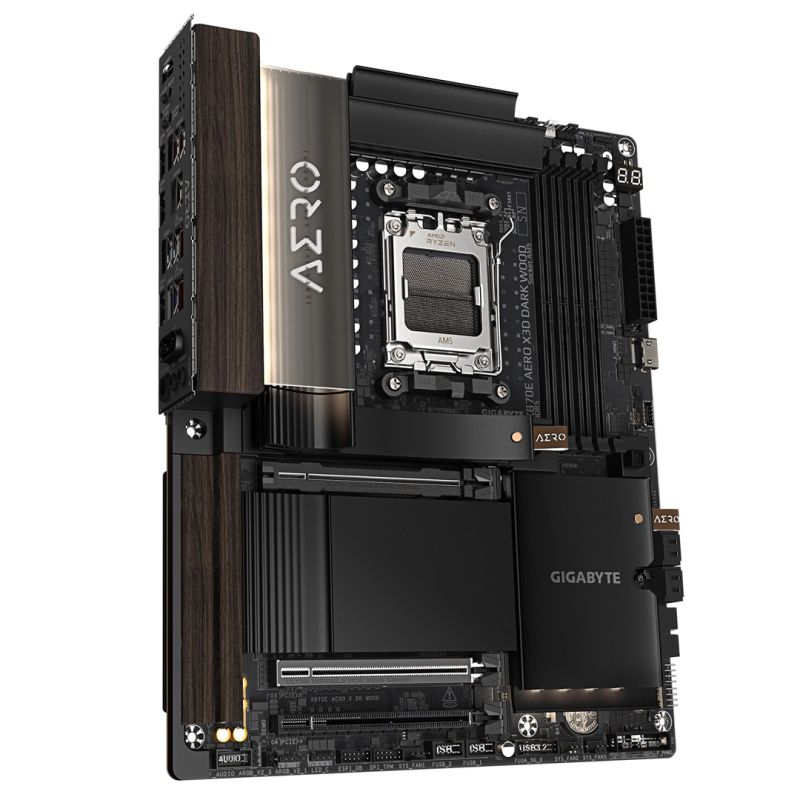

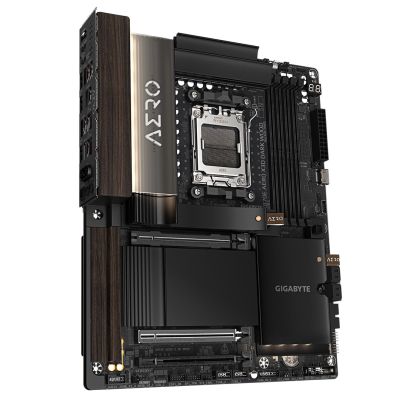

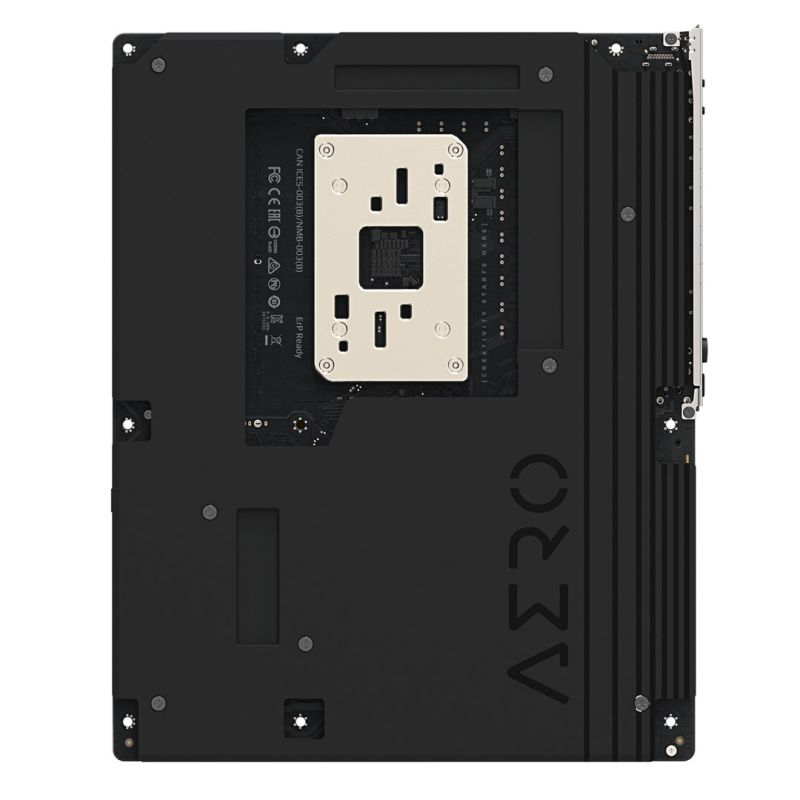

GIGABYTE X870E AERO X3D DARK WOOD AMD X870E Socket AM5 ATX
GIGABYTE X870E AERO X3D DARK WOOD AMD X870E Socket AM5 ATX
GIGABYTE X870E AERO X3D DARK WOOD AMD X870E Socket AM5 ATX
PRICE:
716,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 9000 Series
- Processor socket: Socket AM5
- Processor manufacturer: AMD
- Supported CPU sockets: Socket AM5
- Processor
- Graphics
- HDCP version: 2.3
- HDCP: Yes
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- DirectX Version: 12.0
- Memory
- Memory Channel Support: Dual Channel
- Number of memory slots: 4
- Maximum internal memory per slot: 64 GB
- Memory slot type: DIMM
- ECC Compatibility: Non-ECC
- Supported memory clock speed (max): 9000 MHz
- Supported memory types: DDR5-SDRAM
- Supported memory clock speeds
- 9000
- 4800 MHz
- 7000 MHz
- 7800
- 6000 MHz
- 7200 MHz
- 5600 MHz
- 6400 MHz
- 8600 MHz
- 4400 MHz
- 6200 MHz
- 8000 MHz
- 6600
- 6800
- 8800 MHz
- 7600 MHz
- 5200 MHz
- 8400 MHz
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Characteristics
- Cooling type: Passive
- Monitoring computer status
- Fan
- Temperature
- Tension
- Water cooling
- Chipset Board Family: AMD
- Motherboard format: ATX
- Intended use: PC
- Supported Windows operating systems: Windows 11 x64
- Power supply type: ATX
- Audio chip: Realtek ALC1220-VB
- Audio output channels: 7.1 ch.
- Motherboard Layout: AMD X870E
- Product color: Black
- Weight and dimensions
- Product depth: 244 mm
- Product height: 35 mm
- Product width: 305 mm
- Internal I/O
- Number of CPU fan connectors: 2
- Number of EPS power connectors (8-pin): 2
- RGB LED: Yes
- 12V power connector: Yes
- EPS power supply connector (8-pin): Yes
- ATX power socket (24-pin): Yes
- CPU fan connector: Yes
- Number of SATA III connectors: 4
- Front panel connector: Yes
- Number of USB 2.0 ports: 2
- TPM Connector: Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of water pump connections: 3
- Number of case fan connectors: 6
- Number of RGB LED connectors: 4
- USB 3.2 Gen 2x2 ports: 1
- Number of noise detection headers: 1
- Number of temperature sensor headers: 2
- Network
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wi-Fi 6E (802.11ax)
- 802.11b
- Wi-Fi 5 (802.11ac)
- Wi-Fi 4 (802.11n)
- 802.11g
- 802.11a
- Ethernet network interface type
- Fast Ethernet
- 2.5 Gigabit Ethernet
- Gigabit Ethernet
- 5 Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi: Yes
- Bluetooth version: 5.4
- WLAN controller model: MediaTek MT7927
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- LAN controller: Realtek RTL8126
- Bluetooth: Yes
- Wi-Fi standards
- BIOS
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- Clear CMOS Jumper: Yes
- Clear CMOS Button: Yes
- BIOS Type: UEFI AMI
- ACPI version: 5.0
- BIOS memory size: 512 Mbit
- Packaging data
- Package depth: 306 mm
- Package width: 341 mm
- Weight with packaging: 3.67 kg
- Package height: 89 mm
- Package contents
- Screws Included: Yes

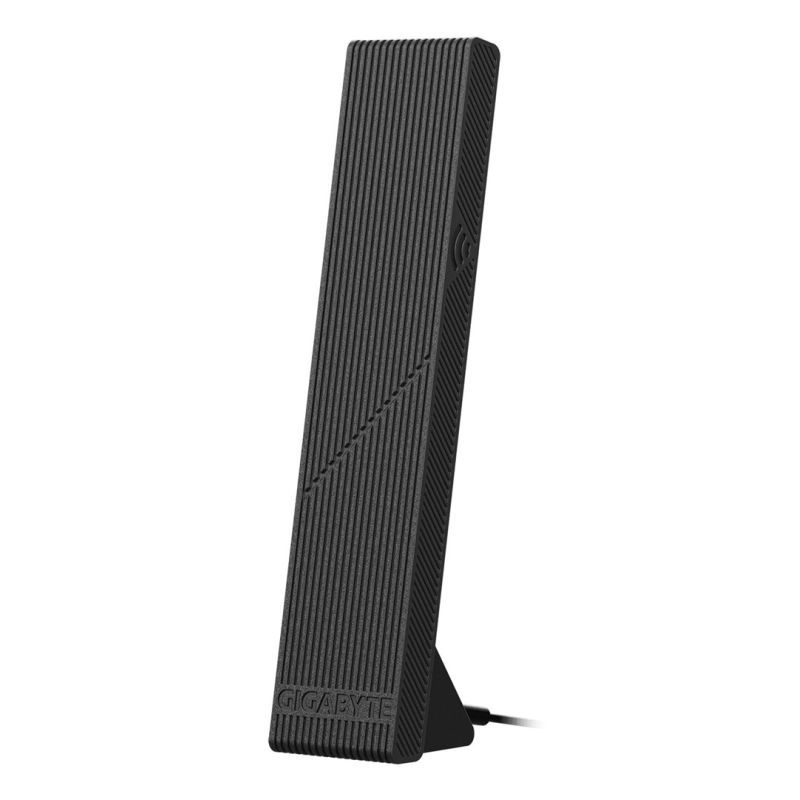

- Antenna Included: Yes
- Batteries included: Yes
- Memory drivers
- Number of supported storage drive sizes: 8
- Number of supported HDDs: 4
- RAID levels
- 10
- 1
- 0
- 5
- RAID Service: Yes
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 5.0, SATA III

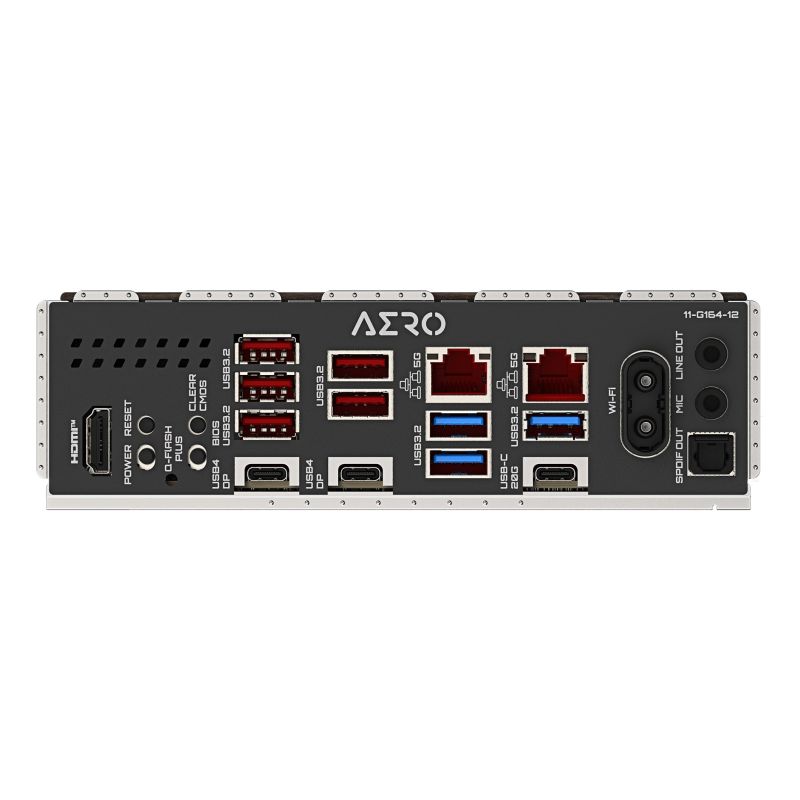

- Rear Panel I/O Ports
- HDMI version: 2.1
- Number of USB4 Gen 2x2 ports: 2
- Microphone: Yes
- DisplayPort version: 1.4
- WiFi-AP Antenna Jack Plug: 2
- Headphone outputs: 1
- Number of Ethernet LAN ports (RJ-45): 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 5
- Number of HDMI ports: 1
- Digital audio input: 1
- S/PDIF Output Port: Yes
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 4
- 1. largest M.2 key size: 2580
- 2nd largest M.2 key size: 22110
- 3. largest M.2 key size: 22110
- 1. M.2 highest generation PCI Express: 5.0
- 2. M.2 highest generation PCI Express: 5.0
- 4. M.2 highest generation PCI Express: 4.0
- 3. M.2 highest generation PCI Express: 4.0
- 4. largest M.2 key size: 22110
- Battery
- Battery capacity: 220 mAh
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Number of battery compartments: 1
- Supported battery type: CR2032
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 3.17 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
