GIGABYTE X870E AERO X3D WOOD AMD X870E Socket AM5 ATX
GIGABYTE X870E AERO X3D WOOD AMD X870E Socket AM5 ATX
GIGABYTE X870E AERO X3D WOOD AMD X870E Socket AM5 ATX
PRICE:
846,99
€
IN A WAREHOUSE
6 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor
- AMD Ryzen 7000 Series
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- Processor socket: Socket AM5
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Processor
- Graphics
- DirectX Version: 12.0
- Built-in graphics card: No
- HDCP: Yes
- HDCP version: 2.3
- Maximum resolution: 4096 x 2160 px
- Parallel Processing Support: Not Supported
- Memory
- Supported memory clock speeds
- 8600
- 5200 MHz
- 4800 MHz
- 7000
- 4400 MHz
- 6600
- 6800 MHz
- 8800
- 5600 MHz
- 6400 MHz
- 7200
- 7600
- 7800
- 9000
- 8000 MHz
- 6200 MHz
- 8400
- 6000 MHz
- Unbuffered memory: Yes
- Supported memory clock speed (max): 9000 MHz
- Supported memory types: DDR5-SDRAM
- Maximum memory capacity: 256 GB
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: Non-ECC
- Supported memory clock speeds
- Characteristics
- Motherboard format: ATX
- Motherboard Layout: AMD X870E
- Chipset Board Family: AMD
- Supported Windows operating systems: Windows 11 x64
- Monitoring computer status
- Water cooling
- Fan
- Temperature
- Tension
- Intended use: PC
- Power supply type: ATX
- Product color: White
- Cooling type: Passive
- Audio chip: Realtek ALC1220-VB
- Audio output channels: 7.1 ch.
- Weight and dimensions
- Product width: 305 mm
- Product height: 35 mm
- Product depth: 244 mm
- Internal I/O
- USB 3.2 Gen 2x2 ports: 1
- ATX power socket (24-pin): Yes
- 12V power connector: Yes
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- RGB LED: Yes
- EPS power supply connector (8-pin): Yes
- Front panel connector: Yes
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Number of case fan connectors: 6
- TPM Connector: Yes
- CPU fan connector: Yes
- Number of RGB LED connectors: 4
- Number of CPU fan connectors: 2
- Number of water pump connections: 2
- Number of EPS power connectors (8-pin): 2
- Number of temperature sensor headers: 2
- Number of noise detection headers: 1
- Network
- LAN controller: Realtek RTL8126
- Bluetooth: Yes
- Wi-Fi standards
- 802.11b
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wi-Fi 6E (802.11ax)
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- Bluetooth version: 5.4
- Wired LAN: Yes
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Ethernet network interface type
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- Fast Ethernet
- Gigabit Ethernet
- WLAN controller model: MediaTek MT7927
- BIOS
- System BIOS (SMBIOS) version: 2.7
- ACPI version: 5.0
- Clear CMOS Jumper: Yes
- BIOS memory size: 256 Mbit
- Desktop Management Interface (DMI) Version: 2.7
- BIOS Type: UEFI AMI
- Clear CMOS Button: Yes
- Packaging data
- Package height: 89 mm
- Package depth: 306 mm
- Weight with packaging: 3.67 kg
- Package width: 341 mm
- Package contents
- Screws Included: Yes
- Batteries included: Yes
- Antenna Included: Yes
- Memory drivers
- Number of supported storage drive sizes: 8
- Number of supported HDDs: 4
- RAID levels
- 10
- 1
- 0
- 5
- RAID Service: Yes
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 5.0, SATA III

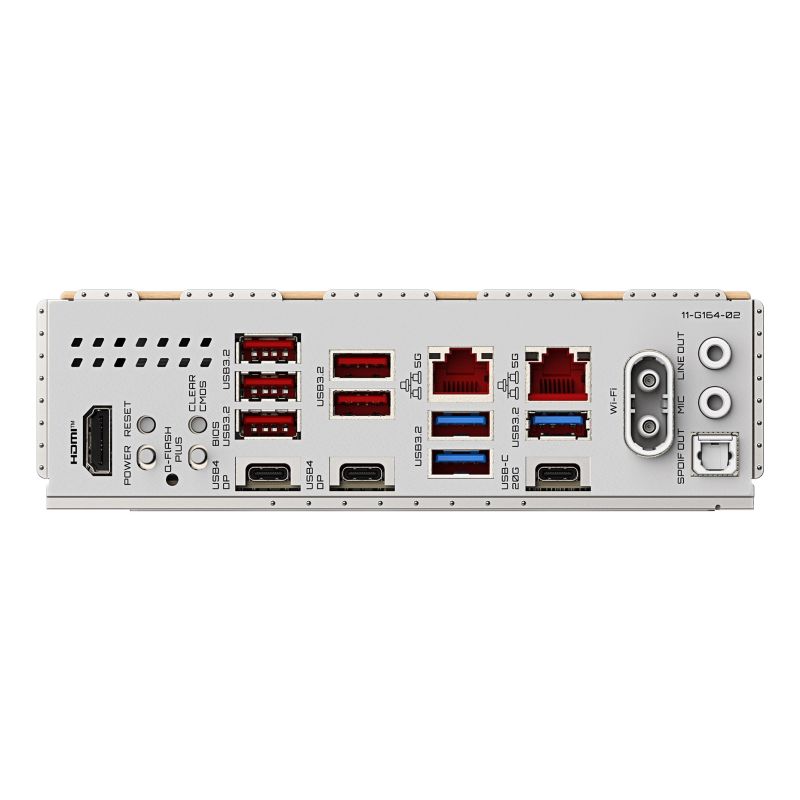

- Rear Panel I/O Ports
- Microphone: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Headphone outputs: 1
- Number of Ethernet LAN ports (RJ-45): 2
- Number of USB4 Gen 2x2 ports: 2
- Number of HDMI ports: 1
- HDMI version: 2.1
- Digital audio input: 1
- WiFi-AP Antenna Jack Plug: 2
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 5
- S/PDIF Output Port: Yes
- Expansion slots
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 2580
- Number of M.2 (M) slots: 4
- PCI Express x16 (Gen 5.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- 3. M.2 highest generation PCI Express: 4.0
- 3. largest M.2 key size: 22110
- 4. largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 5.0
- 4. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 22110
- Battery
- Lithium battery weight: 0.07 g
- Battery capacity: 220 mAh
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Number of battery compartments: 1
- Other functions
- Product weight: 3.17 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
