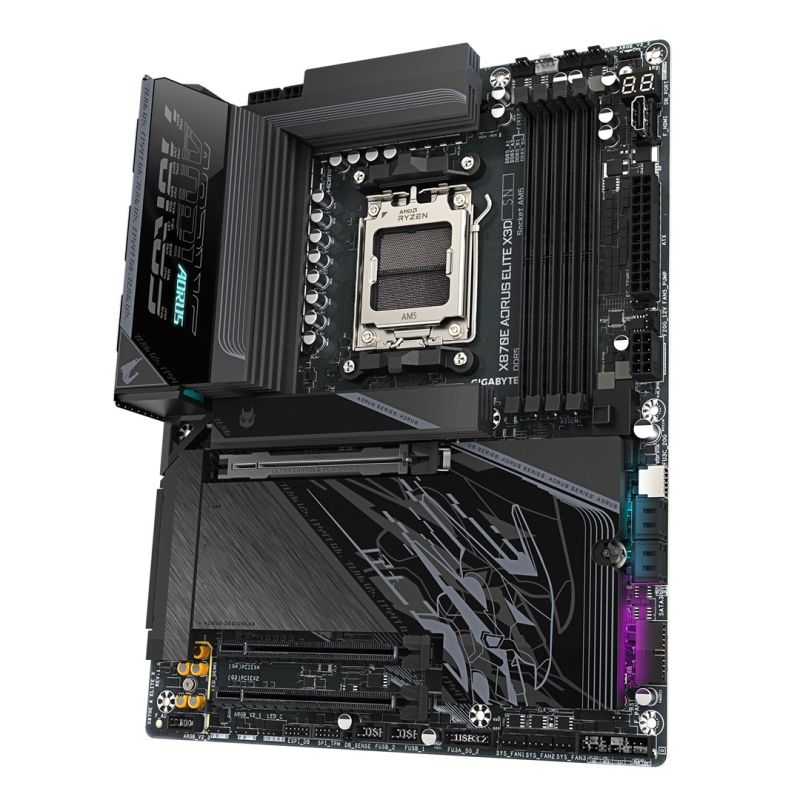

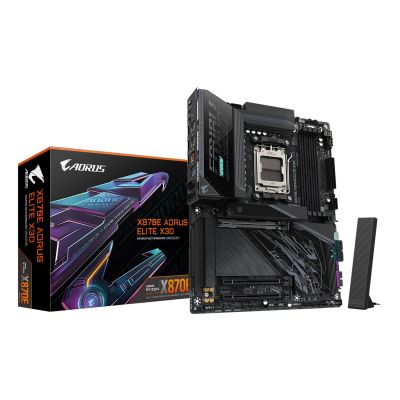

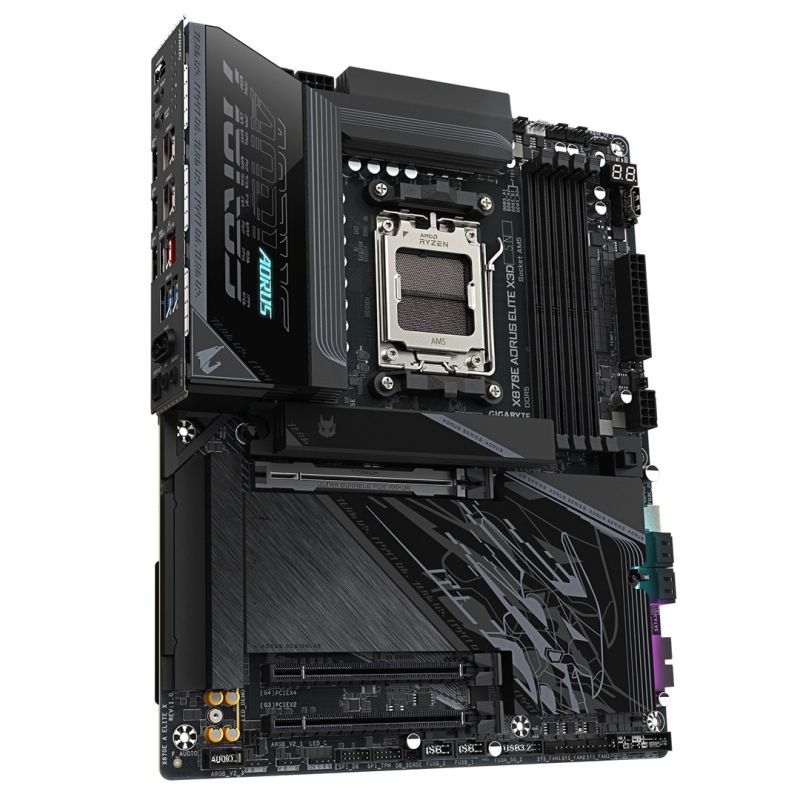

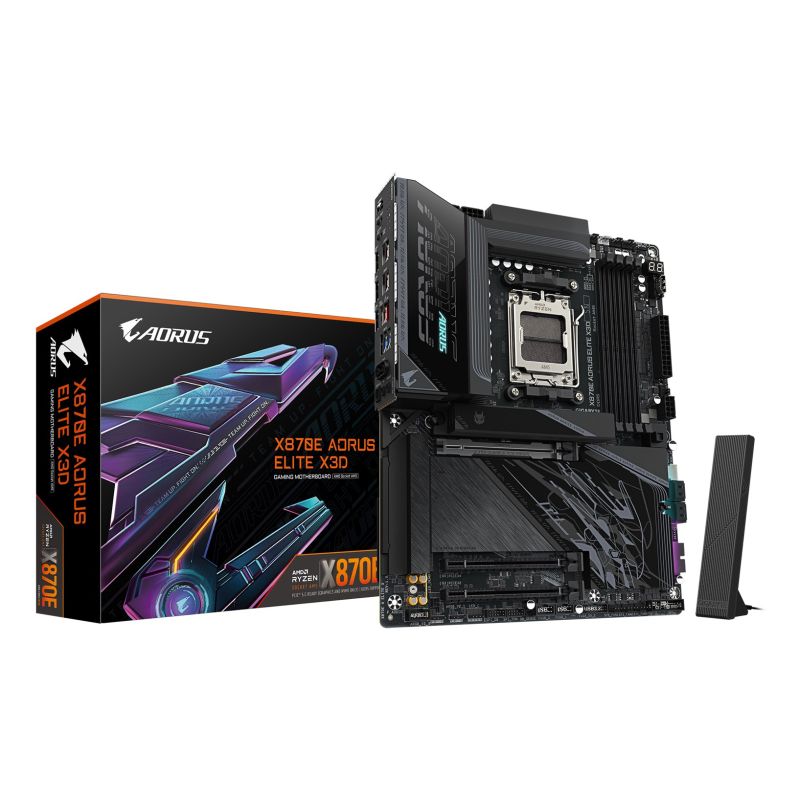

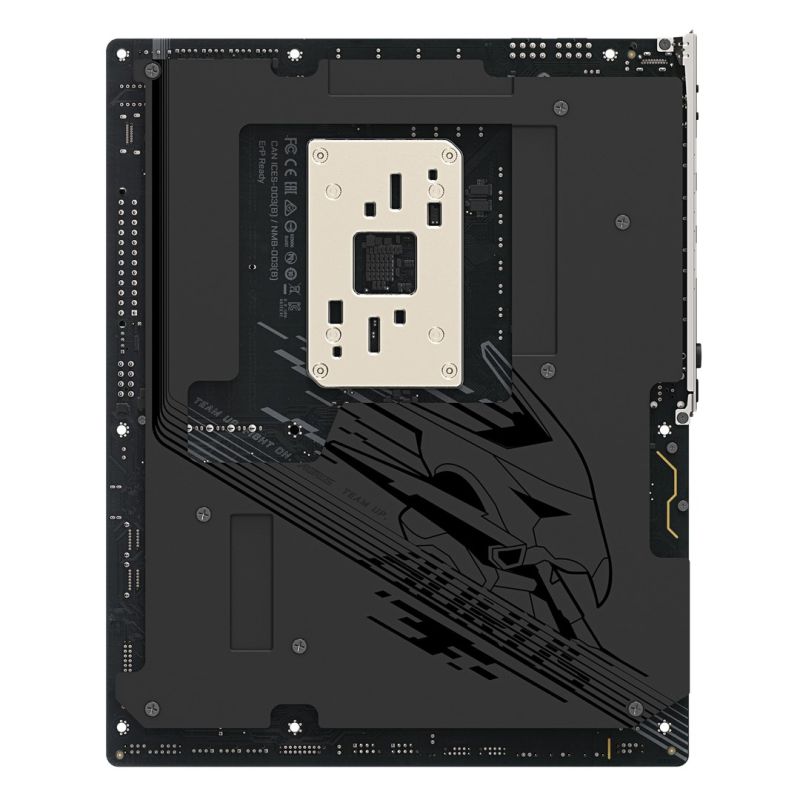

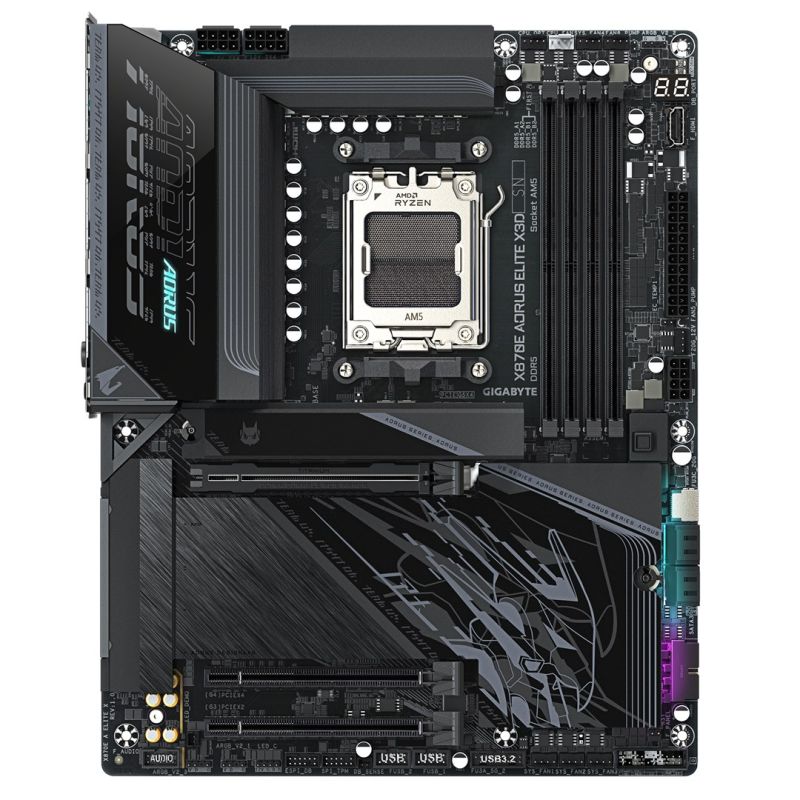

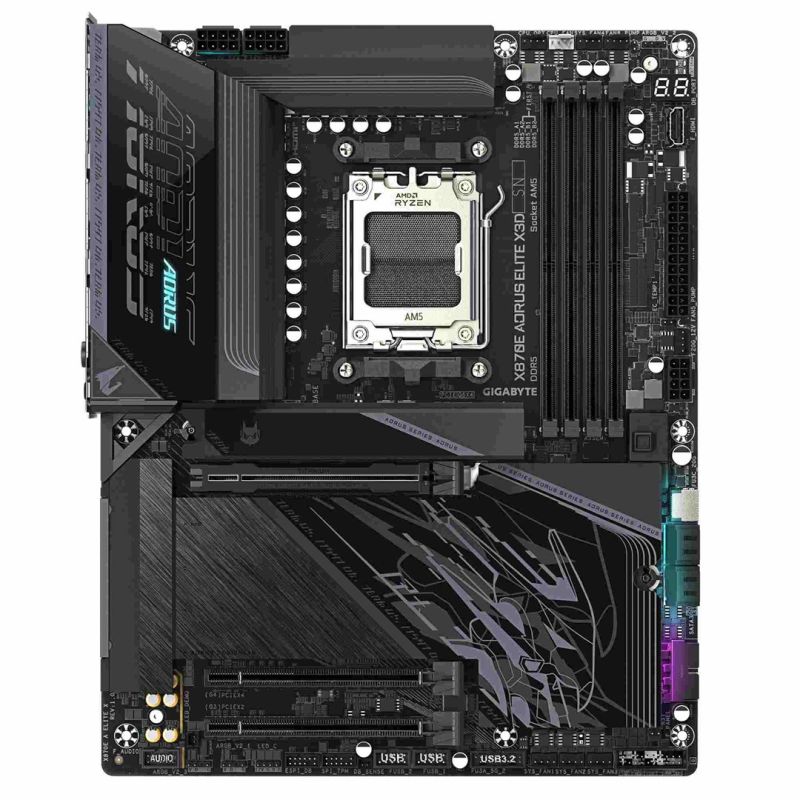

GIGABYTE X870E AORUS ELITE X3D AMD X870E Socket AM5 ATX
GIGABYTE X870E AORUS ELITE X3D AMD X870E Socket AM5 ATX
GIGABYTE X870E AORUS ELITE X3D AMD X870E Socket AM5 ATX
PRICE:
543,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Graphics
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2304 px
- HDCP: Yes
- DirectX Version: 12.0
- Memory
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Memory Channel Support: Dual Channel
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slot type: DIMM
- Supported memory clock speeds
- 5600 MHz
- 6400 MHz
- 7800
- 6200 MHz
- 6600
- 5200 MHz
- 4800 MHz
- 7000
- 9000
- 8000 MHz
- 8400
- 6000 MHz
- 8200
- 6800 MHz
- 8800
- 7200
- 7600
- 8600
- ECC Compatibility: Non-ECC
- Maximum internal memory per slot: 64 GB
- Supported memory clock speed (max): 9000 MHz
- Characteristics
- Power supply type: ATX
- Audio output channels: 7.1 ch.
- Supported Windows operating systems: Windows 11 x64
- Audio chip: Realtek ALC1220-VB
- Chipset Board Family: AMD
- Monitoring computer status
- Tension
- Fan
- Processor
- Water cooling
- Temperature
- Product color: Black
- Cooling type: Passive
- Intended use: PC
- Motherboard Layout: AMD X870E
- Motherboard format: ATX
- Weight and dimensions
- Product width: 305 mm
- Product depth: 244 mm
- Product height: 35 mm
- Internal I/O
- CPU fan connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Front panel audio connector: Yes
- Front panel connector: Yes
- Number of case fan connectors: 6
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 2
- EPS power supply connector (8-pin): Yes
- TPM Connector: Yes
- ATX power socket (24-pin): Yes
- RGB LED: Yes
- Number of water pump connections: 3
- Number of CPU fan connectors: 2
- Number of RGB LED connectors: 4
- Number of EPS power connectors (8-pin): 2
- USB 3.2 Gen 2x2 ports: 1
- Number of temperature sensor headers: 2
- Number of noise detection headers: 1
- Network
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- 802.11b
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- Wi-Fi 6E (802.11ax)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Ethernet network interface type
- 2.5 Gigabit Ethernet
- Gigabit Ethernet
- 5 Gigabit Ethernet
- Fast Ethernet
- WLAN controller model: Qualcomm QCNCM865
- Bluetooth version: 5.4
- Wi-Fi: Yes
- Wired LAN: Yes
- LAN controller: Realtek RTL8126
- Bluetooth: Yes
- BIOS
- ACPI version: 5.0
- BIOS Type: UEFI AMI
- Clear CMOS Button: Yes
- BIOS memory size: 512 Mbit
- Clear CMOS Jumper: Yes
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Weight with packaging: 3.41 kg
- Package width: 345 mm
- Package height: 80 mm
- Package depth: 294 mm
- Package contents
- Batteries included: Yes
- Screws Included: Yes
- Antenna Included: Yes
- Memory drivers
- RAID levels
- 1
- 0
- 5
- 10
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- RAID Service: Yes
- Number of supported storage drive sizes: 8
- Supported drive types: HDD & SSD
- Number of supported HDDs: 4
- RAID levels

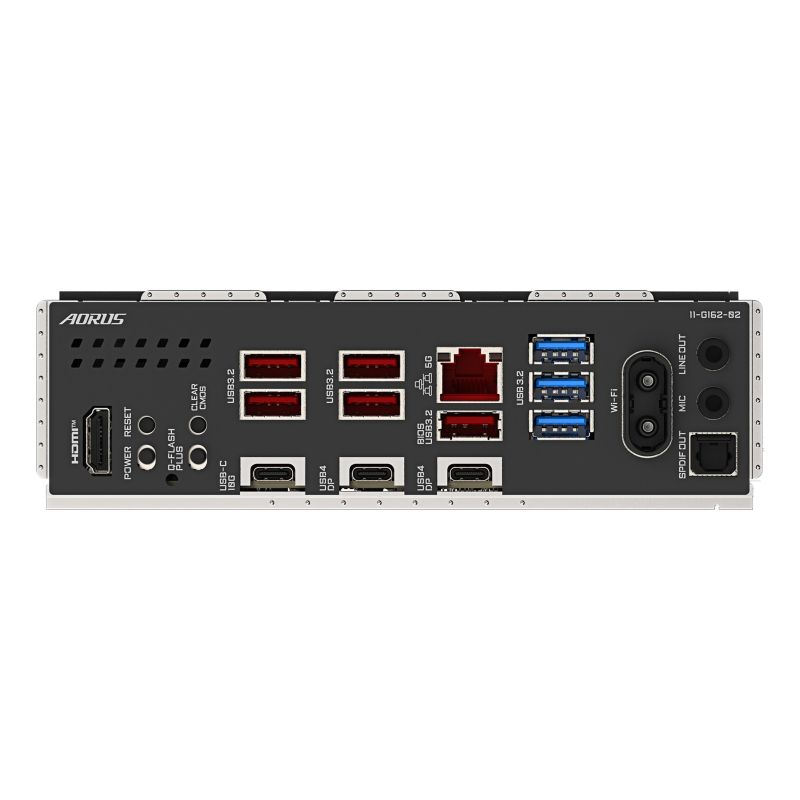

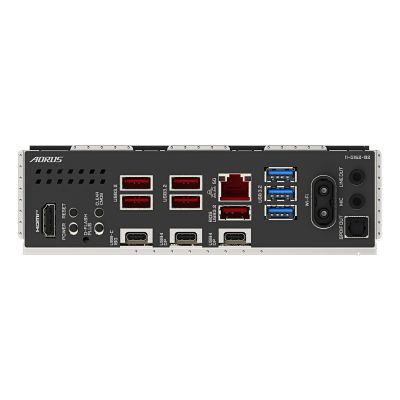

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 5
- DisplayPort version: 1.4
- Number of HDMI ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- HDMI version: 2.1
- Digital audio input: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- WiFi-AP Antenna Jack Plug: 2
- S/PDIF Output Port: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Line Input: Yes
- Headphone outputs: 1
- Number of USB4 Gen 2x2 ports: 2
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 4
- PCI Express x16 (Gen 4.x) slots: 1
- 2. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 25110
- 2nd largest M.2 key size: 22110
- PCI Express x16 (Gen 5.x) slots: 1
- 1. M.2 highest generation PCI Express: 5.0
- 3. M.2 highest generation PCI Express: 4.0
- 4. largest M.2 key size: 22110
- 4. M.2 highest generation PCI Express: 4.0
- 3. largest M.2 key size: 22110
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Supported battery type: CR2032
- Number of battery compartments: 1
- Battery weight: 3 g
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 2.98 kg
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
