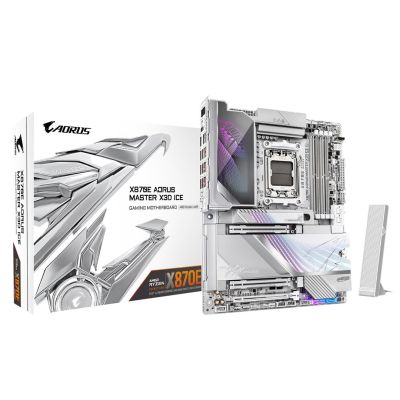

GIGABYTE X870E AORUS MASTER X3D ICE AMD X870E Socket AM5 ATX
GIGABYTE X870E AORUS MASTER X3D ICE AMD X870E Socket AM5 ATX
GIGABYTE X870E AORUS MASTER X3D ICE AMD X870E Socket AM5 ATX
PRICE:
839,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 7000 Series
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- Processor socket: Socket AM5
- Supported CPU sockets: Socket AM5
- Graphics
- DirectX Version: 12.0
- Maximum resolution: 4096 x 2304 px
- HDCP: Yes
- Parallel Processing Support: Not Supported
- Memory
- Supported memory types: DDR5-SDRAM
- Supported memory clock speeds
- 5200 MHz
- 6200 MHz
- 8600
- 8400
- 8000 MHz
- 7800
- 9000
- 6600
- 6800 MHz
- 8800
- 6000 MHz
- 8200
- 5600 MHz
- 6400 MHz
- 4800 MHz
- 7000
- 7200
- 7600
- Maximum memory capacity: 256 GB
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Number of memory slots: 4
- Unbuffered memory: Yes
- ECC Compatibility: ECC or Non-ECC
- Maximum internal memory per slot: 64 GB
- Supported memory clock speed (max): 9000 MHz
- Characteristics
- Product color: White
- Supported Windows operating systems: Windows 11 x64
- Motherboard Layout: AMD X870E
- Audio chip: Realtek ALC1220-VB/ESS 9118
- Monitoring computer status
- Fan
- Processor
- Temperature
- Tension
- Water cooling
- Intended use: PC
- Chipset Board Family: AMD
- Power supply type: ATX
- Cooling type: Passive
- Audio output channels: 7.1 ch.
- Motherboard format: ATX
- Weight and dimensions
- Product depth: 244 mm
- Product height: 35 mm
- Product width: 305 mm
- Internal I/O
- RGB LED: Yes
- TPM Connector: Yes
- Number of CPU fan connectors: 2
- USB 3.2 Gen 2x2 ports: 1
- Front panel connector: Yes
- Number of noise detection headers: 1
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of SATA III connectors: 2
- Number of case fan connectors: 6
- ATX power socket (24-pin): Yes
- Housing intrusion sensor connector: Yes
- EPS power supply connector (8-pin): Yes
- Number of USB 2.0 ports: 2
- CPU fan connector: Yes
- Number of temperature sensor headers: 2
- Number of RGB LED connectors: 5
- Number of EPS power connectors (8-pin): 3
- Number of water pump connections: 2
- Network
- LAN controller
- Realtek RTL8126
- Realtek RTL8127
- Wi-Fi: Yes
- Bluetooth: Yes
- WLAN controller model: MediaTek MT7927
- Ethernet network interface type
- 5 Gigabit Ethernet
- Gigabit Ethernet
- 10 Gigabit Ethernet
- 2.5 Gigabit Ethernet
- Fast Ethernet
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards
- 802.11b
- Wi-Fi 6E (802.11ax)
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Bluetooth version: 5.4
- Wired LAN: Yes
- LAN controller
- BIOS
- System BIOS (SMBIOS) version: 2.7
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Jumper: Yes
- Clear CMOS Button: Yes
- ACPI version: 5.0
- BIOS memory size: 512 Mbit
- BIOS Type: UEFI AMI
- Packaging data
- Package depth: 310 mm
- Package width: 340 mm
- Package height: 92 mm
- Weight with packaging: 4.38 kg
- Package contents
- Batteries included: Yes
- Antenna Included: Yes
- Screws Included: Yes
- Memory drivers
- Number of supported HDDs: 2
- Number of supported storage drive sizes: 7
- RAID levels
- 1
- 0
- 10
- 5
- Supported drive types: HDD & SSD
- RAID Service: Yes
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III

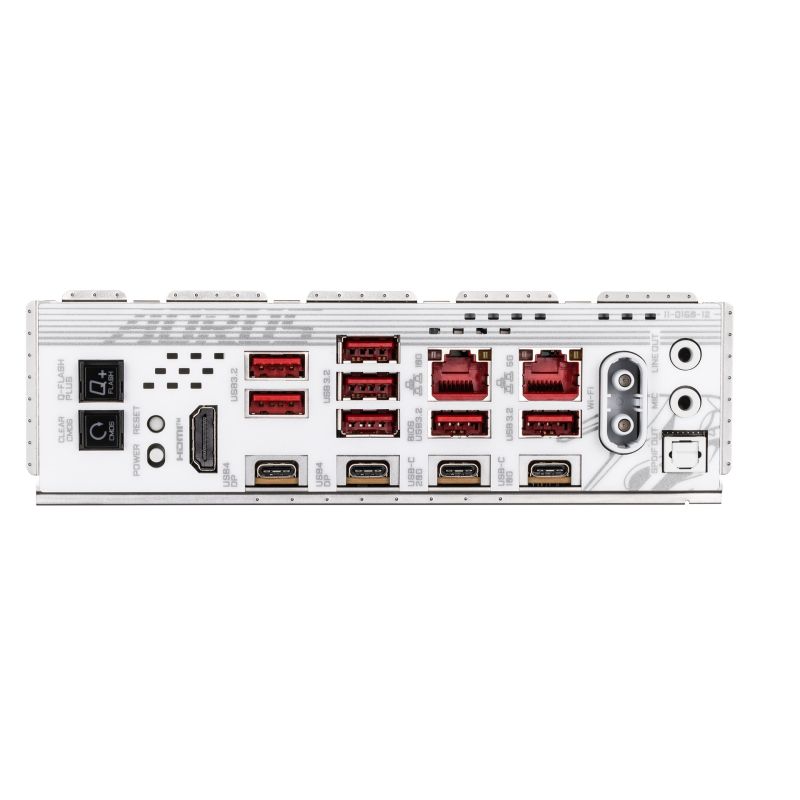

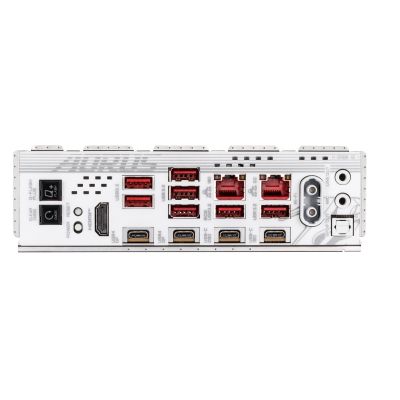

- Rear Panel I/O Ports
- Number of HDMI ports: 1
- HDMI version: 2.1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Line Input: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 7
- Headphone outputs: 1
- WiFi-AP Antenna Jack Plug: 2
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Number of USB4 Gen 2x2 ports: 2
- Digital audio input: 1
- Number of Ethernet LAN ports (RJ-45): 2
- DisplayPort version: 1.4
- S/PDIF Output Port: Yes
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- 5. largest M.2 key size: 2280
- 4. largest M.2 key size: 2280
- 5. M.2 highest generation PCI Express: 4.0
- Number of M.2 (M) slots: 5
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 2580
- 2nd largest M.2 key size: 2280
- 3. M.2 highest generation PCI Express: 4.0
- 4. M.2 highest generation PCI Express: 4.0
- 2. M.2 highest generation PCI Express: 5.0
- 3. largest M.2 key size: 2280
- Battery
- Number of battery compartments: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Lithium battery weight: 0.07 g
- Supported battery type: CR2032
- Battery weight: 3 g
- Other functions
- Product weight: 3.82 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: Taiwan
| Name | Details |
|---|---|
| Producer | Gigabyte |
