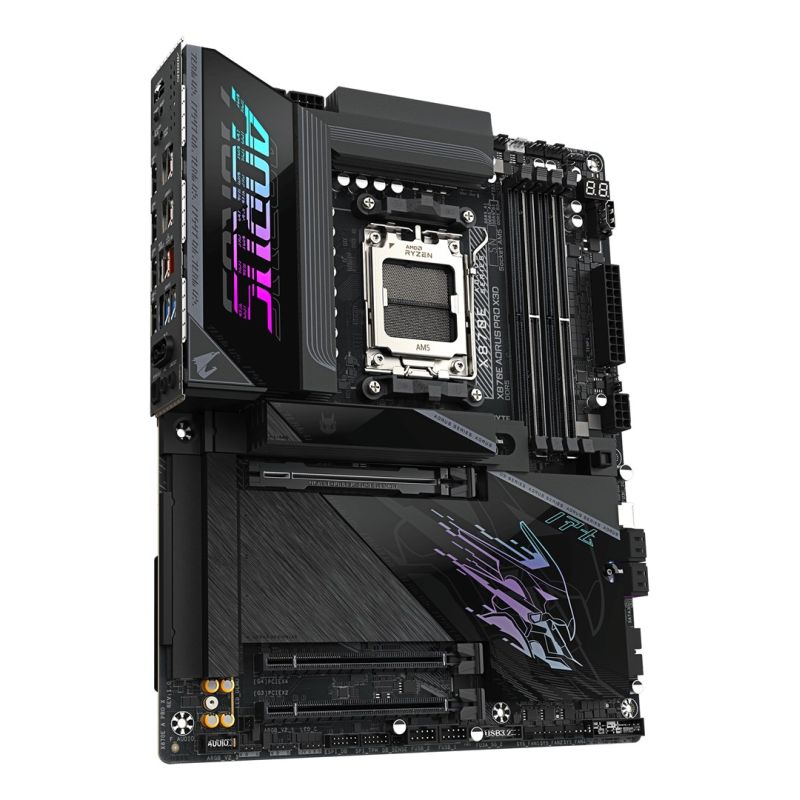

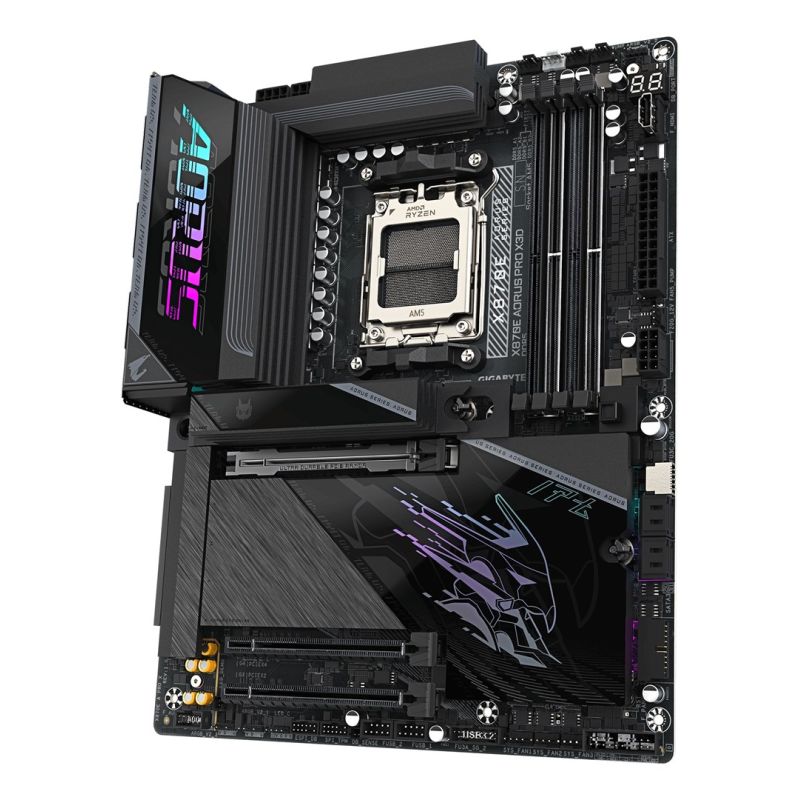

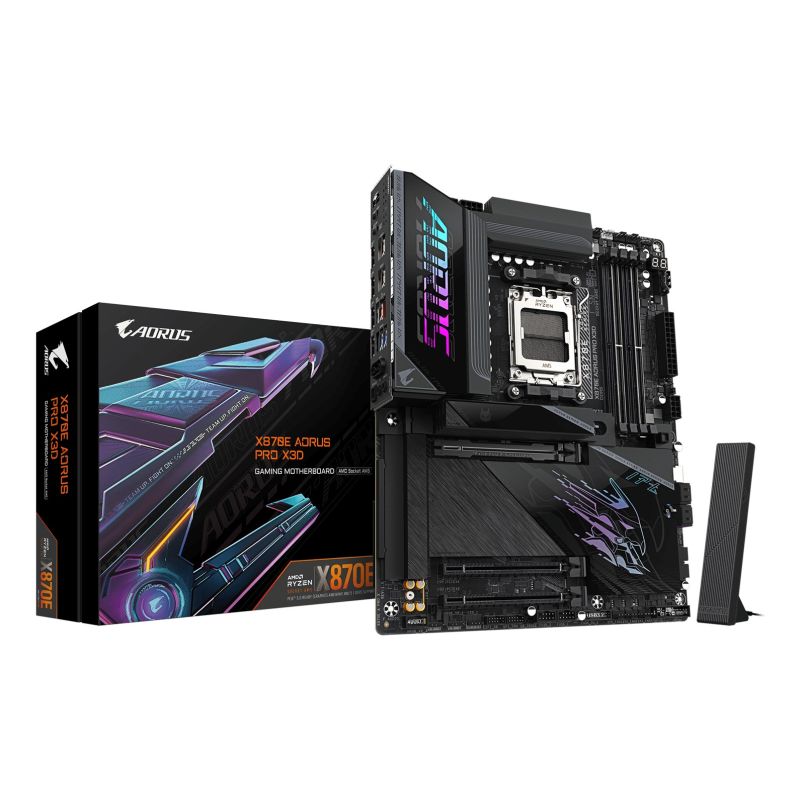

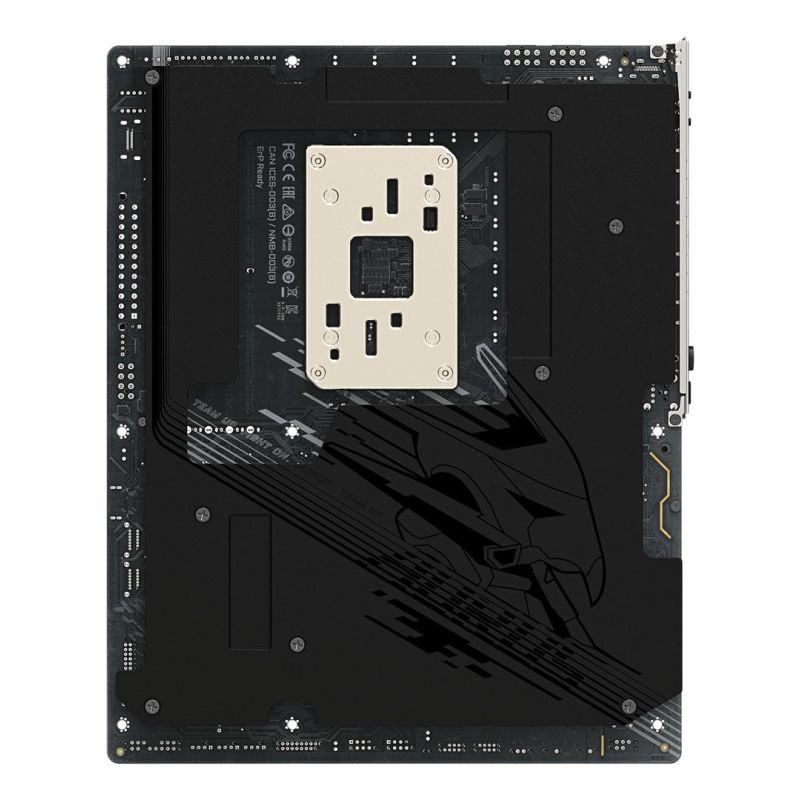

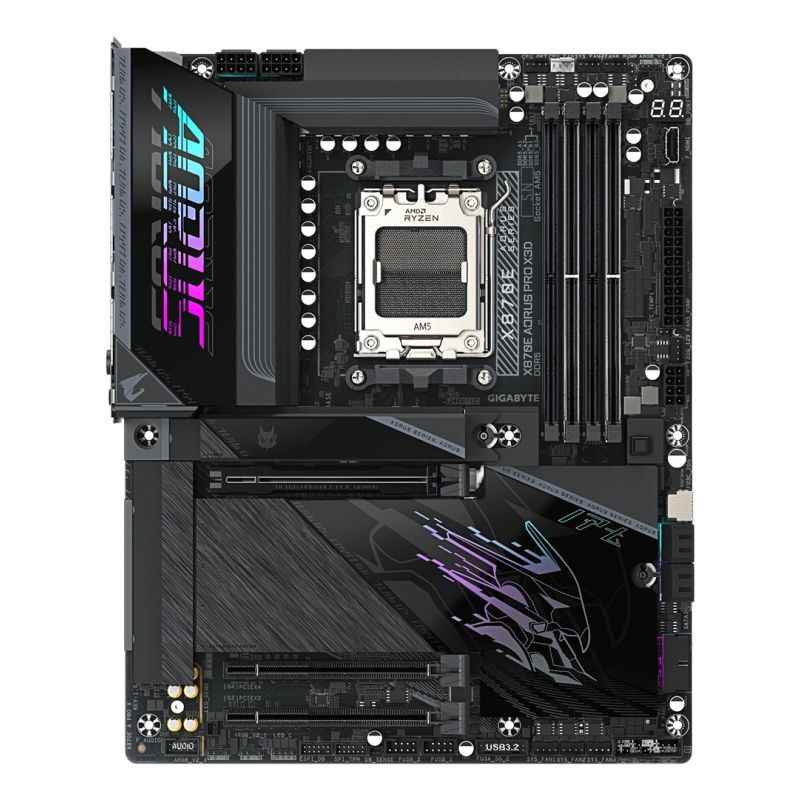

GIGABYTE X870E AORUS PRO X3D AMD X870E Socket AM5 ATX
GIGABYTE X870E AORUS PRO X3D AMD X870E Socket AM5 ATX
GIGABYTE X870E AORUS PRO X3D AMD X870E Socket AM5 ATX
PRICE:
639,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Graphics
- Maximum resolution: 4096 x 2304 px
- DirectX Version: 12.0
- HDCP: Yes
- HDCP version: 2.3
- Parallel Processing Support: Not Supported
- Memory
- Unbuffered memory: Yes
- Supported memory clock speeds
- 8400
- 7200
- 5200 MHz
- 6600
- 6800
- 8800
- 4800 MHz
- 7000
- 6200 MHz
- 7800
- 8600
- 5600 MHz
- 6400 MHz
- 9000
- 6000 MHz
- 8200
- 8000 MHz
- 7600
- Maximum memory capacity: 256 GB
- Maximum internal memory per slot: 64 GB
- Supported memory clock speed (max): 9000 MHz
- ECC Compatibility: Non-ECC
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Characteristics
- Monitoring computer status
- Temperature
- Fan
- Processor
- Water cooling
- Tension
- Audio chip: Realtek ALC1220-VB
- Chipset Board Family: AMD
- Product color: Black
- Power supply type: ATX
- Audio output channels: 7.1 ch.
- Motherboard Layout: AMD X870E
- Motherboard format: ATX
- Supported Windows operating systems: Windows 11 x64
- Intended use: PC
- Cooling type: Passive
- Monitoring computer status
- Weight and dimensions
- Product depth: 244 mm
- Product height: 35 mm
- Product width: 305 mm
- Internal I/O
- Number of SATA III connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of USB 2.0 ports: 2
- Number of noise detection headers: 1
- Number of temperature sensor headers: 2
- Front panel connector: Yes
- USB 3.2 Gen 2x2 ports: 1
- Number of CPU fan connectors: 2
- EPS power supply connector (8-pin): Yes
- Number of RGB LED connectors: 4
- Number of water pump connections: 3
- Number of EPS power connectors (8-pin): 2
- TPM Connector: Yes
- RGB LED: Yes
- Front panel audio connector: Yes
- ATX power socket (24-pin): Yes
- CPU fan connector: Yes
- Number of case fan connectors: 6
- Network
- LAN controller: Realtek RTL8126
- Bluetooth: Yes
- WLAN controller model: Qualcomm QCNCM865
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Ethernet network interface type
- Fast Ethernet
- Gigabit Ethernet
- 5 Gigabit Ethernet
- 2.5 Gigabit Ethernet
- Wi-Fi standards
- 802.11g
- 802.11a
- Wi-Fi 6E (802.11ax)
- Wi-Fi 5 (802.11ac)
- Wi-Fi 4 (802.11n)
- 802.11b
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wired LAN: Yes
- Bluetooth version: 5.4
- Wi-Fi: Yes
- BIOS
- ACPI version: 5.0
- Clear CMOS Button: Yes
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Jumper: Yes
- System BIOS (SMBIOS) version: 2.7
- BIOS memory size: 512 Mbit
- BIOS Type: UEFI AMI
- Packaging data
- Package depth: 294 mm
- Package width: 345 mm
- Package height: 80 mm
- Weight with packaging: 4.25 kg
- Package contents
- Screws Included: Yes

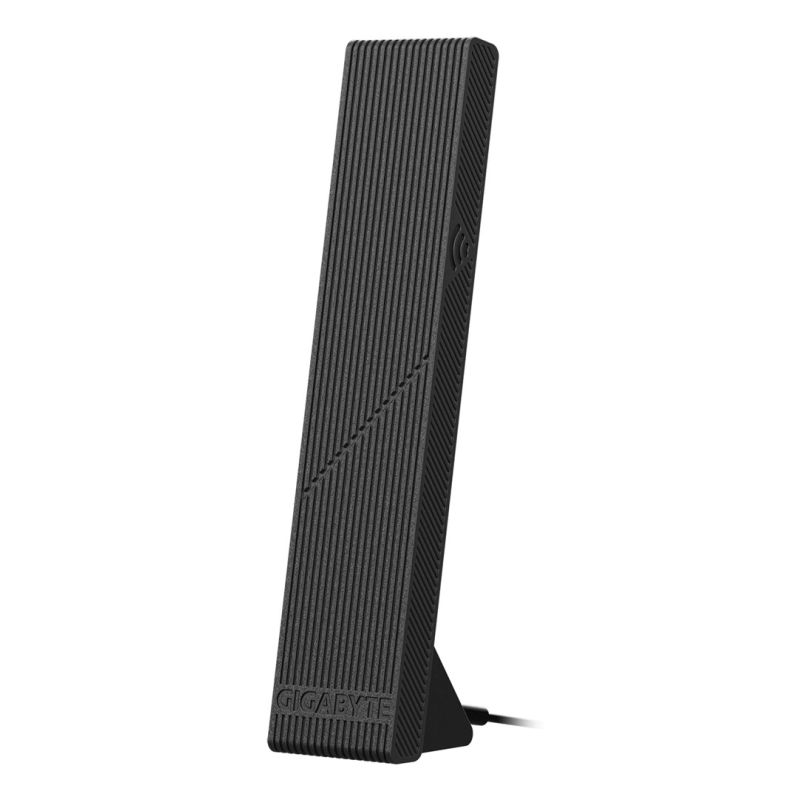

- Antenna Included: Yes
- Batteries included: Yes
- Memory drivers
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- RAID Service: Yes
- Supported drive types: HDD & SSD
- Number of supported storage drive sizes: 8
- Number of supported HDDs: 4
- RAID levels
- 0
- 10
- 5
- 1

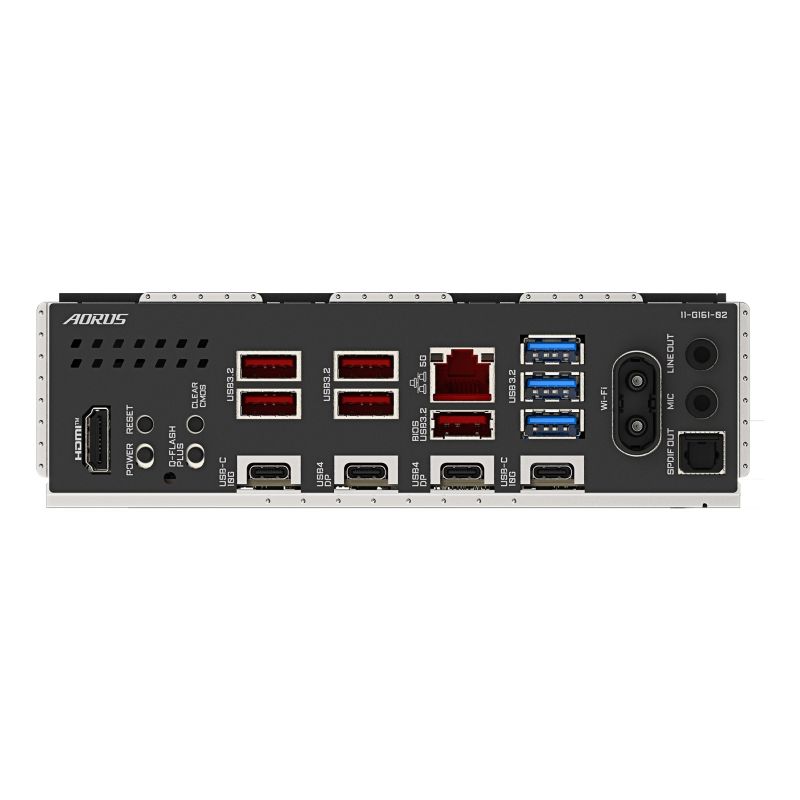

- Rear Panel I/O Ports
- DisplayPort version: 1.4
- S/PDIF Output Port: Yes
- Number of USB4 Gen 2x2 ports: 2
- Line Input: Yes
- HDMI version: 2.1
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 5
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 2
- Headphone outputs: 1
- WiFi-AP Antenna Jack Plug: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Digital audio input: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Expansion slots
- 4. largest M.2 key size: 22110
- 3. M.2 highest generation PCI Express: 4.0
- PCI Express x16 (Gen 5.x) slots: 1
- 4. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 22110
- 1. largest M.2 key size: 25110
- 1. M.2 highest generation PCI Express: 5.0
- 2. M.2 highest generation PCI Express: 5.0
- 3. largest M.2 key size: 22110
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 4
- PCI Express x16 (Gen 3.x) slots: 1
- Battery
- Lithium battery weight: 0.07 g
- Battery capacity: 220 mAh
- Number of battery compartments: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Supported battery type: CR2032
- Battery weight: 3 g
- Other functions
- Product weight: 3.73 kg
- Logistics data
- Country of origin: Taiwan
- Products per shipping crate (inner): 1 pc.
