GIGABYTE X870E AORUS PRO X3D ICE AMD X870E Socket AM5 ATX
GIGABYTE X870E AORUS PRO X3D ICE AMD X870E Socket AM5 ATX
GIGABYTE X870E AORUS PRO X3D ICE AMD X870E Socket AM5 ATX
PRICE:
614,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- Supported CPU sockets: Socket AM5
- Graphics
- DirectX Version: 12.0
- HDCP: Yes
- Maximum resolution: 4096 x 2304 px
- Parallel Processing Support: Not Supported
- Memory
- Number of memory slots: 4
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Supported memory clock speeds
- 4800 MHz
- 5200 MHz
- 5600 MHz
- 7200
- 9000
- 8600
- 7000
- 8000 MHz
- 6400 MHz
- 6200 MHz
- 7600
- 7800
- 6000 MHz
- 8200
- 8400
- 6600
- 6800
- 8800
- Supported memory types: DDR5-SDRAM
- ECC Compatibility: Non-ECC
- Maximum internal memory per slot: 64 GB
- Maximum memory capacity: 256 GB
- Unbuffered memory: Yes
- Supported memory clock speed (max): 9000 MHz
- Characteristics
- Chipset Board Family: AMD
- Cooling type: Passive
- Audio output channels: 7.1 ch.
- Intended use: PC
- Audio chip: Realtek ALC1220-VB
- Monitoring computer status
- Processor
- Water cooling
- Tension
- Fan
- Temperature
- Product color: White
- Motherboard format: ATX
- Supported Windows operating systems: Windows 11 x64
- Motherboard Layout: AMD X870E
- Power supply type: ATX
- Weight and dimensions
- Product width: 305 mm
- Product height: 35 mm
- Product depth: 244 mm
- Internal I/O
- RGB LED: Yes
- Number of temperature sensor headers: 2
- Number of CPU fan connectors: 2
- Number of RGB LED connectors: 4
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- Number of EPS power connectors (8-pin): 2
- Number of water pump connections: 3
- USB 3.2 Gen 2x2 ports: 1
- Number of noise detection headers: 1
- Number of SATA III connectors: 4
- EPS power supply connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of case fan connectors: 6
- TPM Connector: Yes
- Front panel audio connector: Yes
- CPU fan connector: Yes
- Number of USB 2.0 ports: 2
- Network
- Ethernet network interface type
- Fast Ethernet
- 5 Gigabit Ethernet
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- 802.11g
- 802.11a
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wi-Fi 5 (802.11ac)
- Wi-Fi 4 (802.11n)
- 802.11b
- Bluetooth version: 5.4
- Wired LAN: Yes
- Wi-Fi: Yes
- Bluetooth: Yes
- WLAN controller model: Qualcomm QCNCM865
- LAN controller: Realtek RTL8126
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Ethernet network interface type
- BIOS
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- Clear CMOS Button: Yes
- BIOS Type: UEFI AMI
- ACPI version: 5.0
- BIOS memory size: 512 Mbit
- Clear CMOS Jumper: Yes
- Packaging data
- Package width: 340 mm
- Package depth: 310 mm
- Weight with packaging: 4.3 kg
- Package height: 92 mm
- Package contents
- Antenna Included: Yes
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 8
- RAID levels
- 5
- 1
- 0
- 10
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- RAID Service: Yes
- Supported drive types: HDD & SSD

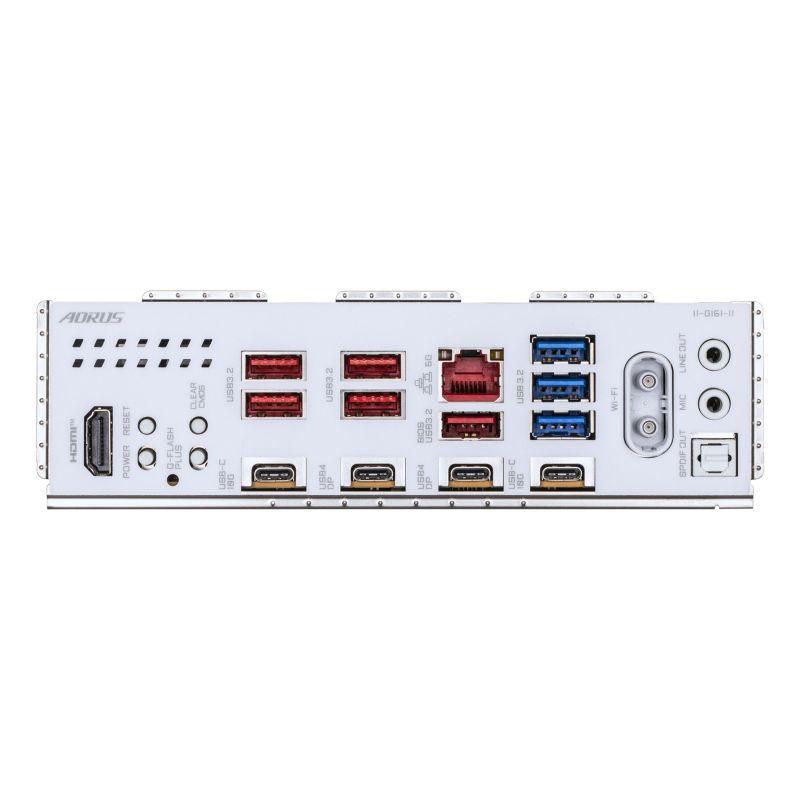

- Rear Panel I/O Ports
- Headphone outputs: 1
- Line Input: Yes
- WiFi-AP Antenna Jack Plug: 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 2
- HDMI version: 2.1
- Number of HDMI ports: 1
- Number of USB4 Gen 2x2 ports: 2
- DisplayPort version: 1.4
- Number of Ethernet LAN ports (RJ-45): 1
- S/PDIF Output Port: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 5
- Digital audio input: 1
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- 2nd largest M.2 key size: 22110
- 3. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 25110
- PCI Express x16 (Gen 5.x) slots: 1
- 2. M.2 highest generation PCI Express: 5.0
- Number of M.2 (M) slots: 4
- 3. largest M.2 key size: 22110
- 1. M.2 highest generation PCI Express: 5.0
- 4. M.2 highest generation PCI Express: 4.0
- PCI Express x16 (Gen 3.x) slots: 1
- 4. largest M.2 key size: 22110
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Supported battery type: CR2032
- Lithium battery weight: 0.07 g
- Number of battery compartments: 1
- Other functions
- Product weight: 3.74 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: Taiwan
