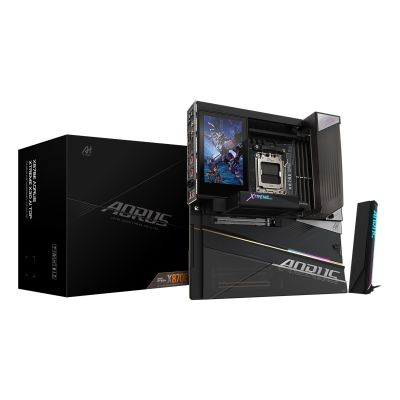

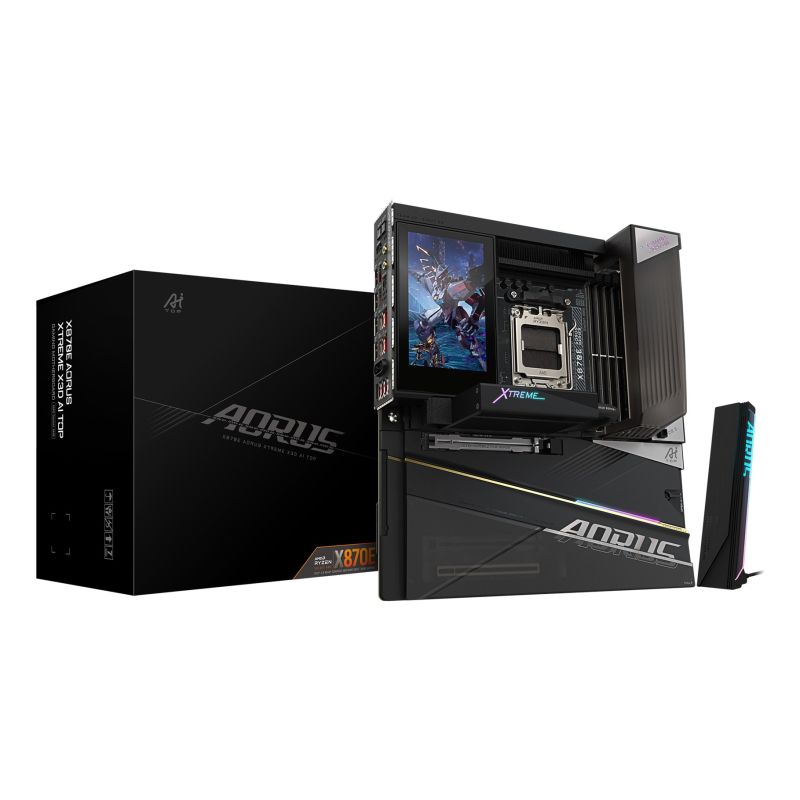

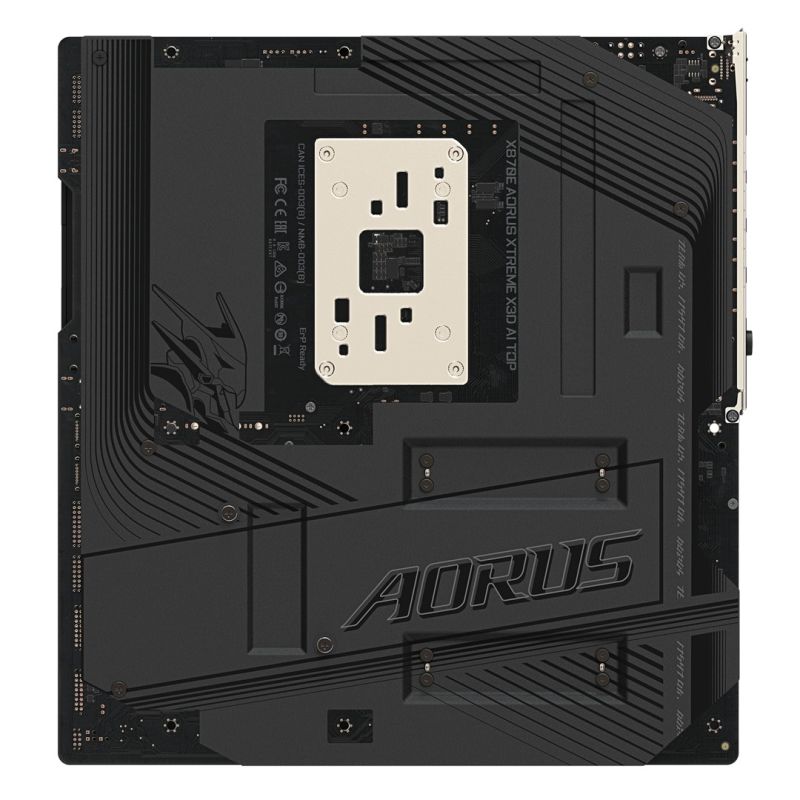

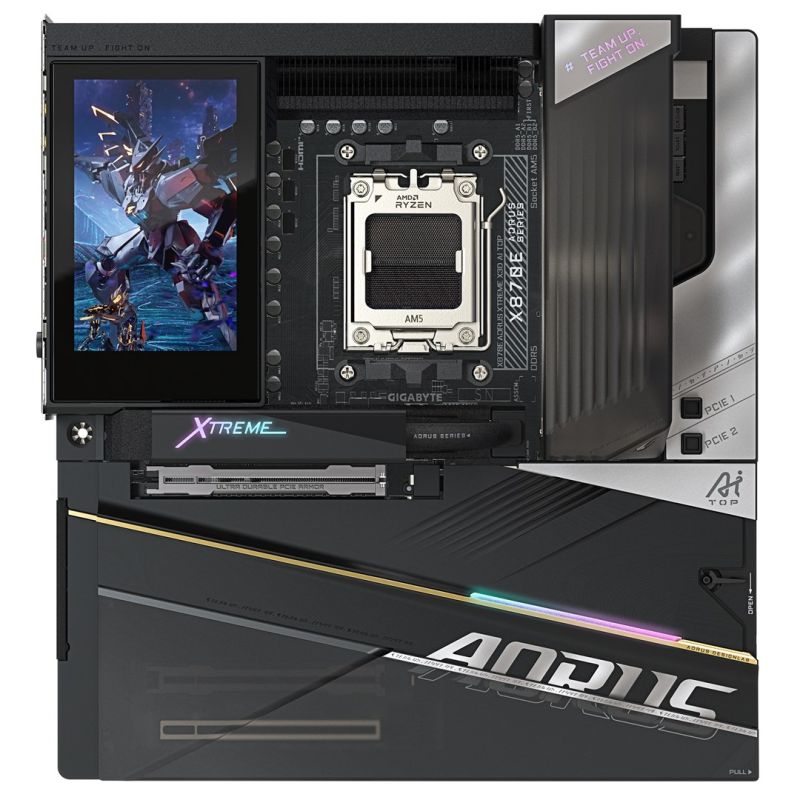

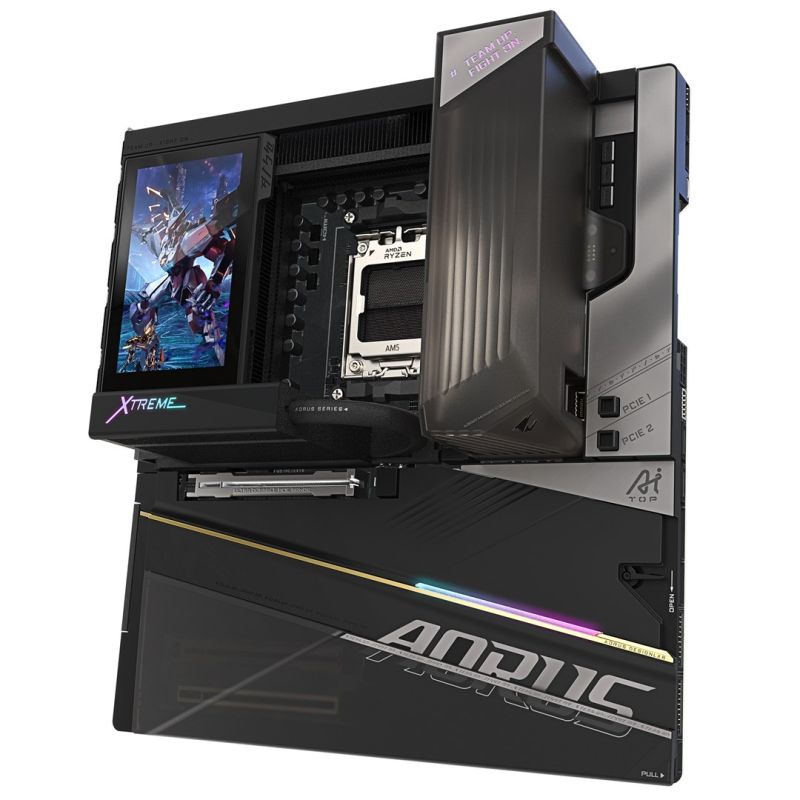

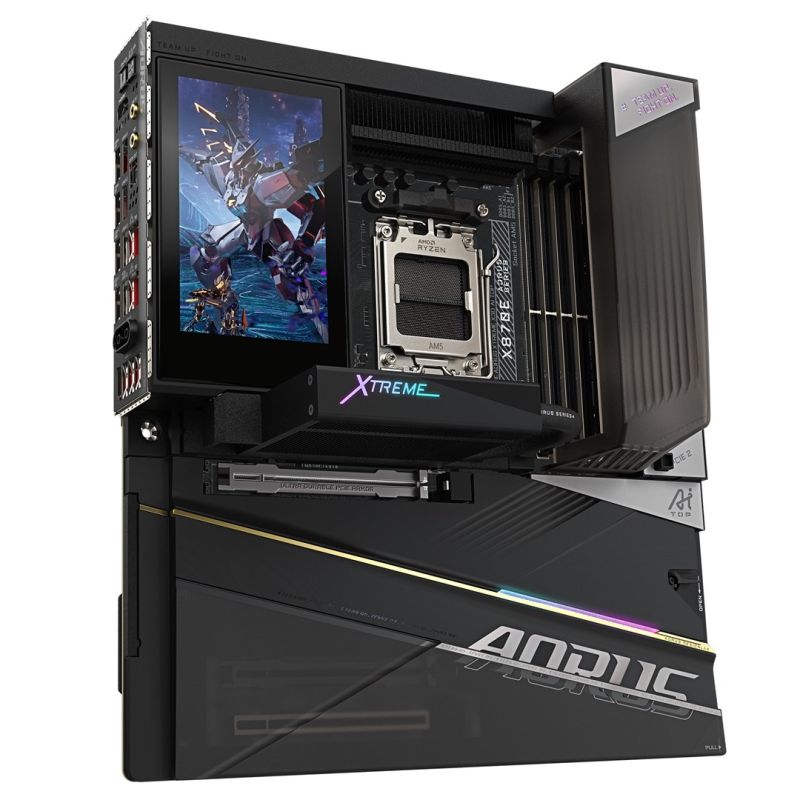

GIGABYTE X870E AORUS XTREME X3D AI TOP AMD X870E Socket AM5 Extended ATX
GIGABYTE X870E AORUS XTREME X3D AI TOP AMD X870E Socket AM5 Extended ATX
GIGABYTE X870E AORUS XTREME X3D AI TOP AMD X870E Socket AM5 Extended ATX
PRICE:
1957,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor
- AMD Ryzen 7000 Series
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Supported CPU sockets: Socket AM5
- Processor
- Graphics
- HDCP version: 2.3
- Parallel Processing Support: Not Supported
- DirectX Version: 12.0
- Maximum resolution: 4096 x 2160 px
- HDCP: Yes
- Memory
- ECC Compatibility: Non-ECC
- Maximum internal memory per slot: 64 GB
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Supported memory clock speed (max): 9000 MHz
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Supported memory clock speeds
- 6600
- 6800
- 8800
- 8400 MHz
- 8000 MHz
- 9000
- 7800
- 6000 MHz
- 5600 MHz
- 6400 MHz
- 4800 MHz
- 7000
- 7600
- 8600 MHz
- 7200 MHz
- 6200 MHz
- 5200 MHz
- 4400 MHz
- Characteristics
- Intended use: PC
- Supported Windows operating systems: Windows 11 x64
- Power supply type: ATX
- Cooling type: Passive
- Chipset Board Family: AMD
- Monitoring computer status
- Temperature
- Tension
- Fan
- Water cooling
- Motherboard Layout: AMD X870E
- Product color: Black
- Motherboard format: Extended ATX
- Audio chip: 1 ESS ES9280AC + 2 ESS ES9080
- Audio output channels: 7.1 ch.
- Weight and dimensions
- Product height: 35 mm
- Product width: 305 mm
- Product depth: 285 mm
- Internal I/O
- RGB LED: Yes
- Number of RGB LED connectors: 1
- Number of case fan connectors: 3
- Number of SATA III connectors: 2
- Number of CPU fan connectors: 2
- ATX power socket (24-pin): Yes
- Number of water pump connections: 3
- CPU fan connector: Yes
- USB 3.2 Gen 2x2 ports: 1
- EPS power supply connector (8-pin): Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Front panel connector: Yes
- Number of EPS power connectors (8-pin): 2
- Number of temperature sensor headers: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of USB 2.0 ports: 1
- Network
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- WLAN controller model: MediaTek MT7927
- Wi-Fi standards
- 802.11b
- Wi-Fi 6E (802.11ax)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wi-Fi 5 (802.11ac)
- Wi-Fi 4 (802.11n)
- 802.11g
- 802.11a
- Wired LAN: Yes
- Bluetooth version: 5.4
- Ethernet interface type: 10 Gigabit Ethernet
- Bluetooth: Yes
- LAN controller: Realtek RTL8127
- BIOS
- System BIOS (SMBIOS) version: 2.7
- Desktop Management Interface (DMI) Version: 2.7
- BIOS memory size: 512 Mbit
- ACPI version: 5.0
- Clear CMOS Button: Yes
- BIOS Type: UEFI AMI
- Packaging data
- Package height: 167 mm
- Package width: 387 mm
- Package depth: 387 mm
- Weight with packaging: 11.2 kg
- Package contents

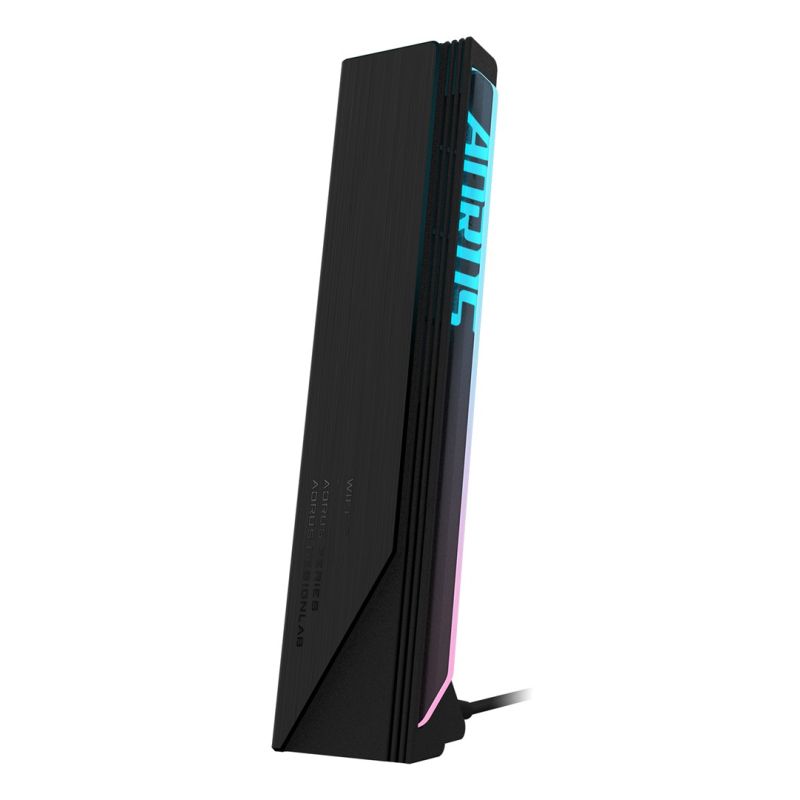

- Antenna Included: Yes
- Screws Included: Yes
- Batteries included: Yes
- Memory drivers
- RAID levels
- 0
- 5
- 10
- 1
- RAID Service: Yes
- Number of supported storage drive sizes: 7
- Number of supported HDDs: 2
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID levels

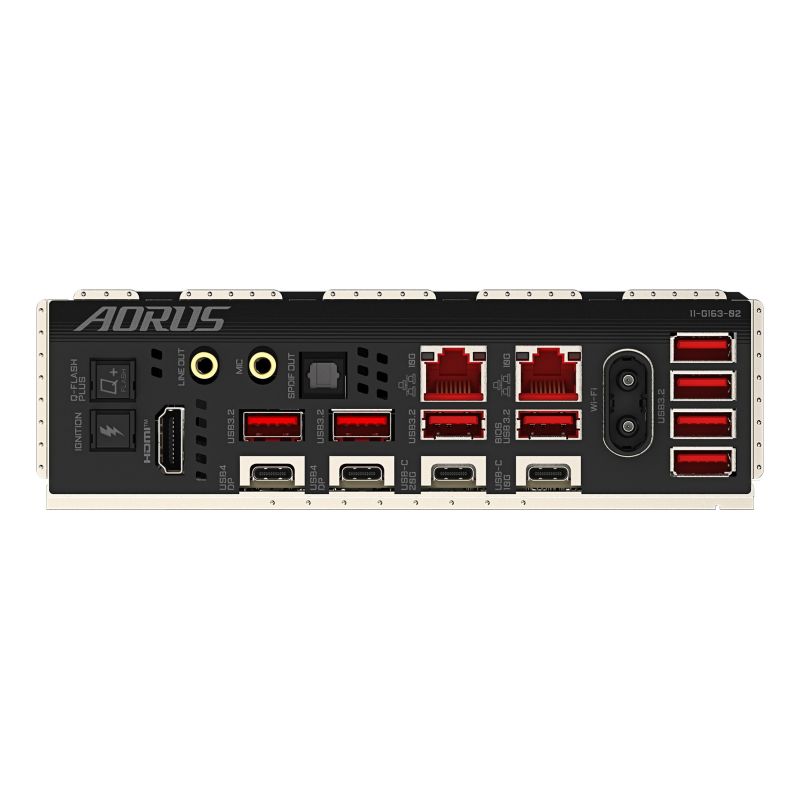

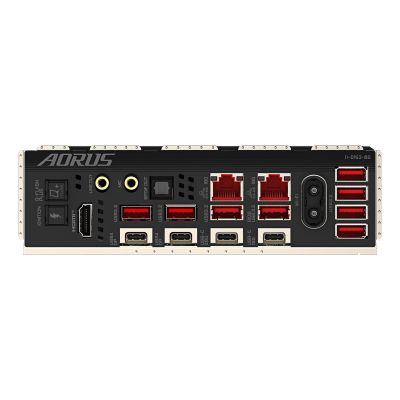

- Rear Panel I/O Ports
- WiFi-AP Antenna Jack Plug: 2
- Microphone: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 8
- Digital audio input: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Line Input: Yes
- HDMI version: 2.1
- Number of Ethernet LAN ports (RJ-45): 2
- Number of HDMI ports: 1
- Number of USB4 Gen 2x2 ports: 2
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- S/PDIF Output Port: Yes
- DisplayPort version: 1.4
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 5
- 2nd largest M.2 key size: 22110
- 1. largest M.2 key size: 2580
- 1. M.2 highest generation PCI Express: 5.0
- PCI Express x16 (Gen 5.x) slots: 2
- 2. M.2 highest generation PCI Express: 5.0
- 4. M.2 highest generation PCI Express: 4.0
- 5. largest M.2 key size: 2280
- 3. M.2 highest generation PCI Express: 4.0
- 3. largest M.2 key size: 22110
- 4. largest M.2 key size: 22110
- 5. M.2 highest generation PCI Express: 4.0
- Battery
- Battery weight: 3 g
- Lithium battery weight: 0.07 g
- Number of battery compartments: 1
- Supported battery type: CR2032
- Battery capacity: 220 mAh
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Other functions
- Product weight: 8.02 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: Taiwan
| Name | Details |
|---|---|
| Producer | Gigabyte |
