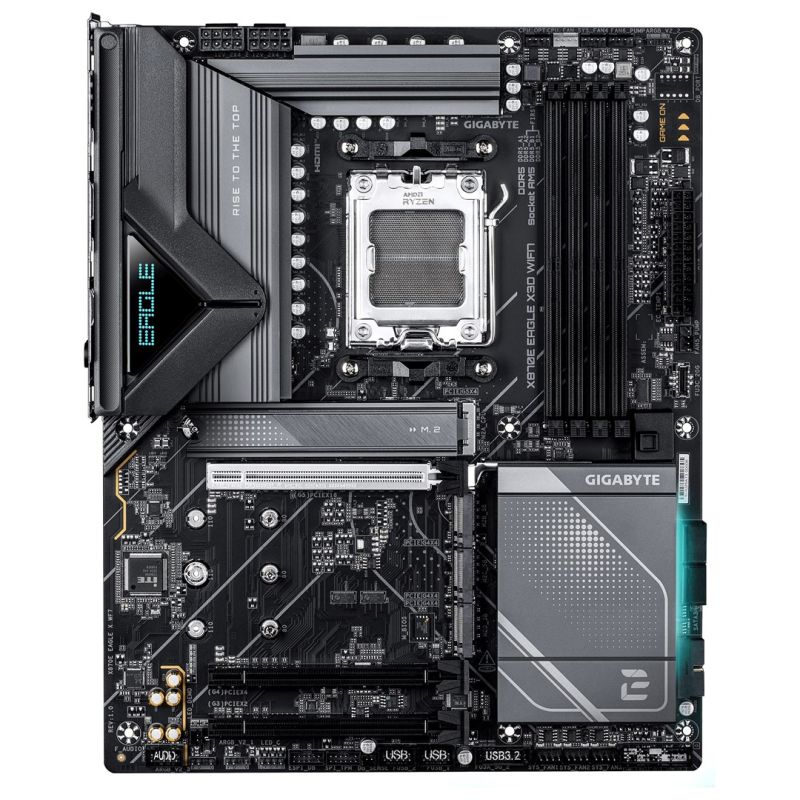

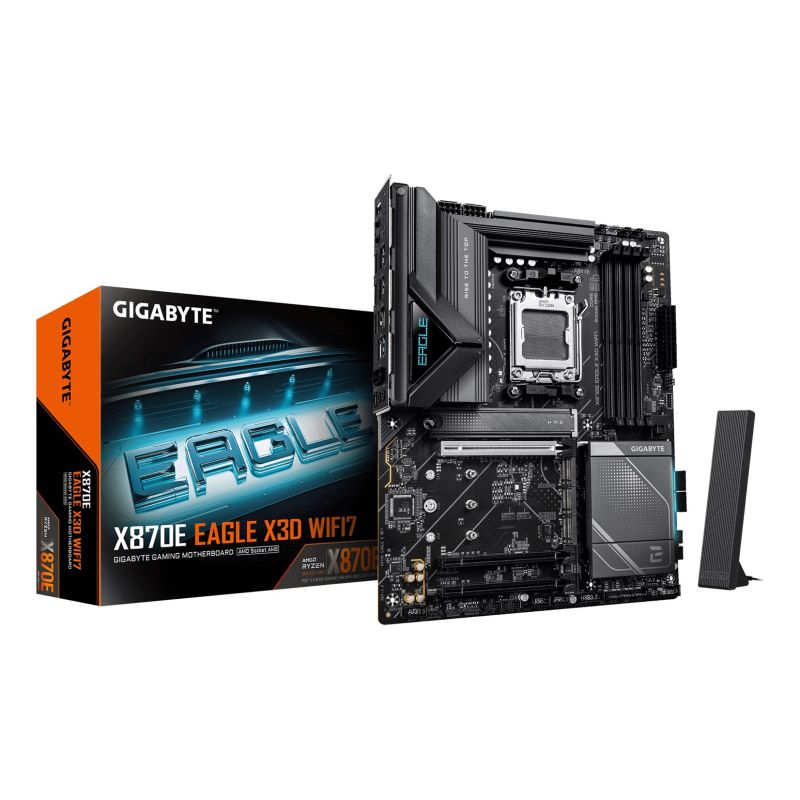

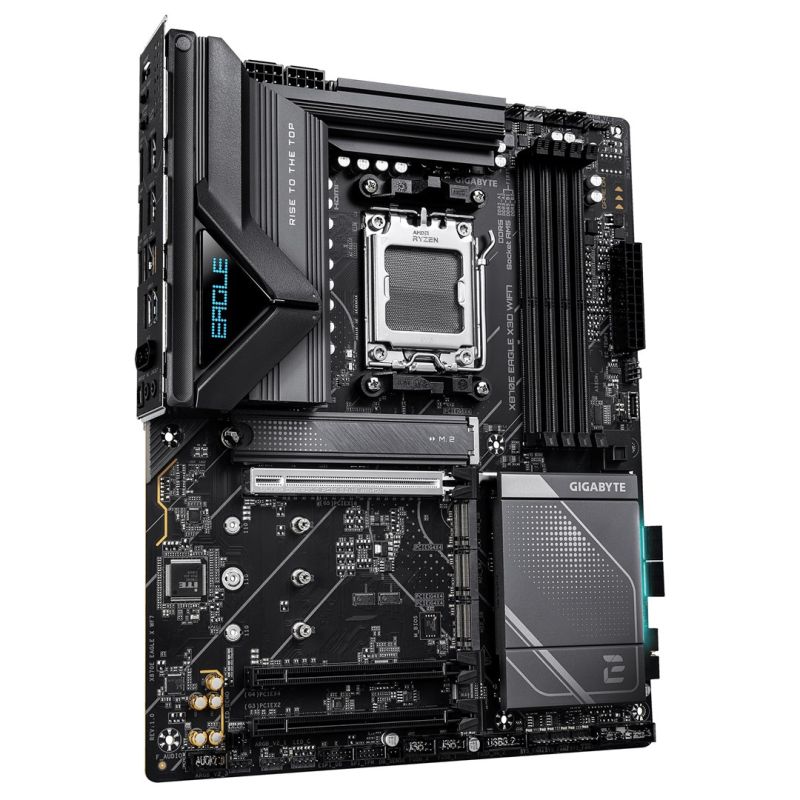

GIGABYTE X870E EAGLE X3D WIFI7 AMD X870E Socket AM5 ATX
GIGABYTE X870E EAGLE X3D WIFI7 AMD X870E Socket AM5 ATX
GIGABYTE X870E EAGLE X3D WIFI7 AMD X870E Socket AM5 ATX
PRICE:
493,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- Processor socket: Socket AM5
- Processor manufacturer: AMD
- Supported CPU sockets: Socket AM5
- Processor
- Graphics
- HDCP: Yes
- Maximum resolution: 4096 x 2304 px
- Parallel Processing Support: Not Supported
- HDCP version: 2.3
- DirectX Version: 12.0
- Memory
- Supported memory clock speeds
- 6000 MHz
- 5200 MHz
- 6600
- 6800 MHz
- 8800
- 4400 MHz
- 7800
- 9000
- 8000 MHz
- 4800 MHz
- 7000
- 6200 MHz
- 8600
- 7200
- 5600 MHz
- 6400 MHz
- 8400
- 7600
- Maximum memory capacity: 256 GB
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Unbuffered memory: Yes
- Supported memory clock speed (max): 9000 MHz
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: Non-ECC
- Supported memory clock speeds
- Characteristics
- Audio chip: Realtek ALC1220-VB
- Audio output channels: 7.1 ch.
- Monitoring computer status
- Temperature
- Processor
- Water cooling
- Fan
- Tension
- Cooling type: Passive
- Supported Windows operating systems: Windows 11 x64
- Power supply type: ATX
- Product color: Black
- Intended use: PC
- Chipset Board Family: AMD
- Motherboard format: ATX
- Motherboard Layout: AMD X870E
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Product height: 35 mm
- Internal I/O
- Number of SATA III connectors: 4
- EPS power supply connector (8-pin): Yes
- TPM Connector: Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- RGB LED: Yes
- Number of case fan connectors: 6
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- CPU fan connector: Yes
- Number of USB 2.0 ports: 2
- Number of RGB LED connectors: 4
- Number of EPS power connectors (8-pin): 2
- Number of CPU fan connectors: 2
- Number of temperature sensor headers: 2
- Number of water pump connections: 3
- USB 3.2 Gen 2x2 ports: 1
- Number of noise detection headers: 1
- Network
- LAN controller: Realtek RTL8126
- Wired LAN: Yes
- Ethernet network interface type
- Fast Ethernet
- 5 Gigabit Ethernet
- 2.5 Gigabit Ethernet
- Gigabit Ethernet
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- 802.11b
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Bluetooth version: 5.4
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- WLAN controller model: Qualcomm QCNCM865
- Bluetooth: Yes
- BIOS
- ACPI version: 5.0
- Clear CMOS Button: Yes
- Desktop Management Interface (DMI) Version: 2.7
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- BIOS memory size: 512 Mbit
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Package width: 335 mm
- Package height: 80 mm
- Weight with packaging: 2.21 kg
- Package depth: 270 mm
- Package contents
- Batteries included: Yes
- Antenna Included: Yes
- Screws Included: Yes
- Memory drivers
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- Supported drive types: HDD & SSD
- RAID Service: Yes
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 8
- RAID levels
- 10
- 1
- 5
- 0

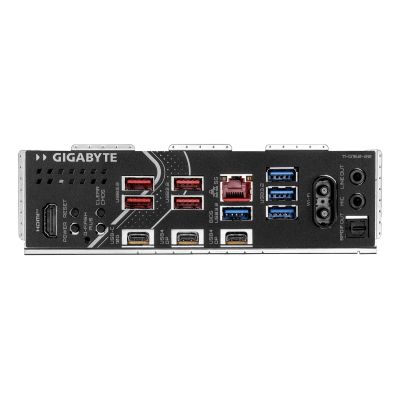

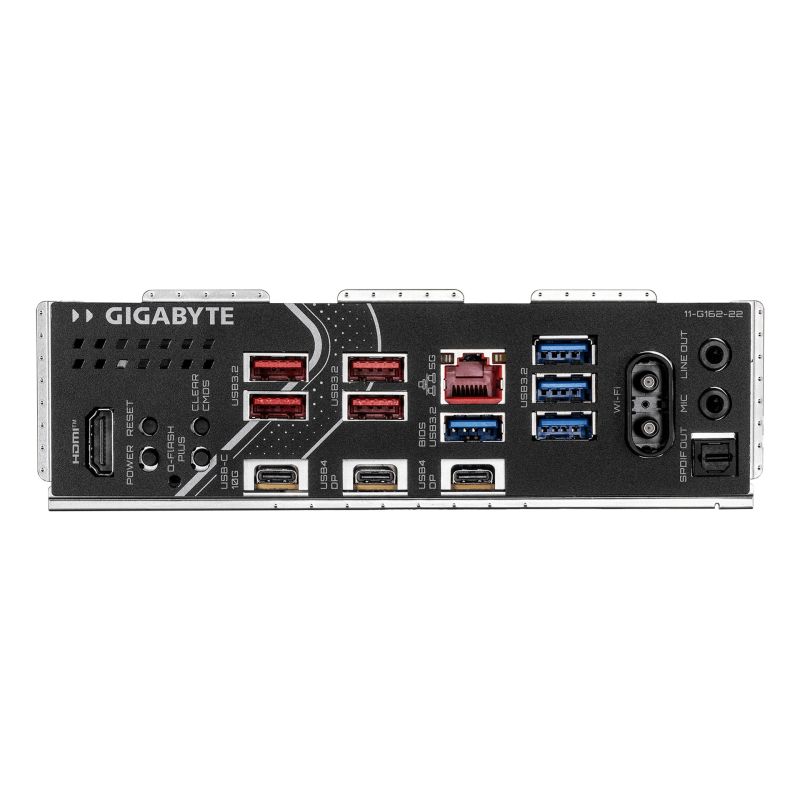

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort version: 1.4
- WiFi-AP Antenna Jack Plug: 2
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 4
- Number of USB4 Gen 2x2 ports: 2
- Digital audio input: 1
- Line Input: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Headphone outputs: 1
- HDMI version: 2.1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- S/PDIF Output Port: Yes
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 4
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- 2nd largest M.2 key size: 22110
- 3. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 25110
- 1. M.2 highest generation PCI Express: 5.0
- 4. largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 4.0
- 4. M.2 highest generation PCI Express: 4.0
- 3. largest M.2 key size: 22110
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery capacity: 220 mAh
- Number of battery compartments: 1
- Supported battery type: CR2032
- Battery weight: 3 g
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 2.01 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Producer | Gigabyte |
