Gigabyte X870I AORUS PRO ICE Motherboard (X870, AM5, mITX, DDR5)
Gigabyte X870I AORUS PRO ICE Motherboard (X870, AM5, mITX, DDR5)
Gigabyte X870I AORUS PRO ICE Motherboard (X870, AM5, mITX, DDR5)
PRICE:
481,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- Processor socket: Socket AM5
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Processor
- Graphics
- DirectX Version: 12.0
- Parallel Processing Support: Not Supported
- HDCP: Yes
- Maximum resolution: 4096 x 2160 px
- Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory slot type: DIMM
- Unbuffered memory: Yes
- Maximum memory capacity: 128 GB
- Memory Channel Support: Dual Channel
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: Non-ECC
- Supported memory clock speed (max): 8400 MHz
- Supported memory clock speeds
- 4400 MHz
- 7200
- 6000 MHz
- 8200
- 5600 MHz
- 6400 MHz
- 7900
- 7400
- 6600
- 6800
- 5200 MHz
- 6200 MHz
- 8000
- 8266
- 4800 MHz
- 7000
- 5800 MHz
- 7800
- 7950
- 7600
- 8400 MHz
- Characteristics
- Monitoring computer status
- Tension
- Water cooling
- Fan
- Temperature
- Audio chip: Realtek ALC4080
- Power supply type: ATX
- Product color: White
- Intended use: PC
- Audio output channels: 7.1 ch.
- Supported Windows operating systems: Windows 11 x64
- Chipset Board Family: AMD
- Motherboard format: Micro ITX
- Motherboard Layout: AMD X870
- Monitoring computer status
- Weight and dimensions
- Product height: 35 mm
- Product depth: 170 mm
- Product width: 170 mm
- Internal I/O
- RGB LED: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- ATX power socket (24-pin): Yes
- Number of USB 2.0 ports: 1
- Number of SATA III connectors: 2
- Front panel connector: Yes
- Number of case fan connectors: 1
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Housing intrusion sensor connector: Yes
- Number of EPS power connectors (8-pin): 1
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- EPS power supply connector (8-pin): Yes
- Number of water pump connections: 1
- Number of RGB LED connectors: 3
- Network
- Ethernet interface type: 2.5 Gigabit Ethernet
- WLAN controller model: Realtek RTL8922AE
- Wi-Fi: Yes
- Wired LAN: Yes
- Bluetooth version: 5.4
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wi-Fi 4 (802.11n)
- 802.11g
- 802.11a
- 802.11b
- Wi-Fi 6E (802.11ax)
- LAN controller: Realtek RTL8125
- Bluetooth: Yes
- BIOS
- System BIOS (SMBIOS) version: 2.7
- Desktop Management Interface (DMI) Version: 2.7
- BIOS Type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS Jumper: Yes
- ACPI version: 5.0
- Packaging data
- Weight with packaging: 1.28 kg
- Package depth: 227 mm
- Package width: 235 mm
- Package height: 95 mm
- Package contents
- Antenna Included: Yes
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- Number of supported HDDs: 2
- RAID levels
- 1
- 0
- Supported hard drive interfaces: M.2, SATA III
- RAID Service: Yes
- Supported drive types: HDD & SSD
- Number of supported storage drive sizes: 4

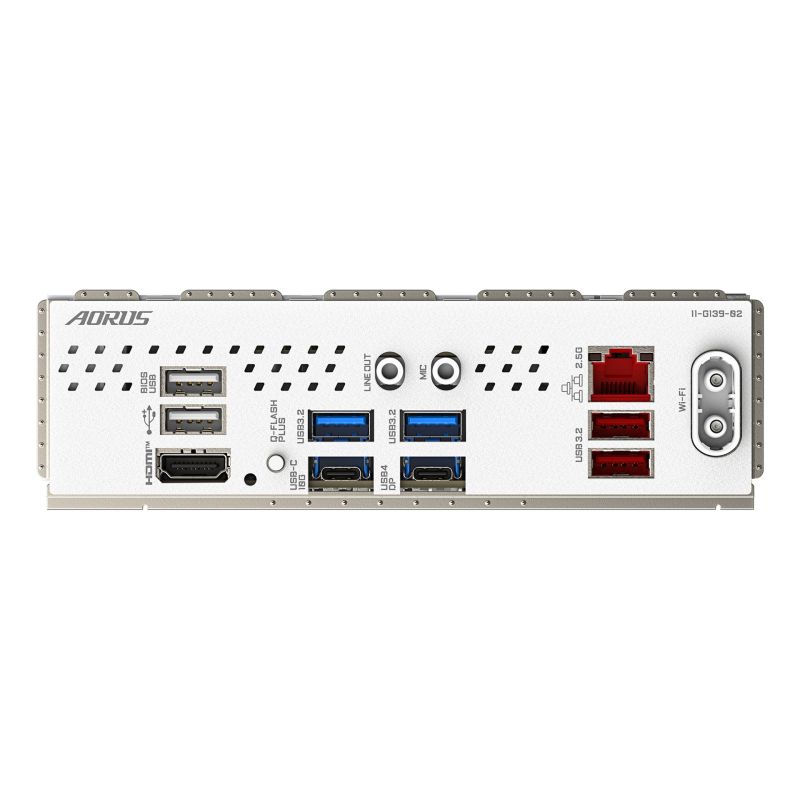

- Rear Panel I/O Ports
- WiFi-AP Antenna Jack Plug: 2
- Line Input: Yes
- Number of USB4 Gen 2x2 ports: 1
- Number of USB 2.0 ports: 2
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Headphone outputs: 1
- HDMI version: 2.1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- DisplayPort version: 1.4
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 2
- 2nd largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 5.0
- Battery
- Battery weight: 3 g
- Number of battery compartments: 1
- Supported battery type: CR2032
- Lithium battery weight: 0.07 g
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Other functions
- Product weight: 1.2 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: Taiwan
| Name | Details |
|---|---|
| Producer | Gigabyte |
