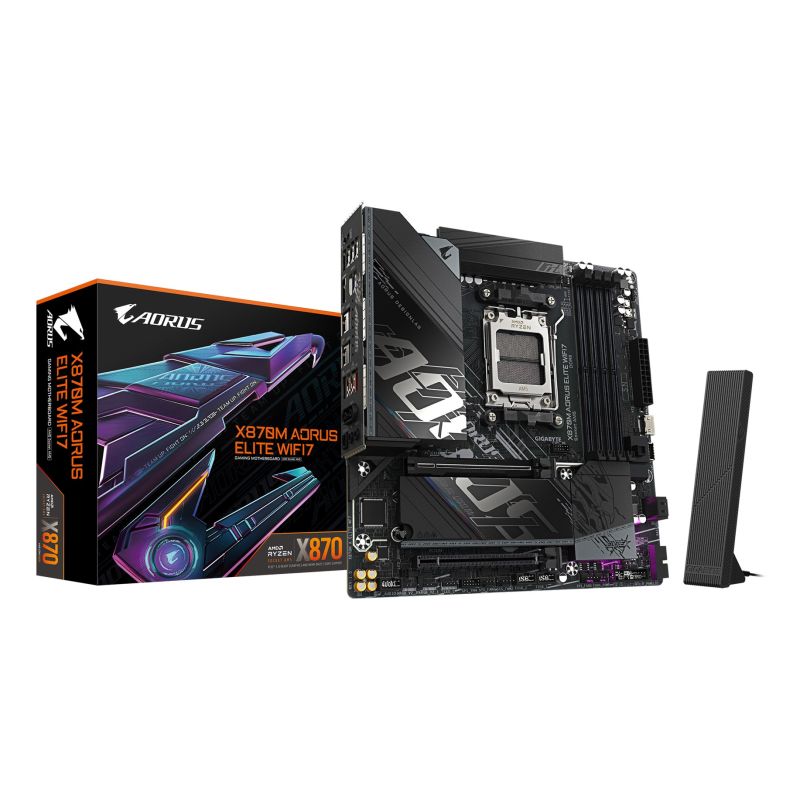

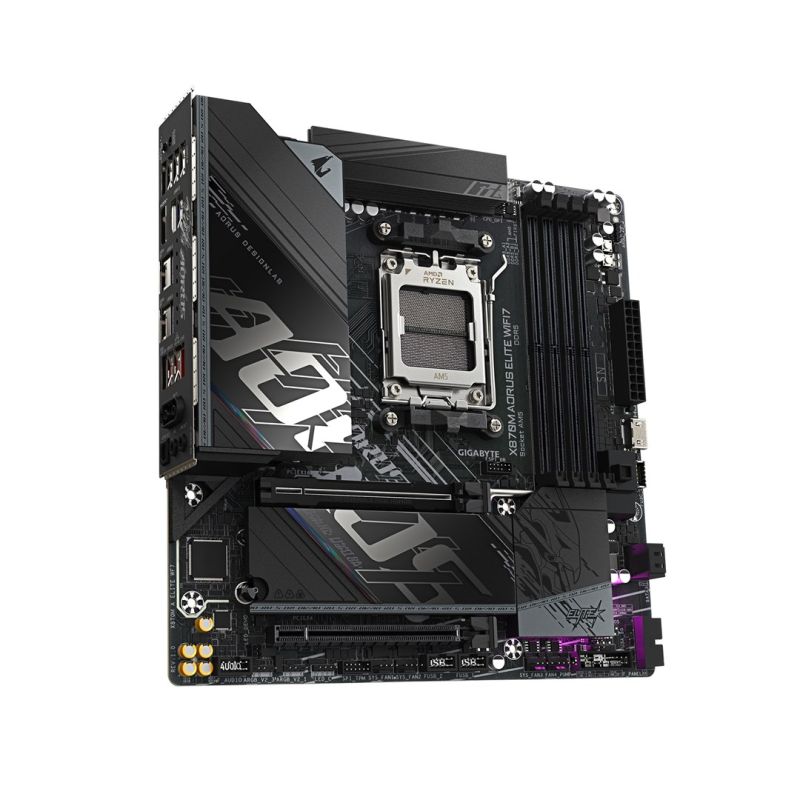

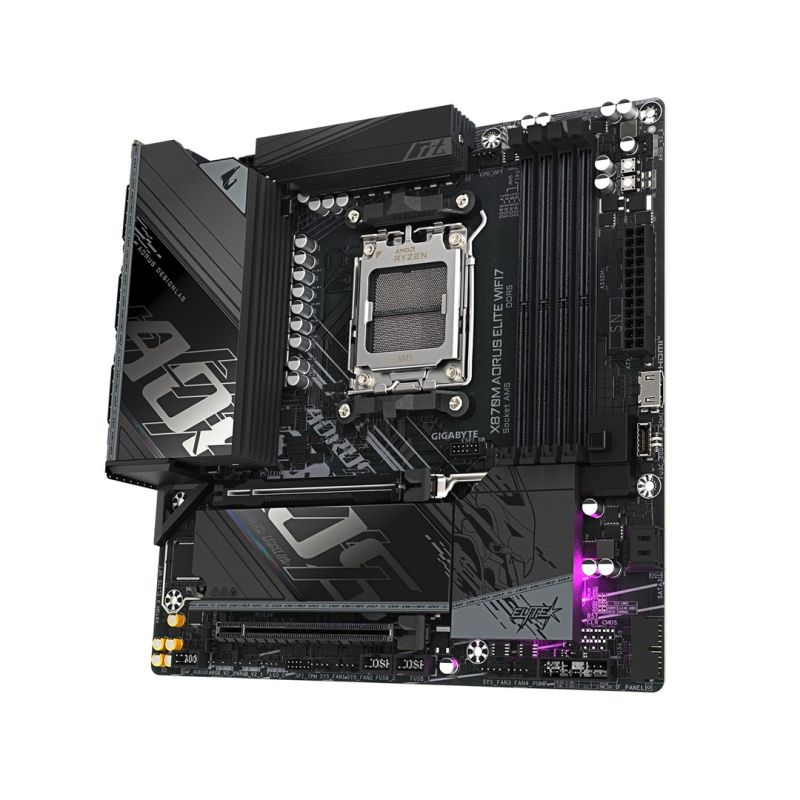

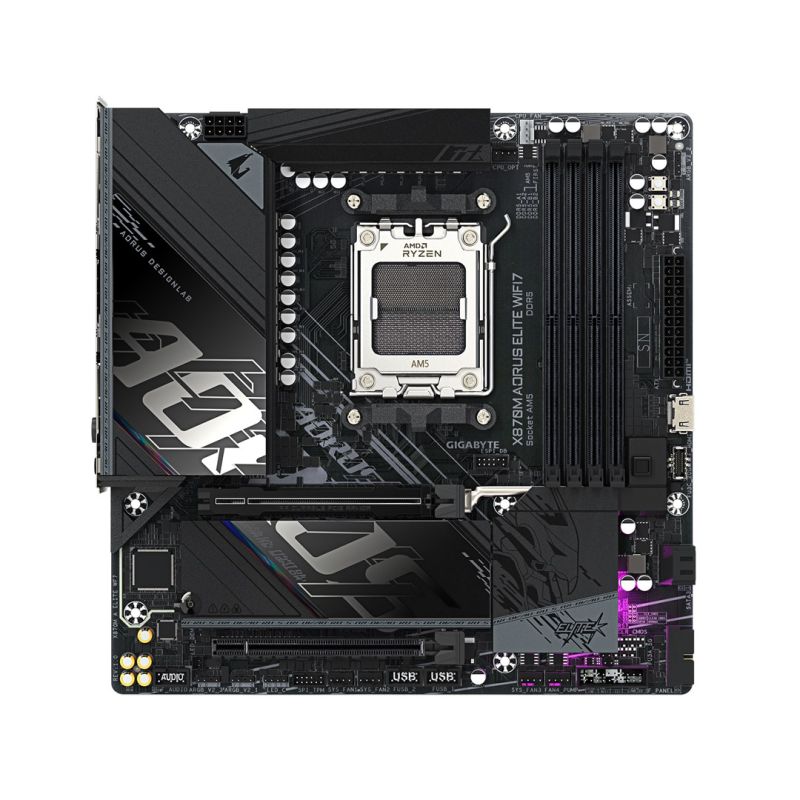

GIGABYTE X870M AORUS ELITE WIFI7 AMD X870 Socket AM5 micro ATX
GIGABYTE X870M AORUS ELITE WIFI7 AMD X870 Socket AM5 micro ATX
GIGABYTE X870M AORUS ELITE WIFI7 AMD X870 Socket AM5 micro ATX
PRICE:
419,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Processor
- Graphics
- DirectX Version: 12.0
- HDCP: Yes
- Maximum resolution: 4096 x 2160 px
- Parallel Processing Support: Not Supported
- Memory
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: Non-ECC
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Supported memory clock speeds
- 7800
- 7950
- 4400 MHz
- 5800 MHz
- 6200 MHz
- 8000 MHz
- 6000 MHz
- 8200
- 5600 MHz
- 6400 MHz
- 7900
- 4800 MHz
- 7000
- 7400
- 5200 MHz
- 7200
- 6600
- 6800 MHz
- 7600
- Maximum memory capacity: 256 GB
- Unbuffered memory: Yes
- Supported memory clock speed (max): 8200 MHz
- Characteristics
- Supported Windows operating systems: Windows 11 x64
- Intended use: PC
- Cooling type: Passive
- Monitoring computer status
- Fan
- Temperature
- Tension
- Water cooling
- Product color: Black
- Chipset Board Family: AMD
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC1220-VB
- Motherboard format: Micro ATX
- Motherboard Layout: AMD X870
- Power supply type: ATX
- Weight and dimensions
- Product width: 244 mm
- Product height: 35 mm
- Product depth: 244 mm
- Internal I/O
- Number of RGB LED connectors: 4
- Front panel connector: Yes
- Number of CPU fan connectors: 2
- Number of water pump connections: 2
- EPS power supply connector (8-pin): Yes
- Number of case fan connectors: 4
- Number of EPS power connectors (8-pin): 1
- USB 3.2 Gen 2x2 ports: 1
- TPM Connector: Yes
- RGB LED: Yes
- 12V power connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of USB 2.0 ports: 2
- CPU fan connector: Yes
- Front panel audio connector: Yes
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 2
- Network
- Wired LAN: Yes
- Bluetooth version: 5.4
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- WLAN controller model: Realtek RTL8922AE
- Ethernet interface type: 2.5 Gigabit Ethernet
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- LAN controller: Realtek RTL8125
- Bluetooth: Yes
- BIOS
- ACPI version: 5.0
- Clear CMOS Button: Yes
- BIOS memory size: 256 Mbit
- BIOS Type: UEFI AMI
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Jumper: Yes
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Package width: 270 mm
- Package height: 68 mm
- Package depth: 268 mm
- Weight with packaging: 2.06 kg
- Package contents
- Antenna Included: Yes
- Screws Included: Yes
- Batteries included: Yes
- Memory drivers
- Number of supported storage drive sizes: 4
- Number of supported HDDs: 2
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- Supported drive types: HDD & SSD
- RAID levels
- 1
- 10
- 0
- 5
- RAID Service: Yes

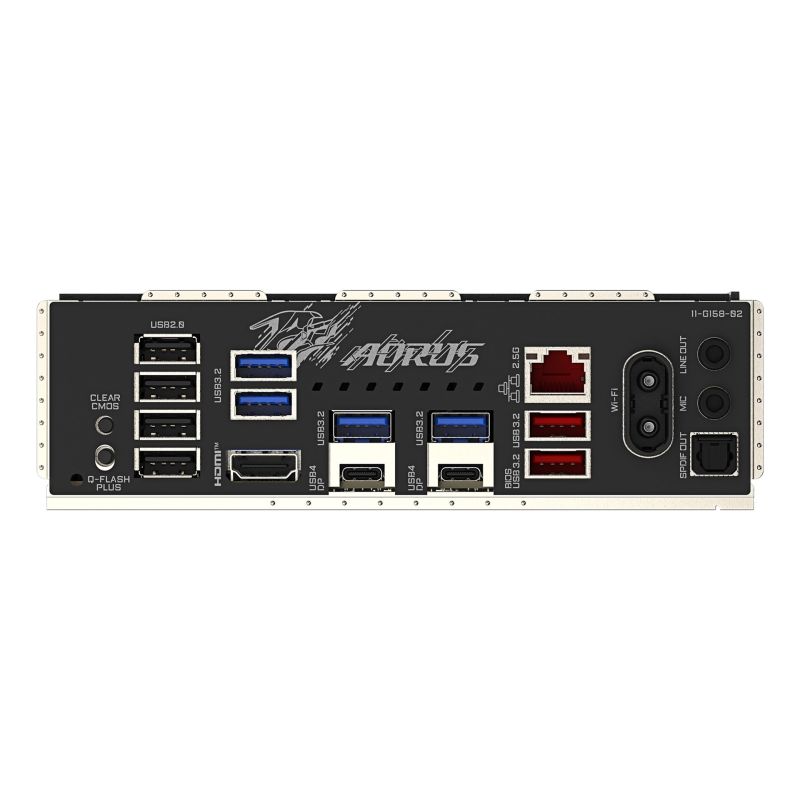

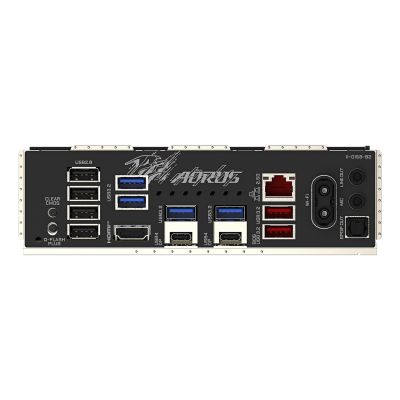

- Rear Panel I/O Ports
- Digital audio input: 1
- Line Input: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Headphone outputs: 1
- Number of HDMI ports: 1
- WiFi-AP Antenna Jack Plug: 2
- HDMI version: 2.1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- DisplayPort version: 1.4
- S/PDIF Output Port: Yes
- Number of USB4 Gen 3x2 ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 4
- Expansion slots
- 2. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 22110
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 25110
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 2
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Lithium battery weight: 0.07 g
- Supported battery type: CR2032
- Number of battery compartments: 1
- Battery weight: 3 g
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Producer | Gigabyte |
