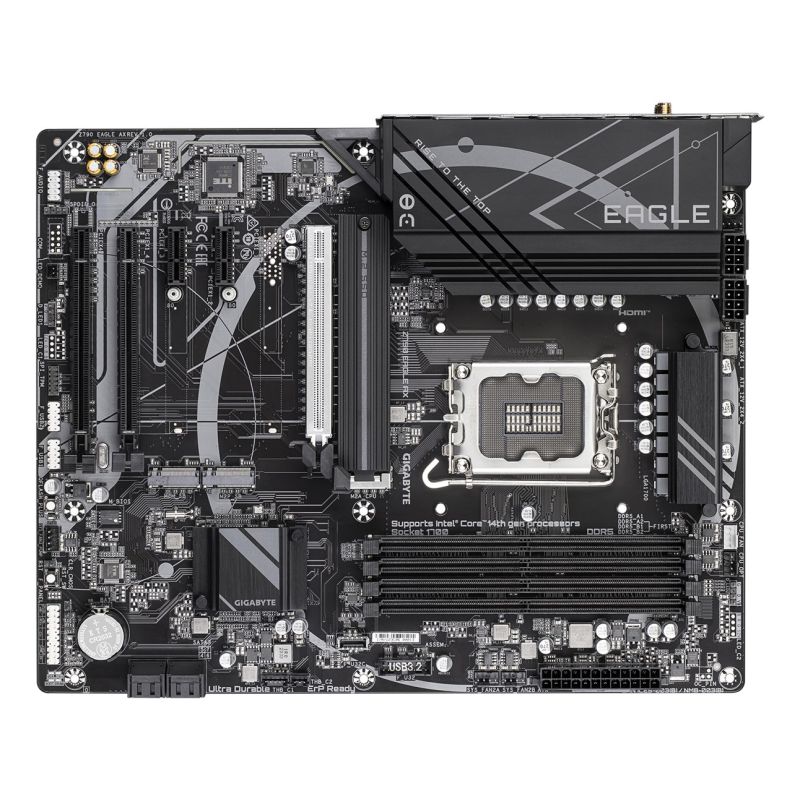

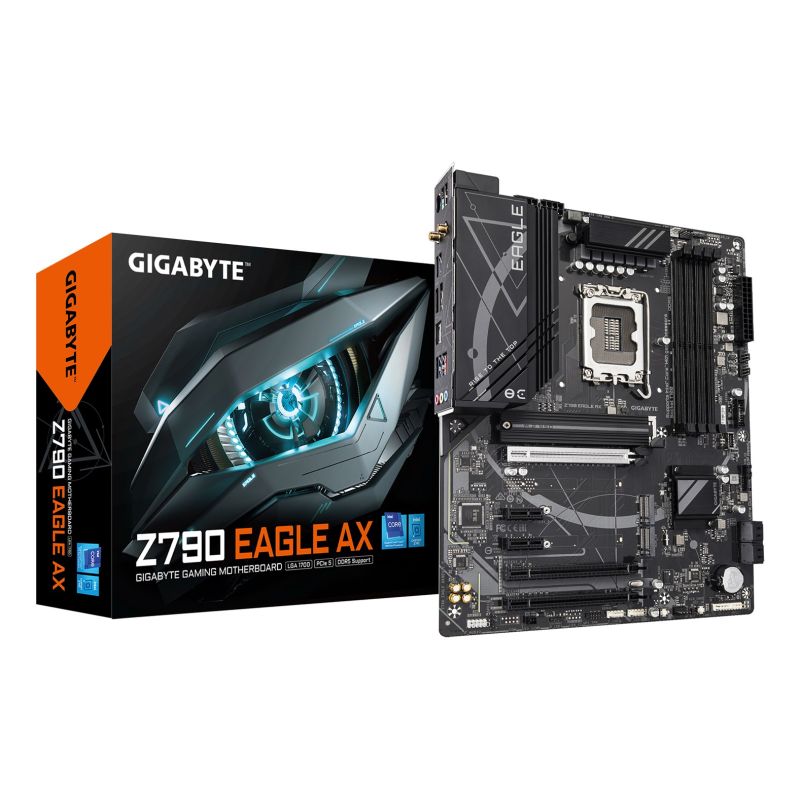

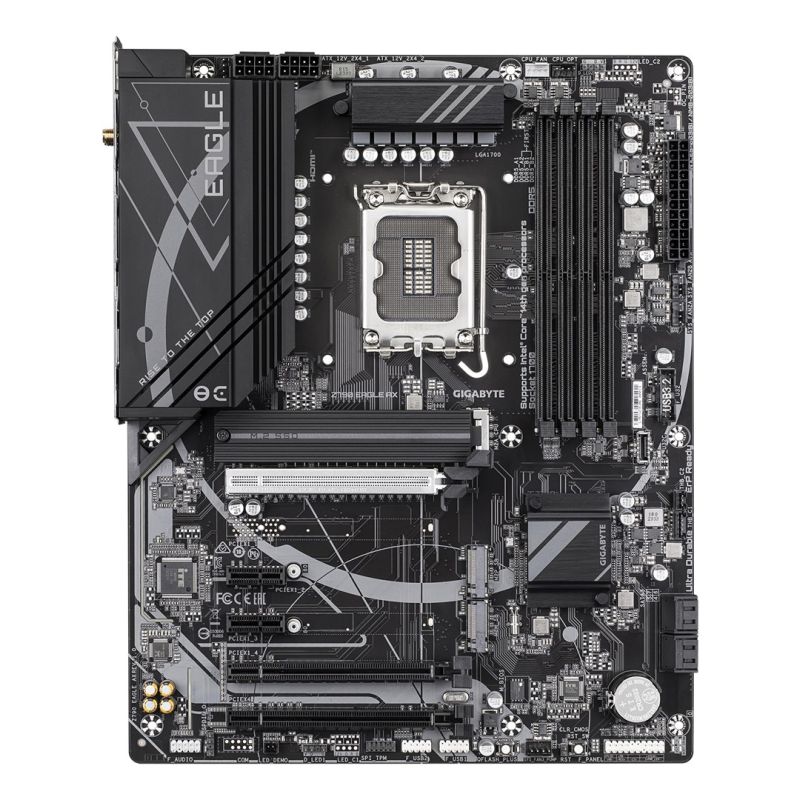

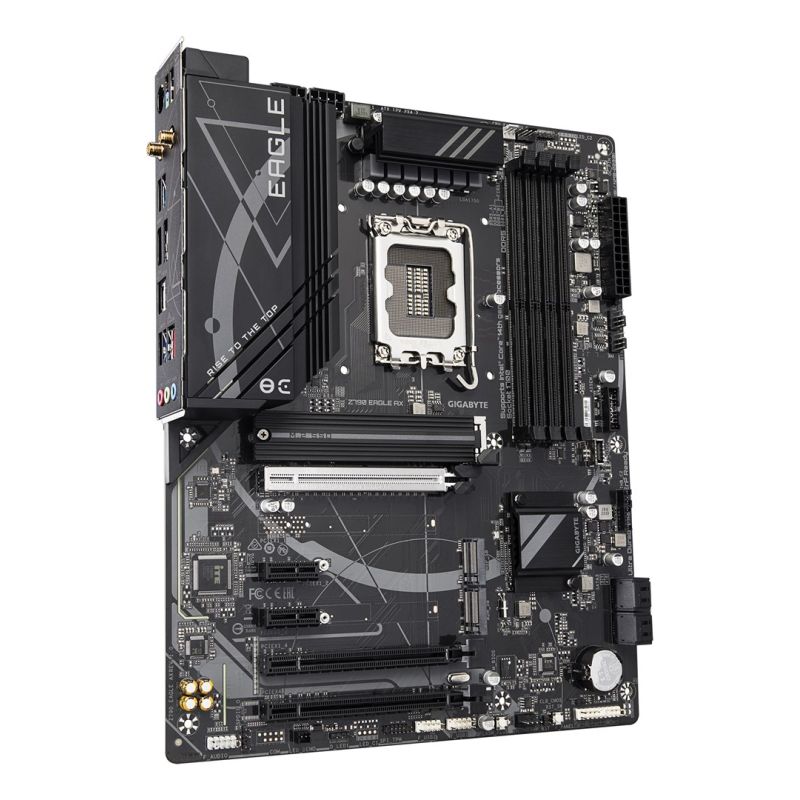

Gigabyte Z790 EAGLE AX motherboard
Gigabyte Z790 EAGLE AX motherboard
Gigabyte Z790 EAGLE AX motherboard
PRICE:
241,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: Intel
- Maximum number of SMP processors: 1
- Supported CPU sockets: LGA 1700
- Processor
- Intel® Core™ i3
- Intel® Core™ i9
- Intel® Core™ i7
- Intel® Core™ i5
- Intel® Celeron®
- Intel® Pentium® Gold
- Processor socket: LGA 1700
- Maximum internal memory supported by the processor: 192 GB
- Graphics
- Built-in graphics card: No
- HDCP: Yes
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2304 px
- Memory
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- Supported memory clock speed (max): 7600 MHz
- ECC Compatibility: ECC or Non-ECC
- Supported memory module capacities
- 8GB
- 1GB
- 4GB
- 12GB
- 32GB
- 16GB
- 48GB
- 2GB
- Supported memory clock speeds
- 7200
- 7600
- 4800 MHz
- 7000
- 5200 MHz
- 7400
- 6000 MHz
- 5600 MHz
- 6400 MHz
- 6200 MHz
- 4400 MHz
- 5400 MHz
- 5800 MHz
- 6600
- 6800
- Unbuffered memory: Yes
- Maximum memory capacity: 192 GB
- Characteristics
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Audio output channels: 7.1 ch.
- Monitoring computer status
- Tension
- Water cooling
- Fan
- Temperature
- Product color: Brown
- Motherboard Layout: Intel Z790 Express
- Audio chip: Realtek ALC897
- Power supply type: ATX
- Chipset Board Family: Intel
- Motherboard format: ATX
- Supported Windows operating systems
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Product height: 35 mm
- Internal I/O
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Total number of SATA connectors: 4
- EPS power supply connector (8-pin): Yes
- Number of EATX sockets: 2
- Front panel connector: Yes
- CPU fan connector: Yes
- TPM Connector: Yes
- 12V power connector: Yes
- RGB LED: Yes
- Thunderbolt Ends: 2
- Number of USB 2.0 ports: 2
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Front panel audio connector: Yes
- Network
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- Wi-Fi 4 (802.11n)
- 802.11g
- 802.11a
- Wi-Fi 6E (802.11ax)
- 802.11b
- Wi-Fi 5 (802.11ac)
- Wired LAN: Yes
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi: Yes
- Bluetooth version: 5.3
- WLAN controller model: Intel Wi-Fi 6E AX211
- Bluetooth: Yes
- BIOS
- Clear CMOS Jumper: Yes
- BIOS Type: UEFI AMI
- Clear CMOS Button: Yes
- Desktop Management Interface (DMI) Version: 2.7
- Packaging data
- Package width: 335 mm
- Package height: 80 mm
- Packaging depth: 270 mm
- Weight with packaging: 1.81 kg
- Package contents
- Cables: SATA
- Batteries included: Yes
- Antenna Included: Yes
- Memory drivers
- Number of supported storage drive sizes: 7
- RAID levels
- 10
- 5
- 1
- 0
- Number of supported HDDs: 4
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID Service: Yes

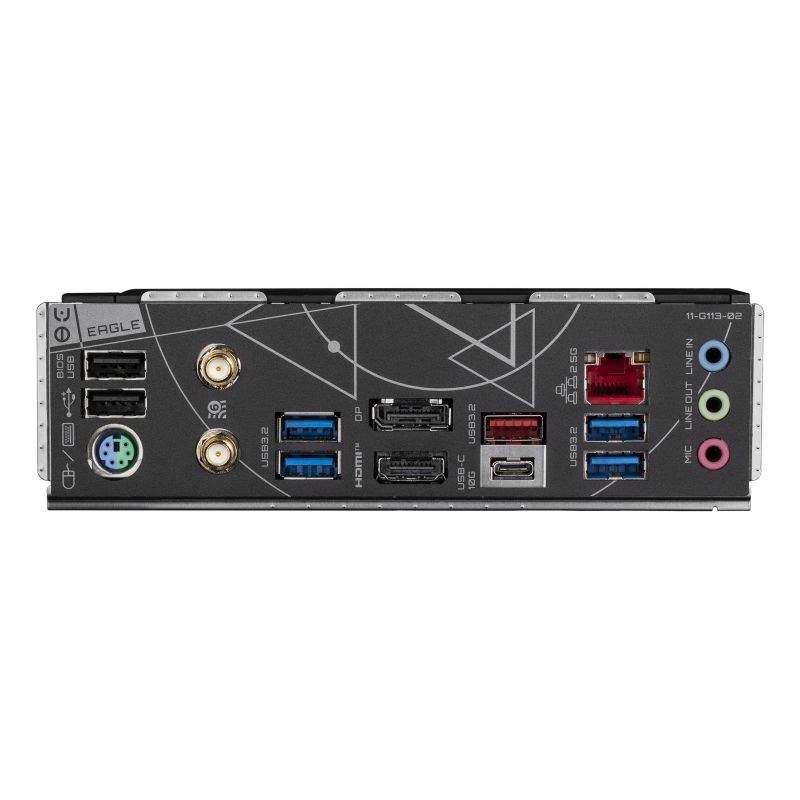

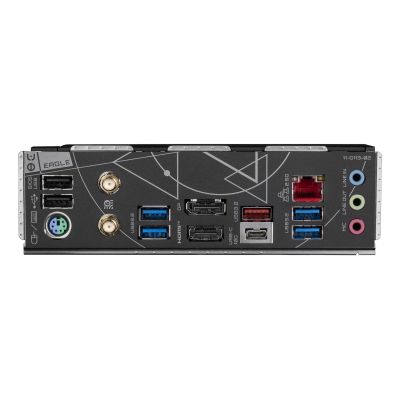

- Rear Panel I/O Ports
- Supported USB type
- USB Type-C
- USB Type-A
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- HDMI version: 2.1
- Microphone: Yes
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Headphone outputs: 1
- Number of PS/2 ports: 1
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- WiFi-AP Antenna Jack Plug: 2
- S/PDIF Output Port: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 2
- DisplayPort version: 1.2
- DisplayPort Quantity: 1
- Supported USB type
- Expansion slots
- Number of M.2 (M) slots: 3
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- Battery
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Number of battery compartments: 1
- Lithium battery weight: 0.07 g
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
- Safety warning
- Warnings
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Warnings
| Name | Details |
|---|---|
| Producer | Gigabyte |
