Gigabyte Z890 A XTREME AI TOP Motherboard (Z890,S1851,E-ATX,DDR5)
Gigabyte Z890 A XTREME AI TOP Motherboard (Z890,S1851,E-ATX,DDR5)
Gigabyte Z890 A XTREME AI TOP Motherboard (Z890,S1851,E-ATX,DDR5)
PRICE:
2296,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1851
- Maximum internal memory supported by the processor: 256 GB
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Graphics
- Parallel Processing Support: Not Supported
- HDCP: Yes
- Maximum resolution: 7680 x 4320 px
- DirectX Version: 12.0
- Memory
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 9500 MHz
- Memory slot type: DIMM
- Supported memory clock speeds
- 6600
- 6800
- 5800 MHz
- 8400
- 7800
- 7950
- 7000
- 6000 MHz
- 8200 MHz
- 8000
- 8266
- 7400
- 7200
- 8600
- 5600 MHz
- 6400 MHz
- 7900
- 6200 MHz
- 7600
- 9500 MHz
- Maximum internal memory per slot: 64 GB
- Maximum memory capacity: 256 GB
- ECC Compatibility: ECC or Non-ECC
- Unbuffered memory: Yes
- Characteristics
- Monitoring computer status
- Water cooling
- Fan
- Temperature
- Tension
- Chipset Board Family: Intel
- Supported Windows operating systems: Windows 11 x64
- Intended use: PC
- Motherboard format: Extended ATX
- Product color: Black
- Audio chip: ESS ES9280AC + ESS ES9080
- Motherboard Layout: Intel Z890
- Audio output channels: 2.0 ch.
- Monitoring computer status
- Weight and dimensions
- Product height: 35 mm
- Product depth: 305 mm
- Product width: 304.8 mm
- Internal I/O
- RGB LED: Yes
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- CPU fan connector: Yes
- EPS power supply connector (8-pin): Yes
- Number of USB 2.0 ports: 2
- Thunderbolt Ends: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of SATA III connectors: 4
- Number of case fan connectors: 3
- Number of temperature sensor headers: 2
- Number of CPU fan connectors: 2
- Number of RGB LED connectors: 4
- Number of EPS power connectors (8-pin): 2
- Number of noise detection headers: 1
- USB 3.2 Gen 2x2 ports: 2
- Number of water pump connections: 2
- Network
- WLAN controller model: Intel Wi-Fi 7 BE200
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Ethernet interface type: 10 Gigabit Ethernet
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- Wi-Fi 6E (802.11ax)
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- Wi-Fi 6 (802.11ax)
- 802.11b
- Wired LAN: Yes
- Bluetooth version: 5.4
- LAN controller: Marvell AQtion AQC113C
- Bluetooth: Yes
- BIOS
- System BIOS (SMBIOS) version: 2.7
- Desktop Management Interface (DMI) Version: 2.7
- BIOS memory size: 256 Mbit
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- Clear CMOS Button: Yes
- ACPI version: 5.0
- Packaging data
- Package depth: 370 mm
- Weight with packaging: 6.7 kg
- Package height: 140 mm
- Package width: 386 mm
- Package contents

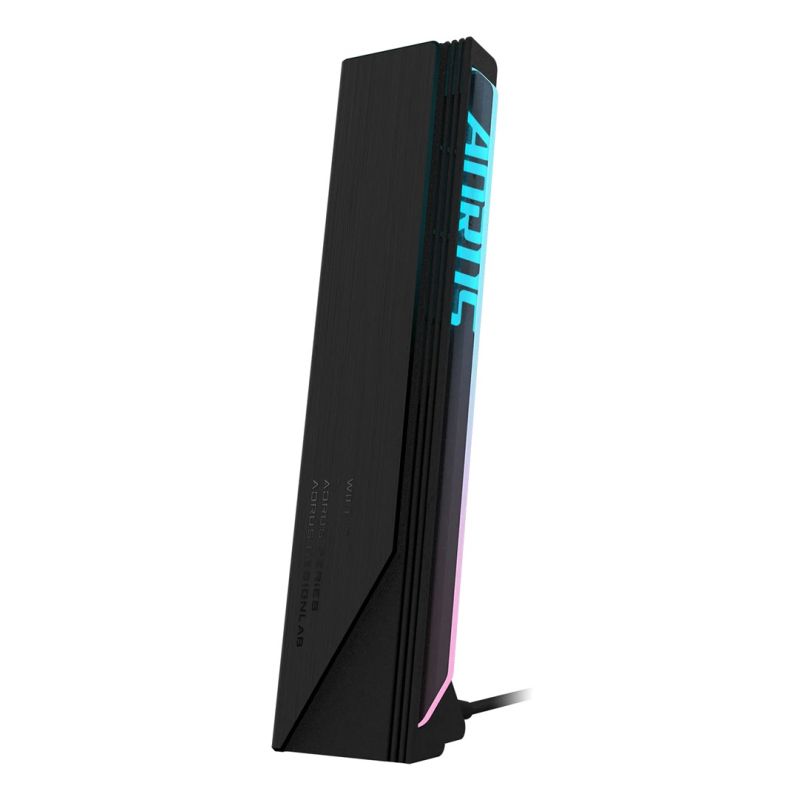

- Antenna Included: Yes
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- RAID Service: Yes
- Number of supported HDDs: 4
- RAID levels
- 0
- 1
- 10
- 5
- Number of supported storage drive sizes: 8
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III

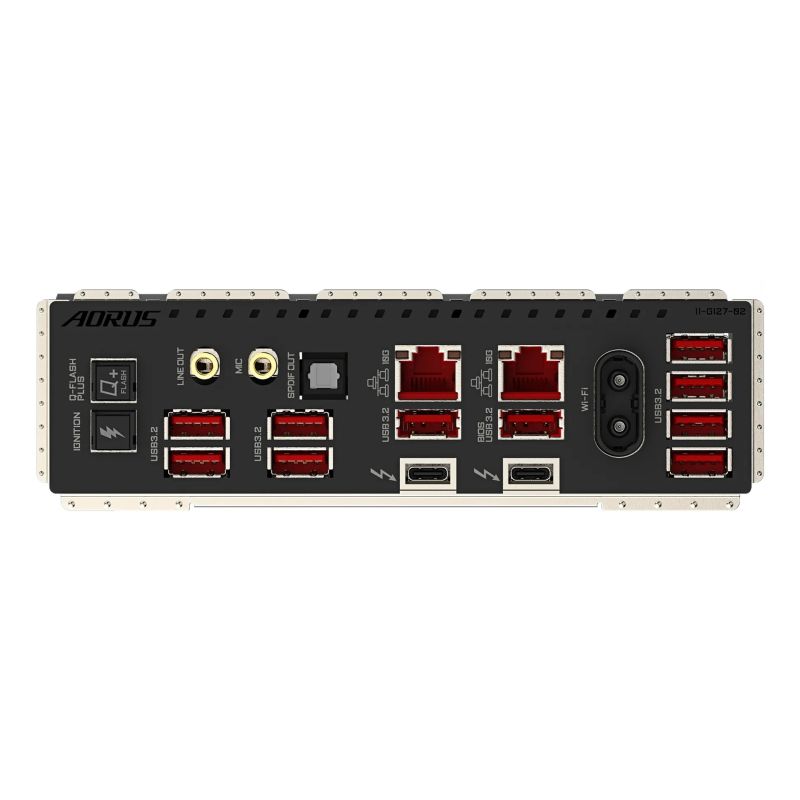

- Rear Panel I/O Ports
- Microphone: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 10
- Number of Thunderbolt ports: 2
- Number of Ethernet LAN ports (RJ-45): 2
- Headphone outputs: 1
- WiFi-AP Antenna Jack Plug: 2
- S/PDIF Output Port: Yes
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 4
- PCI Express x16 (Gen 5.x) slots: 2
- 3. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 25110
- 3. largest M.2 key size: 22110
- 4. M.2 highest generation PCI Express: 4.0
- 1. M.2 highest generation PCI Express: 5.0
- 4. largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 25110
- Battery
- Battery weight: 3 g
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Supported battery type: CR2032
- Number of battery compartments: 1
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 5.03 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: Taiwan
| Name | Details |
|---|---|
| Producer | Gigabyte |
