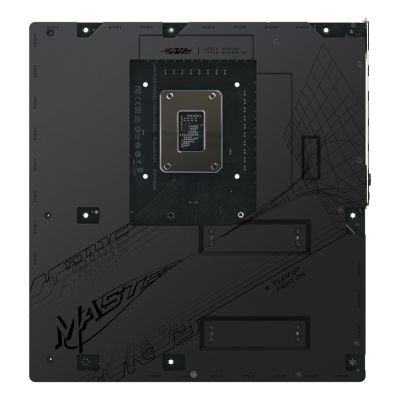

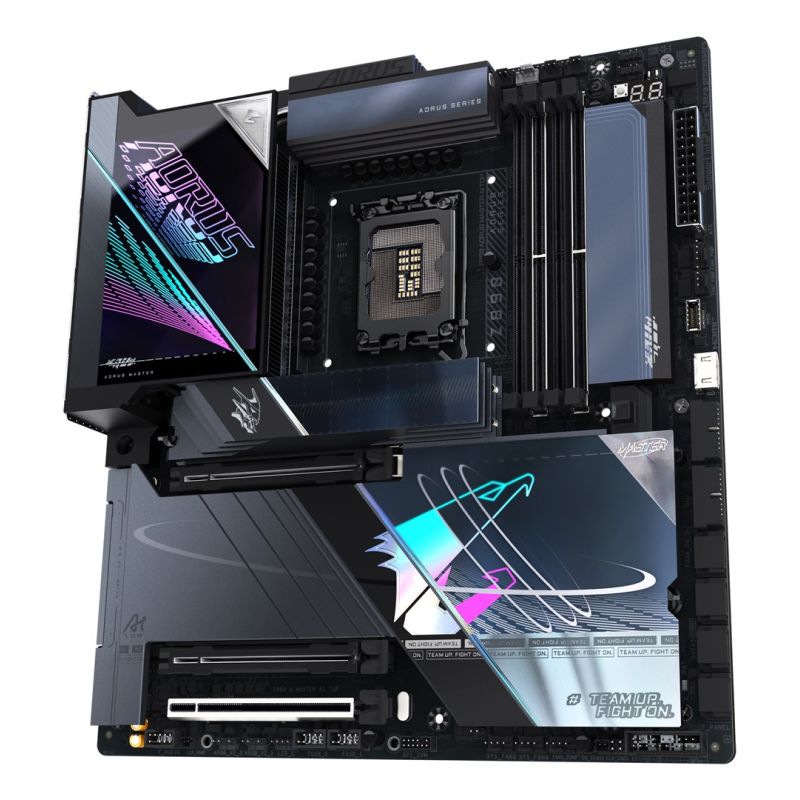

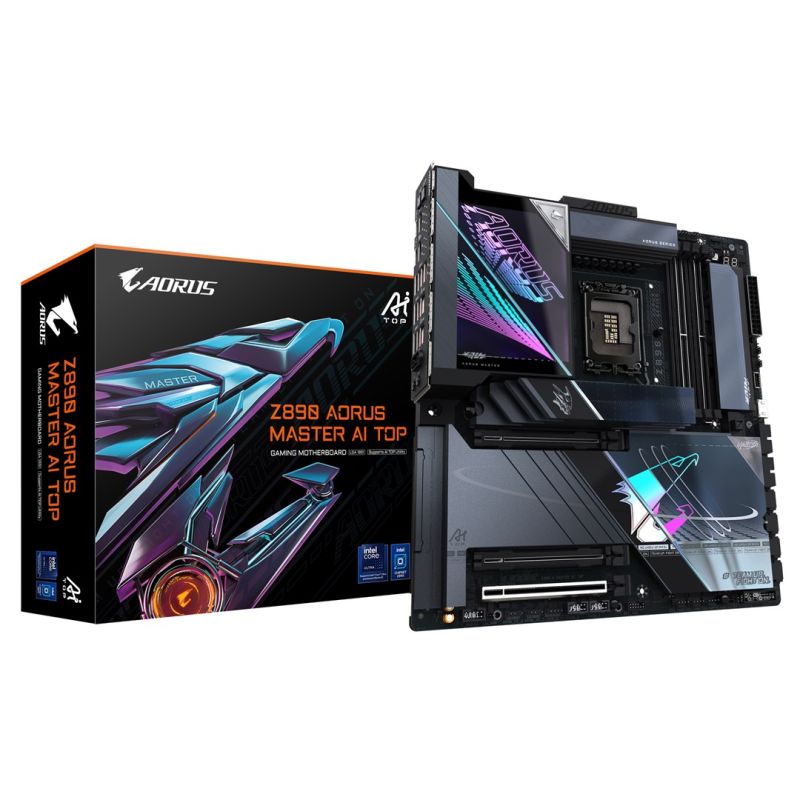

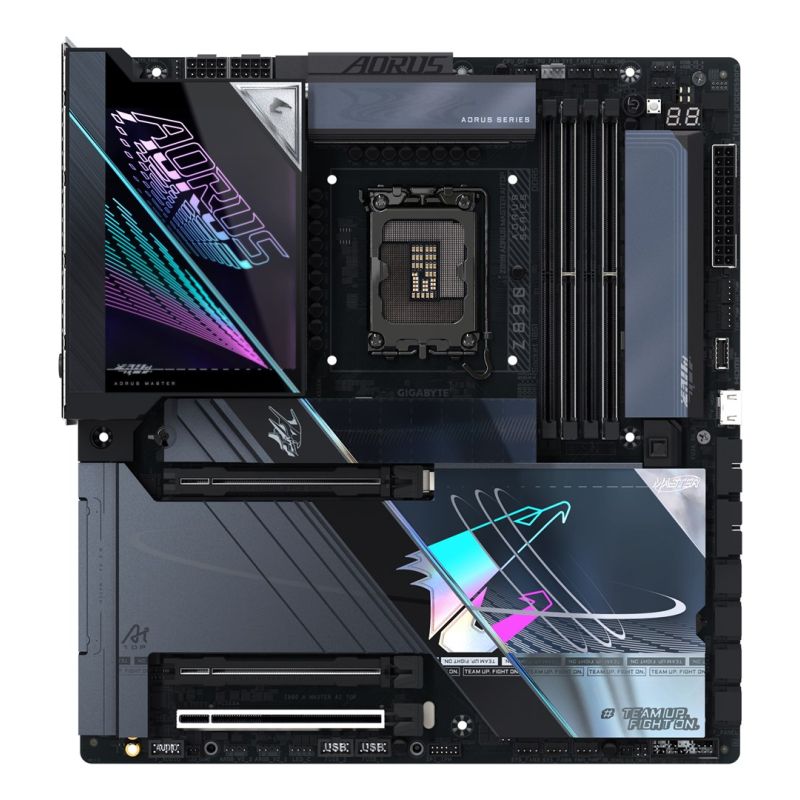

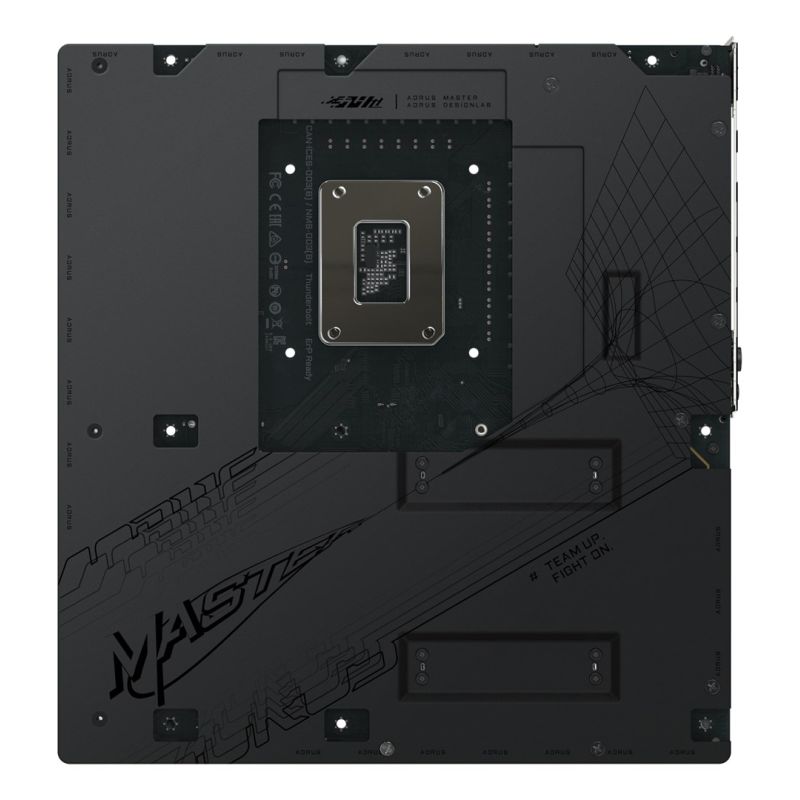

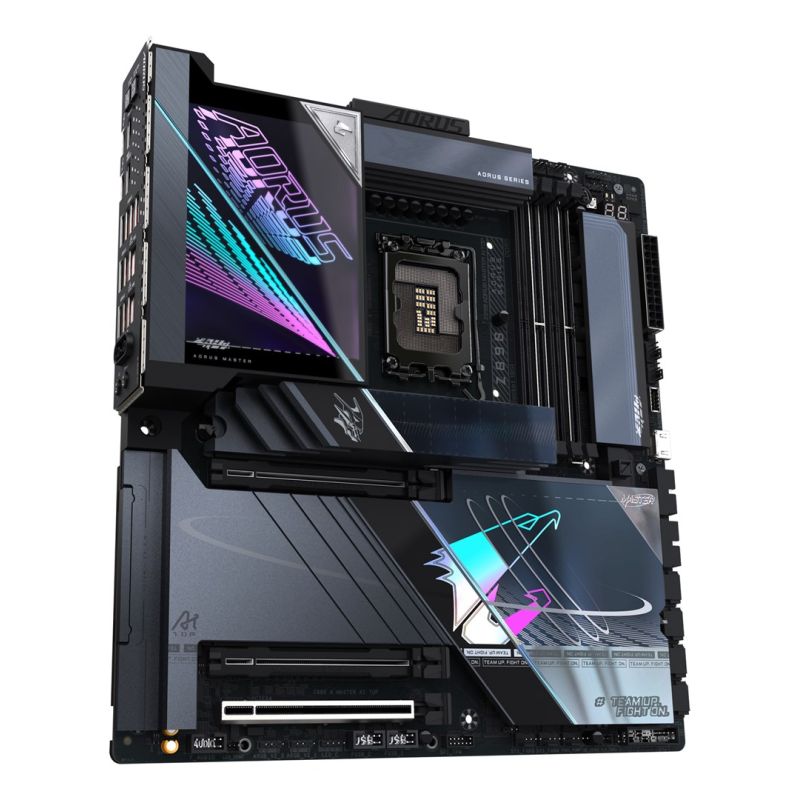

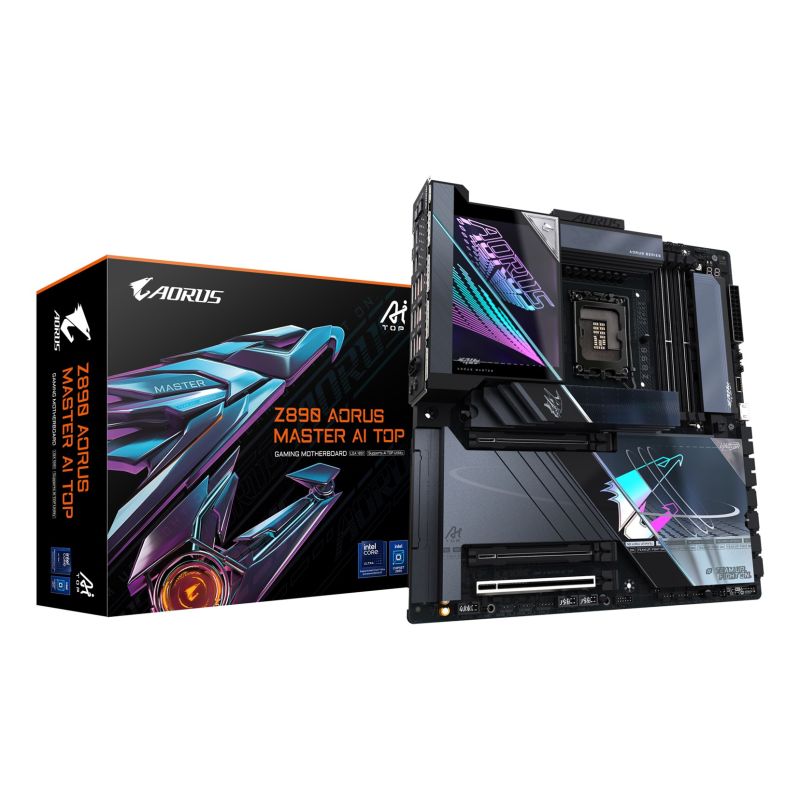

GIGABYTE Z890 AORUS MASTER AI TOP E-ATX Motherboard Sockel 1851 TB4/WIFI7
GIGABYTE Z890 AORUS MASTER AI TOP E-ATX Motherboard Sockel 1851 TB4/WIFI7
GIGABYTE Z890 AORUS MASTER AI TOP E-ATX Motherboard Sockel 1851 TB4/WIFI7
PRICE:
1392,99
€
IN A WAREHOUSE
6 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor socket: LGA 1851 (Socket V1)
- Supported CPU sockets: LGA 1851
- Processor manufacturer: Intel
- Processor: Intel Core Ultra (Series 2)
- Maximum internal memory supported by the processor: 256 GB
- Graphics
- HDCP: Yes
- Parallel Processing Support: Not Supported
- Maximum resolution: 5120 x 2880 px
- DirectX Version: 12.0
- Memory
- Number of memory slots: 4
- Unbuffered memory: Yes
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 9500 MHz
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: ECC or Non-ECC
- Supported memory clock speeds
- 8400 MHz
- 8000
- 8266
- 6000 MHz
- 8200
- 6200 MHz
- 7800
- 7950
- 5600 MHz
- 6400 MHz
- 7900
- 7000
- 7200
- 7600
- 9500 MHz
- 5800 MHz
- 7400
- 8600
- 6600
- 6800
- Maximum memory capacity: 256 GB
- Supported memory module capacities
- 4GB
- 12GB
- 2GB
- 32GB
- 24GB
- 8GB
- 1GB
- 64GB
- 16GB
- 48GB
- 40GB
- Characteristics
- Monitoring computer status
- Tension
- Fan
- Temperature
- Water cooling
- Supported Windows operating systems: Windows 11 x64
- Intended use: PC
- Audio output channels: 2.0 ch.
- Chipset Board Family: Intel
- Motherboard format: Extended ATX
- Motherboard Layout: Intel Z890
- Product color: Black
- Monitoring computer status
- Weight and dimensions
- Product height: 35 mm
- Product width: 305 mm
- Product depth: 285 mm
- Internal I/O
- Number of SATA III connectors: 4
- TPM Connector: Yes
- Front panel audio connector: Yes
- RGB LED: Yes
- CPU fan connector: Yes
- EPS power supply connector (8-pin): Yes
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of USB 2.0 ports: 2
- Number of case fan connectors: 8
- Number of CPU fan connectors: 2
- USB 3.2 Gen 2x2 ports: 1
- Number of water pump connections: 5
- Number of temperature sensor headers: 2
- Number of noise detection headers: 1
- Number of EPS power connectors (8-pin): 2
- Number of RGB LED connectors: 5
- Network
- Bluetooth version: 5.4
- Ethernet interface type: 10 Gigabit Ethernet
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- Wi-Fi 6E (802.11ax)
- 802.11b
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- Wired LAN: Yes
- WLAN controller model: Intel Wi-Fi 7 BE200
- LAN controller: Marvell AQtion AQC113C
- Bluetooth: Yes
- BIOS
- Clear CMOS Button: Yes
- BIOS Type: UEFI AMI
- BIOS memory size: 256 Mbit
- System BIOS (SMBIOS) version: 2.7
- ACPI version: 5.0
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Jumper: Yes
- Packaging data
- Package height: 430 mm
- Weight with packaging: 4.3 kg
- Package width: 400 mm
- Package depth: 335 mm
- Package contents
- Antenna Included: Yes
- Screws Included: Yes
- Batteries included: Yes
- Memory drivers
- RAID Service: Yes
- RAID levels
- 0
- 5
- 10
- 1
- Number of supported storage drive sizes: 8
- Supported hard drive interfaces: M.2, SATA III
- Number of supported HDDs: 4
- Supported drive types: HDD & SSD

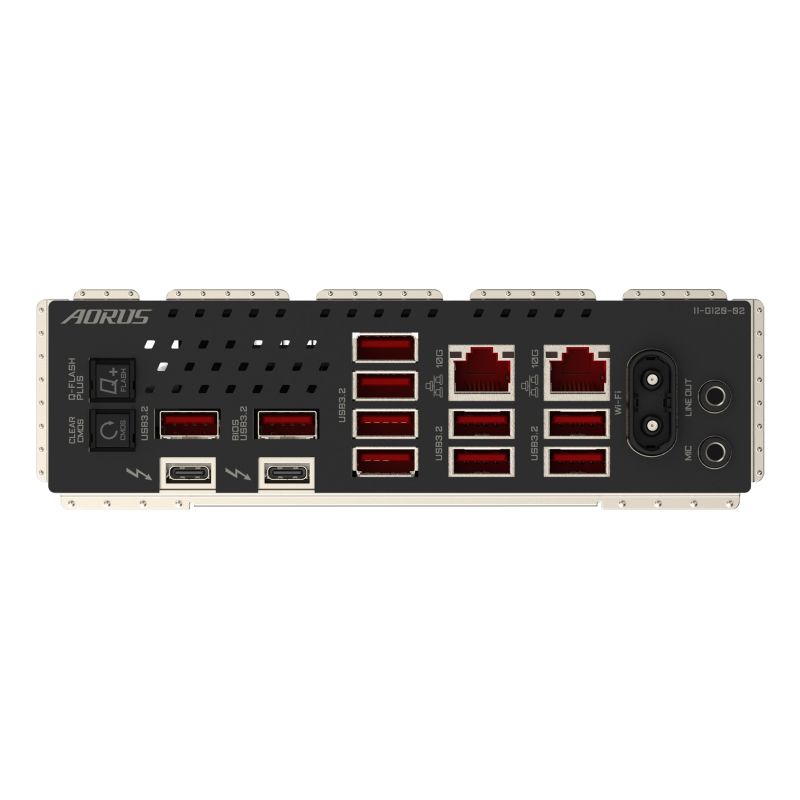

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 2
- Microphone: Yes
- WiFi-AP Antenna Jack Plug: 2
- DisplayPort version: 2.1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 10
- Headphone outputs: 1
- Number of Thunderbolt ports: 2
- Expansion slots
- Number of M.2 (M) slots: 4
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 2
- 4. M.2 highest generation PCI Express: 4.0
- 3. largest M.2 key size: 22110
- 2nd largest M.2 key size: 22110
- 3. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 25110
- 2. M.2 highest generation PCI Express: 4.0
- 4. largest M.2 key size: 22110
- 1. M.2 highest generation PCI Express: 5.0
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Supported battery type: CR2032
- Number of battery compartments: 1
- Battery weight: 3 g
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 3.76 kg
- Logistics data
- Country of origin: Taiwan
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
