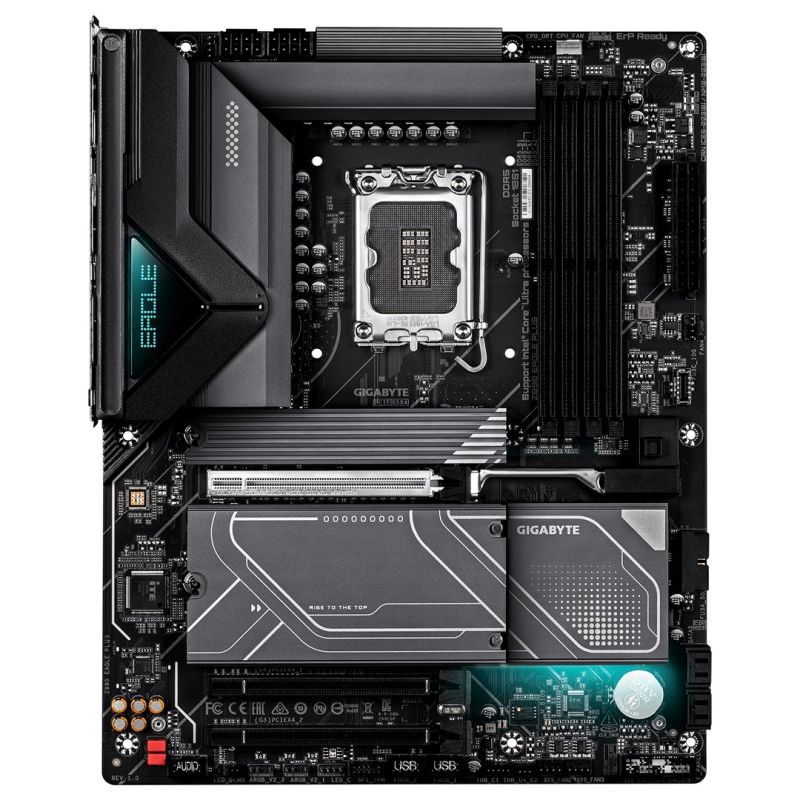

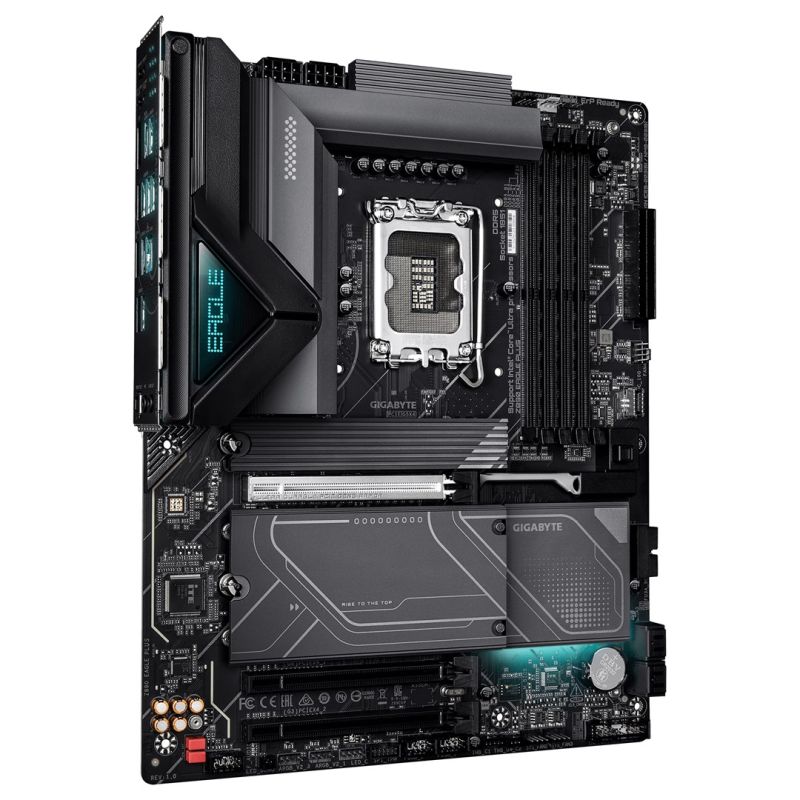

GIGABYTE Z890 EAGLE PLUS motherboard Intel Z890 LGA 1851 (Socket V1) ATX
GIGABYTE Z890 EAGLE PLUS motherboard Intel Z890 LGA 1851 (Socket V1) ATX
GIGABYTE Z890 EAGLE PLUS motherboard Intel Z890 LGA 1851 (Socket V1) ATX
PRICE:
370,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported CPU sockets: LGA 1851
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Processor manufacturer: Intel
- Graphics
- DirectX Version: 12.0
- Parallel Processing Support: Not Supported
- Maximum resolution: 3840 x 2160 px
- Memory
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Supported memory clock speed (max): 9466 MHz
- ECC Compatibility: Non-ECC
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Maximum internal memory per slot: 64 GB
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Characteristics
- Audio chip: Realtek ALC1220-VB
- Product color: Black
- Motherboard Layout: Intel Z890
- Audio output channels: 7.1 ch.
- Chipset Board Family: Intel
- Monitoring computer status
- Fan
- Tension
- Temperature
- Water cooling
- Supported Windows operating systems: Windows 11 x64
- Power supply type: ATX
- Intended use: PC
- Motherboard format: ATX
- Cooling type: Passive
- Weight and dimensions
- Product width: 305 mm
- Product height: 35 mm
- Product depth: 244 mm
- Internal I/O
- CPU fan connector: Yes
- Number of USB 2.0 ports: 2
- Number of case fan connectors: 4
- Thunderbolt Ends: 2
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- Front panel connector: Yes
- EPS power supply connector (8-pin): Yes
- Number of RGB LED connectors: 4
- Number of CPU fan connectors: 2
- Number of EPS power connectors (8-pin): 2
- Number of water pump connections: 2
- RGB LED: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- TPM Connector: Yes
- Network
- LAN controller: Realtek RTL8125
- Ethernet network interface type
- Fast Ethernet
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi: No
- BIOS
- BIOS Type: UEFI AMI
- ACPI version: 5.0
- BIOS memory size: 512 Mbit
- Clear CMOS Button: Yes
- Clear CMOS Jumper: Yes
- System BIOS (SMBIOS) version: 2.7
- Desktop Management Interface (DMI) Version: 2.7
- Packaging data
- Package width: 345 mm
- Weight with packaging: 2.85 kg
- Package depth: 294 mm
- Package height: 80 mm
- Package contents
- Screws Included: Yes
- Batteries included: Yes
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID levels
- 5
- 0
- 10
- 1
- RAID Service: Yes
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 8

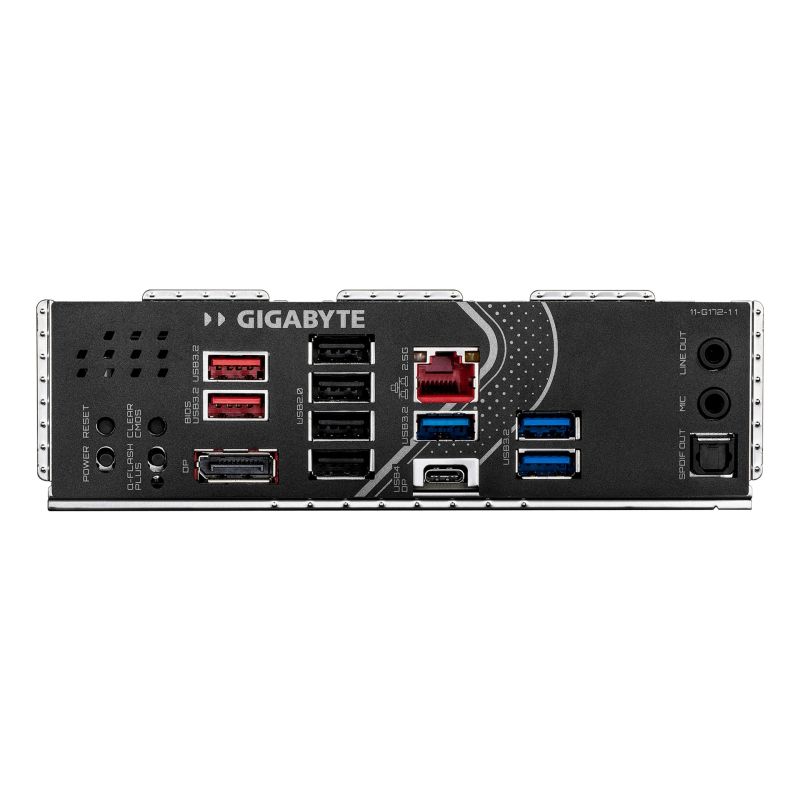

- Rear Panel I/O Ports
- S/PDIF Output Port: Yes
- Number of USB4 Gen 2x2 ports: 1
- Digital audio input: 1
- DisplayPort Quantity: 1
- DisplayPort version: 2.1
- Number of USB 2.0 ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Line Input: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Headphone outputs: 1
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 4
- 3. largest M.2 key size: 22110
- 1. largest M.2 key size: 25110
- 1. M.2 highest generation PCI Express: 5.0
- 2nd largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 4.0
- PCI Express x16 (Gen 4.x) slots: 2
- 3. M.2 highest generation PCI Express: 4.0
- 4. M.2 highest generation PCI Express: 4.0
- 4. largest M.2 key size: 22110
- Battery
- Number of battery compartments: 1
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Lithium battery weight: 0.07 g
- Battery weight: 3 g
- Battery capacity: 220 mAh
- Other functions
- Product weight: 2.44 kg
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Gigabyte |
| Department | Electronics |
