GIGABYTE Z890 EAGLE WIFI7 PLUS Intel Z890 LGA 1851 (Socket V1) ATX
GIGABYTE Z890 EAGLE WIFI7 PLUS Intel Z890 LGA 1851 (Socket V1) ATX
GIGABYTE Z890 EAGLE WIFI7 PLUS Intel Z890 LGA 1851 (Socket V1) ATX
PRICE:
419,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported CPU sockets: LGA 1851
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Processor manufacturer: Intel
- Graphics
- DirectX Version: 12.0
- Parallel Processing Support: Not Supported
- Maximum resolution: 3840 x 2160 px
- Memory
- Maximum memory capacity: 256 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
- ECC Compatibility: Non-ECC
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Supported memory clock speed (max): 9466 MHz
- Characteristics
- Chipset Board Family: Intel
- Monitoring computer status
- Fan
- Tension
- Water cooling
- Temperature
- Product color: Black
- Cooling type: Passive
- Intended use: PC
- Power supply type: ATX
- Supported Windows operating systems: Windows 11 x64
- Audio chip: Realtek ALC1220
- Motherboard format: ATX
- Audio output channels: 7.1 ch.
- Motherboard Layout: Intel Z890
- Weight and dimensions
- Product width: 305 mm
- Product depth: 244 mm
- Product height: 35 mm
- Internal I/O
- TPM Connector: Yes
- CPU fan connector: Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of USB 2.0 ports: 2
- Number of case fan connectors: 4
- Number of SATA III connectors: 4
- Thunderbolt Ends: 2
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- EPS power supply connector (8-pin): Yes
- Number of CPU fan connectors: 2
- Number of RGB LED connectors: 4
- 12V power connector: Yes
- Number of EPS power connectors (8-pin): 2
- Number of water pump connections: 2
- RGB LED: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Network
- Bluetooth: Yes
- LAN controller: Realtek RTL8125D
- Ethernet network interface type
- 2.5 Gigabit Ethernet
- Gigabit Ethernet
- Fast Ethernet
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Wired LAN: Yes
- Bluetooth version: 5.4
- WLAN controller model: Intel WIFI 7 BE202NGW M
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- BIOS
- Clear CMOS Button: Yes
- BIOS memory size: 512 Mbit
- ACPI version: 5.0
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Package depth: 294 mm
- Package width: 345 mm
- Weight with packaging: 2.92 kg
- Package height: 80 mm
- Package contents
- Screws Included: Yes
- Antenna Included: Yes
- Batteries included: Yes
- Memory drivers
- RAID levels
- 10
- 5
- 1
- 0
- Supported hard drive interfaces: M.2, SATA III
- RAID Service: Yes
- Supported drive types: HDD & SSD
- Number of supported HDDs: 8
- Number of supported storage drive sizes: 4
- RAID levels

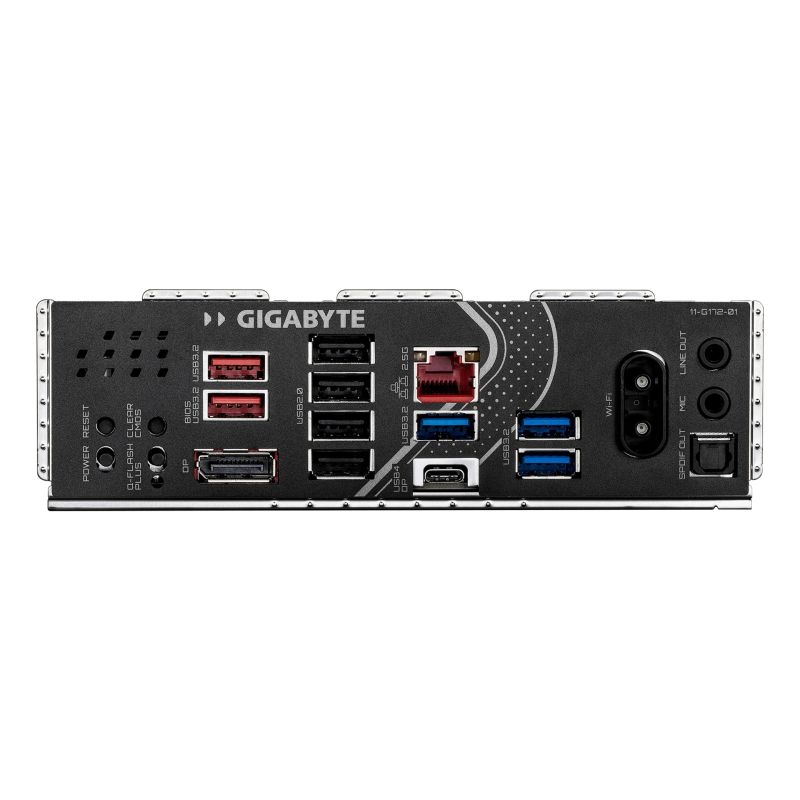

- Rear Panel I/O Ports
- Digital audio input: 1
- DisplayPort version: 2.1
- DisplayPort Quantity: 1
- Number of USB 2.0 ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- S/PDIF Output Port: Yes
- WiFi-AP Antenna Jack Plug: 2
- Line Input: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Headphone outputs: 1
- Number of Thunderbolt ports: 2
- Number of USB4 Gen 3x2 ports: 1
- Expansion slots
- Number of M.2 (M) slots: 4
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 25110
- 4. M.2 highest generation PCI Express: 4.0
- PCI Express x16 (Gen 4.x) slots: 2
- 3. largest M.2 key size: 22110
- 4. largest M.2 key size: 22110
- 3. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 4.0
- PCI Express x16 (Gen 5.x) slots: 1
- Battery
- Lithium battery weight: 0.07 g
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Battery capacity: 220 mAh
- Supported battery type: CR2032
- Number of battery compartments: 1
- Other functions
- Product weight: 2.51 kg
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Gigabyte |
| Department | Electronics |
