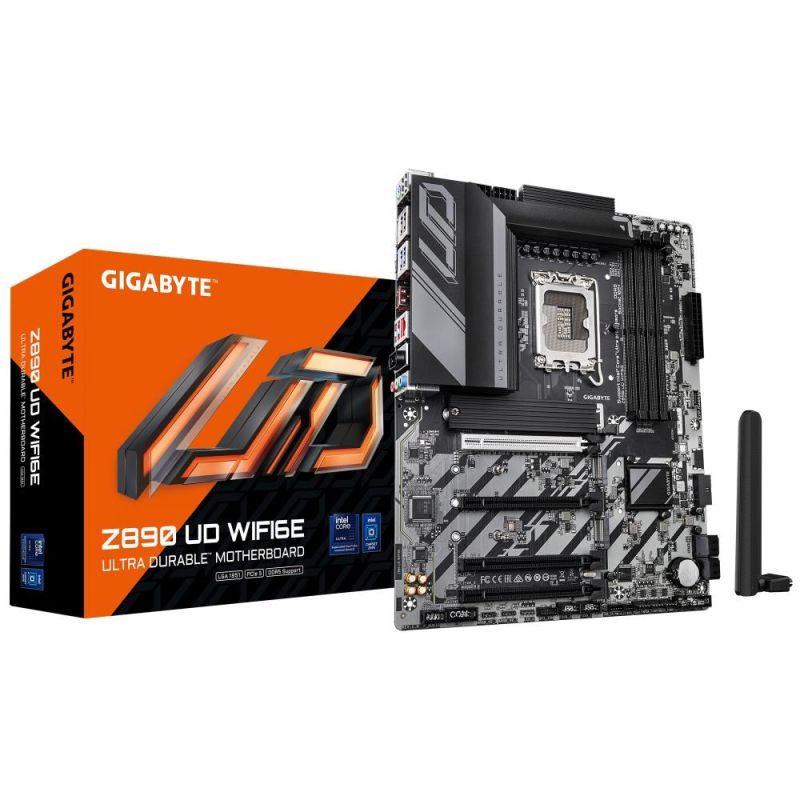

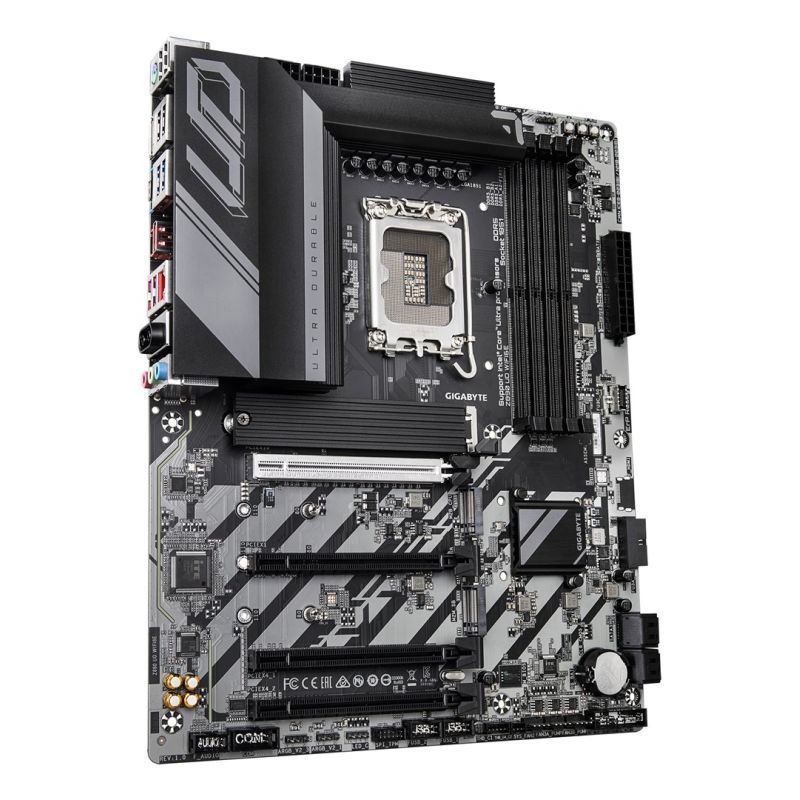

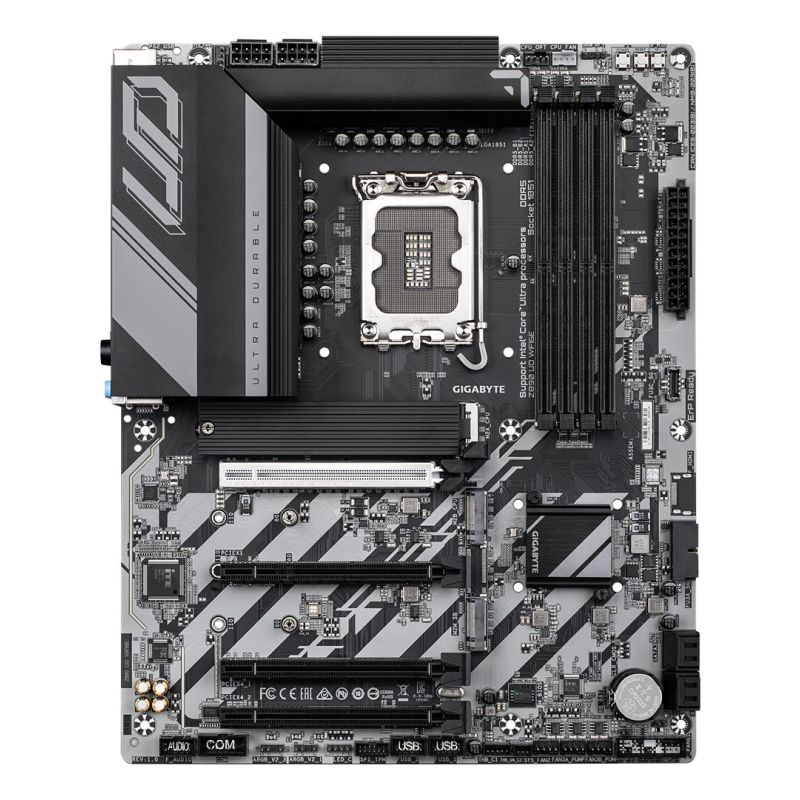

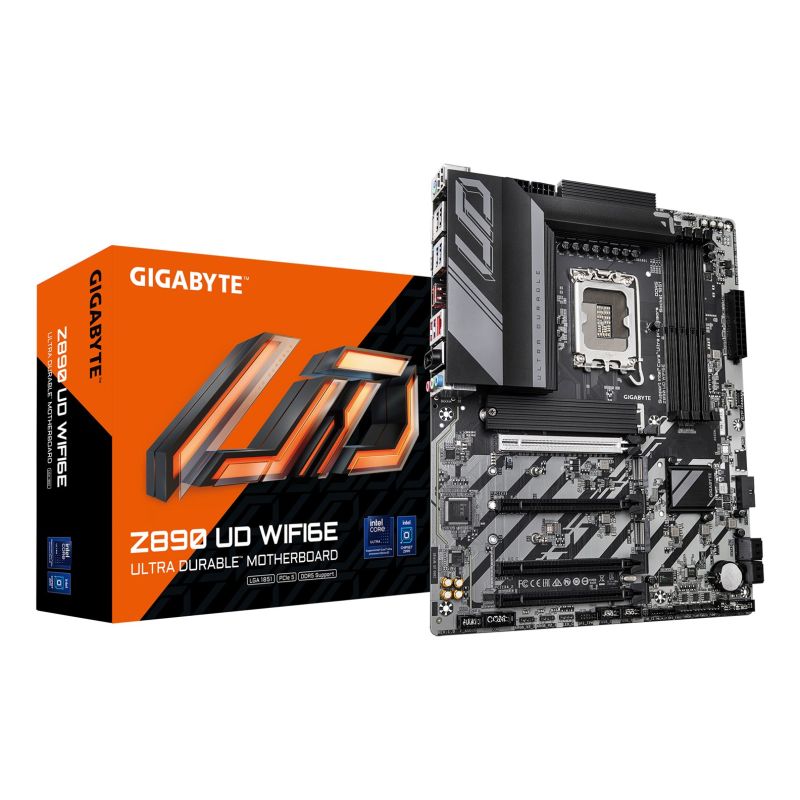

Gigabyte Z890 UD WIFI6E motherboard
Gigabyte Z890 UD WIFI6E motherboard
Gigabyte Z890 UD WIFI6E motherboard
PRICE:
340,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported CPU sockets: LGA 1851
- Processor: Intel Core Ultra (Series 2)
- Processor socket: LGA 1851 (Socket V1)
- Processor manufacturer: Intel
- Maximum internal memory supported by the processor: 256 GB
- Graphics
- Built-in graphics card: No
- DirectX Version: 12.0
- Memory
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 8800 MHz
- Supported memory clock speeds
- 5800 MHz
- 6600
- 6800
- 5600 MHz
- 6400 MHz
- 7900
- 8000
- 8266
- 7600
- 8400 MHz
- 6000 MHz
- 8200
- 6200 MHz
- 8600
- 7200
- 7000
- 7800
- 7950
- 7400
- Maximum memory capacity: 256 GB
- Supported memory module capacities
- 2GB
- 4GB
- 32GB
- 24GB
- 8GB
- 12GB
- 1GB
- 64GB
- 16GB
- 48GB
- 40GB
- ECC Compatibility: Non-ECC
- Characteristics
- Supported Windows operating systems: Windows 11 x64
- Product color: Black
- Chipset Board Family: Intel
- Motherboard format: ATX
- Monitoring computer status
- Temperature
- Tension
- Fan
- Motherboard Layout: Intel Z890
- Audio output channels: 7.1 ch.
- Weight and dimensions
- Product height: 35 mm
- Product width: 305 mm
- Product depth: 244 mm
- Internal I/O
- EPS power supply connector (8-pin): Yes
- Total number of SATA connectors: 4
- 12V power connector: Yes
- TPM Connector: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- RGB LED: Yes
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Network
- Wi-Fi standards
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- 802.11b
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wi-Fi 6E (802.11ax)
- Wi-Fi 4 (802.11n)
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi: Yes
- Bluetooth version: 5.3
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wired LAN: Yes
- WLAN controller model: Intel Wi-Fi 6E AX211
- Bluetooth: Yes
- Wi-Fi standards
- BIOS
- Clear CMOS Button: Yes
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- Desktop Management Interface (DMI) Version: 2.7
- Packaging data
- Package depth: 270 mm
- Package width: 335 mm
- Package height: 80 mm
- Weight with packaging: 2.02 kg
- Package contents
- Batteries included: Yes
- Memory drivers
- Number of supported storage drive sizes: 4
- Number of supported HDDs: 7
- RAID levels
- 1
- 5
- 10
- 0
- Supported hard drive interfaces: M.2, SATA III
- RAID Service: Yes
- Supported drive types: HDD & SSD

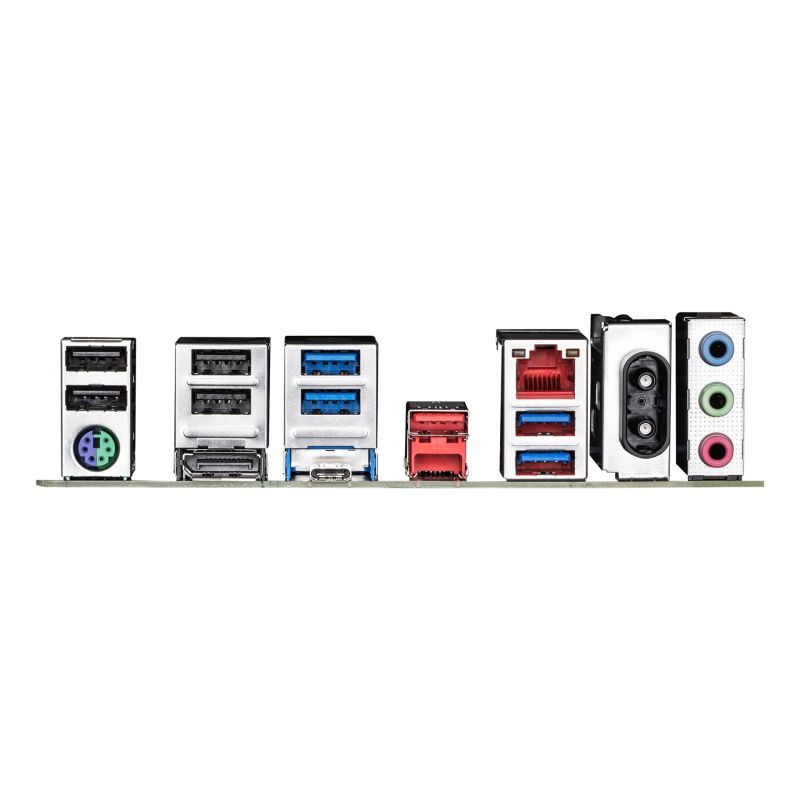

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of Thunderbolt ports: 2
- Microphone: Yes
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- S/PDIF Output Port: Yes
- Number of DisplayPorts: 2
- Number of USB 2.0 ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 3
- Number of M.2 (M) slots: 3
- Battery
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery compartments: 1
- Battery weight: 3 g
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 1.78 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
- Safety warning
- Warnings
- When disposing of this product, please follow local regulations for electronics recycling.
- Do not open or modify the motherboard to prevent damage.
- If you experience any problems with installation, please contact a qualified service center.
- Warnings
| Name | Details |
|---|---|
| Producer | Gigabyte |
