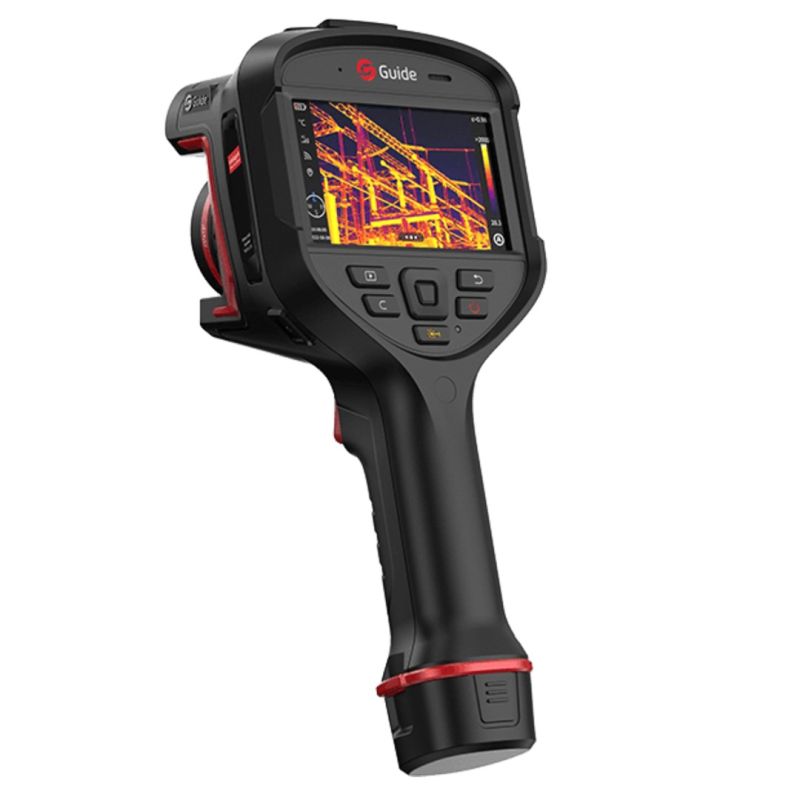

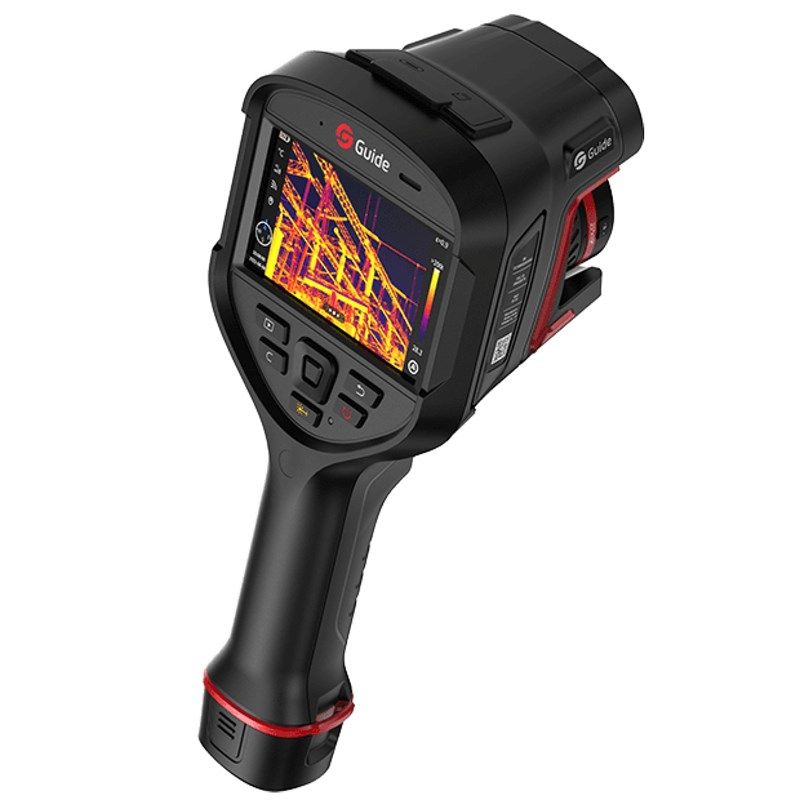

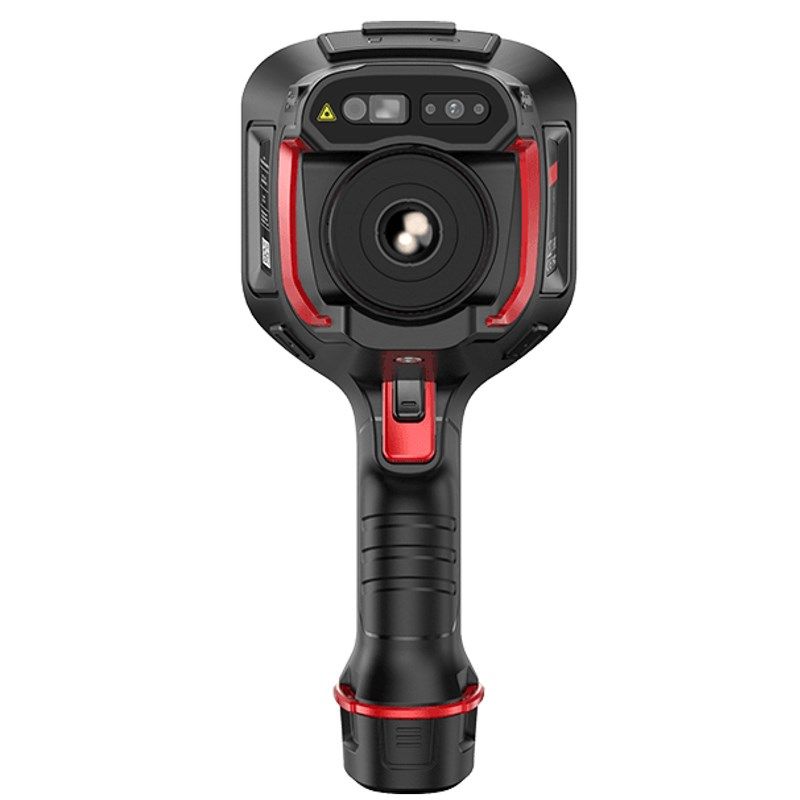

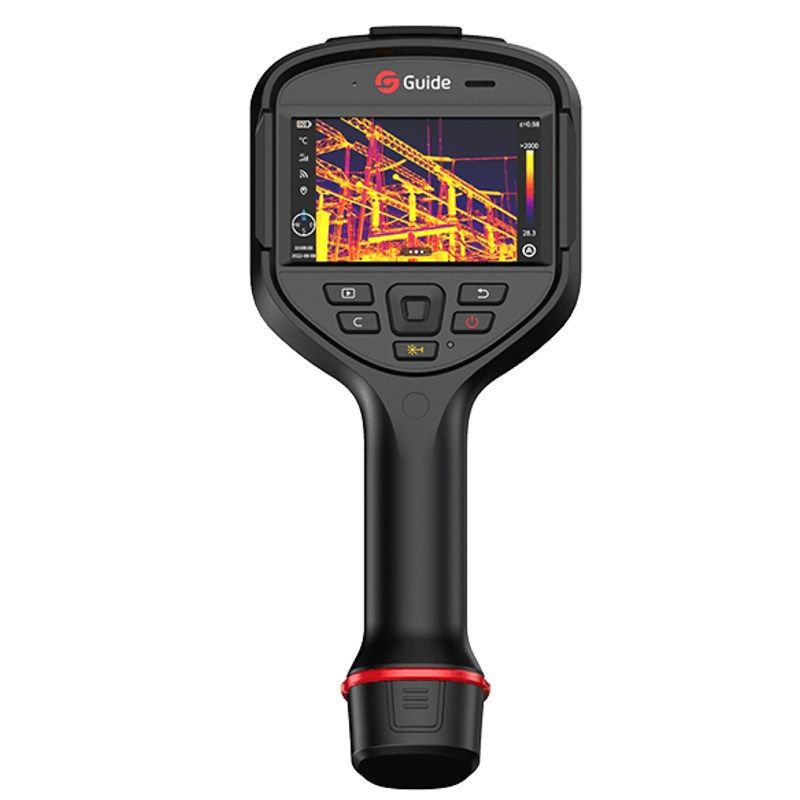

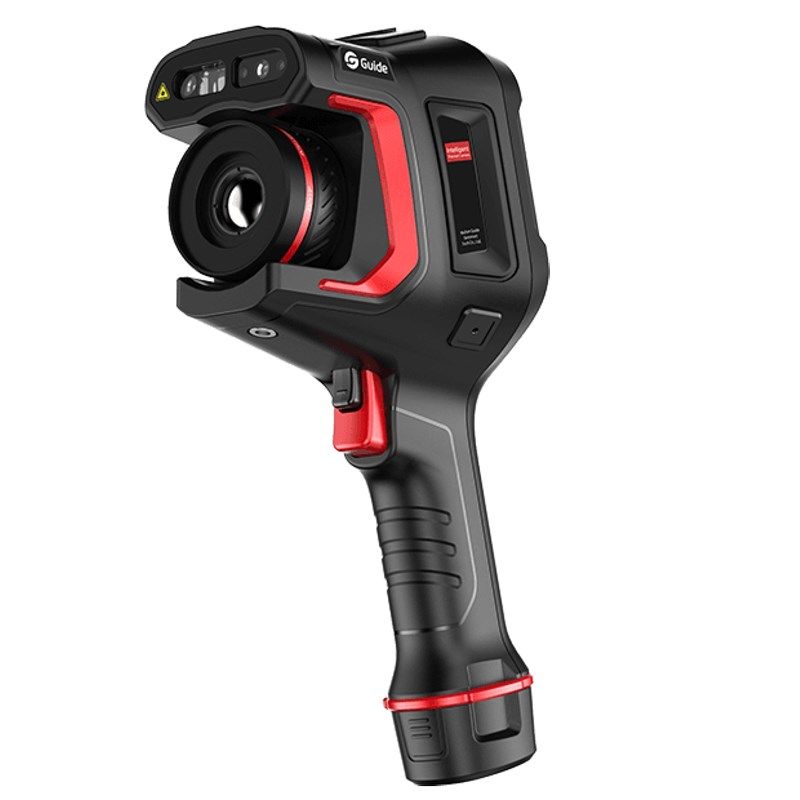

Guide Sensmart H4 Thermal Imaging Camera Vanadium Oxide Uncooled Focal Plane Arrays Black 800 x 480 px Built-in LCD Display
Guide Sensmart H4 Thermal Imaging Camera Vanadium Oxide Uncooled Focal Plane Arrays Black 800 x 480 px Built-in LCD Display
Guide Sensmart H4 Thermal Imaging Camera Vanadium Oxide Uncooled Focal Plane Arrays Black 800 x 480 px Built-in LCD Display
PRICE:
5004,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 2 years
- Characteristics
- Bluetooth: Yes
- Maximum memory card size: 64 GB
- Bluetooth version: 5.0
- Wi-Fi: Yes
- Design
- Product color: Black
- Screen diagonal: 4.3"
- Country of origin: China
- Housing material: Metal
- Touchscreen: Yes
- Built-in display: Yes
- IP protection class: IP54
- Display type: LCD
- Drop resistance: 200 cm
- Weight and dimensions
- Product weight: 1.2 kg
- Product width: 292 mm
- Product depth: 125 mm
- Product height: 125 mm
- Efficiency
- Maximum resolution: 480 x 360 px
- Sensor type (thermal module): Vanadium Oxide Uncooled Focal Plane Arrays
- Horizontal viewpoint: 25°
- Infrared spectral band: 7.5 - 14 µm
- Temperature measurement range: -40 - 650 °C
- Thermal refresh rate: 30 Hz
- Vertical viewpoint: 19°
- Thermal sensitivity (NETD): 30 mK
- Built-in memory: 64 GB
- Accuracy: 2 °C
- Built-in laser pointer: Yes
- Packaging data
- Packaging type: Box
- Package contents
- Wrist strap included: Yes
- Battery charger: Yes
- Cables: USB Type-C to USB Type-C
- Number of included batteries: 2 pcs.
- User Manual: Yes
- Ports and interfaces
- USB port: Yes
- Battery
- Battery operation time: 4 h
- Battery type: Lithium-ion (Li-Ion)
- Lens system
- Sensor resolution (thermal module): 800 x 480 px
- Minimum focal distance: 0.15 m
- Focus modes: Auto focus, Continuous auto focus, Manual focus, Touch auto focus
- Optical module
- Built-in camera: Yes
- Horizontal field of view (optical module): 25°
- Vertical field of view (optical module): 19°
