GUIDE SENSMART THERMAL IMAGING TOOL CAMERA USB-C, 120X90PX IR, -20°C TO 550°C, FOV 50°×38°, LCD 2.4", LASER, 2MP E1+
GUIDE SENSMART THERMAL IMAGING TOOL CAMERA USB-C, 120X90PX IR, -20°C TO 550°C, FOV 50°×38°, LCD 2.4", LASER, 2MP E1+
GUIDE SENSMART THERMAL IMAGING TOOL CAMERA USB-C, 120X90PX IR, -20°C TO 550°C, FOV 50°×38°, LCD 2.4", LASER, 2MP E1+
PRICE:
528,99
€
IN A WAREHOUSE
LAST ITEM!
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Maximum memory card size: 16 GB

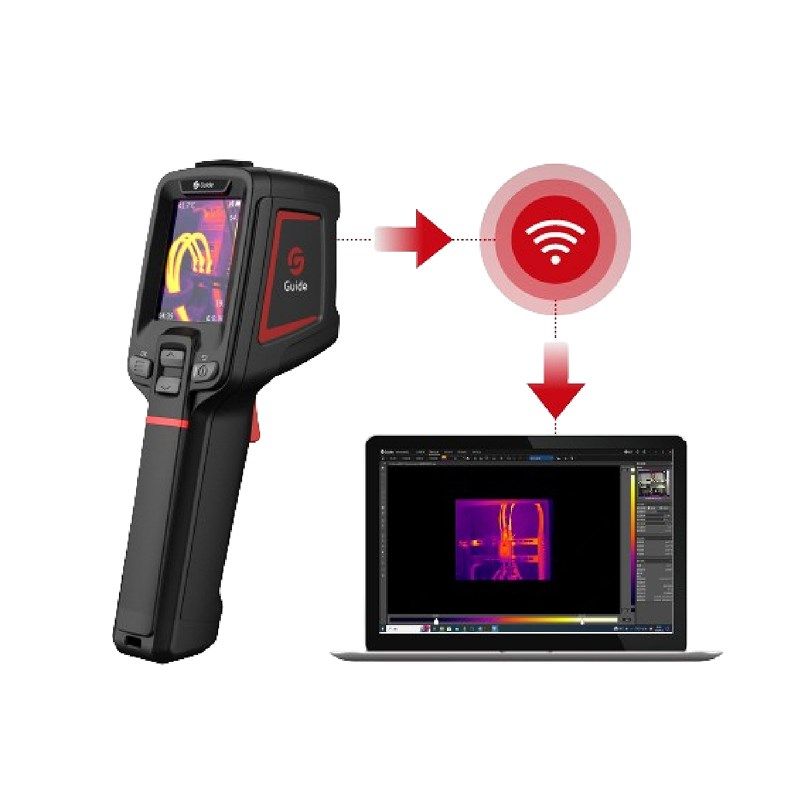

- Wi-Fi: Yes
- Design
- Product color: Black

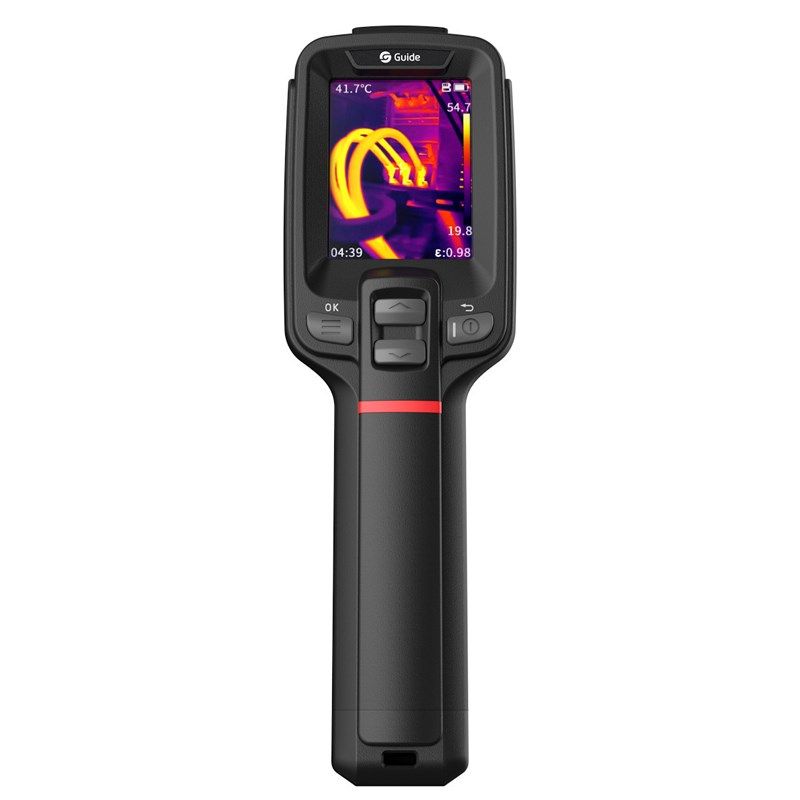

- Screen diagonal: 2.4"
- Built-in display: Yes
- IP protection class: IP54
- Drop resistance: 200 cm
- Display type: LCD
- Housing material: Metal
- Weight and dimensions
- Product weight: 350 g
- Product width: 194 mm
- Product height: 76 mm
- Product depth: 62 mm
- Efficiency
- Maximum resolution: 240 x 180 px
- Thermal refresh rate: 25 Hz
- Sensor type (thermal module): Vanadium Oxide Uncooled Focal Plane Arrays
- Built-in viewfinder: Yes
- Infrared spectral band: 7.5 - 14 µm
- Vertical viewpoint: 38°
- Horizontal viewpoint: 50°
- Temperature measurement range: -20 - 550 °C
- Accuracy: 2 °C
- Built-in laser pointer: Yes
- Built-in memory: 16 GB
- Thermal sensitivity (NETD): 60 mK
- Image frequency: 25 Hz
- Packaging data
- Packaging type: Box
- Package contents
- Battery charger: Yes
- Cables: USB Type-A to USB Type-C
- Wrist strap included: Yes
- User Manual: Yes
- Ports and interfaces

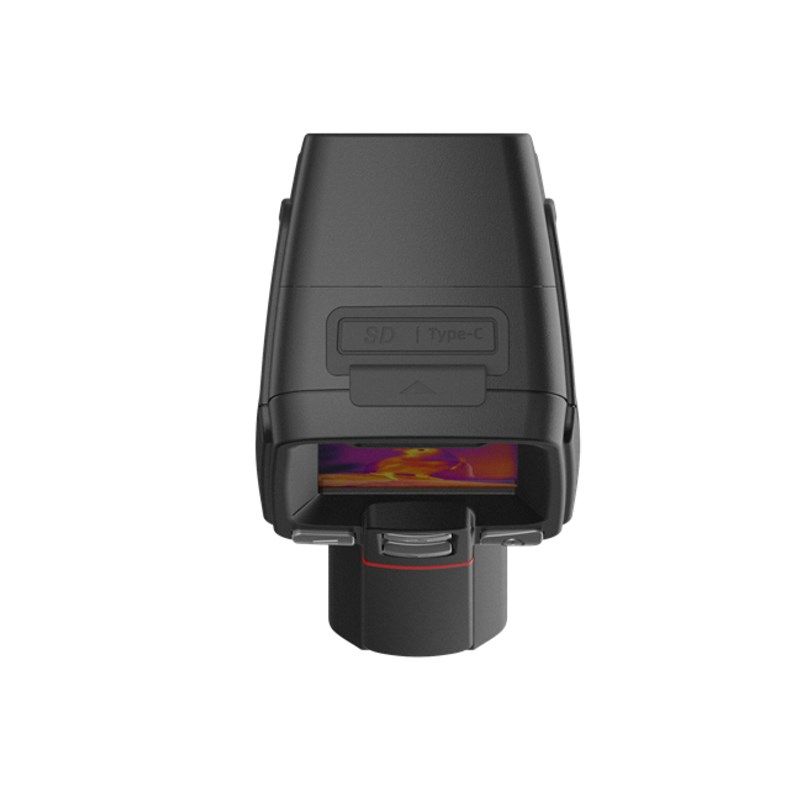

- Supported USB type: USB Type-C
- USB port: Yes
- Battery
- Battery operation time: 8 h
- Lens system
- Fixed focal length: 2.28 mm
- Sensor resolution (thermal module): 120 x 90 px
| Name | Details |
|---|---|
| Category | Industry |
| Producer | Guide Sensmart |
| Department | Company and Office |
