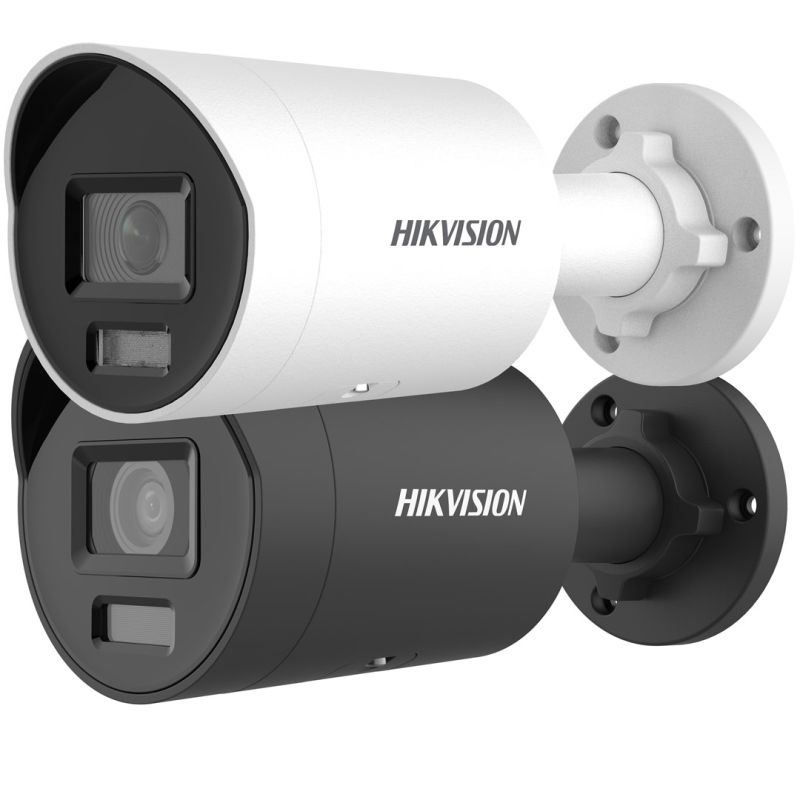

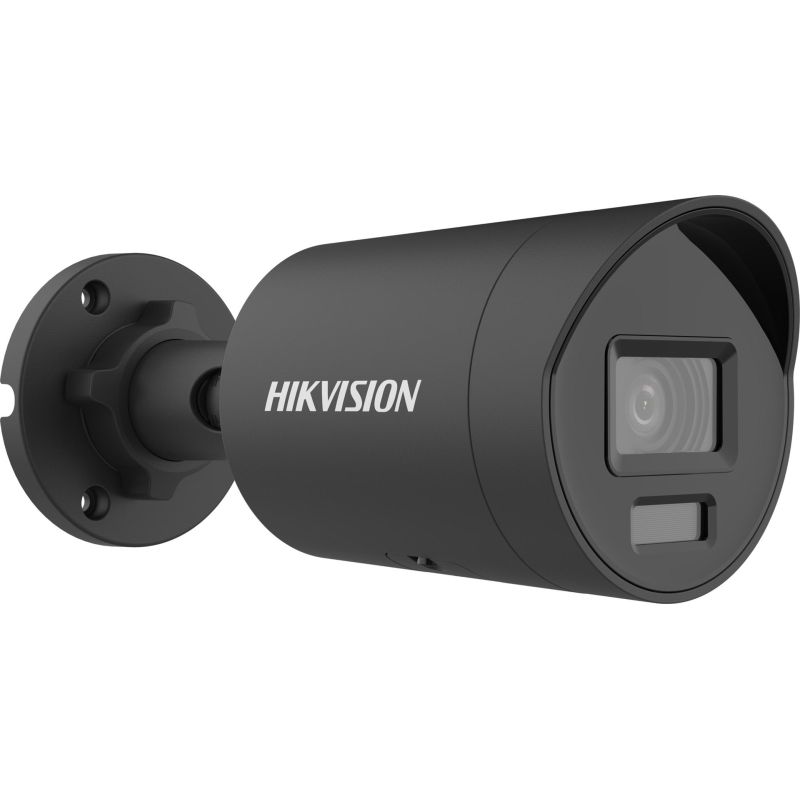

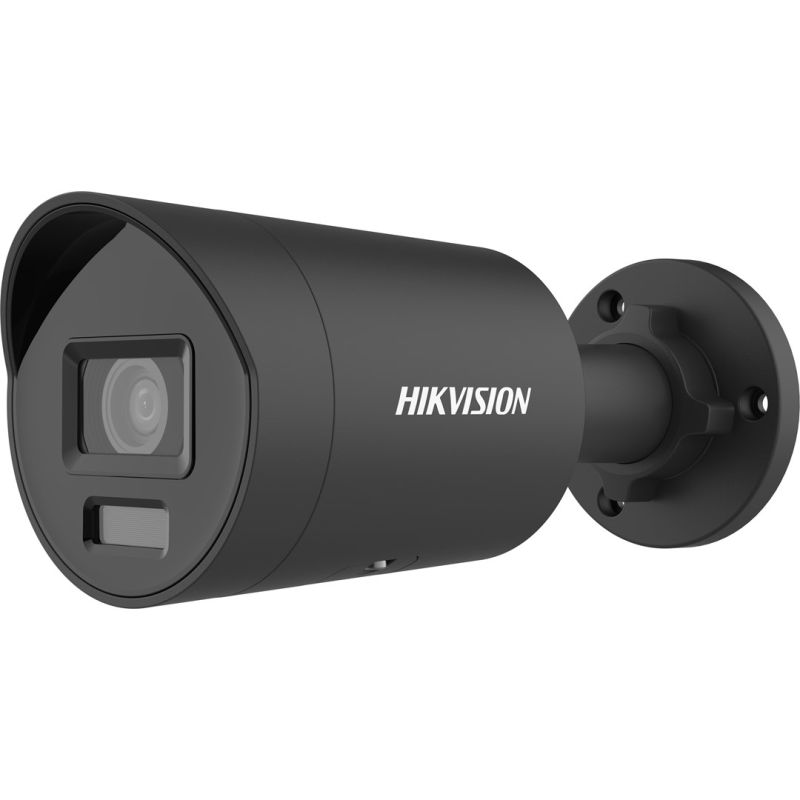

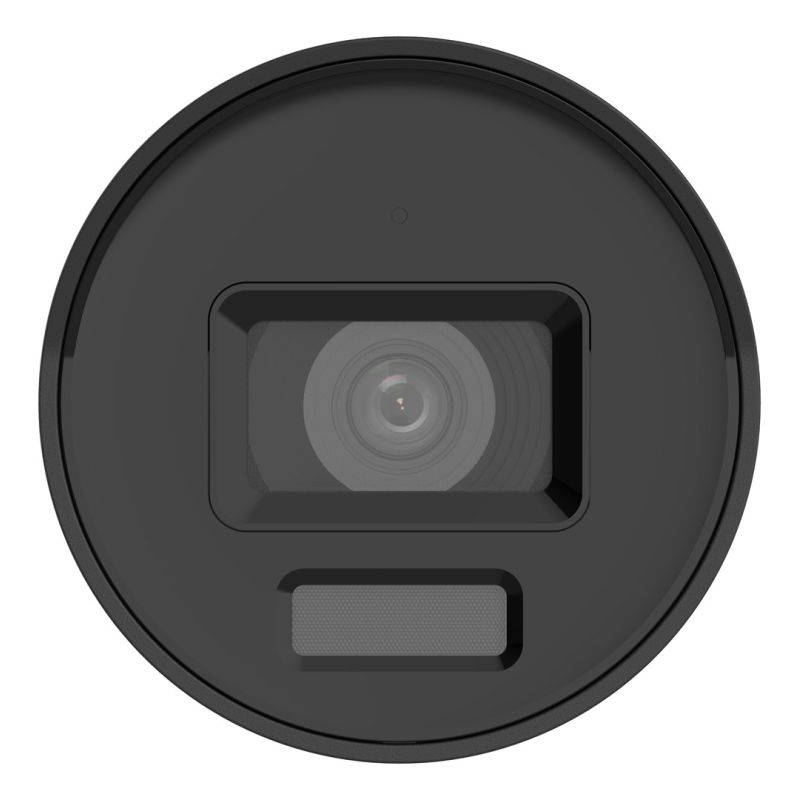

HIKVISION DS-2CD2066G2H-IU(2.8mm)(eF)(O-STD)/BLACK IP camera
HIKVISION DS-2CD2066G2H-IU(2.8mm)(eF)(O-STD)/BLACK IP camera
HIKVISION DS-2CD2066G2H-IU(2.8mm)(eF)(O-STD)/BLACK IP camera
PRICE:
261,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- lens mount interface: M12
- Design
- Security features
- Waterproof
- Dust resistant
- Layout: Tube
- IP protection class: IP67
- Mounting type: Ceiling / Wall
- Housing material: Metal
- Product color: Black
- Security features
- Power
- Power consumption (max): 8.5 W
- DC Output (Volts): 12
- DC Output (Amps): 0.58 A
- Power supply type: DC, PoE
- Weight and dimensions
- Diameter: 7.44 cm
- Product depth: 179.2 mm
- Product weight: 505 g
- Security
- Password protection: Yes
- Heartbeat: Yes
- Video motion detection: Yes
- Intelligent Video Surveillance (IVS) Features
- Region exiting detection
- People detection
- Intrusion
- Scene change
- Region Entry Detection
- Line crossing detection
- Vehicle detection
- Active intrusion alarm: Yes
- Digital Watermark: Yes
- Password reset via email: Yes
- Pixel counter: Yes
- Mirror: Yes
- Audit log: Yes
- Digest Authentication: Yes
- HTTS Inscription: Yes
- IP Filtering: Yes
- Encryption/Security
- TLS
- EAP-MD5
- EAP-TLS
- EAP-LEAP
- Management features
- Reset button: Yes
- Working conditions
- Permissible relative humidity: 0 - 95%
- Temperature range (storage): -30 - 60 °C
- Relative humidity range: 0 - 95%
- Temperature range (operation): -30 - 60 °C
- Network
- Number of users: 32 users
- Number of simultaneous live view channels: 6 channels
- Wired LAN: Yes
- User access level: Administrator, Operator, User
- Wi-Fi: No
- Ethernet interface type: Fast Ethernet
- Bluetooth: No
- Communication standards
- IEEE 802.1x
- IEEE 802.3af
- Efficiency
- Infrared (IR) Cut-off Filter: Yes
- Intended use: Indoor and outdoor
- Dynamic range: 120 dB
- Day/Night Mode: Yes
- Language Support: Multi
- Wide Dynamic Range (WDR): Yes
- Connection method: Wired
- Model: IP Security Camera
- Packaging data
- Package width: 234 mm
- Package height: 117 mm
- Packaging depth: 120 mm
- Weight with packaging: 815 g
- Package contents
- Number of cameras: 1
- Audio
- Supported audio formats
- G.722.1
- MP2L2
- AAC-LC
- MP3
- G.726
- PCM
- G.711
- Sampling rate: 8 - 48 kHz
- Signal-to-noise ratio: 52 dB
- Bit rate range: 8 - 320 Kbit/s
- Built-in microphone: Yes
- Supported audio formats
- Data carrier
- Integrated card reader: Yes
- Supported memory cards
- MicroSD
- MicroSDHC
- MicroSDXC
- Built-in HDD: No
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Lens angle of view, horizontal: 114.8°
- Lens viewing angle, diagonal: 143.5°
- Number of privacy masking areas: 4
- Rotation angle: 360°
- Shutter speed: 1/3 s - 1/100000
- Vertical lens viewing angle: 60°
- Swivel range: 0 - 360°
- Min. Illumination: 0 lx
- Tilt angle range: 0 - 90°
- Photosensitive matrix
- CCD sensor size: 25.4 / 2.4 mm (1 / 2.4")
- Image sensor type: CMOS
- Progressive Scan: Yes
- Night mode
- Night mode: Yes
- LED type: Infrared
- Infrared wavelength: 850 nm
- Night Vision Distance: 40 m
- Video
- Quality regulation
- Brightness
- Contrast
- Sharpness
- Saturation
- Data flow speed: 32 Kbps - 16 Mbps
- Privacy Mask: Yes
- Highlight Compensation (HLC): Yes
- Backlight compensation: Yes
- Compression formats
- H.264+
- H.265+
- M-JPEG
- H.265
- H.264
- Supported video file formats
- H.264
- H.265
- M-JPEG
- H.265+
- H.264+
- Noise reduction: Yes
- Total megapixels: 6 MP
- Frame rate: 30 fps
- Data rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Regional Area of Interest (ROI) Coding: Yes
- Noise reduction technology: 3D noise reduction
- Maximum resolution: 3200 x 1800 px
- Supported graphics resolutions
- 3200 x 1800
- 2688 x 1520
- 640 x 480 (VGA)
- 1920 x 1080 (HD 1080)
- 640 x 360
- 1280 x 720 (HD 720)
- Quality regulation
- Lens system
- Number of lenses: 1
- Fixed focal length: 2.8 mm
- Maximum aperture: 1
- Observe distance: 25 m
- Recognition distance: 12 m
- Determining distance: 6 m
- Detection distance: 64 m
- Safety warning
- Warnings
- Make sure the product is properly installed and secured to prevent mechanical damage.
- Avoid direct contact with water to prevent electrical damage.
- The product contains electronic components and should not be disposed of in regular waste.
- Warnings
- Sustainable development
- Certificates of conformity
- Low Voltage Directive (LVD)
- UKCA
- REACH
- WEEE
- RCM
- Central Committee
- RoHS
- Electromagnetic compatibility (EMC)
- CB
- Certificates of conformity
| Name | Details |
|---|---|
| Category | Industry |
| Producer | Hikvision |
| Colour | Black |
