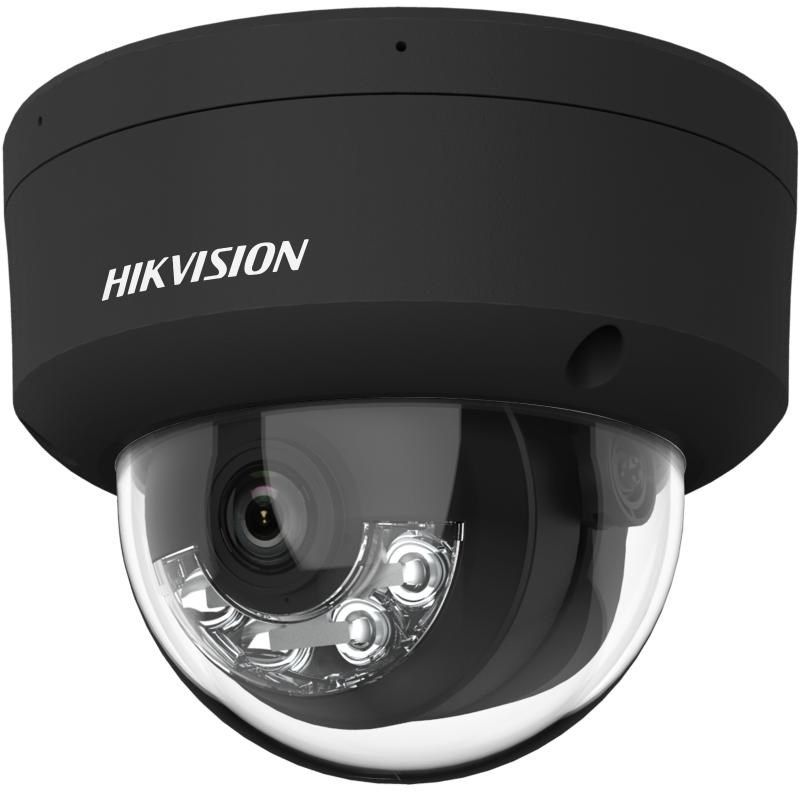

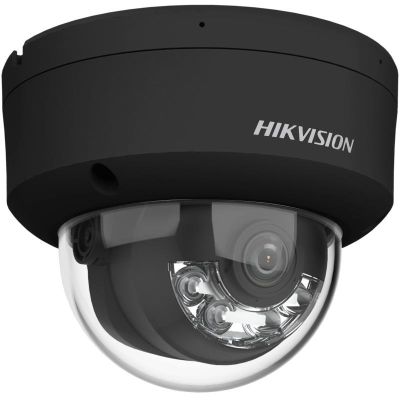

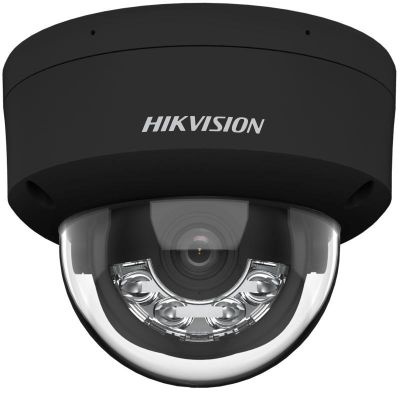

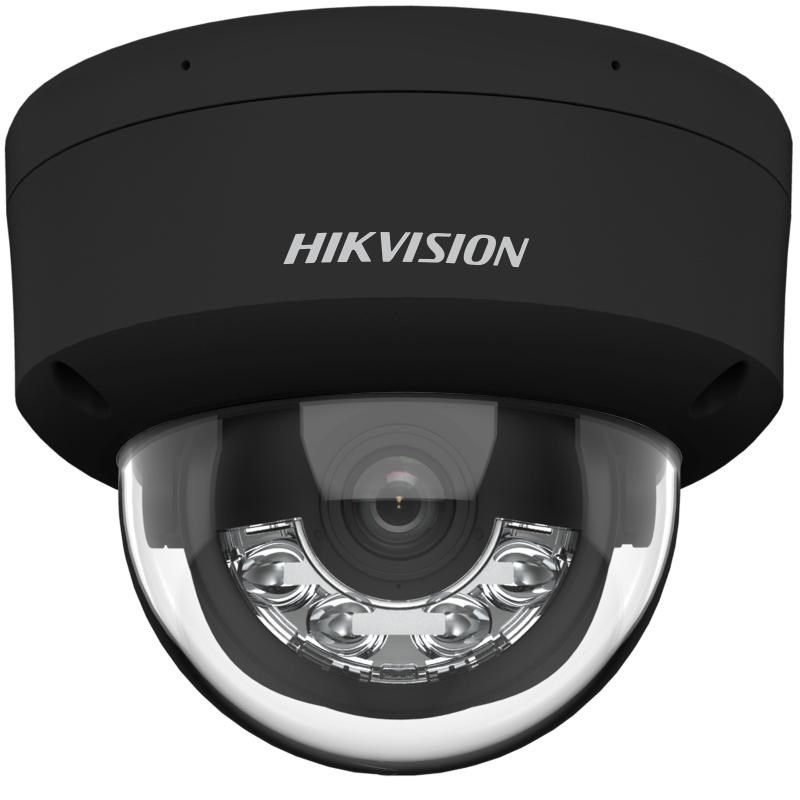

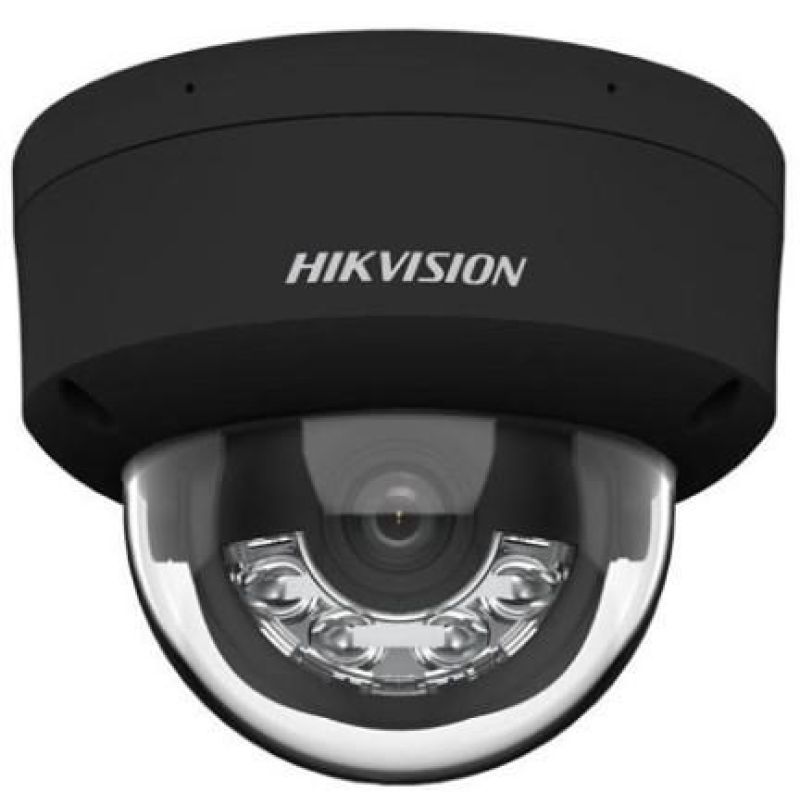

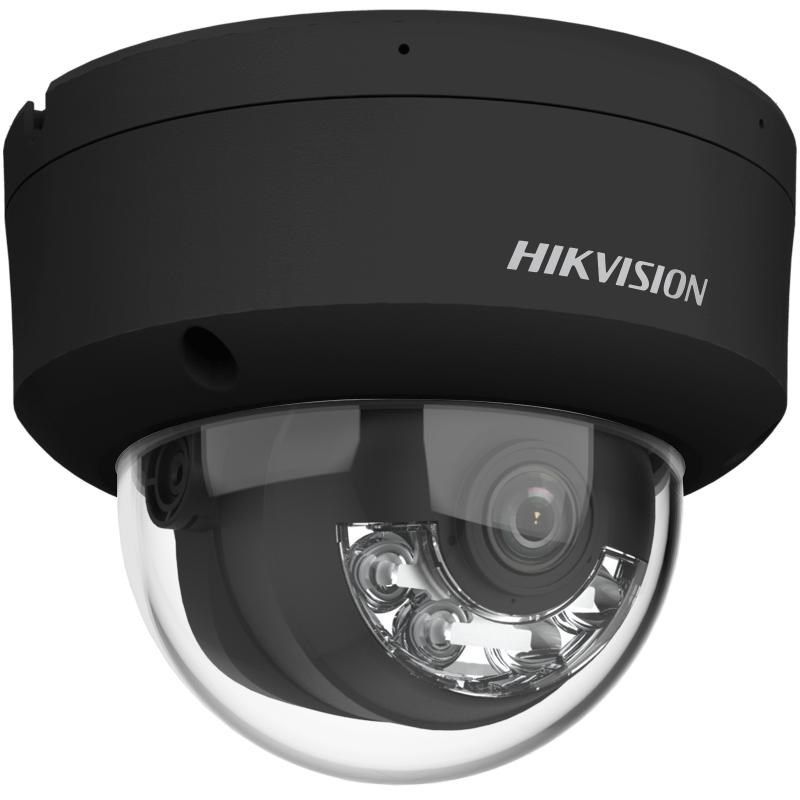

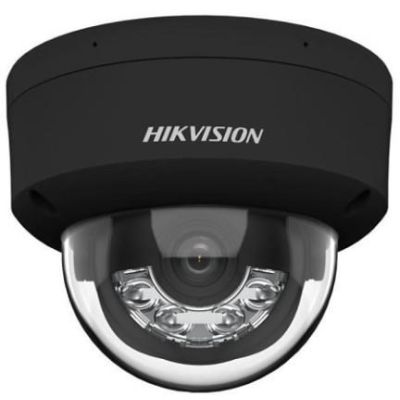

HIKVISION DS-2CD2147G2H-LISU(2.8mm)/eF/Black IP camera
HIKVISION DS-2CD2147G2H-LISU(2.8mm)/eF/Black IP camera
HIKVISION DS-2CD2147G2H-LISU(2.8mm)/eF/Black IP camera
PRICE:
167,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Output impedance: 100 Ω
- Design
- Layout: Dome
- Housing material: Aluminum
- IP protection class: IP65
- Security features: Waterproof
- IK code: IK10
- Mounting type: Ceiling / Wall
- Product color: Black
- Power
- Power consumption (max): 7.2 W
- DC Output (Volts): 12
- DC Output (Amps): 0.6 A
- Power consumption (PoE): 8.5 W
- Power supply type: DC, PoE
- Weight and dimensions
- Diameter: 12.2 cm
- Product height: 97.6 mm
- Product weight: 525 g
- Security
- Human and Vehicle Target Classification: Yes
- Automatic Network Replenishment (ANR): Yes
- Pixel counter: Yes
- Password reset via email: Yes
- Privacy Protection: Yes
- Audit log: Yes
- Digest Authentication: Yes
- Network Attached Storage (NAS): Yes
- Alarm input channels: 1
- Alarm output channels: 1
- IP Filtering: Yes
- HTTS Inscription: Yes
- Password protection: Yes
- Video motion detection: Yes
- Intelligent Video Surveillance (IVS) Features: Face Detection
- Heartbeat: Yes
- Mirror: Yes
- Digital Watermark: Yes
- Anti-glare: Yes
- Active intrusion alarm: Yes
- Encryption/Security
- EAP-TLS
- EAP-LEAP
- HTTPS
- TLS
- Management features
- Behavior Analysis: Intrusion Detection, Line Crossing Detection
- Reset button: Yes
- Website management: Yes
- Working conditions
- Permissible relative humidity: 0 - 95%
- Relative humidity range: 0 - 95%
- Temperature range (operation): -30 - 60 °C
- Temperature range (storage): -30 - 60 °C
- Network
- User access level: Administrator, Operator, User
- Number of simultaneous live view channels: 6 channels
- Wi-Fi: No
- Ethernet interface type: Fast Ethernet
- Wired LAN: Yes
- Quality of Service (QoS) Support: Yes
- Number of users: 32 users
- Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
- Live View: Yes
- Communication standards
- IEEE 802.3af
- IEEE 802.1x
- Bluetooth: No
- Efficiency
- Number of languages: 33
- Wide Dynamic Range (WDR): Yes
- Intended use: Outdoor
- Infrared (IR) Cut-off Filter: Yes
- Day/Night Mode: Yes
- Dynamic range: 130 dB
- Language Support: Multi
- Built-in light: Yes
- Connection method: Wired
- Model: IP Security Camera
- Packaging data
- Packaging depth: 120 mm
- Package width: 234 mm
- Package height: 117 mm
- Weight with packaging: 750 g
- Package contents
- Number of cameras: 1
- Audio
- Bit rate range: 8 - 320 Kbit/s
- Sampling rate: 8 - 48 kHz
- Audio codecs
- G.711ulaw
- G.726
- G.722.1
- G.711alaw
- MP2L2
- Audio input channels: 1.0 ch.
- Signal-to-noise ratio: 52 dB
- Supported audio formats
- PCM
- MP3
- AAC
- Audio output channels: 1.0 ch.
- Built-in microphone: Yes
- Data carrier
- Supported memory cards
- MicroSDXC
- MicroSD
- MicroSDHC
- Integrated card reader: Yes
- Built-in HDD: No
- Maximum memory card size: 512 GB
- Supported memory cards
- Ports and interfaces
- Terminal Port Blocking: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Lens viewing angle, horizontal: 104°
- Lens viewing angle, diagonal: 126.7°
- Vertical lens angle of view: 54.4°
- Swivel range: 0 - 355°
- Rotation angle: 355°
- Shutter speed: 1/3 - 1/100000 s
- Min. Illumination: 0 lx
- Tilt angle range: 0 - 75°
- Number of privacy masking areas: 4
- Photosensitive matrix
- CCD sensor size: 25.4 / 1.8 mm (1 / 1.8")
- Progressive Scan: Yes
- Image sensor type: CMOS
- Number of sensors: 1
- Night mode
- LED Type: Infrared/White
- Night Vision Distance: 30 m
- Night mode: Yes
- Infrared wavelength: 850 nm
- Video
- Noise reduction: Yes
- Frame rate: 30 fps
- Backlight compensation: Yes
- Data flow speed: 32 Kbps - 8 Mbps
- Highlight Compensation (HLC): Yes
- Total megapixels: 4 MP
- Noise reduction technology: 3D noise reduction
- Regional Area of Interest (ROI) Coding: Yes
- Compression formats
- H.265
- H.264
- M-JPEG
- H.264+
- H.265+
- Quality regulation
- Saturation
- Sharpness
- Contrast
- Brightness
- Video transmission: Yes
- Data rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Privacy Mask: Yes
- Supported graphics resolutions
- 640 x 360
- 640 x 480 (VGA)
- 1280 x 720 (HD 720)
- 1920 x 1080 (HD 1080)
- 2688 x 1520
- Maximum resolution: 2680 x 1520 px
- Lens system
- Fixed focal length: 2.8 mm
- Fixed focus: Yes
- Maximum aperture: 1
- Detection distance: 61 m
- Observe distance: 24 m
- Recognition distance: 12 m
- Determining distance: 6 m
- Number of lenses: 1
- Sustainable development
- Sustainability: Yes
- Certificates of conformity
- RoHS
- CE
- CB
- Industry Canada (IC)
- Central Committee
- Federal Communications Commission (FCC)
- UL
- WEEE
- Low Voltage Directive (LVD)
| Name | Details |
|---|---|
| Category | Industry |
| Producer | Hikvision |
| Colour | Black |
