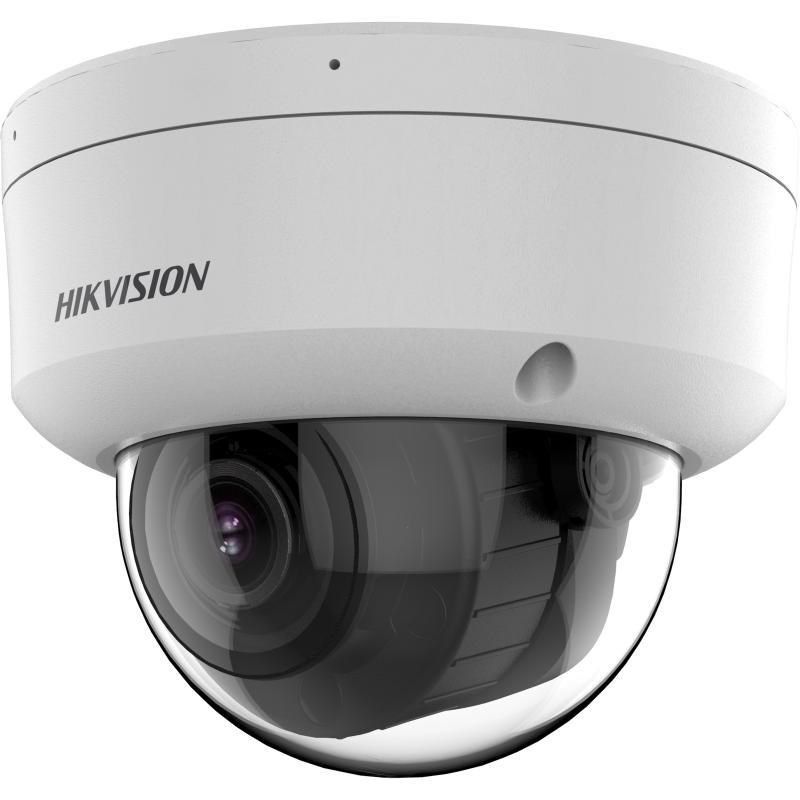

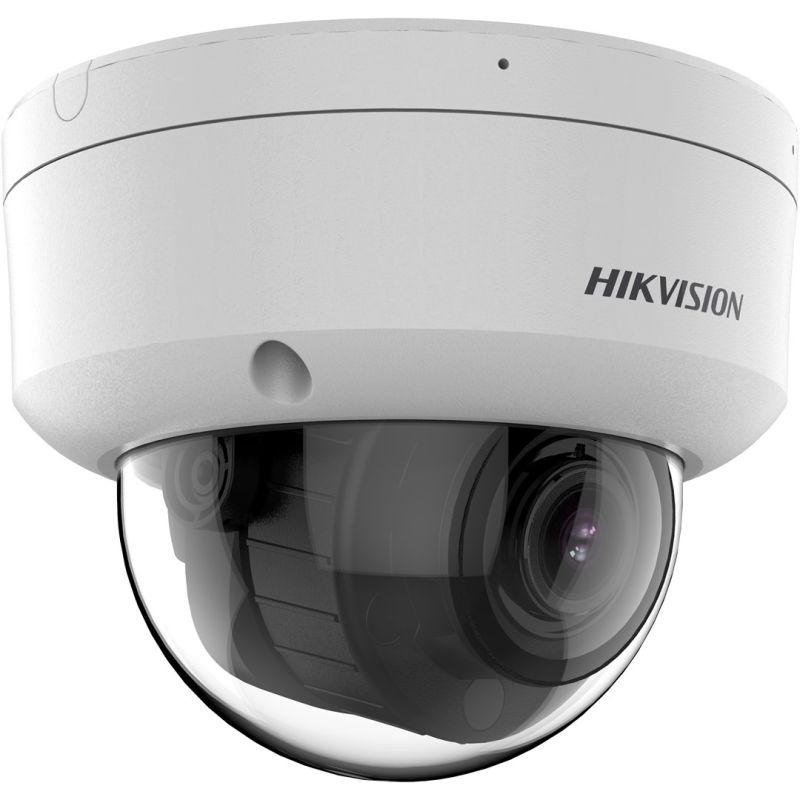

Hikvision DS-2CD2743G2-LIZS2U(2.8-12MM) industrial camera IP security camera
Hikvision DS-2CD2743G2-LIZS2U(2.8-12MM) industrial camera IP security camera
Hikvision DS-2CD2743G2-LIZS2U(2.8-12MM) industrial camera IP security camera
PRICE:
380,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Security features
- Waterproof
- Dust resistant
- Housing material: Metal
- Layout: Dome
- IP protection class: IP67
- Mounting type: Ceiling / Wall
- IK code: IK10
- Product color: White
- Security features
- Power
- Power consumption (max): 10.56 W
- DC Output (Amps): 0.88 A
- DC Output (Volts): 12
- Power consumption (PoE): 12.5 W
- Power supply type: DC, PoE
- Weight and dimensions
- Product height: 97.6 mm
- Diameter: 12.2 cm
- Product weight: 620 g
- Security
- Video motion detection: Yes
- Password protection: Yes
- Heartbeat: Yes
- Digital Watermark: Yes
- Alarm input channels: 1
- HTTS Inscription: Yes
- Intelligent Video Surveillance (IVS) Features: Face Detection
- Privacy Protection: Yes
- IP Filtering: Yes
- Automatic Network Replenishment (ANR): Yes
- Mirror: Yes
- Password reset via email: Yes
- Human and Vehicle Target Classification: Yes
- Alarm output channels: 1
- Digest Authentication: Yes
- Network Attached Storage (NAS): Yes
- Audit log: Yes
- Pixel counter: Yes
- Active intrusion alarm: Yes
- Flash Log: Yes
- Encryption/Security
- EAP-MD5
- EAP-TLS
- EAP-LEAP
- Management features
- Behavior Analysis: Intrusion Detection, Line Crossing Detection
- Website management: Yes
- Reset button: Yes
- Working conditions
- Temperature range (operation): -30 - 60 °C
- Relative humidity range: 0 - 95%
- Permissible relative humidity: 0 - 95%
- Temperature range (storage): -30 - 60 °C
- Network
- Wi-Fi: No
- Ethernet interface type: Fast Ethernet
- Number of users: 32 users
- User access level: Administrator, Operator, User
- Live View: Yes
- Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
- Wired LAN: Yes
- Quality of Service (QoS) Support: Yes
- Number of simultaneous live view channels: 6 channels
- Communication standards: IEEE 802.3af
- Bluetooth: No
- Efficiency
- Dynamic range: 120 dB
- Infrared (IR) Cut-off Filter: Yes
- Number of languages: 33
- Intended use: Outdoor
- Language Support: Multi
- Day/Night Mode: Yes
- Wide Dynamic Range (WDR): Yes
- Model: IP Security Camera
- Connection method: Wired
- Packaging data
- Package height: 141 mm
- Package width: 150 mm
- Packaging depth: 150 mm
- Weight with packaging: 880 g
- Package contents
- Number of cameras: 1
- Audio
- Audio input channels: 1.0 ch.
- Supported audio formats
- G.711 A-law
- PCM
- MP2L2
- AAC-LC
- G.711 μ-law
- G.722.1
- MP3
- G.726
- Signal-to-noise ratio: 52 dB
- Number of built-in microphones: 2
- Bit rate range: 8 - 320 Kbit/s
- Sampling rate: 8 - 48 kHz
- Audio output channels: 1.0 ch.
- Built-in microphone: Yes
- Data carrier
- Built-in HDD: No
- Supported memory cards
- MicroSDXC
- MicroSD
- microSDHC
- Integrated card reader: Yes
- Maximum memory card size: 512 GB
- Ports and interfaces
- Terminal Port Blocking: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Swivel range: 0 - 355°
- Rotation angle: 355°
- Shutter speed: 1/3 - 1/100000 s
- Lens viewing angle, diagonal: 122.1 - 35.8°
- Vertical lens viewing angle: 54.7 - 17.6°
- Number of privacy masking areas: 4
- Min. Illumination: 0 lx
- Lens viewing angle, horizontal: 102.4 - 31.2°
- Tilt angle range: 0 - 75°
- Other functions
- Supported browsers: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
- Photosensitive matrix
- Image sensor type: CMOS
- Progressive Scan: Yes
- Number of sensors: 1
- CCD sensor size: 25.4/3 mm (1/3")
- Night mode
- LED Type: Infrared/White
- Night Vision Distance: 40 m
- Night mode: Yes
- Infrared wavelength: 850 nm
- Video
- Privacy Mask: Yes
- Quality regulation
- Sharpness
- Brightness
- Contrast
- Saturation
- Smart IR: Yes
- Highlight Compensation (HLC): Yes
- Noise reduction: Yes
- Data flow speed: 32 Kbps - 8 Mbps
- Data rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Backlight compensation: Yes
- Noise reduction technology: 3D noise reduction
- Compression formats
- H.265
- H.264
- M-JPEG
- H.264+
- H.265+
- Control Gain: Automatic
- Frame rate: 30 fps
- Video recording: Yes
- Regional Area of Interest (ROI) Coding: Yes
- Video transmission: Yes
- Total megapixels: 4 MP
- Supported graphics resolutions
- 1920 x 1080 (HD 1080)
- 2688 x 1520
- 1280 x 720 (HD 720)
- 640 x 360
- 640 x 480 (VGA)
- Maximum resolution: 2688 x 1520 px
- Lens system
- Number of lenses: 1
- Detection distance (tele): 198 m
- Maximum aperture: 1.6
- Distance measurement (tele): 19.8 m
- Focal length: 2.8 - 12 mm
- Detection distance (wide): 64 m
- Distance measurement (wide): 6.4 m
- Distance Recognition (Tele): 39.6 m
- Observing distance (tele): 78.6 m
- Recognition distance (wide): 12.8 m
- Observing distance (wide): 25.4 m
- Safety warning
- Warnings
- The product contains electronic components and should not be disposed of in regular waste.
- Make sure the product is properly installed and secured to prevent mechanical damage.
- Avoid direct contact with water to prevent electrical damage.
- Warnings
- Sustainable development
- Certificates of conformity
- Low Voltage Directive (LVD)
- CE
- UL
- RoHS
- CB
- Certificates of conformity
| Name | Details |
|---|---|
| Producer | Hikvision |
