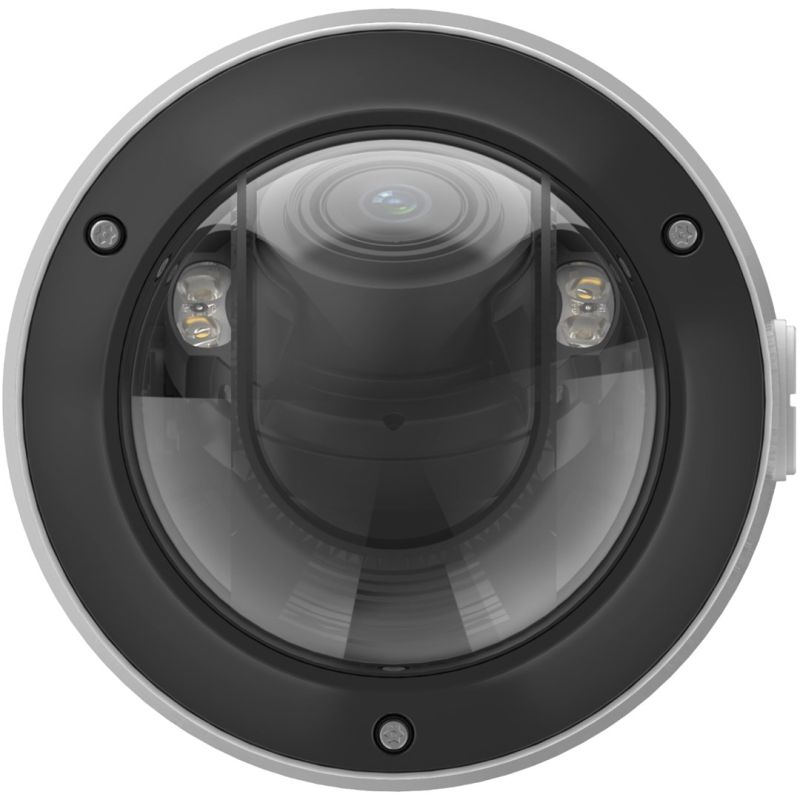

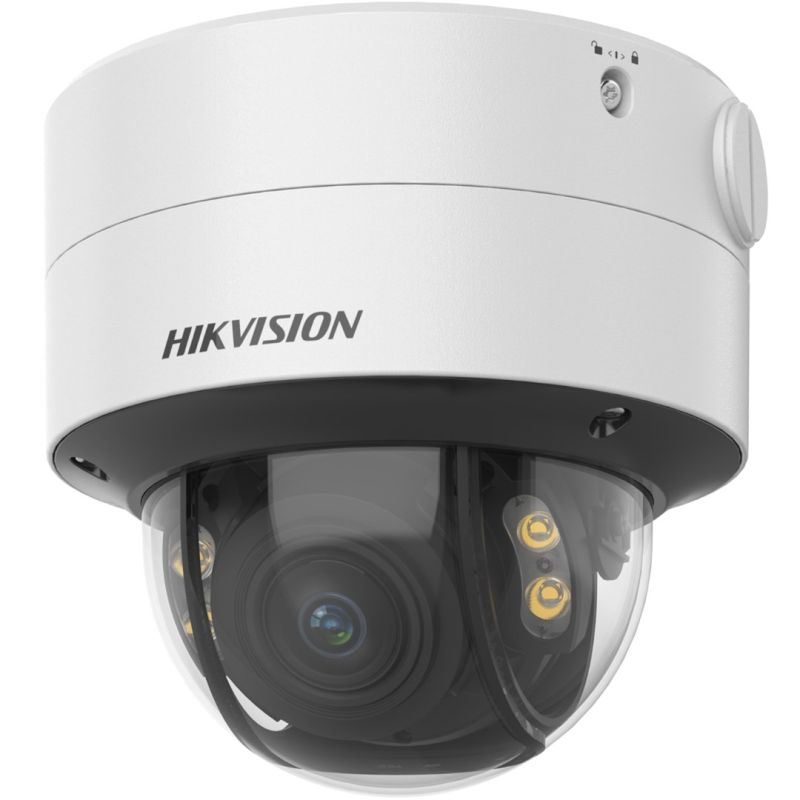

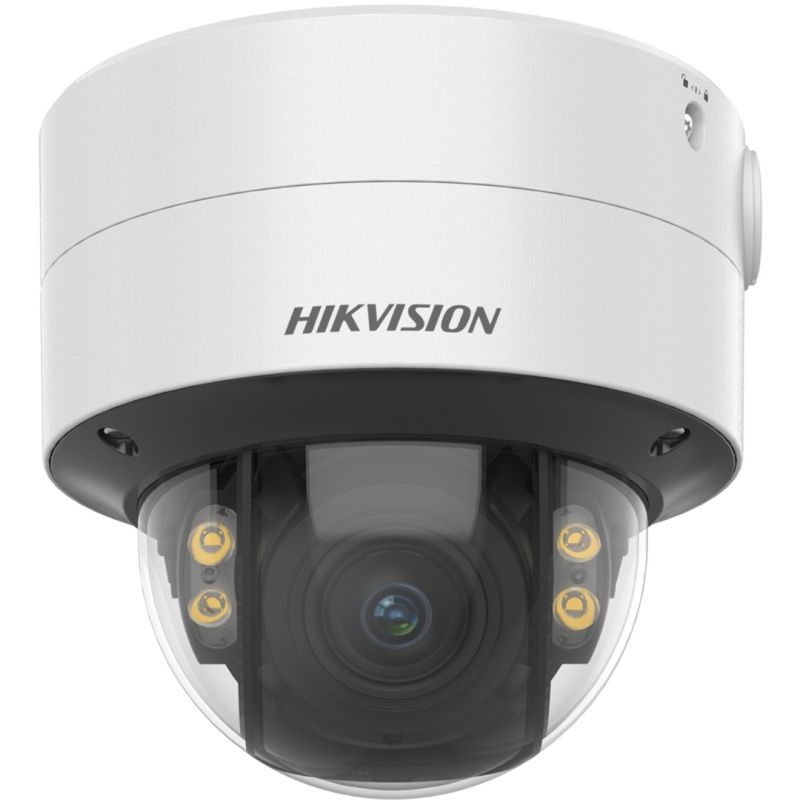

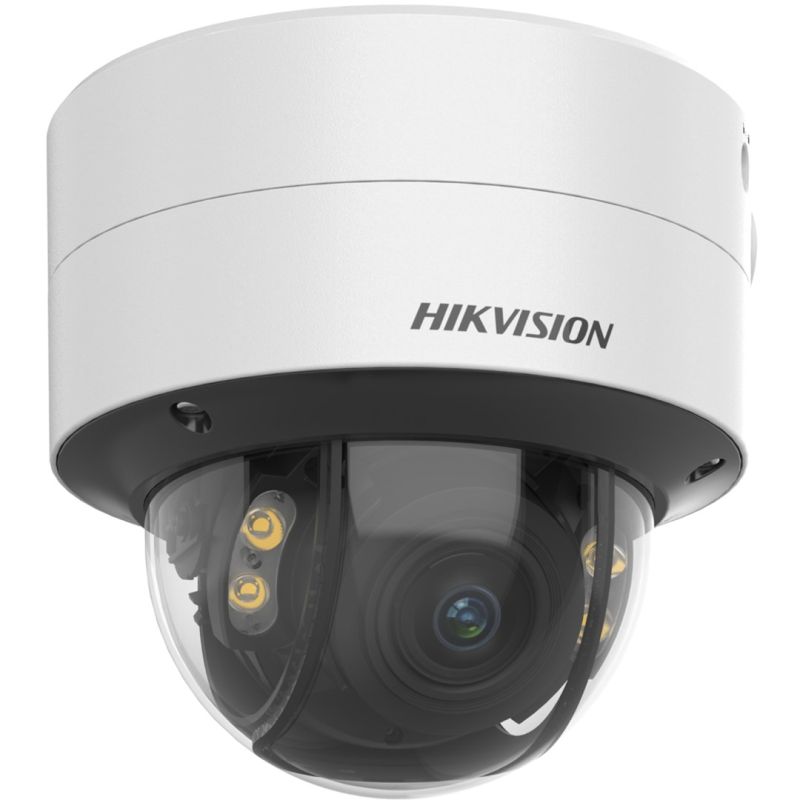

Hikvision DS-2CD2747G2-LZS(3.6-9mm) (C) In-Ear IP Security Camera Indoor & Outdoor 2688 x 1520 px Ceiling / Wall
Hikvision DS-2CD2747G2-LZS(3.6-9mm) (C) In-Ear IP Security Camera Indoor & Outdoor 2688 x 1520 px Ceiling / Wall
Hikvision DS-2CD2747G2-LZS(3.6-9mm) (C) In-Ear IP Security Camera Indoor & Outdoor 2688 x 1520 px Ceiling / Wall
PRICE:
246,99
€
IN A WAREHOUSE
6 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- IK code: IK10
- Product color: White
- Layout: Dome
- Security features
- Vandal-proof
- Waterproof
- Dust resistant
- IP protection class: IP67
- Mounting type: Ceiling / Wall
- Power
- Power supply type: DC, PoE
- Power consumption (max): 10.8 W
- DC Output (Volts): 12
- Power consumption (PoE): 12.9 W
- DC Output (Amps): 0.9 A
- Weight and dimensions
- Product length: 152 mm
- Product weight: 1.52 kg
- Diameter: 15.5 cm
- Security
- Encryption/Security: TLS
- Video motion detection: Yes
- Intelligent Video Surveillance (IVS) Features
- Face detection
- Scene change
- IP Filtering: Yes
- Heartbeat: Yes
- Flash Log: Yes
- Notification type: Email
- Password reset via email: Yes
- Active intrusion alarm: Yes
- Anti-glare: Yes
- HTTS Inscription: Yes
- Password protection: Yes
- Pixel counter: Yes
- Mirror: Yes
- Audit log: Yes
- Management features
- Reset button: Yes
- Web browser: Yes
- Software reset: Yes
- Behavior analysis: Intrusion detection, Line crossing detection, Region entry detection, Region exiting detection
- Working conditions
- Permissible relative humidity: 0 - 95%
- Temperature range (operation): -30 - 60 °C
- Relative humidity range: 0 - 95%
- Temperature range (storage): -30 - 60 °C
- Network
- Ethernet interface type: Fast Ethernet
- Communication standards: IEEE 802.3af
- Wi-Fi: No
- Bluetooth: No
- Quality of Service (QoS) Support: Yes
- Wired LAN: Yes
- Number of users: 32 users
- Efficiency
- Wide Dynamic Range (WDR): Yes
- Connection method: Wired
- Model: IP Security Camera
- Intended use: Indoor and outdoor
- Number of languages: 33
- Language Support: Multi
- Alarm I/O: Yes
- Packaging data
- Package depth: 198 mm
- Weight with packaging: 2.11 kg
- Package width: 227 mm
- Package height: 220 mm
- Package contents
- Number of cameras: 1
- Audio
- Audio output channels: 1.0 ch.
- Audio codecs
- G.711ulaw
- PCM
- G.726
- G.722.1
- AAC
- G.711alaw
- MP2L2
- Signal-to-noise ratio: 52 dB
- Audio input channels: 1.0 ch.
- Data carrier
- Supported memory cards
- MicroSDXC
- MicroSD
- MicroSDHC
- Integrated card reader: Yes
- Built-in HDD: No
- Maximum memory card size: 256 GB
- Supported memory cards
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Tilt angle range: 0 - 75°
- Swivel range: 0 - 355°
- Rotation angle: 355°
- Min. Illumination: 0 lx
- Camera Pan Control: Yes
- Shutter speed: 1/3 - 1/100000 s
- Lens angle of view, horizontal: 92.3°
- Vertical lens angle of view: 48.4°
- Camera Tilt Control: Yes
- Lens viewing angle, diagonal: 112.2°
- Photosensitive matrix
- Image sensor type: CMOS
- Number of sensors: 1
- CCD sensor size: 25.4 / 1.8 mm (1 / 1.8")
- Progressive Scan: Yes
- Night mode
- Night Vision Distance: 40 m
- LED type: Infrared
- Night mode: Yes
- Video
- Backlight compensation: Yes
- Supported graphics resolutions
- 640 x 360
- 1920 x 1080 (HD 1080)
- 2688 x 1520
- 640 x 480 (VGA)
- 1280 x 720 (HD 720)
- Highlight Compensation (HLC): Yes
- Total megapixels: 4 MP
- Data flow speed: 32 Kbps - 8 Mbps
- Maximum resolution: 2688 x 1520 px
- Quality regulation
- Saturation
- Sharpness
- Brightness
- Contrast
- Noise reduction technology: 3D noise reduction
- Regional Area of Interest (ROI) Coding: Yes
- Video transmission: Yes
- Noise reduction: Yes
- Control Gain: Automatic
- Compression formats
- H.265+
- H.264+
- H.265
- H.264
- M-JPEG
- Data rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Frame rate: 30 fps
- Privacy Mask: Yes
- Lens system
- Distance measurement (wide): 12.4 m
- Recognition distance (wide): 24.8 m
- Focal length: 3.6 - 9 mm
- Observing distance (wide): 49.3 m
- Number of lenses: 1
- Maximum aperture: 1
- Detection distance (wide): 124 m
- Safety warning
- Warnings
- Make sure the product is properly installed and secured to prevent mechanical damage.
- Avoid direct contact with water to prevent electrical damage.
- The product contains electronic components and should not be disposed of in regular waste.
- Warnings
- Sustainable development
- Certificates of conformity
- Central Committee
- Electromagnetic compatibility (EMC)
- BIS
- WEEE
- RCM
- REACH
- Industry Canada (IC)
- Federal Communications Commission (FCC)
- RoHS
- CB
- Low Voltage Directive (LVD)
- CE
- UL
- Certificates of conformity
| Name | Details |
|---|---|
| Category | Industry |
| Producer | Hikvision |
