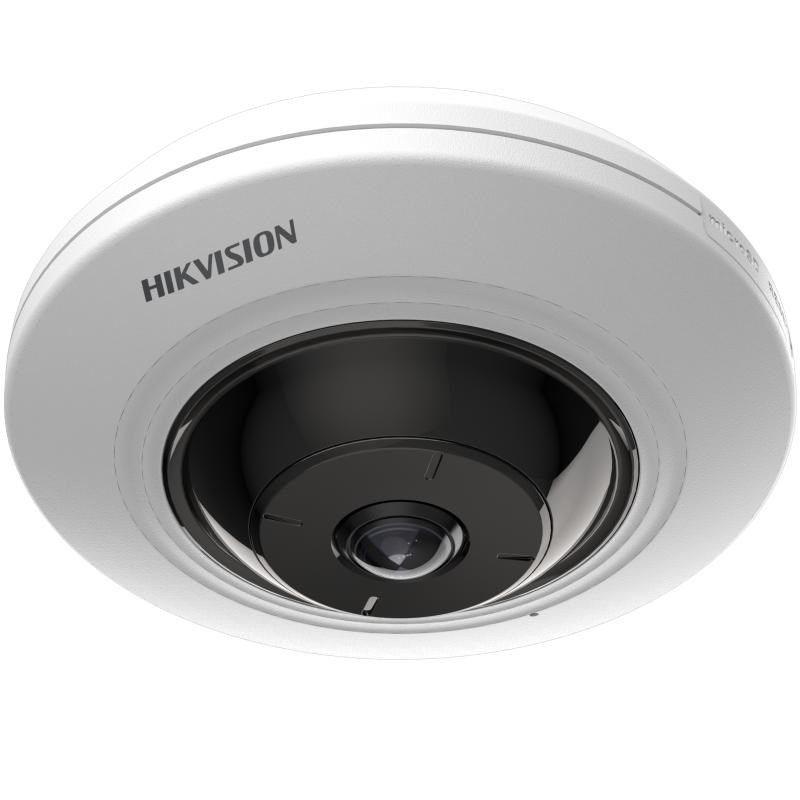

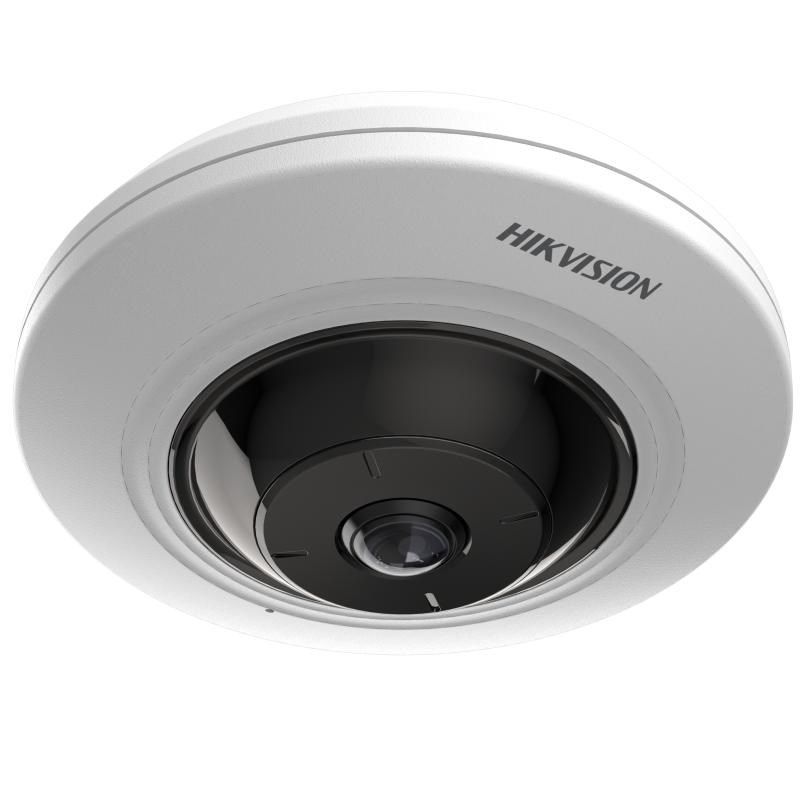

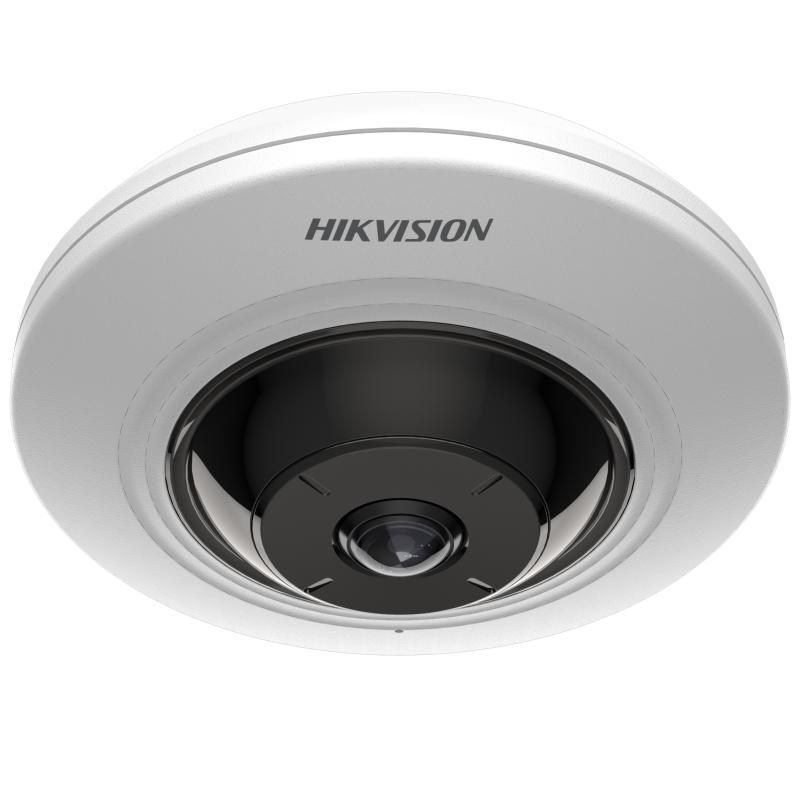

Hikvision DS-2CD3956G2-ISU IP Camera 1.05mm Panoramic Series
Hikvision DS-2CD3956G2-ISU IP Camera 1.05mm Panoramic Series
Hikvision DS-2CD3956G2-ISU IP Camera 1.05mm Panoramic Series
PRICE:
617,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- lens mount interface: M12
- Design
- Mounting type: Ceiling/Wall/Desk
- Product color: White
- Layout: Dome
- Power
- Power consumption (PoE): 7.5 W
- DC Output (Volts): 12
- DC Output (Amps): 0.5 A
- Power consumption: 6 W
- Power supply type: DC, PoE
- Weight and dimensions
- Diameter: 12 cm
- Product weight: 320 g
- Product height: 41.2 mm
- Security
- Active intrusion alarm: Yes
- Notification type: Email
- Intelligent Video Surveillance (IVS) Features: Heat Map
- Mirror: Yes
- Password protection: Yes
- Heartbeat: Yes
- Audit log: Yes
- Digest Authentication: Yes
- Pixel counter: Yes
- Flash Log: Yes
- Automatic Network Replenishment (ANR): Yes
- IP Filtering: Yes
- Alarm output channels: 1
- HTTS Inscription: Yes
- Password reset via email: Yes
- Encryption/Security
- HTTPS
- TLS
- SRTP
- Management features
- Reset button: Yes
- Working conditions
- Relative humidity range: 0 - 95%
- Temperature range (storage): -10 - 50 °C
- Permissible relative humidity: 0 - 95%
- Temperature range (operation): -10 - 50 °C
- Network
- Live View: Yes
- User access level: Administrator, Operator, User
- Number of simultaneous live view channels: 6 channels
- Streaming method: Multicast
- Number of users: 32 users
- Wired LAN: Yes
- Ethernet interface type: Fast Ethernet
- Bluetooth: No
- Communication standards: IEEE 802.3af
- Wi-Fi: No
- Efficiency
- Infrared (IR) Cut-off Filter: Yes
- Intended use: Internal
- Number of languages: 33
- Dynamic range: 120 dB
- Alarm I/O: Yes
- Wide Dynamic Range (WDR): Yes
- Day/Night Mode: Yes
- Supported programming languages: C++
- Open platform version: HEOP 2.0
- AI framework
- TensorFlow
- Caffe
- Connection method: Wired
- Model: IP Security Camera
- Packaging data
- Packaging depth: 125 mm
- Package width: 150 mm
- Package height: 99 mm
- Weight with packaging: 510 g
- Package contents
- Number of cameras: 1
- Audio
- Bit rate range: 16 - 320 Kbit/s
- Sampling rate: 8 - 48 kHz
- Signal-to-noise ratio: 52 dB
- Supported audio formats
- G.711 μ-law
- G.722.1
- MP2L2
- AAC-LC
- G.711 A-law
- PCM
- MP3
- G.726
- Audio input channels: 1.0 ch.
- Audio output channels: 1.0 ch.
- Data carrier
- RAM capacity: 400 MB
- Built-in HDD: No
- Flash memory size: 2000 MB
- Maximum memory card size: 256 GB
- Internal memory capacity: 60 MB
- Integrated card reader: Yes
- Supported memory cards
- MicroSD
- MicroSDXC
- MicroSDHC
- Ports and interfaces
- RS-485 ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Lens viewing angle, horizontal: 180°
- Vertical lens viewing angle: 180°
- Min. Illumination: 0 lx
- Shutter speed: 1 - 1/100000 s
- Lens viewing angle, diagonal: 180°
- Photosensitive matrix
- CCD sensor size: 25.4 / 2.7 mm (1 / 2.7")
- Image sensor type: CMOS
- Night mode
- Infrared wavelength: 850 nm
- Night mode: Yes
- Night Vision Distance: 8 m
- LED type: Infrared
- Video
- Privacy Mask: Yes
- Quality regulation
- Saturation
- Sharpness
- Brightness
- Contrast
- Data flow speed: 32 Kbps - 16 Mbps
- Noise reduction technology: 3D noise reduction
- Compression formats
- H.265
- H.264
- H.265+
- H.264+
- M-JPEG
- Noise reduction: Yes
- Regional Area of Interest (ROI) Coding: Yes
- Backlight compensation: Yes
- Highlight Compensation (HLC): Yes
- Data rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Total megapixels: 5 MP
- Supported graphics resolutions
- 640 x 360
- 2688 x 1520
- 2592 x 1944
- 640 x 480 (VGA)
- 1280 x 720 (HD 720)
- 1920 x 1080 (HD 1080)
- Maximum resolution: 2592 x 1944 px
- Lens system
- Determining distance: 2 m
- Fixed focal length: 1.05 mm
- Detection distance: 21 m
- Observe distance: 8 m
- Recognition distance: 4 m
- Maximum aperture: 2.25
- Sustainable development
- Sustainability: Yes
- Certificates of conformity
- CB
- RoHS
- Federal Communications Commission (FCC)
- CE
- UL
- REACH
- WEEE
- RCM
- Low Voltage Directive (LVD)
