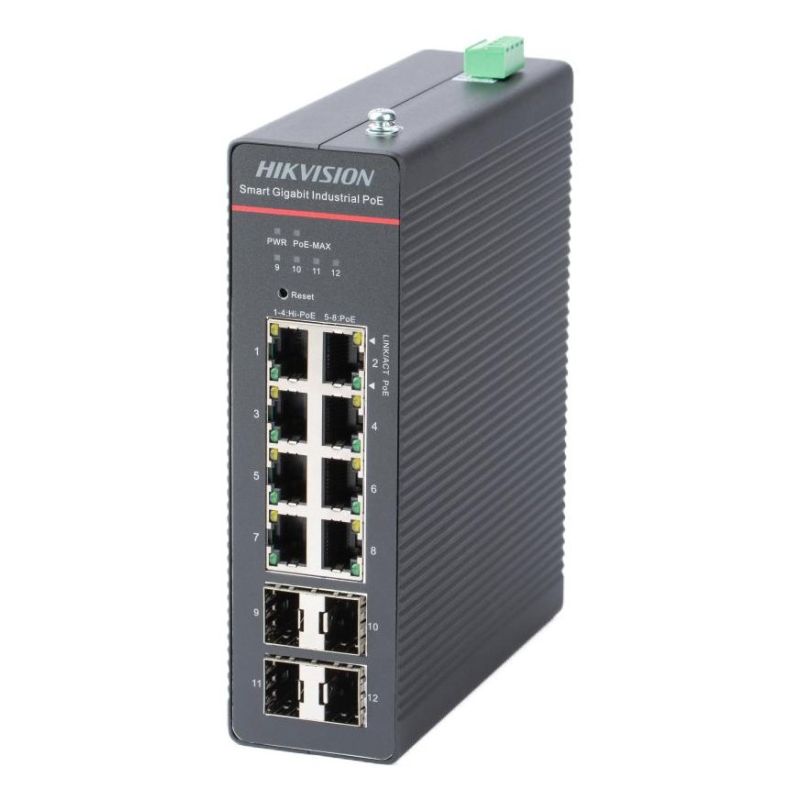

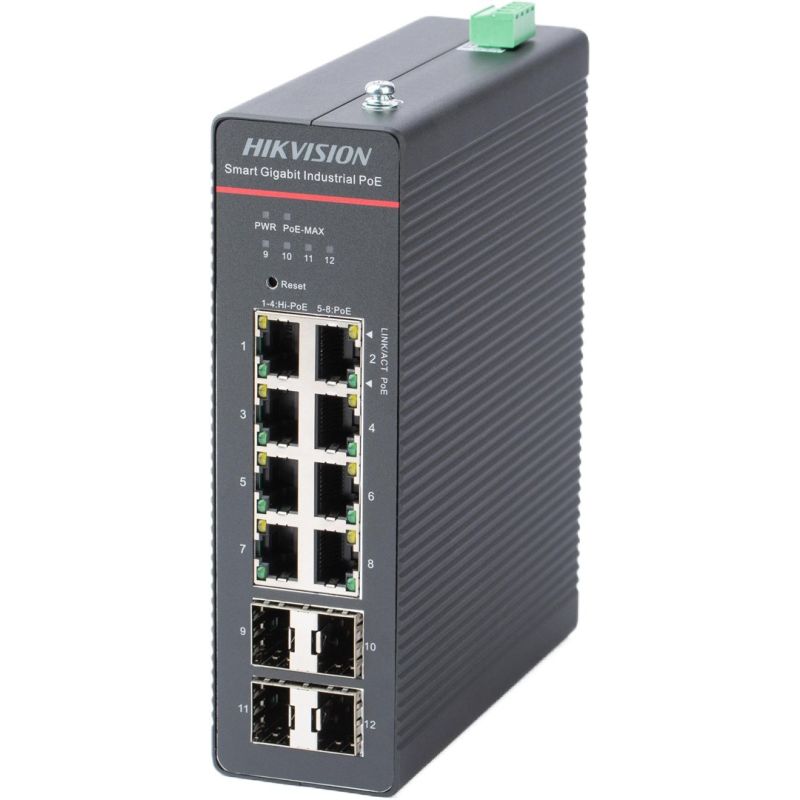

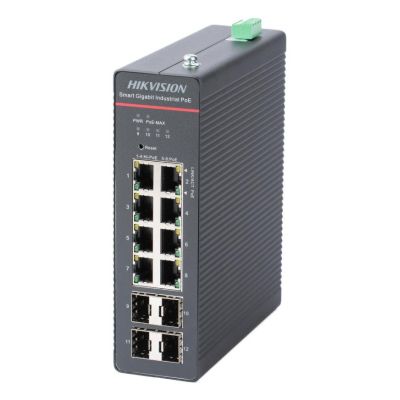

Hikvision DS-3T1512HP-SI-8P4FKIT switch (75W)
Hikvision DS-3T1512HP-SI-8P4FKIT switch (75W)
Hikvision DS-3T1512HP-SI-8P4FKIT switch (75W)
PRICE:
340,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- IP protection class: IP40
- LEDs: Yes
- DIN rail mounting: Yes
- Housing material: Metal
- Rack mounting options: No
- Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014 (Second Edition)), CE-LVD (EN 62368-1:2014+A11:2017)
- Stackable: No
- Power
- Power consumption: 7 W
- Power source: DC
- Power consumption (max): 307 W
- Input current: 7.5 A
- Protection against sudden voltage increases
- 6 kV
- Yes
- Power Protection Features: Surge Protection
- DC input voltage: 48 - 57 V
- Weight and dimensions
- Product width: 155 mm
- Product weight: 840 g
- Product height: 46 mm
- Product depth: 130 mm
- Security
- Encryption/Security
- SNMP
- SNMPv2
- Loop protection: Yes
- DHCP functions
- DHCP client
- DHCP snooping
- Encryption/Security
- Management features
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- Switch type: Managed
- Working conditions
- Permissible relative humidity: 5 - 95%
- Temperature range (operation): -40 - 75 °C
- Relative humidity range: 5 - 95%
- Temperature range (storage): -40 - 85 °C
- Network
- Data transfer speed via Ethernet LAN: 1000 Mbit/s
- Communication standards
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1p
- IEEE 802.3bt
- Number of VLANs: 4094
- Frequency Limit: Yes
- Connection Aggregator: Yes
- Port Mirroring: Yes
- Virtual LAN Features: VLAN Identifier (VLAN ID)
- 10G Support: No
- VLAN support: Yes
- Traffic Growth Control: Yes
- Efficiency
- No fan: Yes
- Packaging data
- Weight with packaging: 1.16 kg
- Package contents
- Quick Start Guide: Yes
- Certificates
- Certificates of conformity
- Electromagnetic compatibility (EMC)
- CB
- REACH
- RoHS
- Low Voltage Directive (LVD)
- WEEE
- Certificates of conformity
- Protocols
- IP Source Protection (IPSG): Yes
- Ports and interfaces
- Number of SFP Module slots: 4
- Power connector: Terminal block (4-pin)
- Number of Gigabit Ethernet ports: 8
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Data transfer
- Address table size: 8000 entries
- Routing/switching capacity: 56 Gbit/s
- Forwarding speed: 41.66 Mpps
- Packet buffer memory: 4.1 MB
- Power over Ethernet (PoE)
- PoE Support: Yes
- Number of Fast Ethernet (PoE) ports: 8
- Total Power over Ethernet (PoE) budget: 300 W
- Power over Ethernet (PoE) power per port: 30 W
- Fiber optic
- Optical Module Switch Type: Gigabit Ethernet
- Sustainable development
- Sustainability: Yes
| Name | Details |
|---|---|
| Producer | Hikvision |
