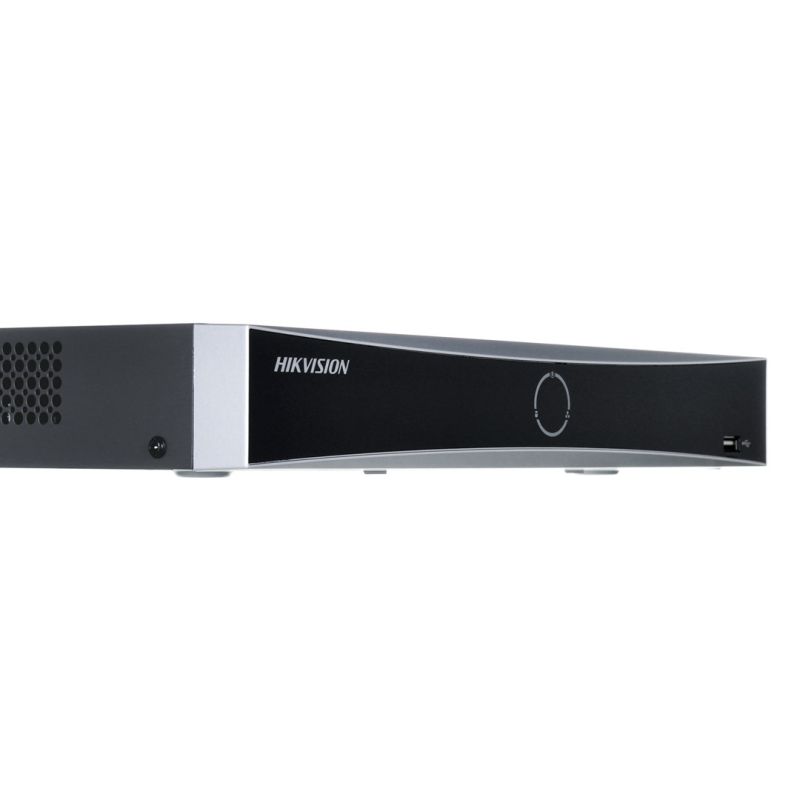

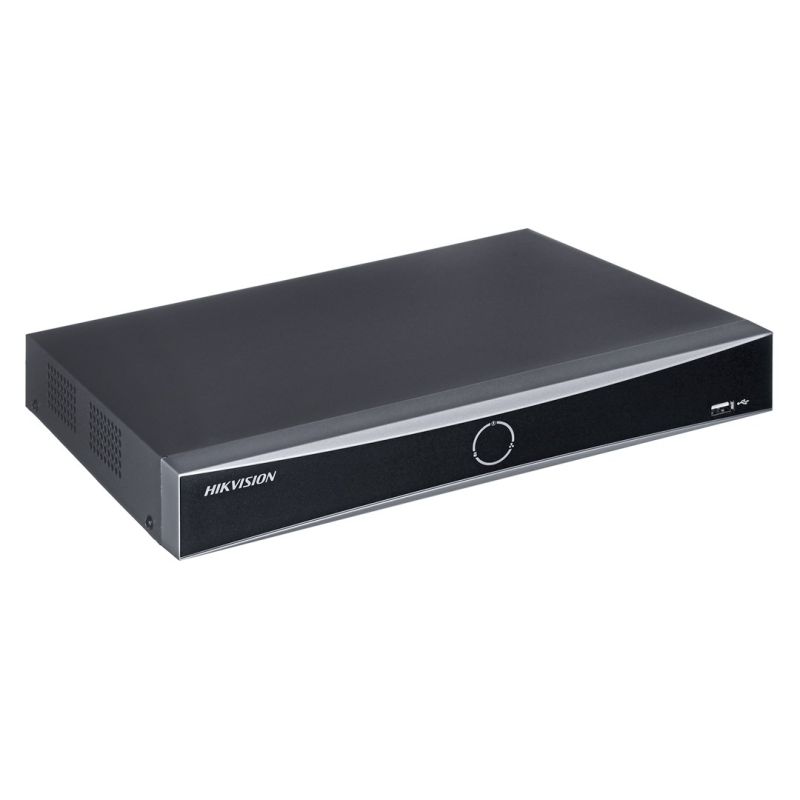

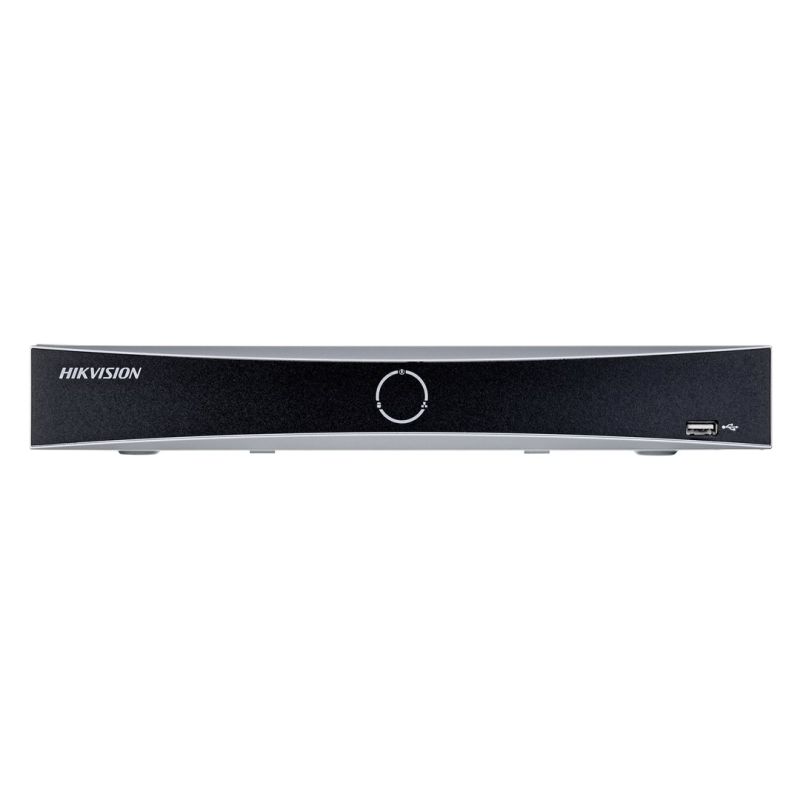

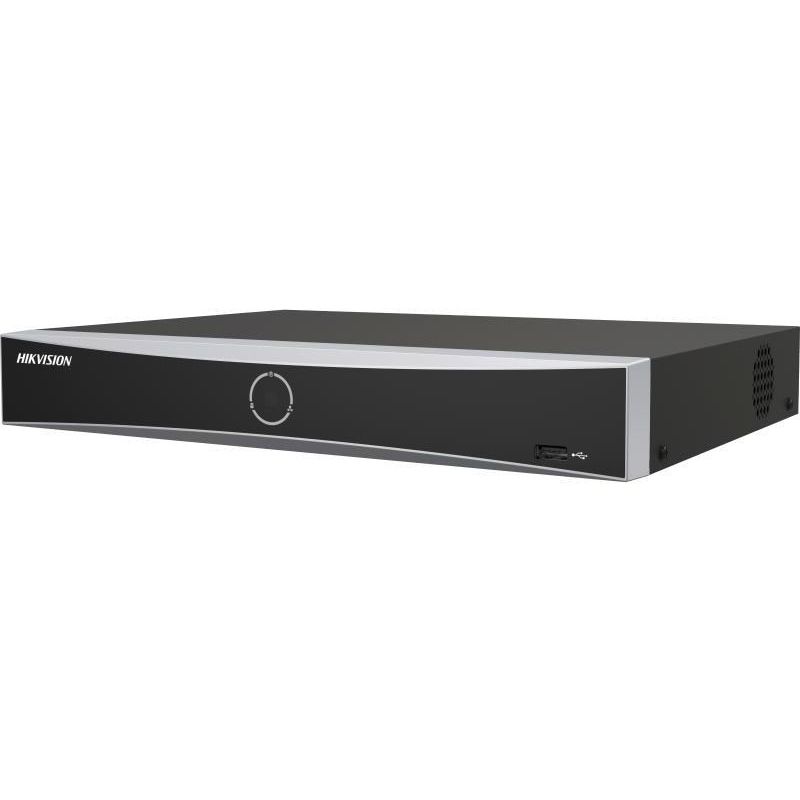

HIKVISION DS-7604NXI-K1/4P(D) IP Recorder
HIKVISION DS-7604NXI-K1/4P(D) IP Recorder
HIKVISION DS-7604NXI-K1/4P(D) IP Recorder
PRICE:
241,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Environmental certificate (sustainable development)
- CE
- Federal Communications Commission (FCC)
- Environmental certificate (sustainable development)
- Characteristics
- Rack capacity: 1U
- Rack mounting options: Yes
- Product color: Black
- Power
- Operating voltage: 48 V
- Power consumption: 10 W
- Output current: 1.35 A
- Total Power over Ethernet (PoE) budget: 50 W
- Weight and dimensions
- Product height: 48 mm
- Product width: 320 mm
- Product depth: 240 mm
- Product weight: 1 kg
- Working conditions
- Relative humidity range: 10 - 90%
- Temperature range (operation): -10 - 55 °C
- Efficiency
- Maximum resolution: 3840 x 2160 px
- Supported audio formats
- G.711 μ-law
- G.722
- AAC
- G.726
- G.711 A-law
- Face detection function: Yes
- Output bandwidth: 80 Mbit/s
- Supported video file formats
- H.264+
- H.265
- H.265+
- H.264
- Maximum frame rate: 30 fps
- Input bandwidth: 40 Mbit/s
- Video channel inputs: 4 channels
- Number of simultaneous playback channels: 4 channels
- Wireless LAN Features
- Wi-Fi: No
- Data carrier
- Number of supported HDDs: 1
- Maximum storage capacity: 16 TB
- HDD interface: SATA

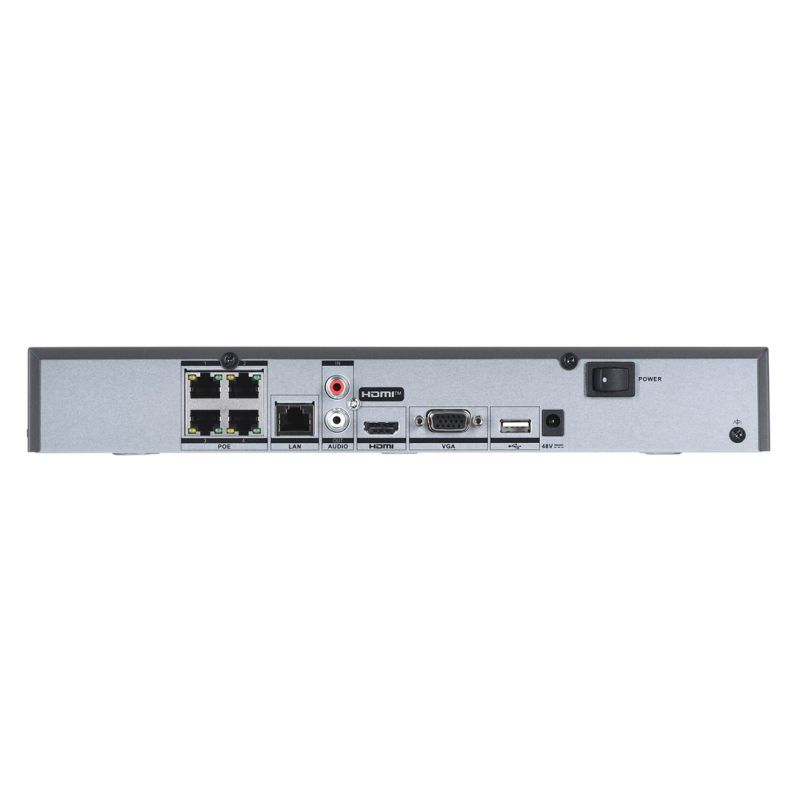

- Ports and interfaces
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Number of Fast Ethernet (PoE) ports: 4
- Number of USB 2.0 ports: 2
- Number of HDMI ports: 1
- Number of Ethernet LAN ports (RJ-45): 5
- Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
- RCA audio connectors: 1
- Number of internal SATA ports: 1
- VGA (D-Sub) Outputs: 1
- RCA audio outputs: 1
- PoE Support: Yes
- HDMI output: Yes
- Communication standards
- IEEE 802.3af
- IEEE 802.3at
- Data transfer speed via Ethernet LAN
- Safety warning
- Warnings
- The device should be installed by a qualified specialist.
- Do not expose the device to moisture or extreme temperatures.
- The product must be disposed of properly in accordance with local regulations for electronics disposal.
- Warnings
| Name | Details |
|---|---|
| Category | Industry |
| Producer | Hikvision |
