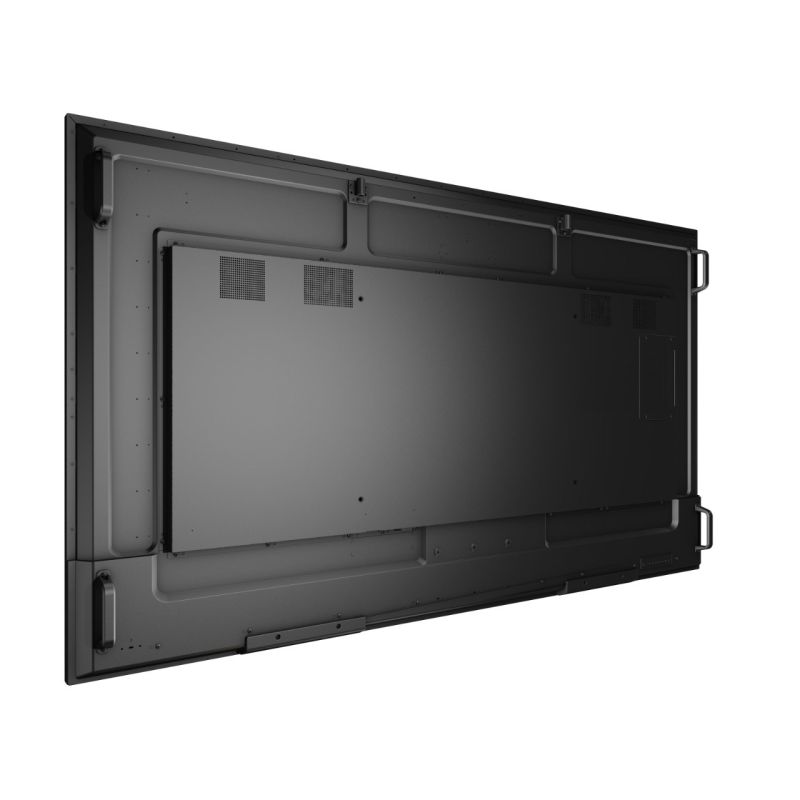

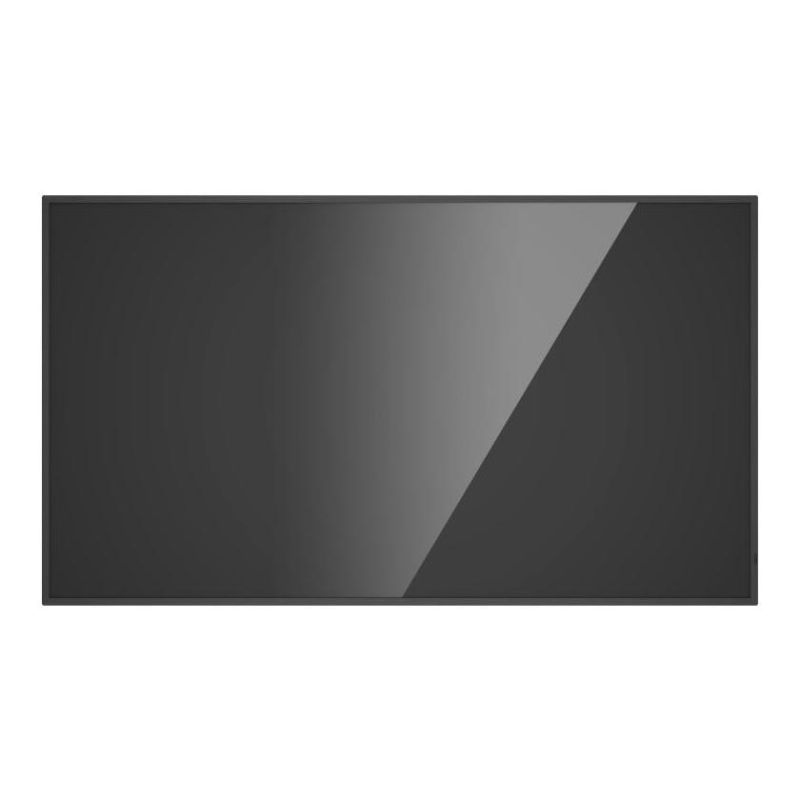

Hikvision DS-D6075UN signage display Flat panel Digital Signage 190.5 cm (75") LED Wi-Fi 500 cd/m2 4K Ultra HD Black Embedded processor Android 8.0 24/7
Hikvision DS-D6075UN signage display Flat panel Digital Signage 190.5 cm (75") LED Wi-Fi 500 cd/m2 4K Ultra HD Black Embedded processor Android 8.0 24/7
Sign up and unlock up to 10% off!
- Design
- Orientation: Horizontal
- Product color: Black
- Product Type: Digital Signage Flat Panel
- Intended use: Internal
- VESA Standard: Yes
- Mounting type: Wall
- Power
- Energy Efficiency Scale: From A to G
- Energy efficiency class (SDR): G
- Energy consumption (SDR) per 1000 hours: 136.6 kWh
- Energy efficiency class (HDR): Not available
- AC input voltage: 100 - 240 V
- Power consumption in standby mode: 0.4 W
- Power consumption: 250 W
- Weight and dimensions
- Display depth: 95.3 mm
- Display height: 961.7 mm
- Display width: 1683.5 mm
- Display weight: 37.5 kg
- Working conditions
- Temperature range (storage): -20 - 60 °C
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 20 - 80%
- Permissible relative humidity: 10 - 90%
- Network
- Wi-Fi: Yes
- Wired LAN: Yes
- Efficiency
- Purpose: Television advertising
- Working hours (hours/days): 24/7
- Packaging data
- Package width: 1848 mm
- Weight with packaging: 49.5 kg
- Package height: 1158 mm
- Package depth: 203 mm
- Package contents
- Wires: Alternating Current
- Remote control included: Yes
- Warranty card: Yes
- Display
- Color depth: 8 bit
- Display colors: 1.07 trillion colors
- Native aspect ratio: 16:9
- Horizontal viewing angle: 178°
- Response time (typical): 8 ms
- Resolution: 3840 x 2160 px
- HD type: 4K Ultra HD
- Spot size: 0.4296 x 0.4296 mm
- Screen diagonal: 75"
- Viewing angle (vertical): 178°
- Native refresh rate: 60 Hz
- Display technology: LED
- Touchscreen: No
- Color palette: 72%
- Contrast ratio (typical): 1200:1
- Active screen area (W x H): 1649.664 x 927.936 mm
- LED backlight type: Direct-LED
- Brightness: 500 cd/m²
- Audio
- Built-in speakers: Yes
- Number of built-in speakers: 2
- Output power (RMS): 20 W
- Ports and interfaces
- PC Audio out: Yes
- DisplayPort input: 1
- DisplayPort output: 1
- Number of DisplayPorts: 2
- Number of DVI-I ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Integrated card reader: Yes
- USB version: 2.0
- HDMI version: 2.0
- Number of USB ports: 2
- USB port: Yes
- Audio input for PC: Yes
- Supported memory cards: MicroSD
- DVI port: Yes
- Number of HDMI ports: 2
- Other functions
- User Manual: Yes
- Power Supply Type: Internal
- Safety warning
- Warnings
- The product should be subjected to specialist disposal in places designated for the collection of electronic equipment.
- Do not open the device casing as this may result in electric shock.
- The monitor contains substances hazardous to health, including mercury; avoid contact with damaged parts.
- Hazard pictogram(s)
- GHS09: Environmentally Harmful Substances
- GHS07: Irritating substances
- Warnings
- Computer system
- Processor architecture: ARM Cortex-A53+Cortex-A73
- RAM: 3 GB
- Processor clock speed: 1.7 GHz
- Processor type: ARM Cortex
- Number of processor cores: 4
- Processor model: A73
- Installed operating system: Android 8.0
- Built-in memory: 32 GB
- Processor manufacturer: ARM
- Built-in processor: Yes
| Name | Details |
|---|---|
| Producer | Hikvision |
