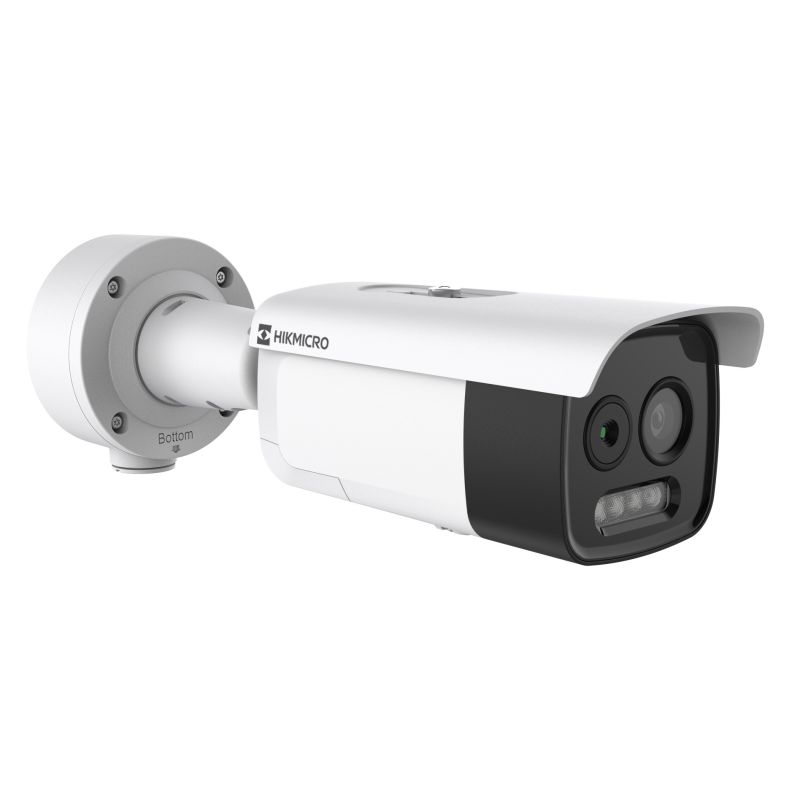

Hikvision HM-TD2628-3/G1/T3A Industrial Camera Bullet IP Security Camera Outdoor 2688 x 1944 px Wall
Hikvision HM-TD2628-3/G1/T3A Industrial Camera Bullet IP Security Camera Outdoor 2688 x 1944 px Wall
Hikvision HM-TD2628-3/G1/T3A Industrial Camera Bullet IP Security Camera Outdoor 2688 x 1944 px Wall
PRICE:
567,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Audio input: 3.5mm
- Output impedance: 600 Ω
- Design
- Mounting type: Wall
- Layout: Tube
- Product color
- White
- Black
- IK code: IK10
- IP protection class: IP67
- Power
- DC Output (Volts): 12, 24, 42.5, 57
- Power consumption (PoE): 24 W
- DC Output (Amps): 2.5 A
- Power consumption (max): 24 W
- Power supply type: DC, PoE
- Weight and dimensions
- Product width: 113 mm
- Product length: 349.1 mm
- Product height: 105 mm
- Product weight: 1.71 kg
- Security
- Alarm input channels: 2
- IP Filtering: Yes
- HTTS Inscription: Yes
- Alarm output channels: 2
- Temperature measurement range: -20 - 150 °C
- Password protection: Yes
- Temperature sensor: Yes
- Automatic Network Replenishment (ANR): Yes
- Network Attached Storage (NAS): Yes
- Number of detectable fire points: 10
- Fire detection: Yes
- Temperature measurement accuracy: 8 °C
- Management features
- Web browser: Yes
- Website management: Yes
- Working conditions
- Temperature range (operation): -40 - 65 °C
- Relative humidity range: 0 - 95%
- Network
- Number of simultaneous live view channels: 20 channels
- User access level: Administrator, Operator, User
- Live View: Yes
- Supported network protocols: IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP, RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
- Number of users: 32 users
- Ethernet interface type: Fast Ethernet
- Bluetooth: No
- Quality of Service (QoS) Support: Yes
- Wi-Fi: No
- Wired LAN: Yes
- Efficiency
- IFOV (spatial resolution): 3.33 mRad
- Number of languages: 32
- Day/Night Mode: Yes
- Thermal module: Yes
- Language Support: Multi
- Thermal sensitivity (NETD): 25 mK
- Alarm I/O: Yes
- Dynamic range: 120 dB
- Intended use: Outdoor
- Wide Dynamic Range (WDR): Yes
- Model: IP Security Camera
- Connection method: Wired
- Package contents
- Number of cameras: 1
- Audio
- Supported audio formats
- G.711 A-law
- G.711 μ-law
- G.722
- MP2L2
- PCM
- G.726
- Audio input channels: 1.0 ch.
- Supported audio formats
- Data carrier
- Maximum memory card size: 512 GB
- Built-in HDD: No
- Supported memory cards
- MicroSDXC
- MicroSD
- MicroSDHC
- Integrated card reader: Yes
- Ports and interfaces
- Terminal Port Blocking: Yes
- RS-485 ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Shutter speed: 1 - 1/100000 s
- Min. Illumination: 0 lx
- Vertical lens angle of view: 43.1°
- Lens viewing angle, horizontal: 84°
- Pixel scale (thermal module): 12 µm
- Vertical field of view (thermal module): 37.3°
- Horizontal field of view (thermal module): 50°
- Photosensitive matrix
- Effective sensor resolution (thermal module): 256 x 192 px
- Progressive Scan: Yes
- Image sensor type: CMOS
- Sensor type (thermal module): Vanadium Oxide Uncooled Focal Plane Arrays
- Night mode
- Night mode: Yes
- LED Type: Infrared/White
- Black and white night vision distance: 30 m
- Night Vision Distance: 30 m
- Video
- Compression formats
- H.265
- H.264
- M-JPEG
- Total megapixels: 5 MP
- Frame rate: 25 fps
- Supported graphics resolutions
- 2688 x 1520
- 704 x 576
- 704 x 480
- 342 x 240
- 352 x 288
- 640 x 512
- 1920 x 1080 (HD 1080)
- 1280 x 720 (HD 720)
- Maximum resolution: 2688 x 1944 px
- Compression formats
- Lens system
- Aperture number (thermal module): 1
- Zoom capability: Yes
- Detection distance (wide): 150 m
- Minimum focal distance: 0.3 m
- Distance measurement (tele): 56 m
- Infrared spectral band: 8 - 14 µm
- Distance determination (wide): 15 m
- Fixed focal length (thermal module): 3.6 mm
- Fixed focal length: 4.3 mm
- Distance Recognition (Tele): 112 m
- Digital zoom: 4x
- Detection distance (tele): 460 m
- Recognition distance (wide): 37 m
- Maximum aperture: 1.6
- Sustainable development
- Certificates of conformity
- RoHS
- Central Committee
- Electromagnetic compatibility (EMC)
- BIS
- CE
- REACH
- Low Voltage Directive (LVD)
- CB
- WEEE
- RCM
- Certificates of conformity
| Name | Details |
|---|---|
| Category | Industry |
| Producer | Hikvision |
