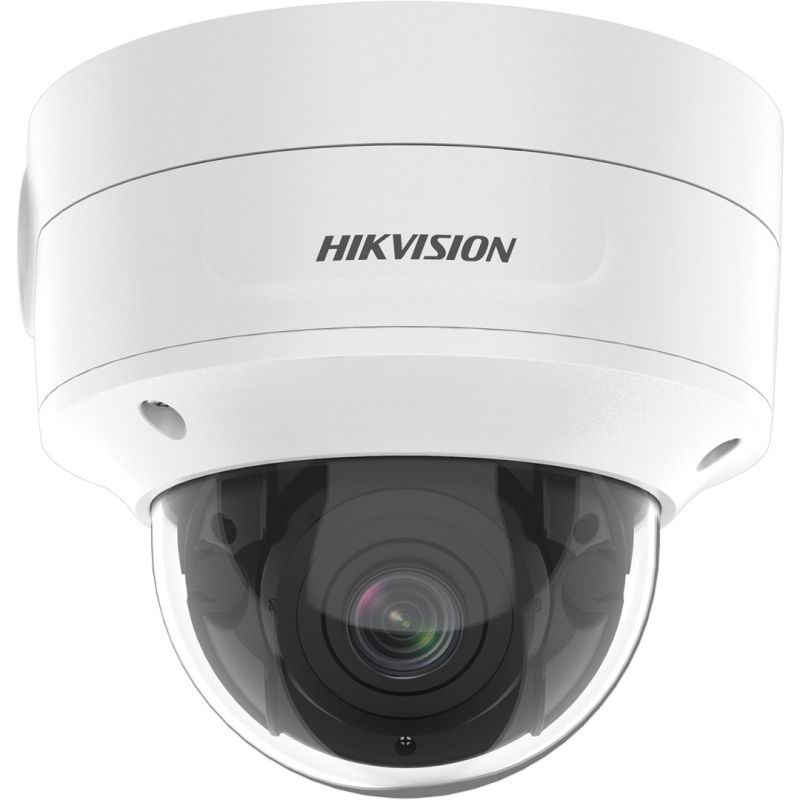

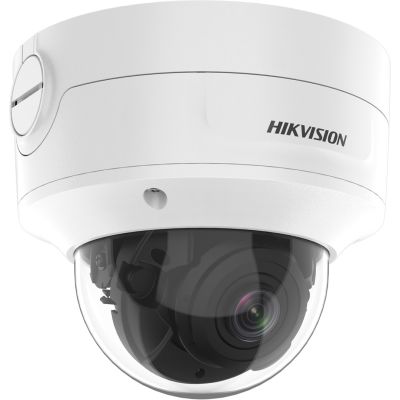

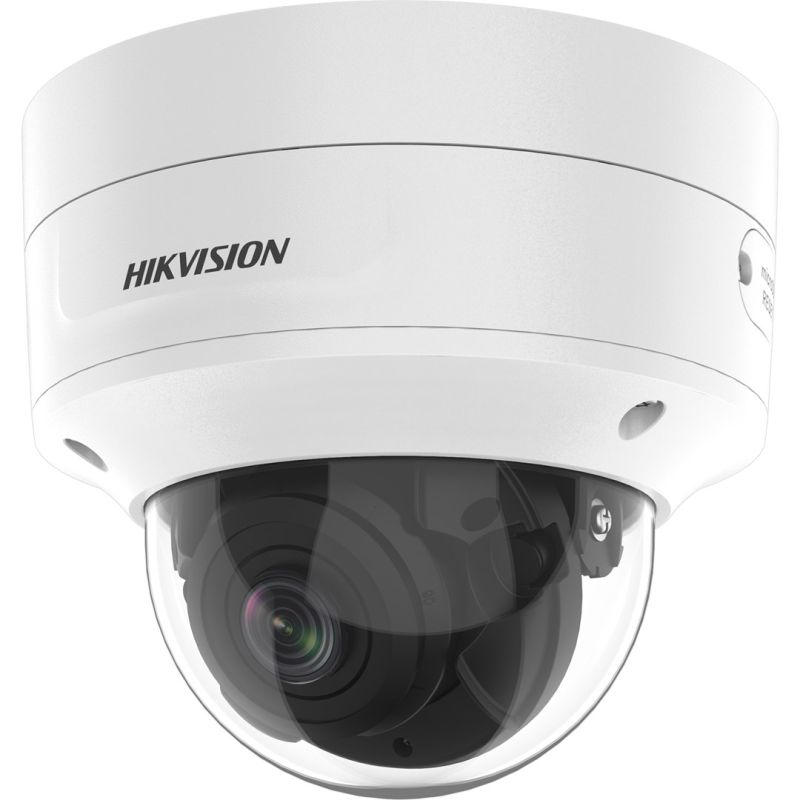

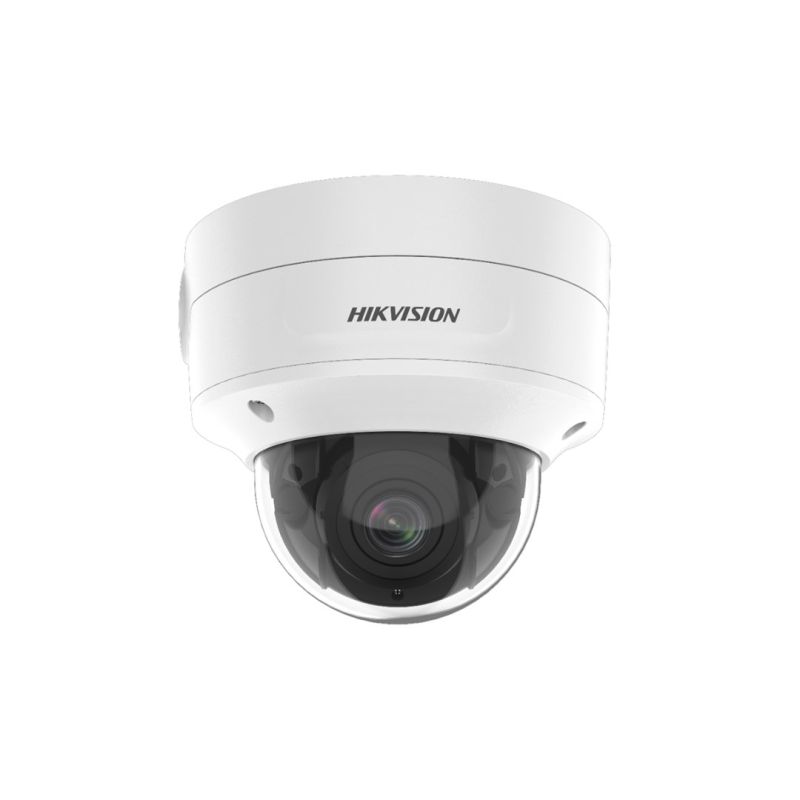

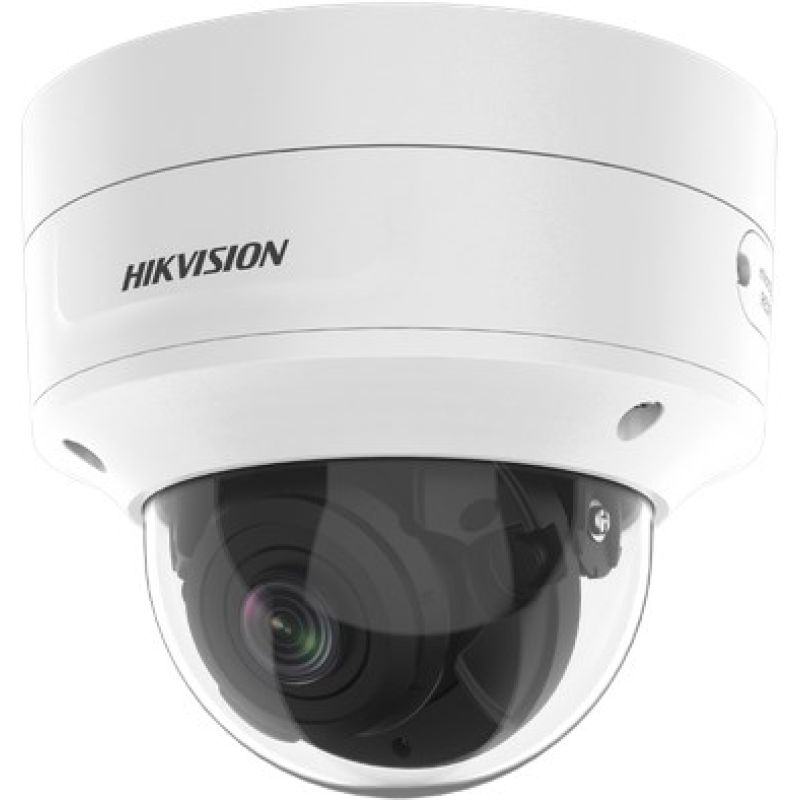

HIKVISION IP CAMERA DS-2CD2726G2-IZS(2.8-12mm)(C)
HIKVISION IP CAMERA DS-2CD2726G2-IZS(2.8-12mm)(C)
Sign up and unlock up to 10% off!
- Design
- IP protection class: IP66
- Layout: Dome
- Housing material: Metal
- Product color: White
- IK code: IK10
- Mounting type: Ceiling / Wall
- Power
- Power supply type: DC, PoE
- Power consumption (max): 10.5 W
- DC Output (Amps): 0.88 A
- DC Output (Volts): 12
- Power consumption (PoE): 12.5 W
- Weight and dimensions
- Product weight: 840 g
- Product height: 133.1 mm
- Diameter: 15.3 cm
- Security
- Mirror: Yes
- Intelligent Video Surveillance (IVS) Features: Scene Change
- Heartbeat: Yes
- IP Filtering: Yes
- Anti-glare: Yes
- HTTS Inscription: Yes
- Password protection: Yes
- Video motion detection: Yes
- Management features
- Behavior analysis: Intrusion detection, Line crossing detection, Region entry detection, Region exiting detection
- Working conditions
- Temperature range (storage): -30 - 60 °C
- Temperature range (operation): -30 - 60 °C
- Permissible relative humidity: 0 - 95%
- Relative humidity range: 0 - 95%
- Network
- Bluetooth: No
- Wired LAN: Yes
- Supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Communication standards
- IEEE 802.1x
- IEEE 802.3af
- Ethernet interface type: Fast Ethernet
- Quality of Service (QoS) Support: Yes
- Wi-Fi: No
- Number of users: 32 users
- Efficiency
- Connection method: Wired
- Model: IP Security Camera
- Wide Dynamic Range (WDR): Yes
- Language support
- German
- English
- Dutch
- French
- Spanish
- Lithuanian
- Japanese
- Vietnamese
- Korean
- Norwegian
- Chinese traditional
- Estonian
- Bulgarian
- Czech
- Finnish
- Hungarian
- Romanian
- Polish
- Danish
- Slovak
- Swedish
- Turkish
- Russian
- Ukrainian
- Thai
- Greek
- Portuguese
- CHEESE
- Italian
- YEARS
- Slovenian
- Infrared (IR) Cut-off Filter: Yes
- Number of languages: 33
- Day/Night Mode: Yes
- Intended use: Outdoor
- Packaging data
- Package height: 173 mm
- Package width: 244 mm
- Package depth: 174 mm
- Weight with packaging: 1.72 kg
- Package contents
- Number of cameras: 1
- Audio
- Supported audio formats: MP3
- Audio codecs
- MP2L2
- G.726
- G.722.1
- AAC
- G.711ulaw
- G.711alaw
- Sampling rate: 48 kHz
- Data carrier
- Integrated card reader: Yes
- Supported memory cards: MicroSD
- Maximum memory card size: 256 GB
- Built-in HDD: No
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Tilt angle range: 0 - 75°
- Shutter speed: 1/3 - 1/100000 s
- Rotation angle: 355°
- Swivel range: 0 - 355°
- Min. Illumination: 0 lx
- Camera Pan Control: Yes
- Camera Tilt Control: Yes
- Vertical lens viewing angle: 58°
- Lens viewing angle, diagonal: 138°
- Lens viewing angle, horizontal: 113°
- Photosensitive matrix
- Progressive Scan: Yes
- Image sensor type: CMOS
- Number of sensors: 1
- CCD sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Night mode
- LED type: Infrared
- Night Vision Distance: 40 m
- Night mode: Yes
- Infrared wavelength: 850 nm
- Video
- Highlight Compensation (HLC): Yes
- Total megapixels: 2 MP
- Supported graphics resolutions
- 1280 x 720 (HD 720)
- 640 x 360
- 1920 x 1080 (HD 1080)
- 640 x 480 (VGA)
- Frame rate: 30 fps
- Maximum resolution: 1920 x 1080 px
- Data flow speed: 32 Kbps - 8 Mbps
- Backlight compensation: Yes
- Privacy Mask: Yes
- Compression formats
- H.265+
- M-JPEG
- H.265
- H.264
- H.264+
- Regional Area of Interest (ROI) Coding: Yes
- Noise reduction: Yes
- Noise reduction technology: 3D noise reduction
- Quality regulation
- Contrast
- Sharpness
- Saturation
- Brightness
- Data rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Video transmission: Yes
- Lens system
- Recognition distance (wide): 8.8 m
- Detection distance (wide): 44.1 m
- Distance measurement (tele): 13.1 m
- Maximum aperture: 1.4
- Observing distance (wide): 17.5 m
- Number of lenses: 1
- Focal length: 2.8 - 12 mm
- Distance measurement (wide): 4.4 m
- Detection distance (tele): 131 m
- Observing distance (tele): 52 m
- Distance Recognition (Tele): 26.2 m
| Name | Details |
|---|---|
| Producer | Hikvision |
