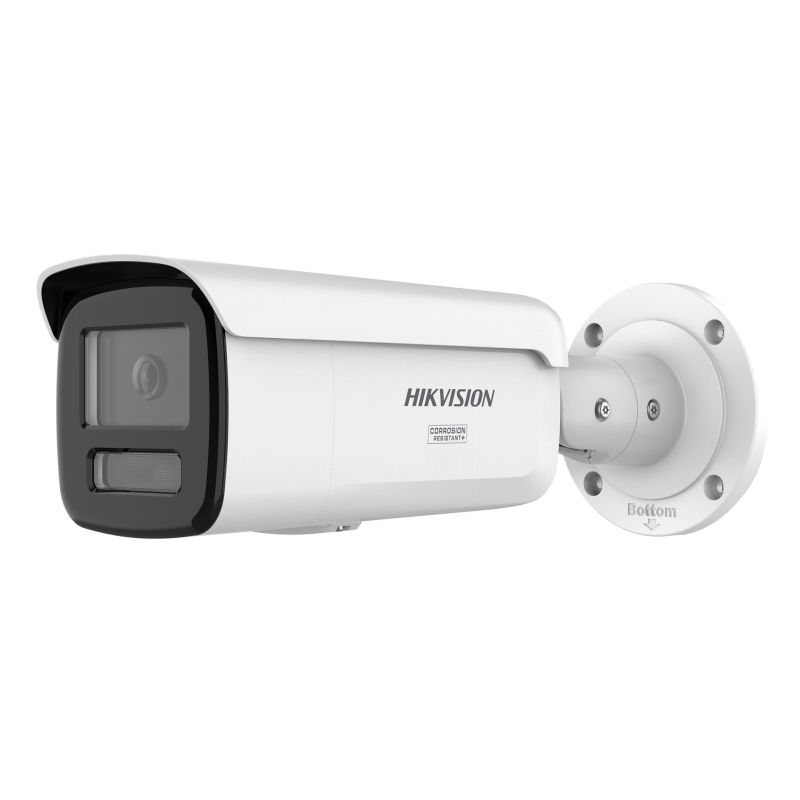

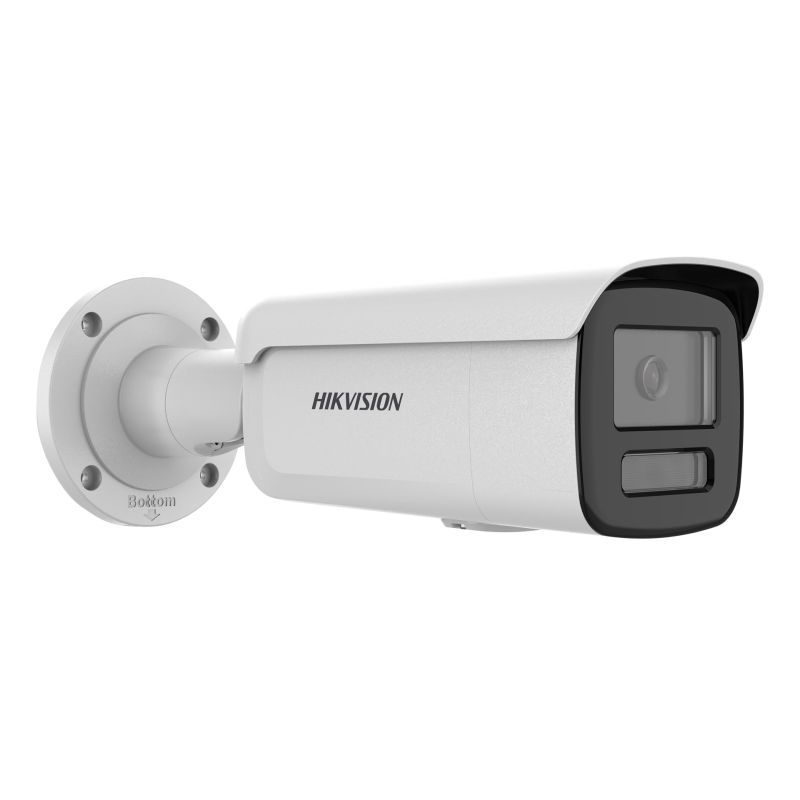

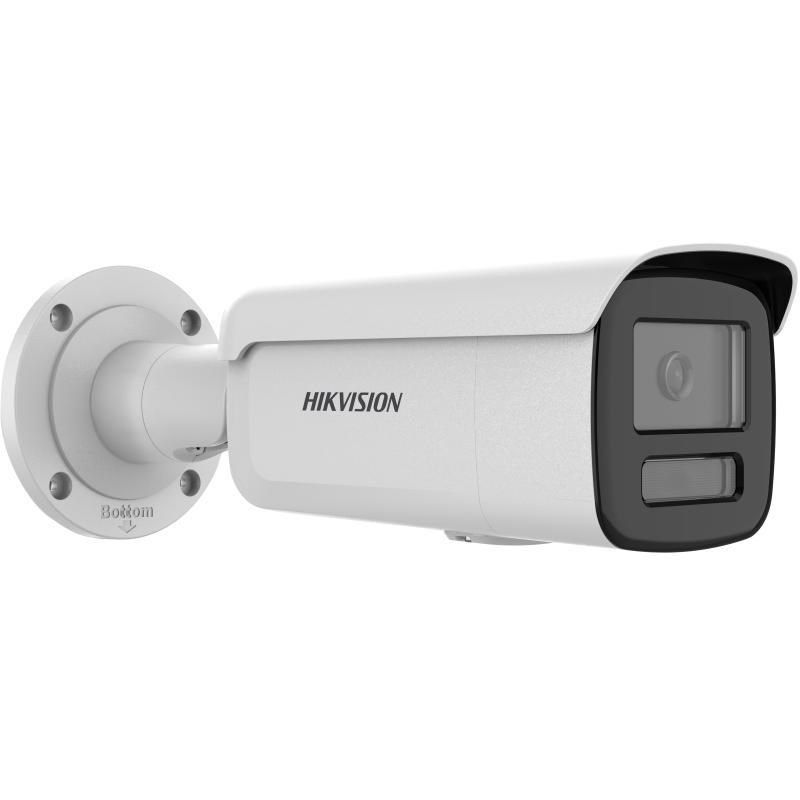

Hikvision Pro Series with AcuSense DS-2CD2T46G3-4IZY(2.8/4MM) Industrial Camera Bullet IP Security Camera Outdoor 2688 x 1520 px Ceiling / Wall
Hikvision Pro Series with AcuSense DS-2CD2T46G3-4IZY(2.8/4MM) Industrial Camera Bullet IP Security Camera Outdoor 2688 x 1520 px Ceiling / Wall
Sign up and unlock up to 10% off!
- Design
- Security features
- Waterproof
- Dust resistant
- Corrosion resistant
- IP protection class: IP67
- Layout: Tube
- Product color
- Black
- White
- Housing material: Metal
- Mounting type: Ceiling / Wall
- Security features
- Power
- DC Output (Amps): 0.91 A
- Power supply type: DC, PoE
- Power consumption (max): 11 W
- DC Output (Volts): 12
- Power consumption (PoE): 12.5 W
- Weight and dimensions
- Product width: 88.7 mm
- Product weight: 1.17 kg
- Product length: 287.2 mm
- Product height: 91.2 mm
- Security
- IP Filtering: Yes
- Heartbeat: Yes
- Privacy Protection: Yes
- Pixel counter: Yes
- Audit log: Yes
- Digest Authentication: Yes
- Mirror: Yes
- HTTS Inscription: Yes
- Encryption/Security
- HTTPS
- TLS
- Intelligent Video Surveillance (IVS) Features: Face Detection
- Automatic Network Replenishment (ANR): Yes
- Flash Log: Yes
- Video motion detection: Yes
- Password protection: Yes
- Password reset via email: Yes
- Network Attached Storage (NAS): Yes
- Active intrusion alarm: Yes
- Human and Vehicle Target Classification: Yes
- Management features
- Website management: Yes
- Reset button: Yes
- Behavior Analysis: Intrusion Detection, Line Crossing Detection
- Working conditions
- Permissible relative humidity: 0 - 95%
- Temperature range (storage): -30 - 60 °C
- Temperature range (operation): -30 - 60 °C
- Relative humidity range: 0 - 95%
- Network
- Number of users: 32 users
- Live View: Yes
- Wi-Fi: No
- Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
- Bluetooth: No
- Communication standards
- IEEE 802.1x
- IEEE 802.3af
- Wired LAN: Yes
- Ethernet network interface type
- Gigabit Ethernet
- Fast Ethernet
- Number of simultaneous live view channels: 6 channels
- Quality of Service (QoS) Support: Yes
- User access level: Administrator, Operator, User
- Efficiency
- Infrared (IR) Cut-off Filter: Yes
- Built-in light: Yes
- Intended use: Outdoor
- Dynamic range: 130 dB
- Language Support: Multi
- Wide Dynamic Range (WDR): Yes
- Connection method: Wired
- Model: IP Security Camera
- Day/Night Mode: Yes
- Number of languages: 33
- Packaging data
- Package height: 155 mm
- Package width: 386 mm
- Package depth: 156 mm
- Weight with packaging: 1.69 kg
- Package contents
- Number of cameras: 1
- Audio
- Signal-to-noise ratio: 52 dB
- Data carrier
- Supported memory cards
- MicroSD
- MicroSDHC
- MicroSDXC
- Maximum memory card size: 512 GB
- Built-in HDD: No
- Integrated card reader: Yes
- Supported memory cards
- Ports and interfaces
- BNC outputs: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Swivel range: 0 - 360°
- Shutter speed: 1 - 1/100000 s
- Tilt angle range: 0 - 90°
- Rotation angle: 360°
- Number of privacy masking areas: 4
- Vertical viewing angle (4mm lens): 44.1°
- Viewing angle, diagonal (2.8 mm lens): 120.2°
- Min. Illumination: 0 lx
- Viewing angle, vertical (2.8mm lens): 54.8°
- Horizontal viewing angle (4 mm lens): 80°
- Horizontal viewing angle (2.8mm lens): 99.3°
- Viewing angle, diagonal (4 mm lens): 94°
- Other functions
- Supported browsers: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
- Photosensitive matrix
- Image sensor type: CMOS
- Progressive Scan: Yes
- CCD sensor size: 25.4/3 mm (1/3")
- Number of sensors: 1
- Night mode
- LED Type: Infrared/White
- Night Vision Distance: 80 m
- Night mode: Yes
- Infrared wavelength: 850 nm
- Video
- Total megapixels: 4 MP
- Frame rate: 30 fps
- Data rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Maximum resolution: 2688 x 1520 px
- Supported graphics resolutions
- 640 x 360
- 640 x 480 (VGA)
- 1280 x 720 (HD 720)
- 1920 x 1080 (HD 1080)
- 2688 x 1520
- Video transmission: Yes
- Compression formats
- M-JPEG
- H.265+
- H.265
- H.264
- H.264+
- Noise reduction: Yes
- Data flow speed: 32 Kbps - 8192 Kbps
- Noise reduction technology: 3D noise reduction
- Regional Area of Interest (ROI) Coding: Yes
- Privacy Mask: Yes
- Highlight Compensation (HLC): Yes
- Quality regulation
- Sharpness
- Saturation
- White balance
- Gain
- Contrast
- Brightness
- Backlight compensation: Yes
- Lens system
- Maximum aperture: 1.6
- Number of lenses: 2
- Detection distance (4mm lens): 79.2 m
- Recognize distance (2.8mm lens)
- 6.7 m
- 13.3 m
- Observation distance (2.8 mm lens): 26.4 m
- Recognizes distance (4mm lens)
- 15.8 m
- 7.9 m
- Detection distance (2.8mm lens): 66.6 m
- Observation distance (4 mm lens): 31.4 m
- Sustainable development
- Certificates of conformity
- Low Voltage Directive (LVD)
- RoHS
- CE
- UL
- CB
- Certificates of conformity
| Name | Details |
|---|---|
| Producer | Hikvision |
