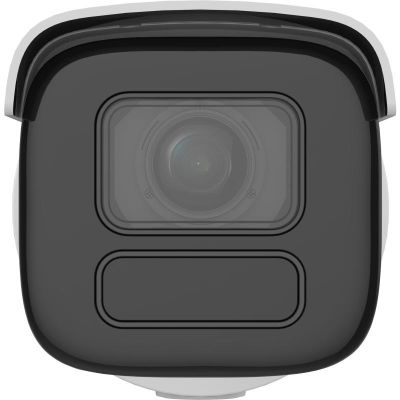

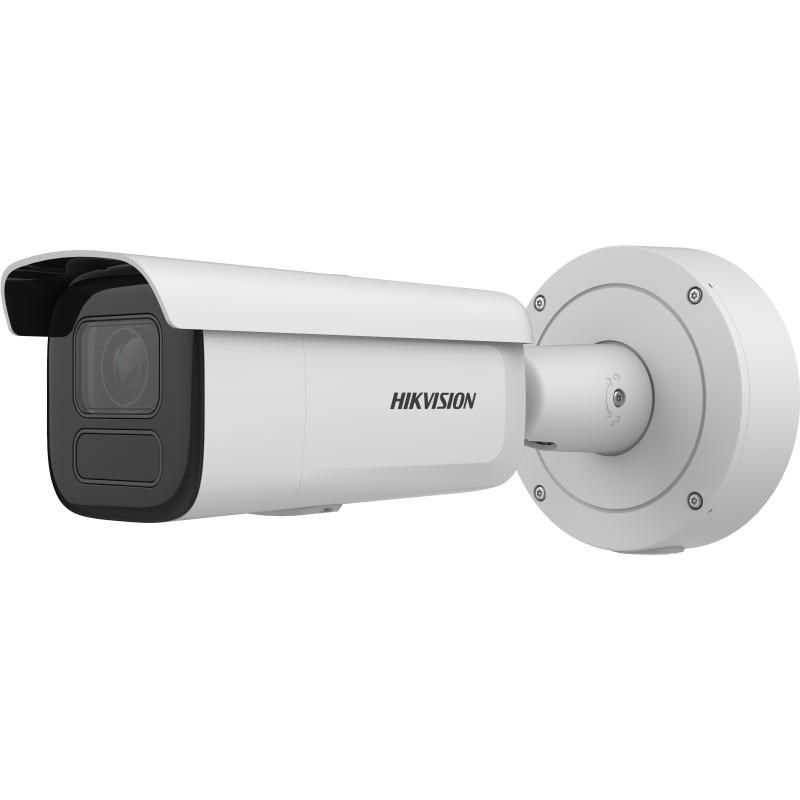

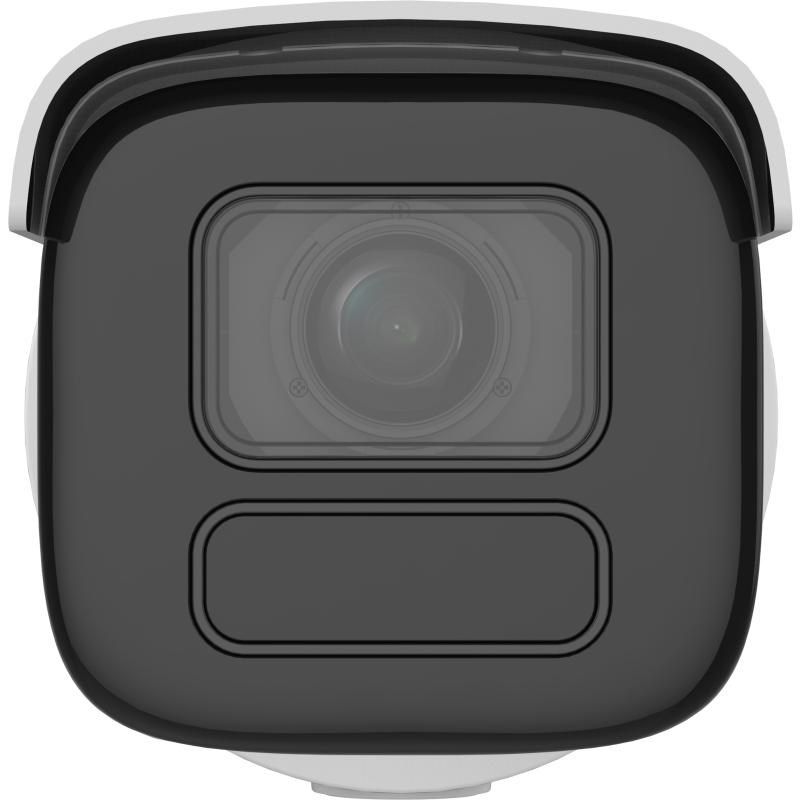

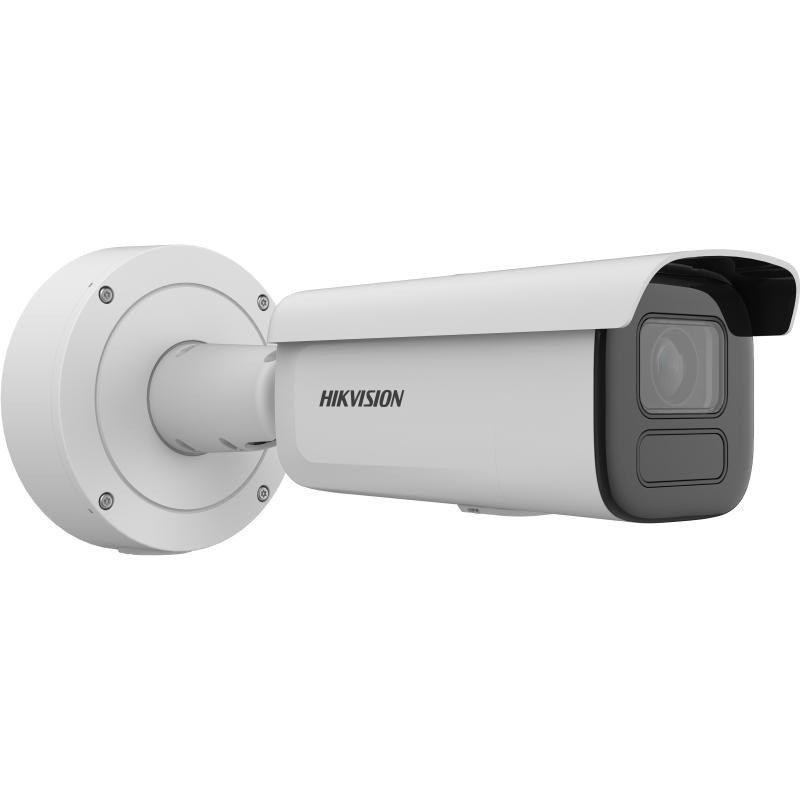

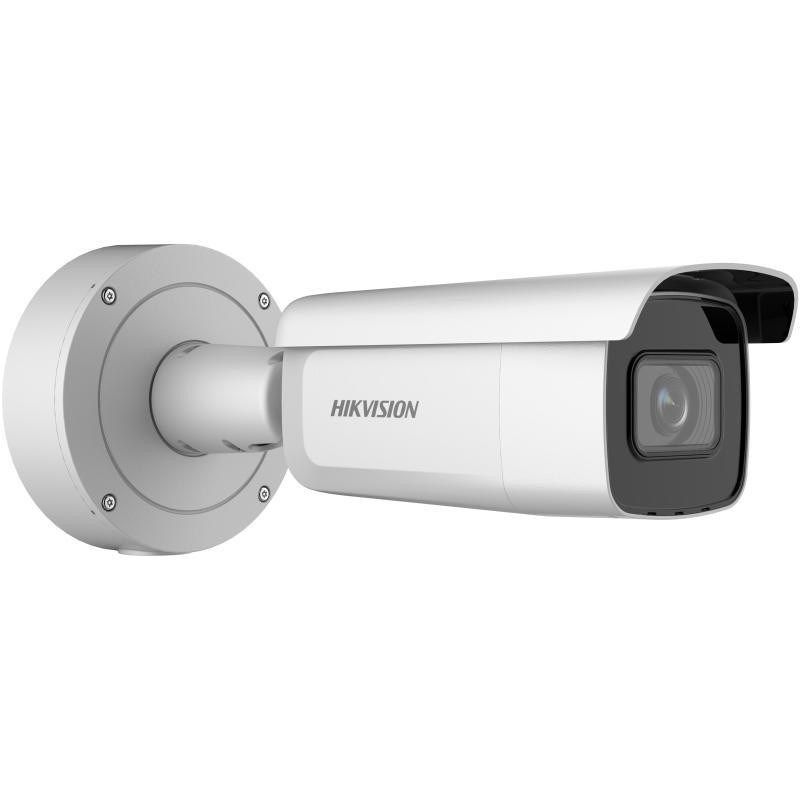

Hikvision Ultra Series (SmartIP) DS-2CD3686G2-IZS(7-35mm)(H)(eF) Bullet IP Security Camera Indoor/Outdoor 3840 x 2160 px Wall
Hikvision Ultra Series (SmartIP) DS-2CD3686G2-IZS(7-35mm)(H)(eF) Bullet IP Security Camera Indoor/Outdoor 3840 x 2160 px Wall
Hikvision Ultra Series (SmartIP) DS-2CD3686G2-IZS(7-35mm)(H)(eF) Bullet IP Security Camera Indoor/Outdoor 3840 x 2160 px Wall
PRICE:
681,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: White
- Layout: Tube
- IP protection class: IP67
- Mounting type: Wall
- Housing material: Aluminum
- IK code: IK10
- Steam resistant: Yes
- Power
- Power consumption (max): 13 W
- Power supply type: DC, PoE
- DC Output (Amps): 1.08 A
- DC Output (Volts): 12
- Power consumption (PoE): 15 W
- Weight and dimensions
- Product length: 332.1 mm
- Product weight: 1.55 kg
- Diameter: 14.4 cm
- Security
- Intelligent Video Surveillance (IVS) Features
- Counting people
- Region exit detection
- Intrusion
- Line crossing detection
- Face detection
- Region Entry Detection
- Video motion detection: Yes
- IP Filtering: Yes
- Password protection: Yes
- Heartbeat: Yes
- HTTS Inscription: Yes
- Flash Log: Yes
- Password reset via email: Yes
- Audit log: Yes
- Mirror: Yes
- Digest Authentication: Yes
- Digital Watermark: Yes
- Alarm output channels: 1
- Alarm input channels: 1
- Network Attached Storage (NAS): Yes
- Intelligent Video Surveillance (IVS) Features
- Management features
- Reset button: Yes
- Working conditions
- Permissible relative humidity: 0 - 95%
- Temperature range (operation): -30 - 60 °C
- Temperature range (storage): -30 - 60 °C
- Relative humidity range: 0 - 95%
- Network
- Communication standards: IEEE 802.3at
- Bluetooth: No
- Number of users: 32 users
- Number of simultaneous live view channels: 6 channels
- Live View: Yes
- User access level: Administrator, Operator, User
- Wired LAN: Yes
- Wi-Fi: No
- Ethernet interface type: Fast Ethernet
- Efficiency
- Connection method: Wired
- Model: IP Security Camera
- Alarm I/O: Yes
- Intended use: Indoor/outdoor
- Day/Night Mode: Yes
- Auto-tracking: Yes
- Infrared (IR) Cut-off Filter: Yes
- Supported programming languages
- C
- C++
- AI framework
- Caffe
- ONNX
- PaddlePaddle
- TensorFlow
- Open platform version: HEOP 2.0
- Dynamic range: 120 dB
- Number of languages: 33
- Language Support: Multi
- Wide Dynamic Range (WDR): Yes
- Packaging data
- Package width: 385 mm
- Package height: 180 mm
- Weight with packaging: 2.6 kg
- Package depth: 190 mm
- Package contents
- User Manual: Yes
- Number of cameras: 1
- Audio
- Sampling rate: 8 - 48 kHz
- Bit rate range: 16 - 320 Kbit/s
- Supported audio formats
- MP3
- G.726
- MP2L2
- AAC-LC
- G.722.1
- PCM
- G.711 A-law
- G.711 μ-law
- G.711
- Signal-to-noise ratio: 52 dB
- Data carrier
- Supported memory cards
- MicroSDXC
- MicroSD
- MicroSDHC
- Integrated card reader: Yes
- Maximum memory card size: 512 GB
- Built-in HDD: No
- RAM capacity: 350 MB
- Emmc Capacity: 2 GB
- Flash memory size: 40 MB
- Supported memory cards
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Tilt angle range: 0 - 90°
- Vertical lens viewing angle: 9 - 23°
- Lens viewing angle, horizontal: 15 - 42°
- Lens viewing angle, diagonal: 17 - 49°
- Camera Tilt Control: Yes
- Camera Pan Control: Yes
- Number of privacy masking areas: 4
- Min. Illumination: 0 lx
- Swivel range: 0 - 355°
- Shutter speed: 1/100000 - 1/3 s
- Rotation angle: 360°
- Photosensitive matrix
- Number of sensors: 1
- Progressive Scan: Yes
- Image sensor type: CMOS
- CCD sensor size: 25.4 / 1.8 mm (1 / 1.8")
- Night mode
- Night mode: Yes
- Infrared wavelength: 850 nm
- LED type: Infrared
- Night Vision Distance: 80 m
- Video
- Maximum resolution: 3840 x 2160 px
- Supported graphics resolutions
- 640 x 480 (VGA)
- 3840 x 2160
- 1920 x 1080 (HD 1080)
- 640 x 360
- 2688 x 1520
- 1280 x 720 (HD 720)
- 3200 x 1800
- Data rate control: Constant bit rate (CBR), Variable bit rate (VBR)
- Quality regulation
- Saturation
- Contrast
- Sharpness
- Brightness
- Regional Area of Interest (ROI) Coding: Yes
- Video transmission: Yes
- Smart IR: Yes
- Privacy Mask: Yes
- Video recording: Yes
- Noise reduction technology: 3D noise reduction
- Compression formats
- H.264+
- H.265+
- H.265
- H.264
- Supported video file formats
- H.265
- H.265+
- H.264
- H.264+
- Supported video modes
- 360p
- 480p
- 1520p
- 720p
- 2160p
- 1080p
- Highlight Compensation (HLC): Yes
- Data flow speed: 32 Kbps - 16 Mbps
- Total megapixels: 8 MP
- Frame rate: 30 fps
- Noise reduction: Yes
- Backlight compensation: Yes
- Lens system
- Number of lenses: 1
- Distance measurement (tele): 58 m
- Detection distance (tele): 580 m
- Distance Recognition (Tele): 116 m
- Distance measurement (wide): 21 m
- Observing distance (tele): 230 m
- Detection distance (wide): 218 m
- Observing distance (wide): 86 m
- Recognition distance (wide): 43 m
- Auto focus: Yes
- Focus: Motorized/Manual
- Maximum aperture: 1.6
- Focal length: 7 - 35 mm
- Sustainable development
- Sustainability: Yes
- Certificates of conformity
- WEEE
- REACH
- RoHS
- BIS
- CB
- CE
- UL
| Name | Details |
|---|---|
| Category | Industry |
| Producer | Hikvision |
