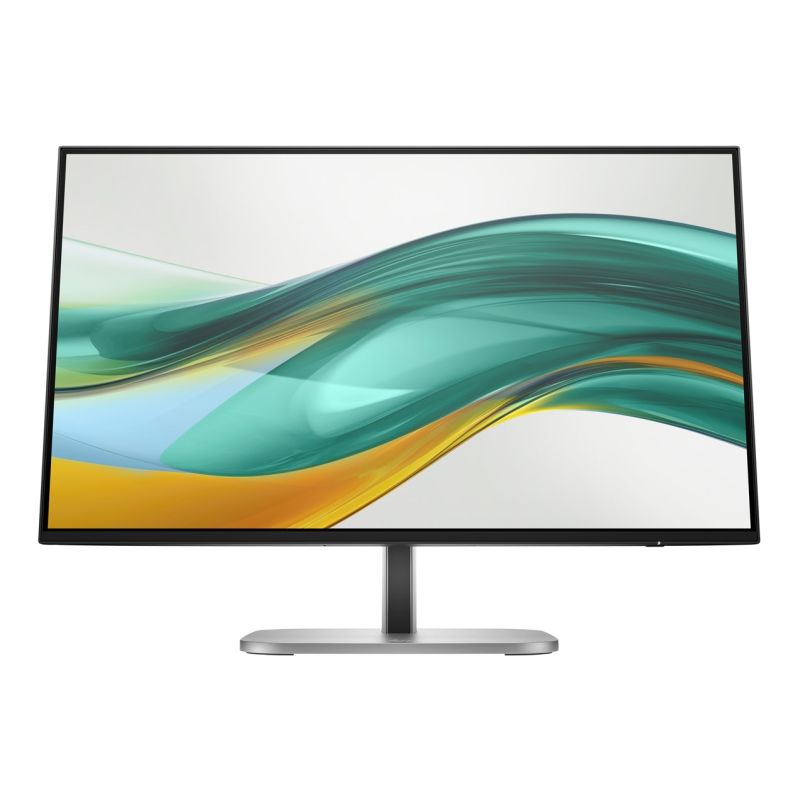

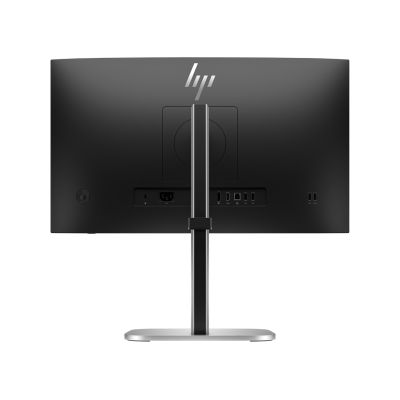

HP LED MONITOR 23.8” S5 Pro 524pf (9D9L6UT)
HP LED MONITOR 23.8” S5 Pro 524pf (9D9L6UT)
Sign up and unlock up to 10% off!
- Technical details
- General Product Safety Regulation (GPSR) URL: https://kaas.hpcloud.hp.com/pdf-public/pdf_11069394_en-US-1.pdf
- Design
- Market positioning: Business
- Leg color
- Black
- Silver
- Product color: Black
- Power
- Power consumption: 22 W
- Power consumption in standby mode: 0.5 W
- Power Supply Type: Internal
- Energy Efficiency Scale: From A to G
- Energy efficiency class (HDR): Not available
- Energy efficiency class (SDR): C
- Off mode: 0.3 W
- AC input frequency: 50/60 Hz
- Power consumption (max): 58 W
- AC input voltage: 100 - 240 V

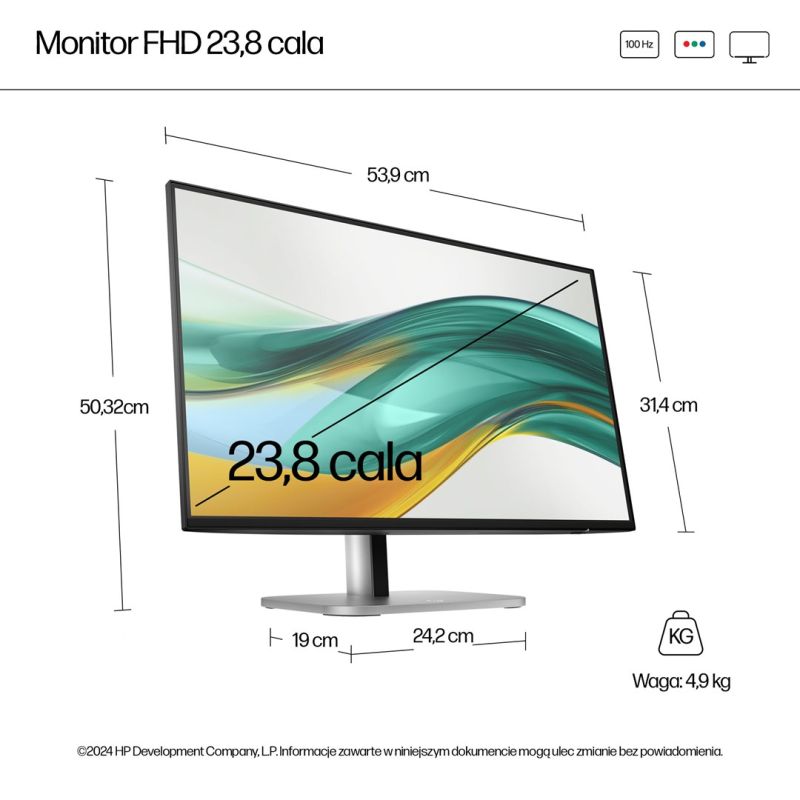

- Weight and dimensions
- Weight (without stand): 3.4 kg
- Depth (without base): 47.2 mm
- Weight (with base): 4.9 kg
- Width (without base): 539.4 mm
- Height (without stand): 314.3 mm
- Device height (with base): 503.2 mm
- Device width (with base): 539.4 mm
- Device depth (with base): 189.5 mm
- Working conditions
- Permissible relative humidity: 20 - 80%
- Temperature range (operation): 5 - 35 °C
- Relative humidity range: 5 - 95%
- Efficiency
- AMD FreeSync: No
- Low blue light technology: Yes
- HP Segment: Business
- VESA Adaptive Sync Support: Yes
- Flicker-free technology: Yes
- NVIDIA G-SYNC: No
- Packaging data
- Packaging depth: 140 mm
- Package width: 621 mm
- Package height: 393 mm
- Weight with packaging: 7.2 kg
- Packaging type: Box
- Package contents
- Wires
- DisplayPort
- USB Type A to USB Type B
- Alternating current
- HDMI
- Quick Start Guide: Yes
- Wires
- Display
- Supported video modes: 1080p
- Matrix type: IPS
- Contrast ratio (typical): 1500:1
- Horizontal scanning range: 30 - 120 kHz
- Image size (horizontal): 52.7 cm
- Touchscreen: No
- Scanning range (length): 50 - 100 Hz
- Screen diagonal length (cm): 60.5 cm
- Image size (vertical): 29.6 cm
- Display technology: LCD
- Haze index: 25%
- Surface hardness: 3H
- sRGB coverage (typical): 100%
- Matte screen: Yes
- Maximum refresh rate: 100 Hz
- Color depth: 8 bit
- Color gamut standard: sRGB
- Pixel density: 93 ppi
- Color palette: 100%
- Response time measurement type: GTG (Gray to Gray)
- Response time (typical): 5 ms
- Resolution: 1920 x 1080 px
- Supported graphics resolutions
- 800 x 600 (SVGA)
- 1440 x 900 (WXGA+)
- 720 x 400
- 640 x 480 (VGA)
- 1680 x 1050 (WSXGA+)
- 1280 x 720 (HD 720)
- 1024 x 768 (XGA)
- 1280 x 800
- 1600 x 900
- 720 x 480
- 1920 x 1080 (HD 1080)
- 1280 x 1024 (SXGA)
- 720 x 576
- Native aspect ratio: 16:9
- Display colors: 16.7 million colors
- Screen diagonal: 23.8"
- Display brightness (typical): 350 cd/m²
- Display surface: Matte
- Aspect ratio: 16:9
- Screen shape: Flat
- Horizontal viewing angle: 178°
- Spot size: 0.28 x 0.28 mm
- Contrast ratio (dynamic): 10000000:1
- Viewing angle (vertical): 178°
- HD type: Full HD
- Multimedia
- Built-in speakers: No
- Built-in camera: No

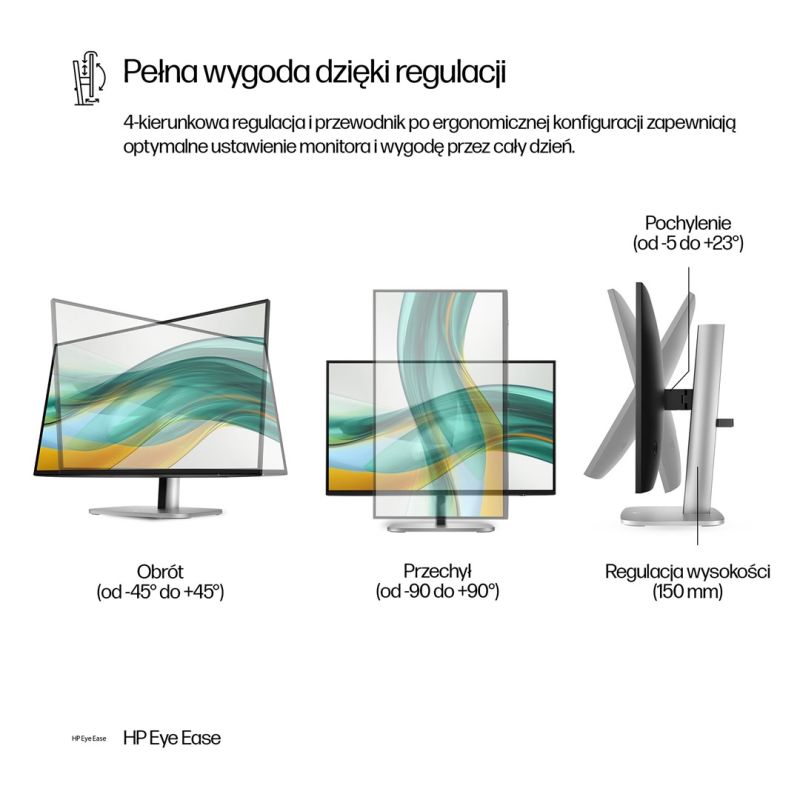

- Ergonomics
- VESA Standard: Yes
- Height adjustment: Yes
- OSD: Yes
- Rotation axis: Yes
- Rotatable: 0 - 45°
- Rotatable: Yes
- Tilt adjustment: Yes
- Rotation angle around the axis: 0 - 90°
- Adjustable height (max): 15 cm
- Kensington Lock: Yes
- Tilt angle range: -5 - 23°
- Ports and interfaces
- Built-in USB hub: Yes
- Number of HDMI ports: 1
- HDMI version: 1.4
- Number of USB Type-B ports (quantity): 1
- HDMI: Yes
- Number of USB Type A downstream ports: 4
- Port typeUSB upstream
- USB Type-A
- USB Type B
- USB hub version: 3.2 Gen 1 (3.1 Gen 1)
- DisplayPort Quantity: 1
- DisplayPort version: 1.2
- HDCP: Yes
- Other functions
- Product depth: 38.5 mm
- Product height: 313.7 mm
- Product width: 538.4 mm
- Certificates of conformity
- ICES
- VCCI
- CE
- cTUVus
- GS mark
- EAC
- OBJECTIVE
- CCC
- BIS
- Federal Communications Commission (FCC)
- PSE
- WEEE
- RCM
- KCC
- Central Committee
- CECP
- Norma Oficial Mexicana (NOM)
- BSMI
- CB
- Unspsc code: 43211902
- Product weight: 4.9 kg
- Safety warning
- Warnings
- Do not disassemble the monitor housing to avoid the risk of electric shock.
- Place the monitor on a flat and stable surface to avoid tipping and damage.
- Unplug the monitor from the power source before cleaning.
- Warnings
- Characteristic features of the brand
- HP GTIN (EAN/UPC): 884962772379
- Sustainable development
- European Product Registry for Energy Labeling (EPREL) code: 1949552
- Environmental certification (sustainability): ENERGY STAR
| Name | Details |
|---|---|
| Producer | Hewlett-Packard |
