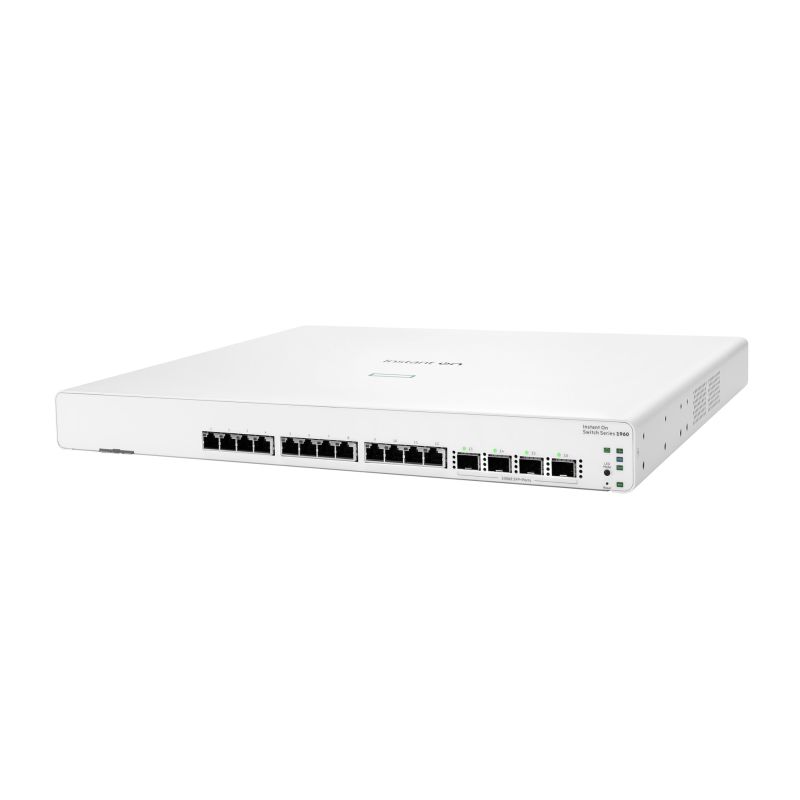

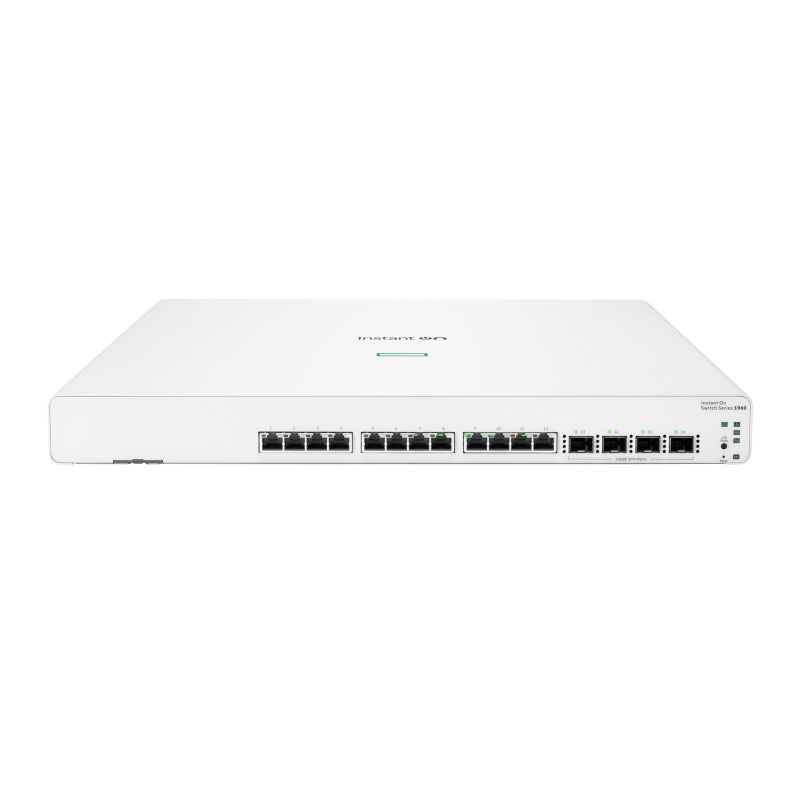

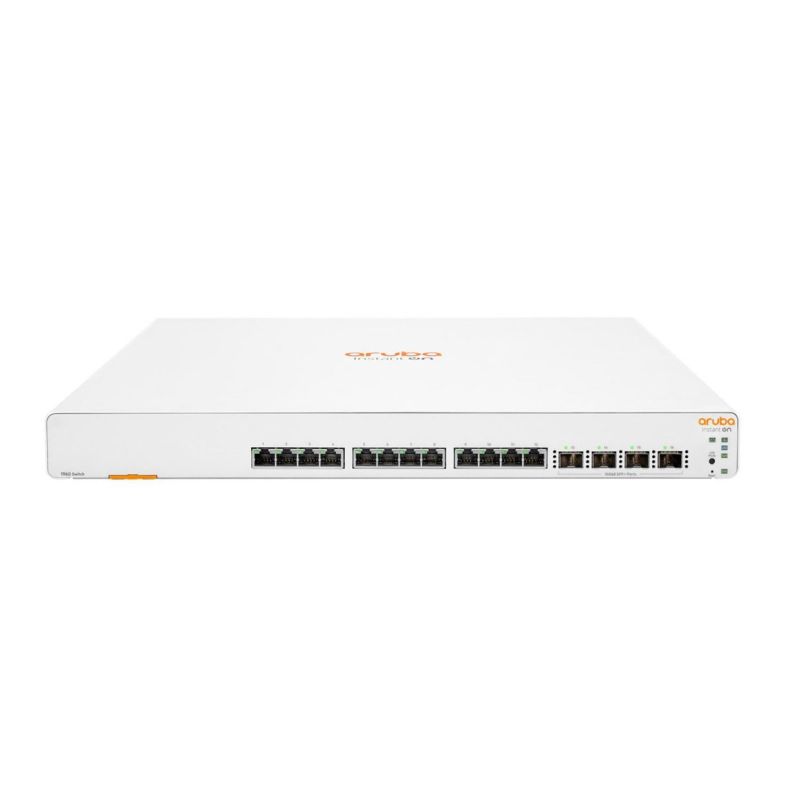

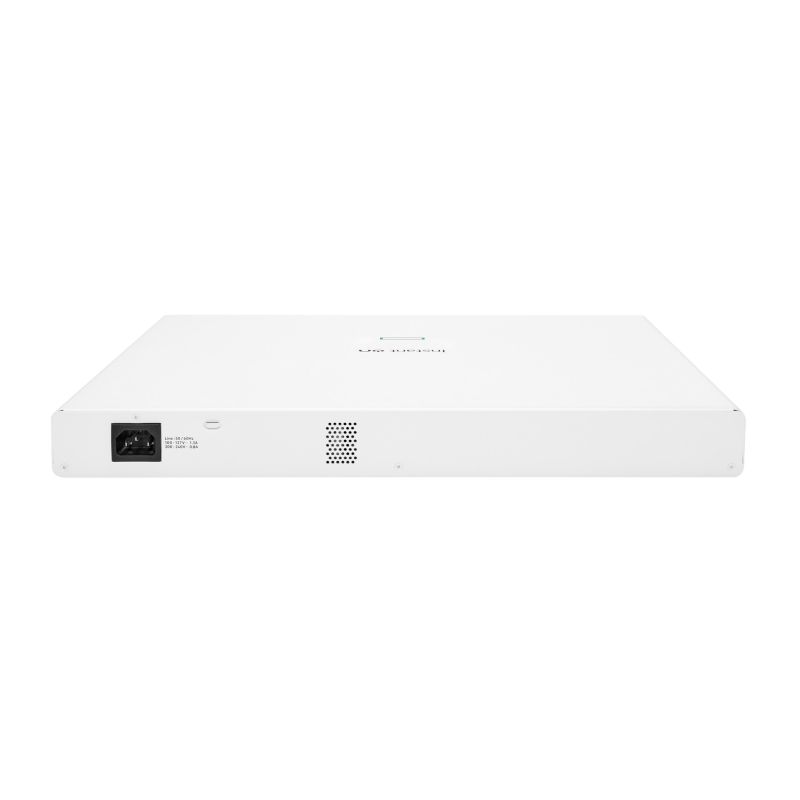

HPE Aruba Instant On 1960 Smart 12XT 4XF Switch
HPE Aruba Instant On 1960 Smart 12XT 4XF Switch
HPE Aruba Instant On 1960 Smart 12XT 4XF Switch
PRICE:
1367,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Stackable: Yes
- Rack mounting options: Yes
- Product color: White
- Layout: 1U
- Power
- Power consumption: Maximum: 100-127V: 130W 200-220V: 160W Idle: 100-127V: 60W 200-220V: 80W
- Power supply included: Yes
- AC input frequency: 50 - 60 Hz
- AC input voltage: 200 - 240 V
- Power consumption (max): 160 W
- Power source: AC
- Weight and dimensions
- Product height: 44 mm
- Product weight: 4.3 kg
- Product width: 350.5 mm
- Product depth: 442.5 mm
- Security
- Access Control List (ACL): Yes
- Supports SSH/SSL: Yes
- Authentication: Port-based authentication
- Authentication type: RADIUS
- IGMP snooping: Yes
- DHCP Features: DHCP snooping
- Management features
- Cloud-managed: Yes
- System Event Report: Yes
- Switch Layer: L2+
- Website management: Yes
- Switch type: Managed
- Quality of Service (QoS) Support: Yes
- Working conditions
- Permissible operating altitude (above sea level): 0 - 3000 m
- Relative humidity range: 15 - 95%
- Temperature range (operation): 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Permissible relative humidity: 15 - 90%
- Network
- Connection Aggregator: Yes
- Auto Detection: Yes
- Frequency Limit: Yes
- Spanning Tree Protocol: Yes
- Flow Control Support: Yes
- Port Mirroring: Yes
- Communication standards
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3az
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1AX
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3ad
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.1x
- VLAN support: Yes
- Full duplex: Yes
- Auto MDI/MDI-X: Yes
- 10G Support: Yes
- Efficiency
- Physical stacking (pcs): 4
- Built-in processor: Yes
- Memory type: DDR3-SDRAM
- Internal memory capacity: 1 GB
- Processor model: ARM Cortex-A9
- Processor clock speed: 2000 MHz
- Flash memory size: 512 MB
- Protocols
- IPv6 FIB entries: 512
- IPv4 and IPv6 features: IPv4/IPv6 access-control list (ACL)
- IPv4 FIB: 512
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 12
- Basic Ethernet Switching RJ-45 Ports Type: 10G Ethernet (100/1000/10000)
- Number of SFP+ Module slots: 4
- Other functions
- Memory and processor: Single-Core ARM v7 Cortex-A9 @800 MHz; 1GB DDR3; 512MB NAND flash; Packet buffer size: 1.5 MB
- Management features: HPE Networking Instant On Cloud; Web browser; SNMP Manager
- Weight (imperial): 4.35 kg (9.6 lbs)
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Latency (1 Gbps): 4.2 µs
- Latency (10-100 Mbps): 7.4 µs
- Latency (10 Gbps): 1.1 µs
- Jumbo Frames Expansion: 9216
- Routing/switching capacity: 320 Gbit/s
- Address table size: 16000 entries
- Packet buffer memory: 1.5 MB
- Bandwidth: 238 Mpps
- Jumbo Frame Compatible: Yes
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
| Name | Details |
|---|---|
| Department | Electronics |
| Category | Networking & Communication, Computers and accessories |
| Product Type | Network switches |
| Producer | Hewlett-Packard |
