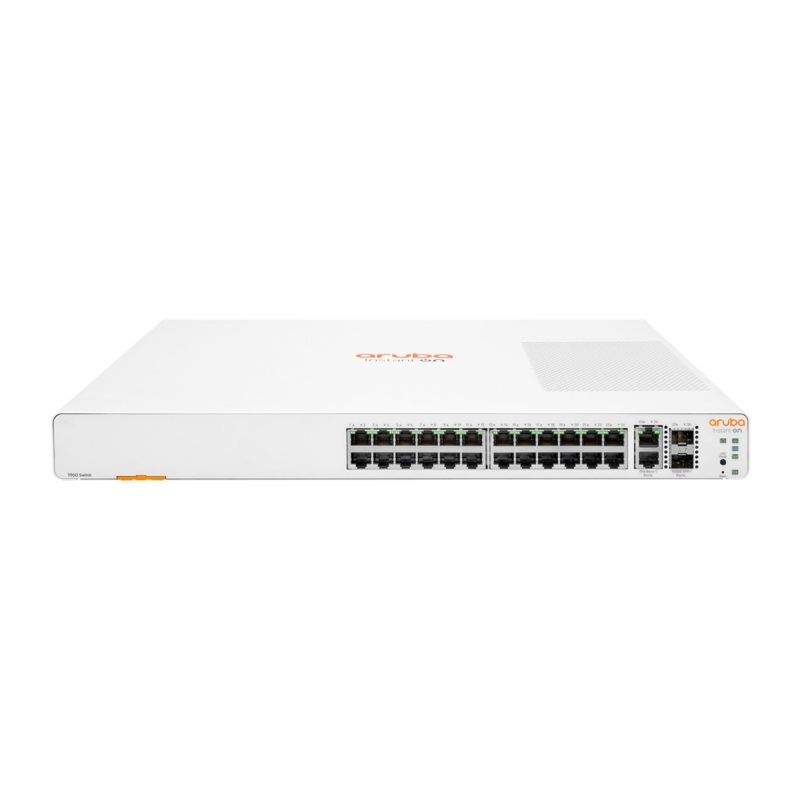

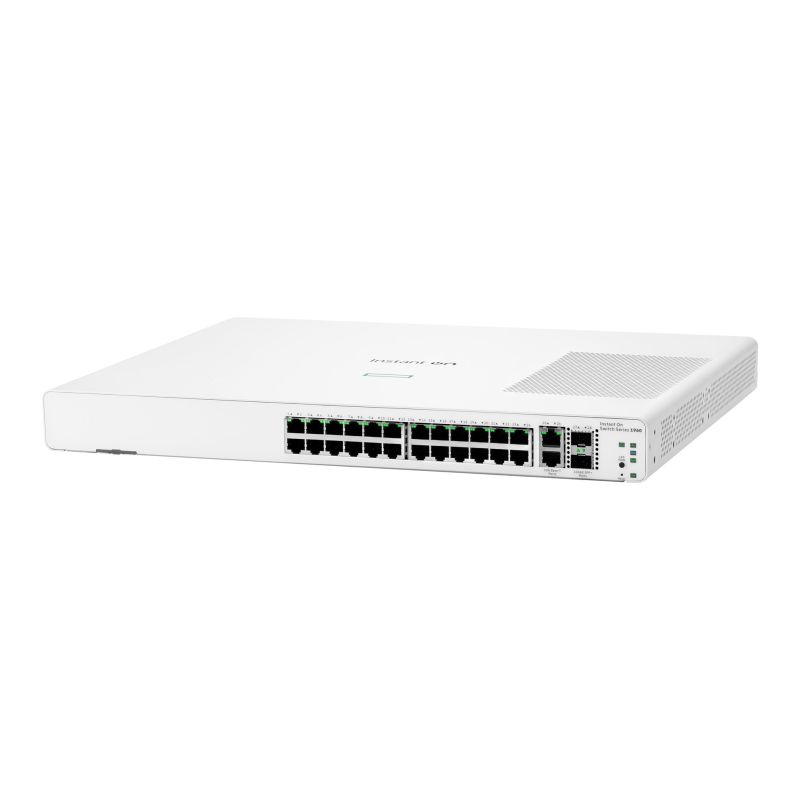

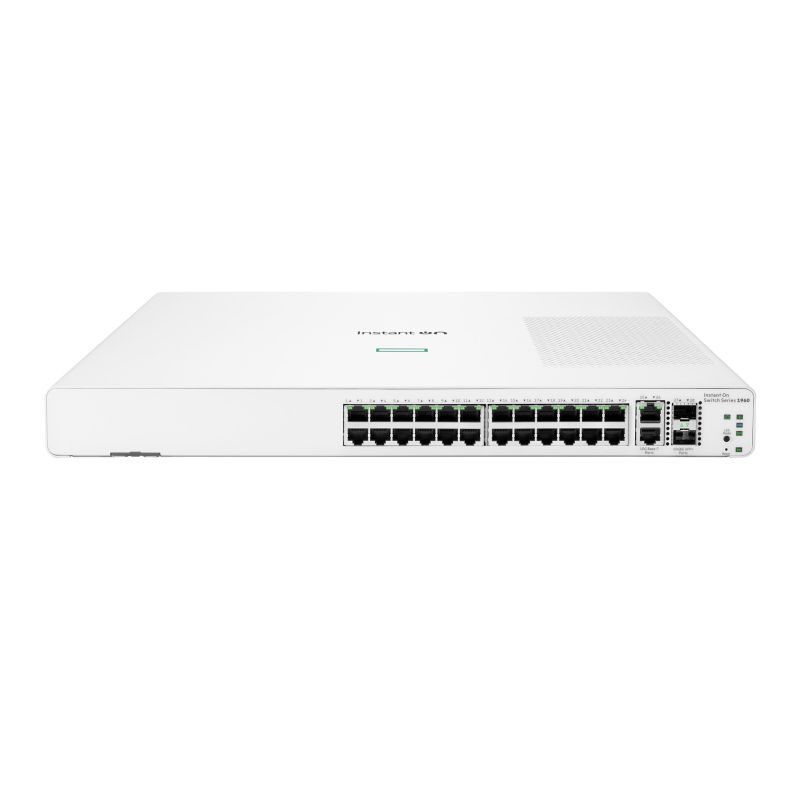

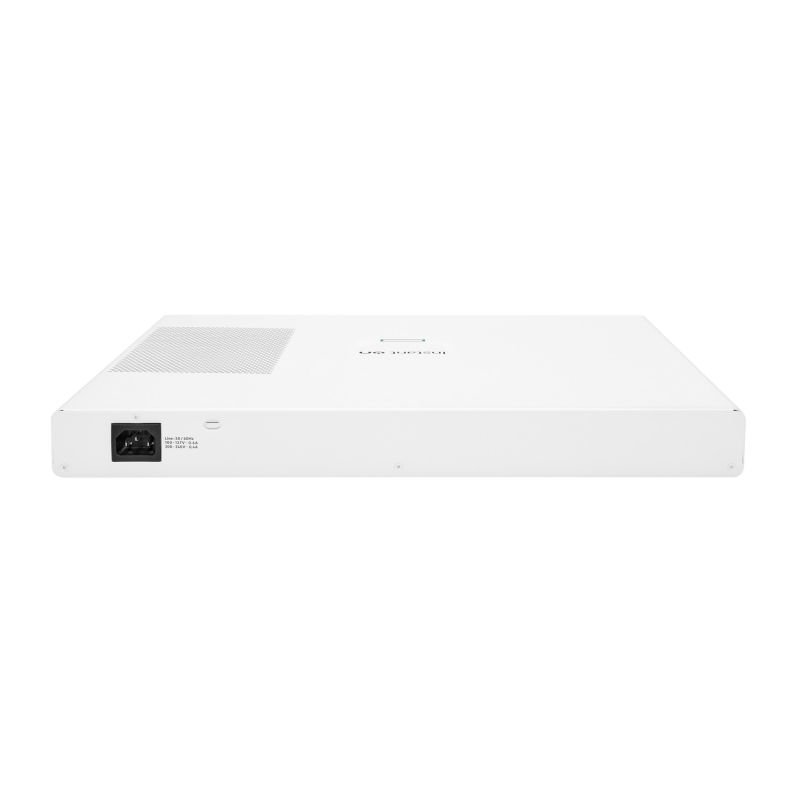

HPE Aruba Instant On 1960 Smart 24G 2XT 2XF Switch
HPE Aruba Instant On 1960 Smart 24G 2XT 2XF Switch
HPE Aruba Instant On 1960 Smart 24G 2XT 2XF Switch
PRICE:
780,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Rack mounting options: Yes
- Product color: White
- Stackable: Yes
- Layout: 1U
- Power
- Power consumption (max): 80 W
- AC input voltage: 200 - 240 V
- Power supply included: Yes
- AC input frequency: 50 - 60 Hz
- Power consumption: Maximum: 100-127V: 60W 200-220V: 80W Idle: 100-127V: 30W 200-220V: 40W
- Weight and dimensions
- Product weight: 3.9 kg
- Product depth: 442.5 mm
- Product width: 350.5 mm
- Product height: 44 mm
- Security
- IGMP snooping: Yes
- Authentication: Port-based authentication
- Access Control List (ACL): Yes
- DHCP Features: DHCP snooping
- Authentication type: RADIUS
- Management features
- Switch type: Managed
- Quality of Service (QoS) Support: Yes
- Switch Layer: L2+
- System Event Report: Yes
- Website management: Yes
- Cloud-managed: Yes
- Working conditions
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 15 - 95%
- Permissible operating altitude (above sea level): 0 - 3000 m
- Temperature range (operation): 0 - 40 °C
- Permissible relative humidity: 15 - 90%
- Network
- Full duplex: Yes
- VLAN support: Yes
- 10G Support: Yes
- Flow Control Support: Yes
- Auto MDI/MDI-X: Yes
- Communication standards
- IEEE 802.1s
- IEEE 802.1AX
- IEEE 802.1p
- IEEE 802.3az
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3ad
- Port Mirroring: Yes
- Spanning Tree Protocol: Yes
- Connection Aggregator: Yes
- Auto Detection: Yes
- Efficiency
- Processor clock speed: 800 MHz
- Internal memory capacity: 1 GB
- Memory type: DDR3-SDRAM
- Built-in processor: Yes
- Flash memory size: 512 MB
- Processor model: ARM Cortex-A9
- Physical stacking (pcs): 4
- Protocols
- IPv4 and IPv6 features: IPv4/IPv6 access-control list (ACL)
- IPv4 FIB: 32
- IPv6 FIB entries: 32
- Ports and interfaces
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Number of SFP+ Module slots: 2
- Number of 10G Ethernet ports (copper): 2
- Other functions
- Weight (imperial): 3.95 kg (8.7 lbs)
- Management features: HPE Networking Instant On Cloud; Web browser; SNMP Manager
- Memory and processor: Single-Core ARM v7 Cortex-A9 @800 MHz; 1GB DDR3; 512MB NAND flash; Packet buffer size: 1.5 MB
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Bandwidth: 95 Mpps
- Jumbo Frames Expansion: 9216
- Packet buffer memory: 1.5 MB
- Address table size: 16000 entries
- Latency (1 Gbps): 2.2 µs
- Routing/switching capacity: 128 Gbit/s
- Jumbo Frame Compatible: Yes
- Latency (10-100 Mbps): 4.4 µs
- Latency (10 Gbps): 1.1 µs
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- Safety warning
- Warnings
- Ensure the device is adequately ventilated during operation.
- This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations.
- Do not open the casing or attempt to repair it yourself.
- Warnings
| Name | Details |
|---|---|
| Producer | No name |
