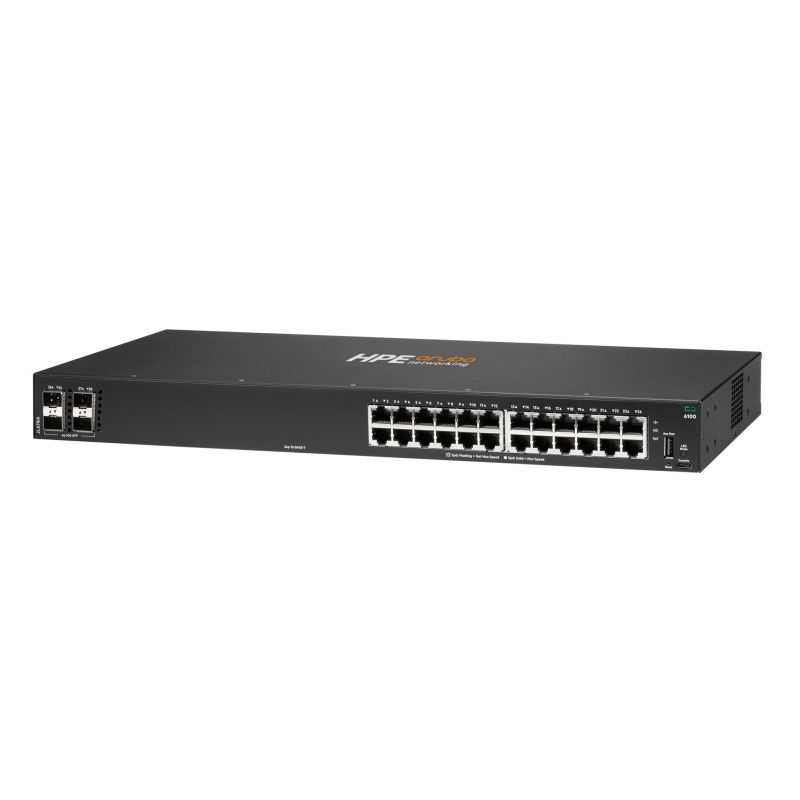

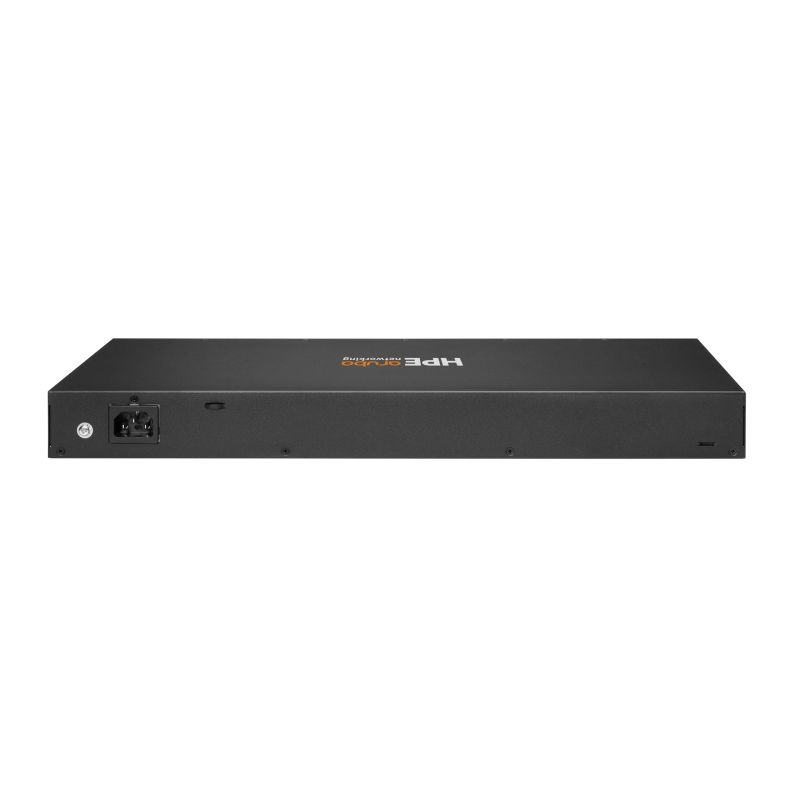

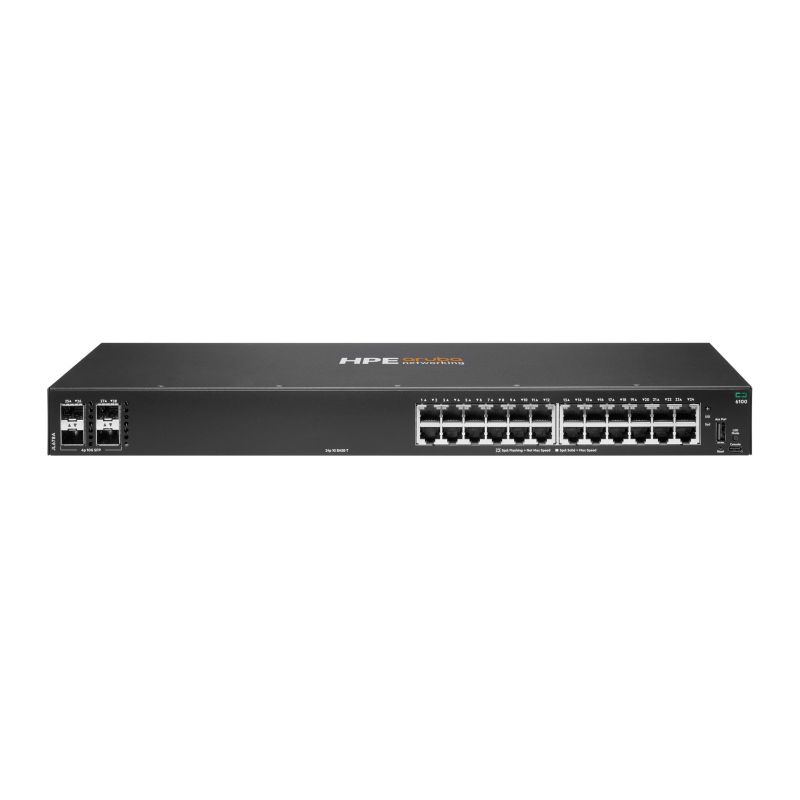

HPE Aruba Networking 6100 24G 4SFP+ Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
HPE Aruba Networking 6100 24G 4SFP+ Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
HPE Aruba Networking 6100 24G 4SFP+ Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
PRICE:
2111,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Layout: 1U
- Rack mounting options: Yes
- Product color: Black
- Stackable: Yes
- Airflow Direction: Side to Side Airflow
- Power
- AC input voltage: 200 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 33 W
- Power source: AC
- Power supply included: Yes
- Power consumption: Max. Power (w/o PoE): 33W
- Weight and dimensions
- Product height: 201 mm
- Product depth: 442 mm
- Product width: 44 mm
- Product weight: 2.6 kg
- Security
- DHCP functions: DHCP client
- Access Control List (ACL): Yes
- Authentication type: RADIUS, TACACS+
- Authentication: MAC-based authentication
- Management features
- Switch Layer: L3
- Switch type: Managed
- Quality of Service (QoS) Support: Yes
- Working conditions
- Permissible relative humidity: 15 - 90%
- Temperature range (operation): 0 - 45 °C
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 15 - 95%
- Network
- Flow Control Support: Yes
- Communication standards
- IEEE 802.3ad
- IEEE 802.1D
- IEEE 802.1Q
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3az
- IEEE 802.1p
- IEEE 802.3
- IEEE 802.1w
- IEEE 802.1s
- 10G Support: Yes
- Port Mirroring: Yes
- VLAN support: Yes
- Connection Aggregator: Yes
- Spanning Tree Protocol: Yes
- Efficiency
- Processor clock speed: 1016 MHz
- Flash memory size: 16 MB
- Internal memory capacity: 4 GB
- Processor model: ARM Cortex-A9
- Memory type: DDR3-SDRAM
- Built-in processor: Yes
- Virtual stacking (pcs): 16
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Number of SFP+ Module slots: 4
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Console port: USB
- Other functions
- Dimensions (WxDxH) (imperial): 43.9 x 442 x 201.2 mm (1.73 x 17.4 x 7.92")
- Weight (imperial): 2.62 kg (5.78 lbs)
- Fan: Fixed fans
- Latency: 1 Gbps: 1.5 μSec , 10 Gbps: 1.8 μSec
- Memory and processor: Dual Core ARM Cortex A9 @ 1016 Mhz 4 GB DDR3, maximum, depending on model 16 GB eMMC
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Address table size: 8192 entries
- Jumbo Frame Compatible: Yes
- Throughput: 95.2 Mpps
- Packet buffer memory: 12.38 MB
- Routing/switching capacity: 128 Gbit/s
- Latency (1 Gbps): 1.5 µs
- Latency (10 Gbps): 1.8 µs
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- Safety warning
- Warnings
- Avoid contact of the device with liquid.
- Make sure the device's ventilation is not blocked.
- Follow electrical safety guidelines.
