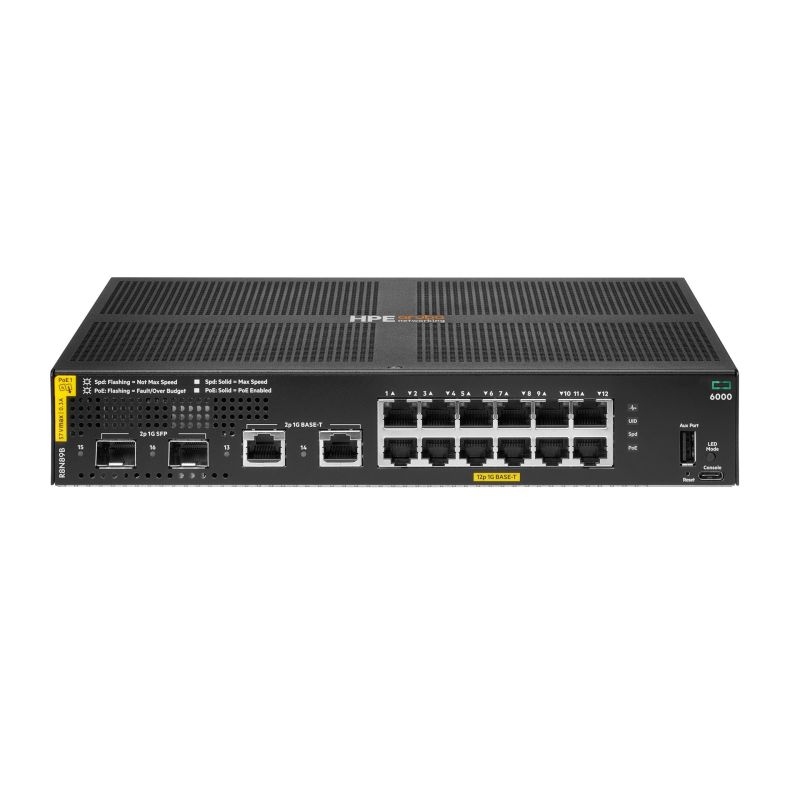

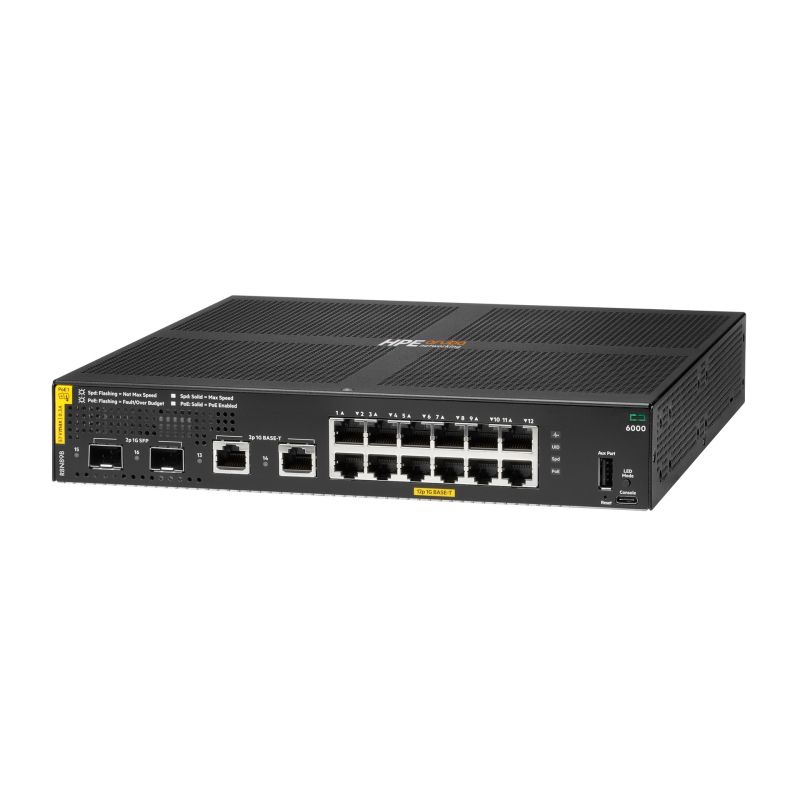

HPE Aruba Networking CX 6000 12p 10M/100M/1G Class4 PoE 2p SFP 1G 139W Managed Switch L3 Gigabit Ethernet (10/100/1000) PoE Support 1U
HPE Aruba Networking CX 6000 12p 10M/100M/1G Class4 PoE 2p SFP 1G 139W Managed Switch L3 Gigabit Ethernet (10/100/1000) PoE Support 1U
HPE Aruba Networking CX 6000 12p 10M/100M/1G Class4 PoE 2p SFP 1G 139W Managed Switch L3 Gigabit Ethernet (10/100/1000) PoE Support 1U
PRICE:
1009,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Rack mounting options: Yes
- Layout: 1U
- Stackable: No
- Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 200 - 240 V
- Power consumption: Max. Power (with PoE): 19.7W Max. Power (with PoE): 165W
- Weight and dimensions
- Product depth: 254 mm
- Product height: 255 mm
- Product width: 44 mm
- Product weight: 2.8 kg
- Security
- IGMP snooping: Yes
- Access Control List (ACL): Yes
- DHCP functions: DHCP client
- Authentication: MAC-based authentication
- Management features
- Switch type: Managed
- Switch Layer: L3
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- Cloud-managed: Yes
- Working conditions
- Permissible relative humidity: 15 - 90%
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 15 - 95%
- Temperature range (storage): -40 - 70 °C
- Network
- Auto MDI/MDI-X: Yes
- VLAN support: Yes
- Flow Control Support: Yes
- 10G Support: No
- Port Mirroring: Yes
- Communication standards
- IEEE 802.3az
- IEEE 802.1w
- IEEE 802.3ad
- IEEE 802.3
- IEEE 802.1Q
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.1p
- IEEE 802.3at
- IEEE 802.3ab
- IEEE 802.1s
- IEEE 802.1D
- Connection Aggregator: Yes
- Spanning Tree Protocol: Yes
- Efficiency
- Processor model: ARM Cortex-A9
- Memory type: DDR3-SDRAM
- Flash memory size: 16384 MB
- Internal memory capacity: 4 GB
- Built-in processor: Yes
- Processor clock speed: 1016 MHz
- Protocols
- IPv4 and IPv6 features: IPv4/IPv6 access-control list (ACL)
- IPv6 FIB entries: 128
- IPv4 FIB: 256
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 12
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of SFP Module slots: 2
- Console port: USB
- Other functions
- Latency: 1 Gbps: 2.3 μSec
- Memory and processor: CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Throughput: 23.8 Mpps
- Address table size: 8192 entries
- Packet buffer memory: 12.38 MB
- Routing/switching capacity: 32 Gbit/s
- Latency (1 Gbps): 2.3 µs
- Static Route: Yes
- Power over Ethernet (PoE)
- Total Power over Ethernet (PoE) budget: 139 W
- PoE Support: Yes
- Multicast functions
- Multicast Support: Yes
