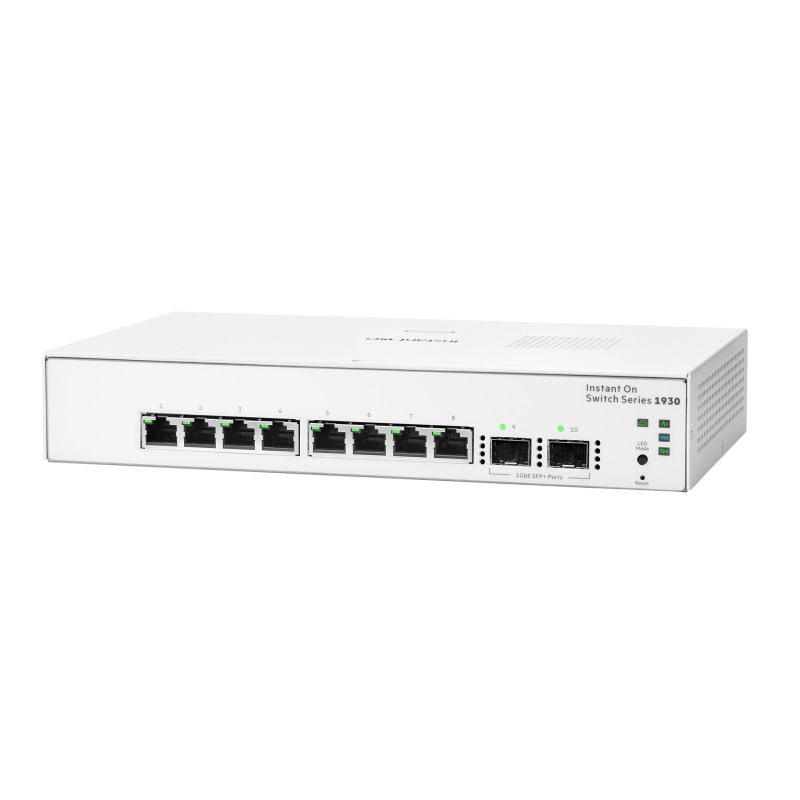

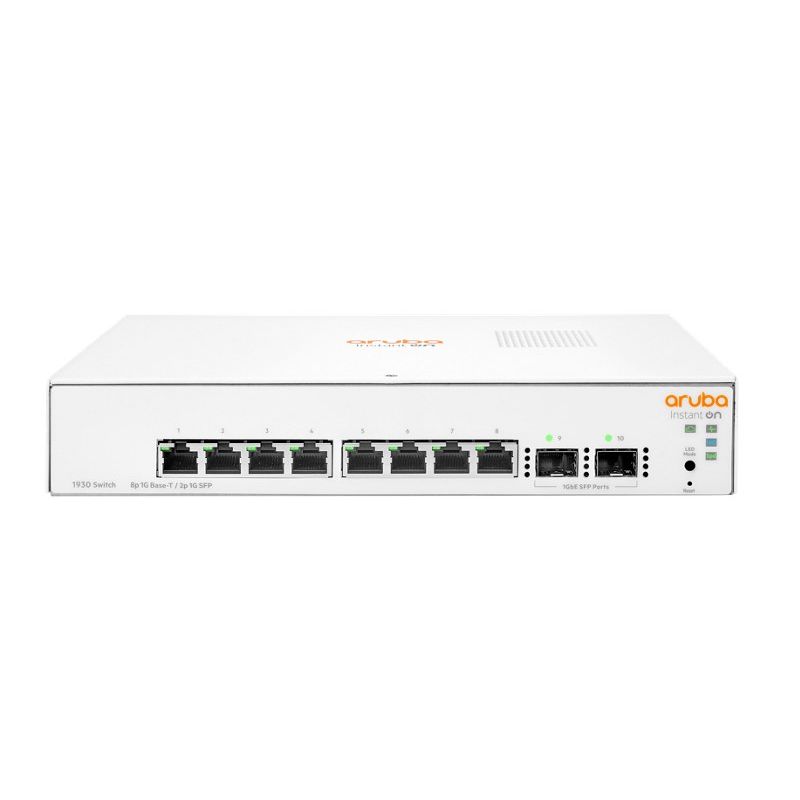

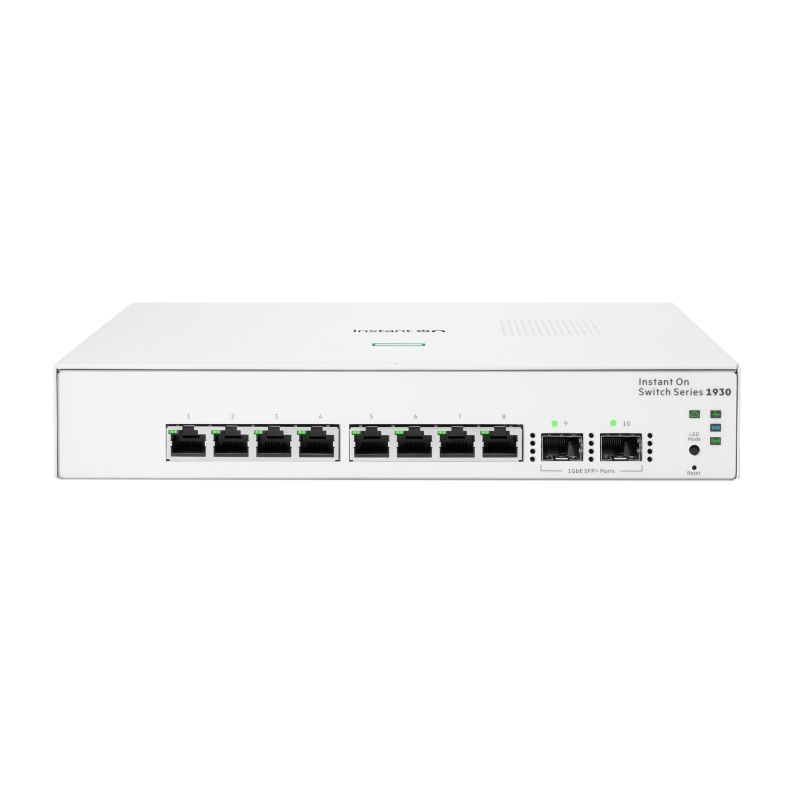

HPE Aruba Networking JL680A Network Links Managed Gigabit Ethernet (10/100/1000) 1U White
HPE Aruba Networking JL680A Network Links Managed Gigabit Ethernet (10/100/1000) 1U White
HPE Aruba Networking JL680A Network Links Managed Gigabit Ethernet (10/100/1000) 1U White
PRICE:
296,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Rack mounting options: Yes
- Layout: 1U
- Product color: White
- Stackable: Yes
- Power
- Power supply included: Yes
- Input current: 0.2 A
- AC input frequency: 50 - 60 Hz
- AC input voltage: 100 - 240 V
- Power consumption (max): 11 W
- Power source: AC
- Power consumption: 11W maximum, 6.2W idle
- Weight and dimensions
- Product depth: 254 mm
- Product width: 43.9 mm
- Product weight: 820 g
- Product height: 159.5 mm
- Security
- BPDU Filtering/Protection: Yes
- Supports SSH/SSL: Yes
- IGMP snooping: Yes
- Access Control List (ACL): Yes
- DHCP functions
- DHCP snooping
- DHCP client
- Loop protection: Yes
- Management features
- Website management: Yes
- Quality of Service (QoS) Support: Yes
- Cloud-managed: Yes
- ARP Inspection: Yes
- Switch Layer: L2/L3/L4
- Switch type: Managed
- System Event Report: Yes
- Working conditions
- Permissible operating altitude (above sea level): 0 - 3000 m
- Relative humidity range: 15 - 95%
- Temperature range (operation): 0 - 40 °C
- Permissible relative humidity: 15 - 95%
- Temperature range (storage): -40 - 70 °C
- Network
- Communication standards
- IEEE 802.3ab
- IEEE 802.3u
- Copper Ethernet cabling technology: 1000BASE-T
- VLAN support: Yes
- Full duplex: Yes
- Data transfer speed via Ethernet LAN: 10,1000,100 Mbit/s
- Spanning Tree Protocol: Yes
- Frequency Limit: Yes
- 10G Support: No
- Flow Control Support: Yes
- Port Mirroring: Yes
- Active connection search: Yes
- Routing position: 32
- Number of VLANs: 4093
- IP forwarding: Yes
- Auto Detection: Yes
- Connection Aggregator: Yes
- Communication standards
- Efficiency
- Built-in processor: Yes
- Memory type: SDRAM / Flash
- Processor model: ARM Cortex-A9
- Internal memory capacity: 512 MB
- Processor clock speed: 800 MHz
- Flash memory size: 256 MB
- No fan: Yes
- Ports and interfaces
- Number of SFP Module slots: 2
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Other functions
- Weight (imperial): 1.16 kg (2.55 lbs)
- Memory and processor: ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
- Management features: Instant On Portal, Web browser, SNMP Manager
- Dimensions (WxDxH) (imperial): 43.9 x 254 x 159.5 mm (1.73 x 10 x 6.28")
- Data transfer
- Routing/switching capacity: 20 Gbit/s
- Jumbo Frame Compatible: Yes
- Address table size: 8000 entries
- Latency (1 Gbps): 3 µs
- Jumbo Frames Expansion: 9216
- Latency (10-100 Mbps): 5.2 µs
- Throughput: 14.88 Mpps
- Packet buffer memory: 1.5 MB
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- Safety warning
- Warnings
- Make sure the device's ventilation is not blocked.
- Avoid contact of the device with liquid.
- Follow electrical safety guidelines.
