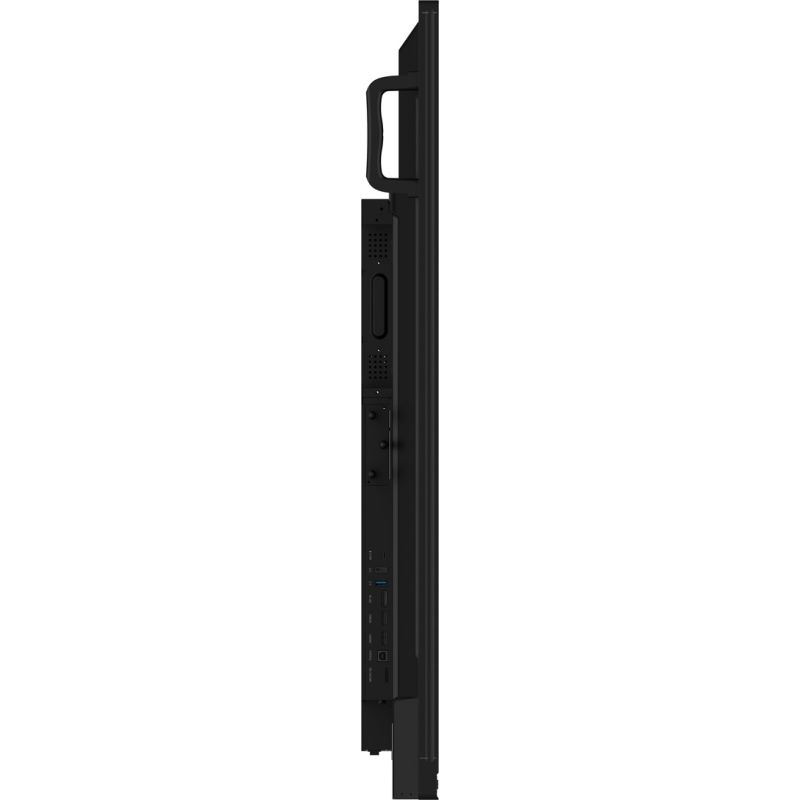

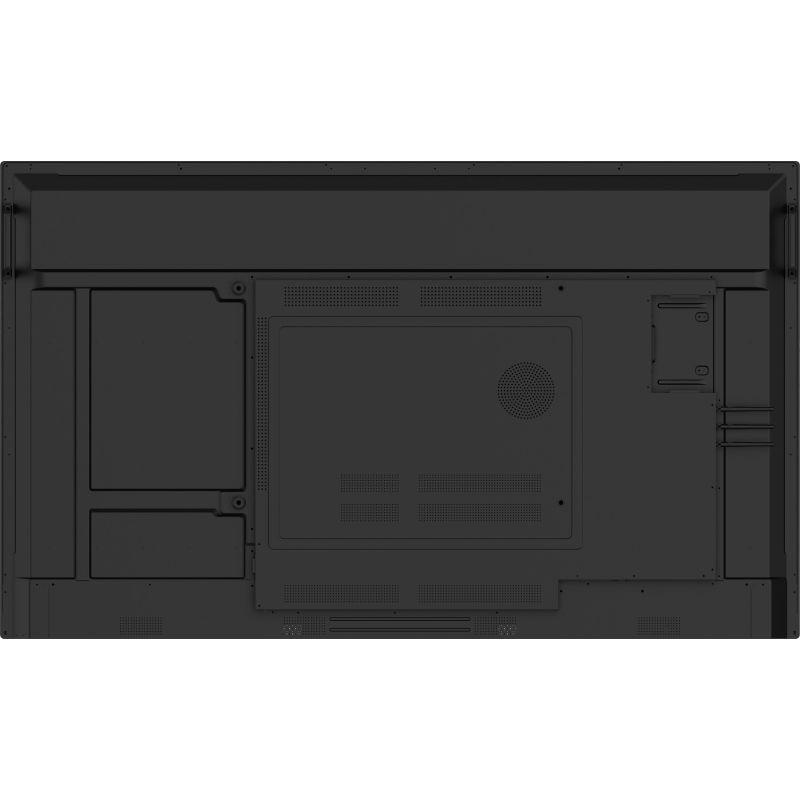

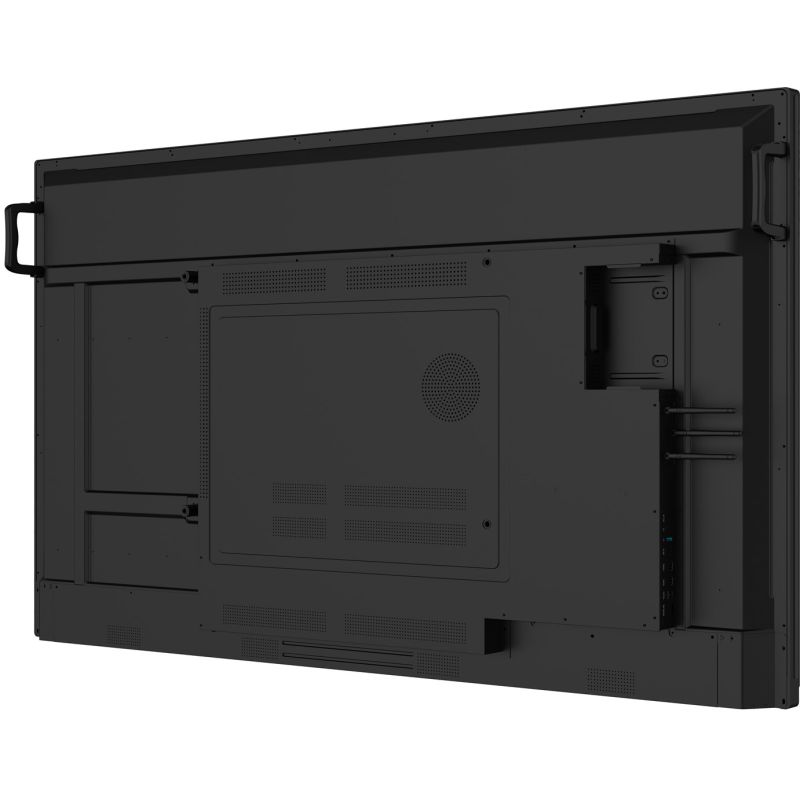

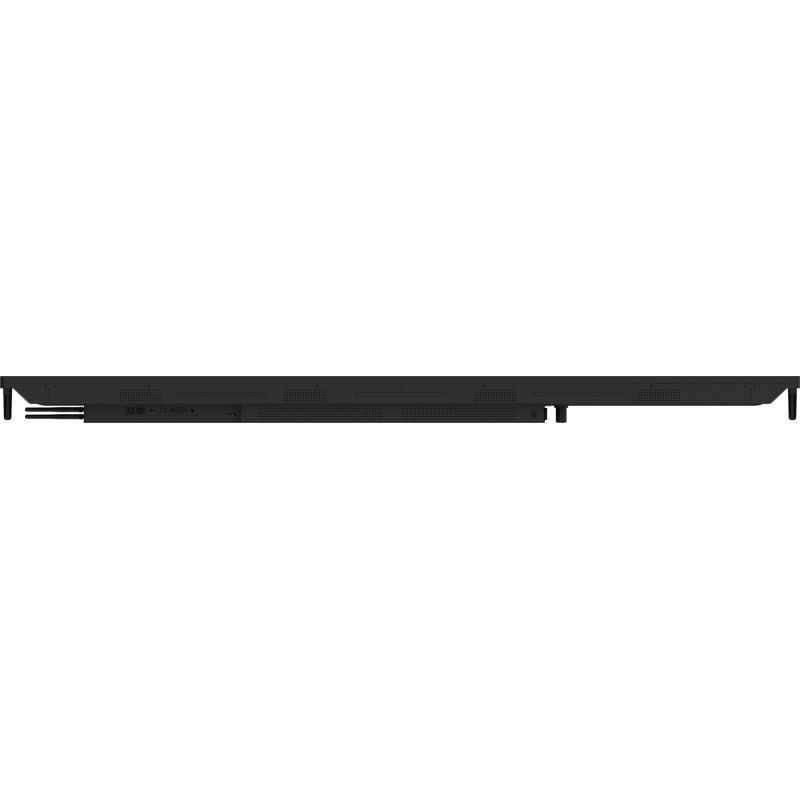

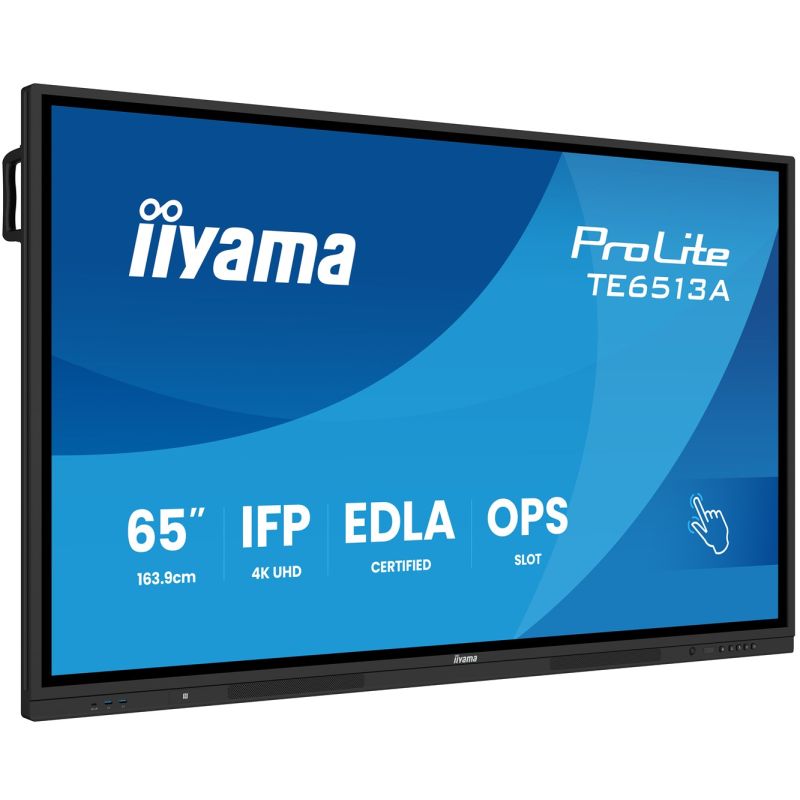

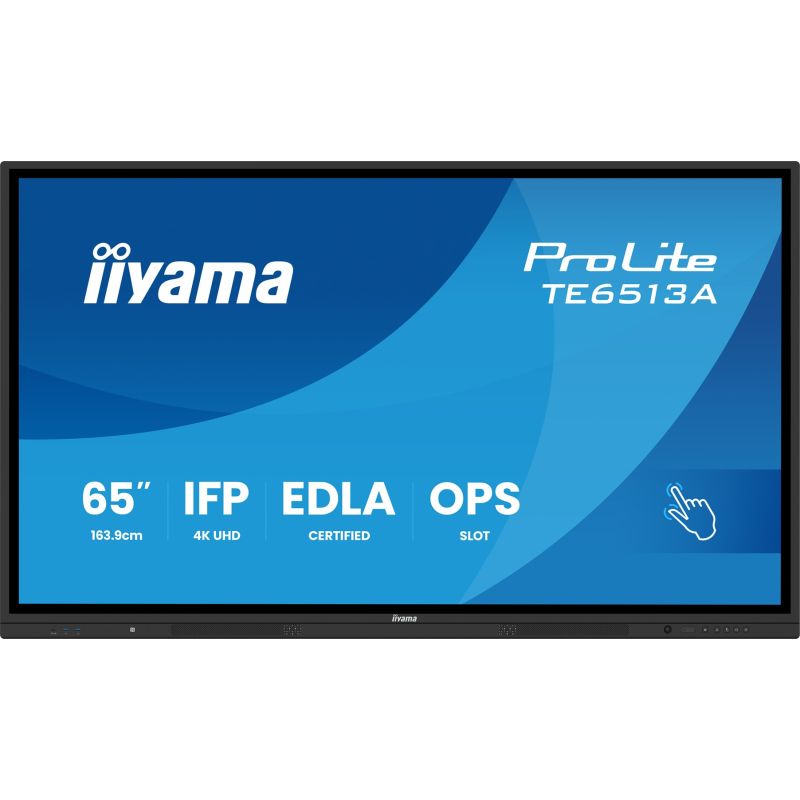

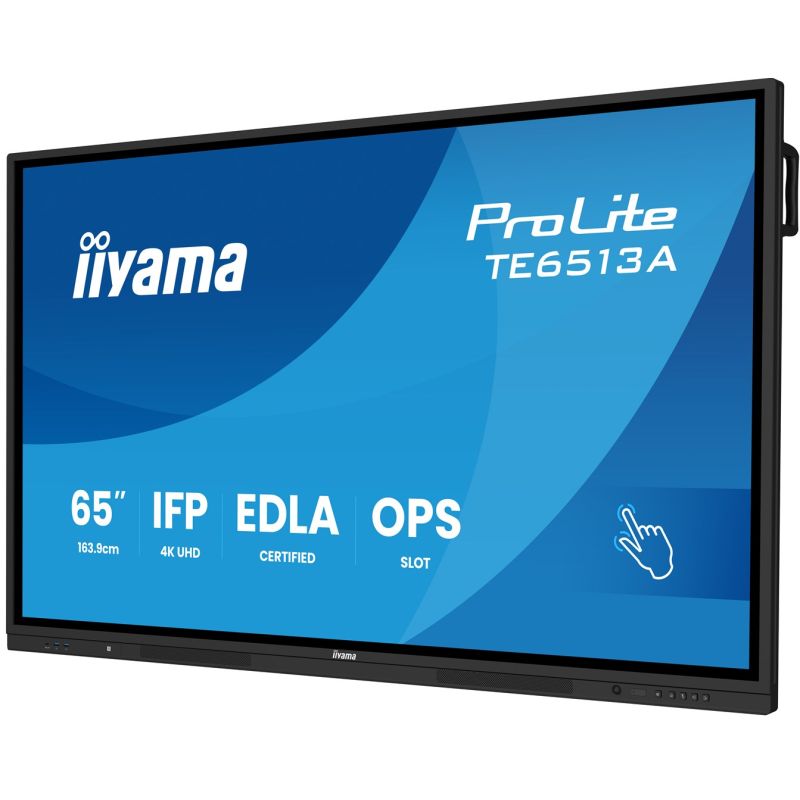

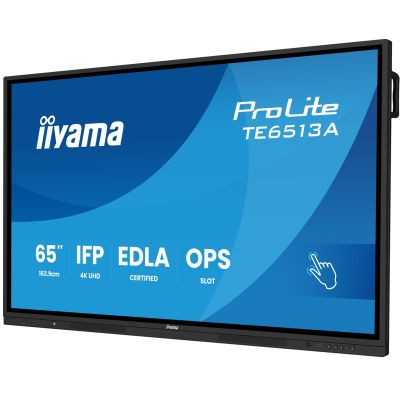

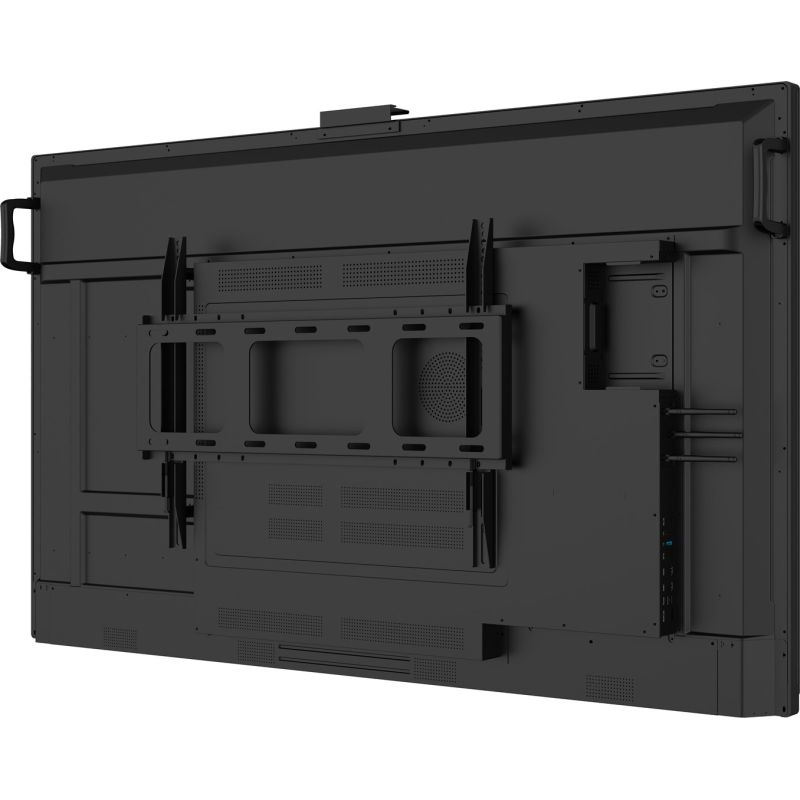

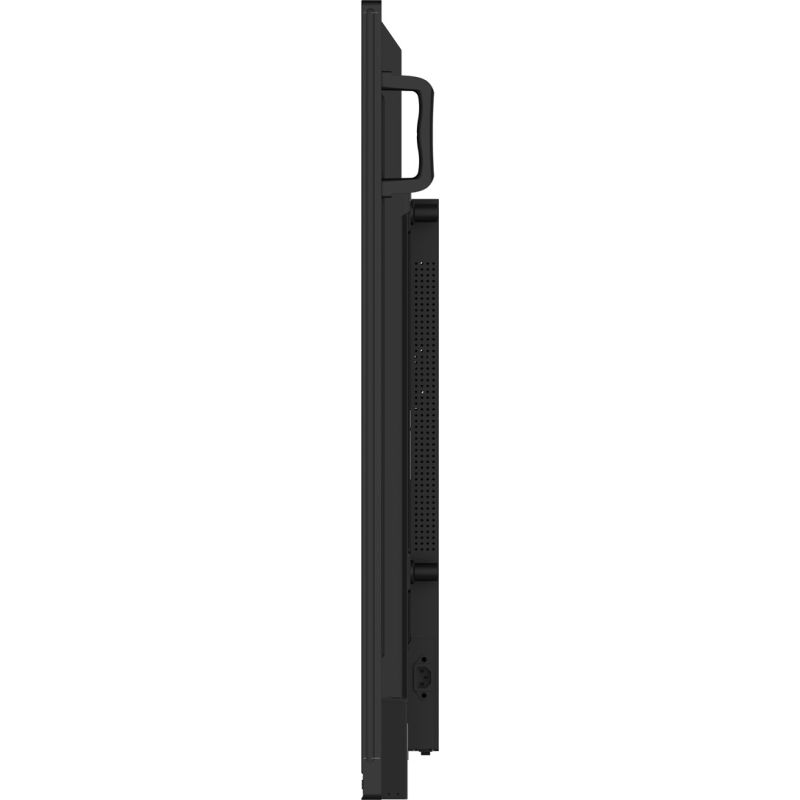

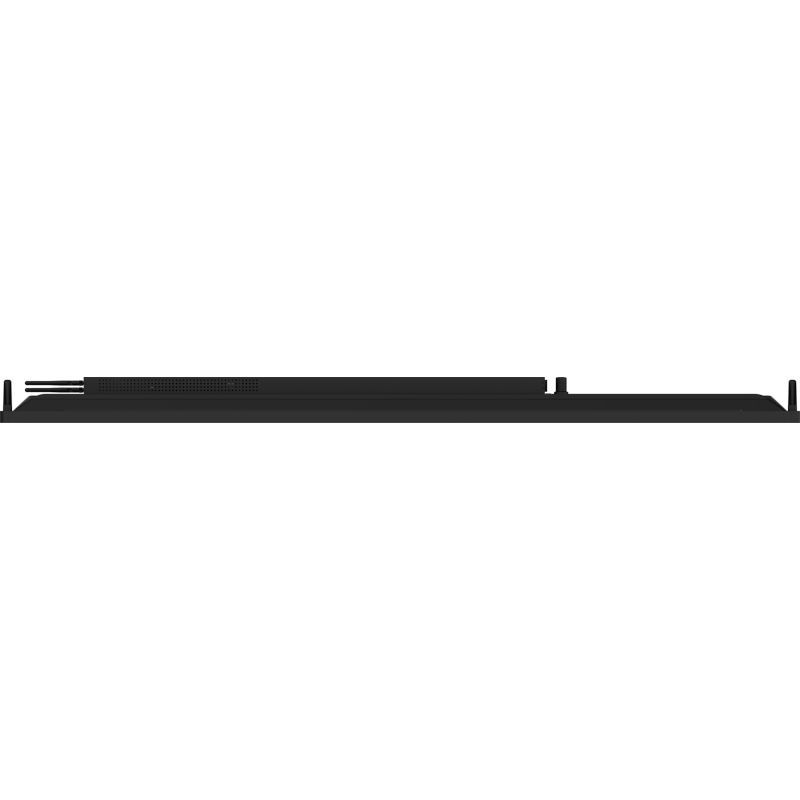

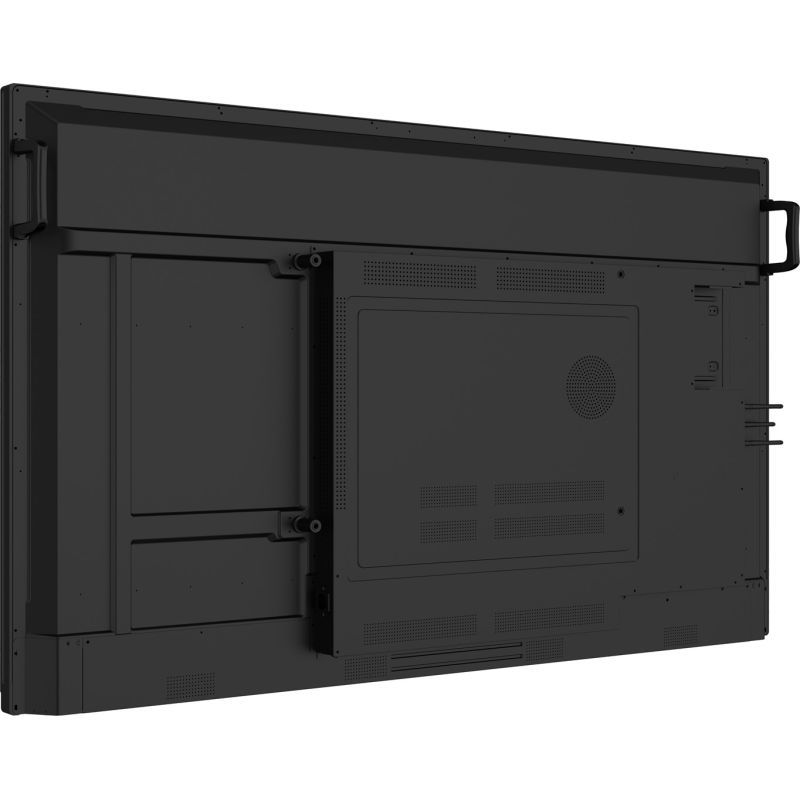

iiyama TE6513A-B3AG signage display Interactive flat panel 163.8 cm (64.5") LCD Wi-Fi 500 cd/m2 4K Ultra HD Black Touchscreen Embedded processor Android 24/7
iiyama TE6513A-B3AG signage display Interactive flat panel 163.8 cm (64.5") LCD Wi-Fi 500 cd/m2 4K Ultra HD Black Touchscreen Embedded processor Android 24/7
iiyama TE6513A-B3AG signage display Interactive flat panel 163.8 cm (64.5") LCD Wi-Fi 500 cd/m2 4K Ultra HD Black Touchscreen Embedded processor Android 24/7
PRICE:
2345,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Certificates of conformity
- CE
- EAC
- CB
- WEEE
- RoHS
- TÜV mark
- REACH
- Warranty period: 5 years
- Environmental (sustainability) certification: ErP
- Audio input (mini jack): Yes
- OPS slot: 1
- Media playback: Y
- Certificates of conformity
- Design
- Frame color: Black
- Frame width (bottom): 4.67 cm
- Orientation: Horizontal
- Frame width (top): 1.41 cm
- Matte screen: Yes
- Frame width (side): 1.67 cm
- Panel mounting interface: 600 x 400 mm
- Intended use: Internal
- Product color: Black
- Product type: Interactive flat panel
- VESA Standard: Yes
- Power
- Energy efficiency class (SDR): G
- AC input voltage: 100 - 240 V
- Power consumption in standby mode: 0.5 W
- Off mode: 0.3 W
- Power consumption: 144 W
- AC input frequency: 50/60 Hz
- Weight and dimensions
- Display depth: 87 mm
- Display weight: 39.4 kg
- Display width: 1489 mm
- Display height: 891.5 mm
- Product width: 1489 mm
- Product height: 891.5 mm
- Product weight: 39.4 kg
- Product depth: 87 mm
- Working conditions
- Temperature range (storage): -20 - 60 °C
- Temperature range (operation): 0 - 40 °C
- Network
- Wired LAN: Yes
- Wi-Fi standards: Wi-Fi 6 (802.11ax)
- Wi-Fi: Yes
- Data transfer speed via Ethernet LAN: 1000
- Efficiency
- MTBF (Mean Time Between Failures): 50000 h
- On-screen menu languages
- English
- YEARS
- Finnish
- Hungarian
- Spanish
- Danish
- Italian
- German
- Czech
- Dutch
- Swedish
- Ukrainian
- Estonian
- French
- Polish
- Russian
- Norwegian
- HDCP version: 2.2
- Working hours (hours/days): 24/7
- OSD: Yes
- HDCP: Yes
- Purpose: Television advertising
- Packaging data
- Package depth: 185 mm
- Package height: 1010 mm
- Weight with packaging: 48.5 kg
- Package width: 1640 mm
- Package contents
- Number of touch pens: 4
- Stylus: Yes
- Wires
- USB
- Alternating current
- HDMI
- Remote control included: Yes
- Display
- Color saturation: 72%
- Surface hardness: 7H
- Native refresh rate: 60 Hz
- Touch response time: 5 ms
- Multi-touch: Yes
- Number of simultaneous touch points: 40
- Touchscreen technology: PureTouch-IR
- Brightness: 500 cd/m²
- Glass thickness: 3.2 mm
- Active screen area (W x H): 1428.5 x 803.5 mm
- HD type: 4K Ultra HD
- Response time (typical): 8 ms
- Horizontal viewing angle: 178°
- Display colors: 1.07 trillion colors
- Spot size: 0.372 x 0.372 mm
- Viewing angle (vertical): 178°
- Screen diagonal: 64.5"
- Native aspect ratio: 16:9
- Horizontal scanning range: 30 - 135 kHz
- Touchscreen: Yes
- Resolution: 3840 x 2160 px
- Display technology: LCD
- Matrix type: IPS
- Contrast ratio (typical): 1200:1
- Screen diagonal length (cm): 163.9 cm
- Audio
- Built-in speakers: Yes
- Number of built-in speakers: 2
- Output power (RMS): 60 W
- Ports and interfaces
- Number of USB ports: 6
- RS-232C: Yes
- USB Power: Yes
- Audio Return Channel (ARC): Yes
- Number of HDMI output ports: 1
- Number of HDMI input ports: 1
- Maximum USB power: 100W
- Consumer Electronics Control (CEC): Yes
- OPS module slot: Yes
- Number of Ethernet LAN ports (RJ-45): 2
- DisplayPort Quantity: 1
- HDMI version: 2.0
- DVI Port: No
- Number of HDMI ports: 3
- USB port: Yes
- RS232 connector: Yes
- DisplayPort version: 1.2
- USB Version: 3.2 Gen 1 (3.1 Gen 1)
- Other functions
- Bluetooth version: 5.0
- Brightness: 500 cd/m²
- Power supply type: Internal
- Bluetooth: Yes
- Quick Start Guide: Yes
- Logistics data
- Products per pallet: 6 pcs.
- Computer system
- Built-in memory: 128 GB
- Processor architecture: ARM Cortex-A53+Cortex-A72
- Operating system version: 14
- Computer system: Yes
- Computer system type: System on Chip (SoC)
- Processor model: RK3576
- Built-in processor: Yes
- Built-in graphics card model: ARM Mali-G52
- Installed operating system: Android
- Processor manufacturer: Rockchip
- Processor type: ARM Rockchip
- RAM: 6 GB
- Number of processor cores: 8
| Name | Details |
|---|---|
| Producer | IIYAMA |
