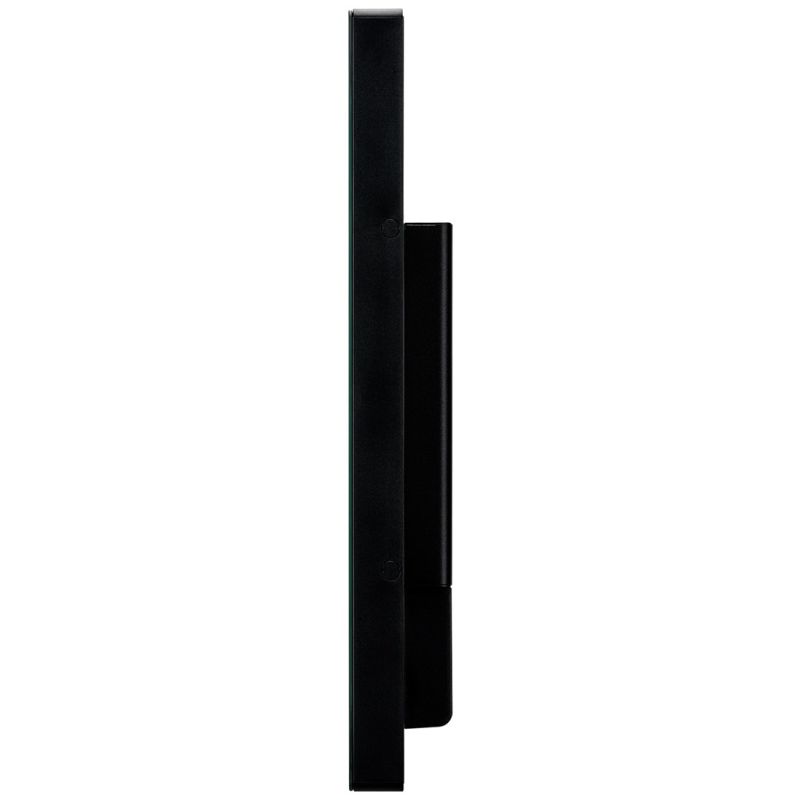

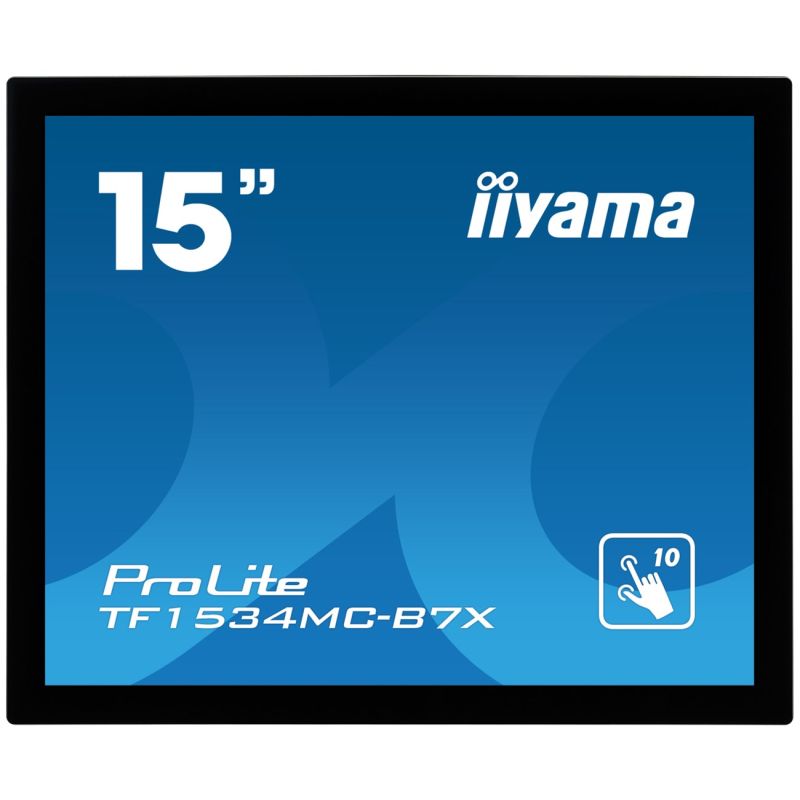

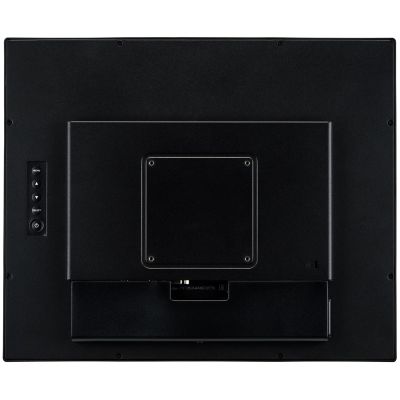

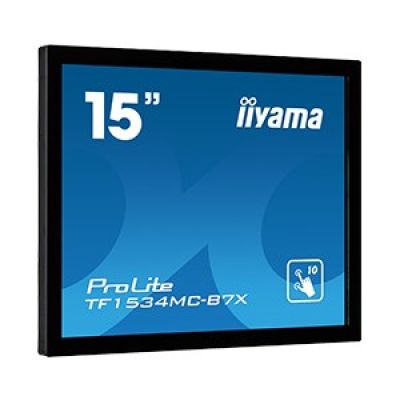

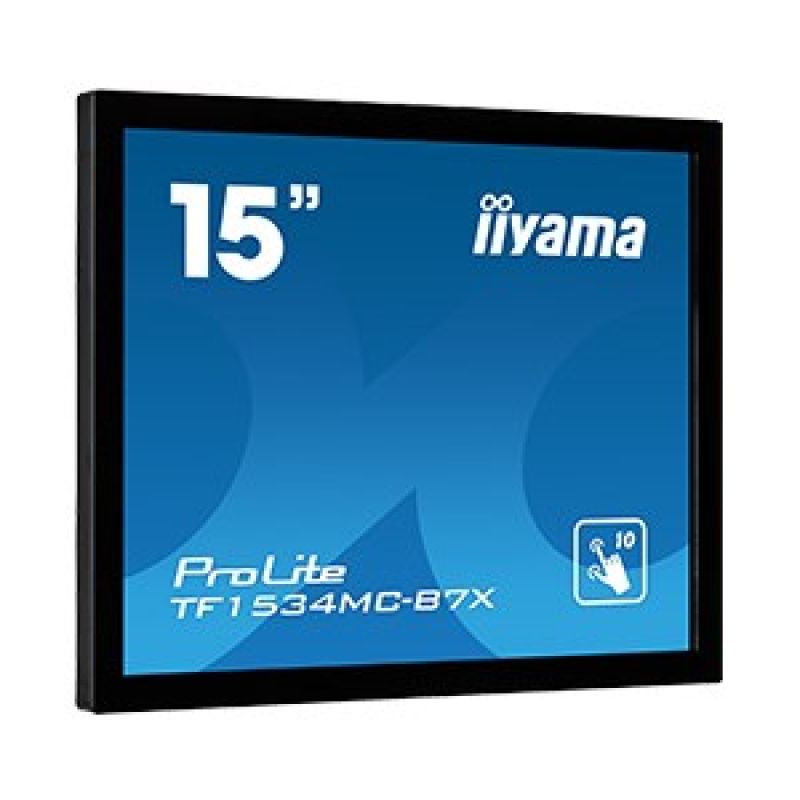

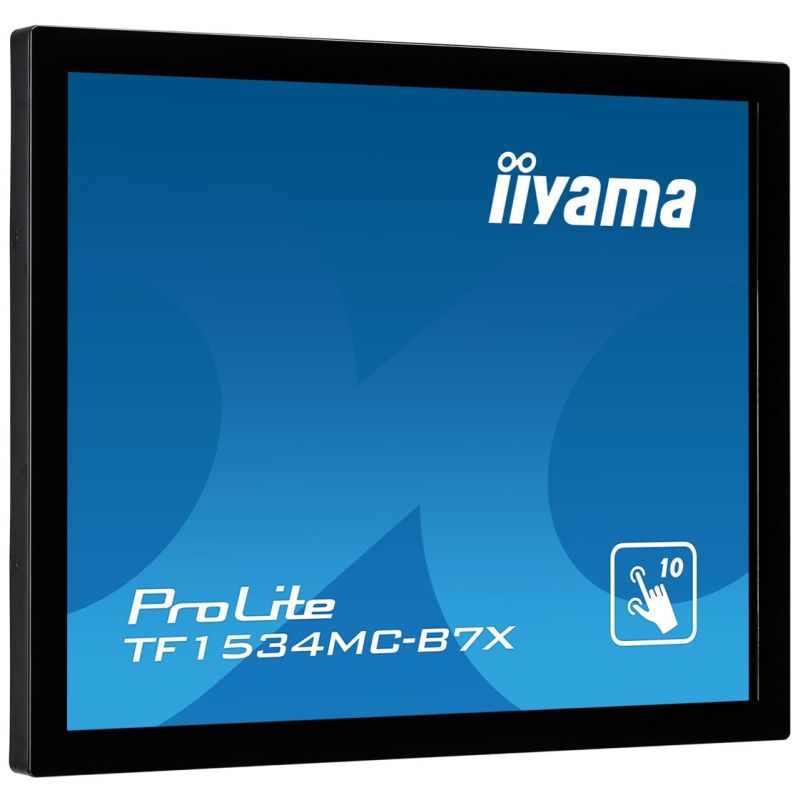

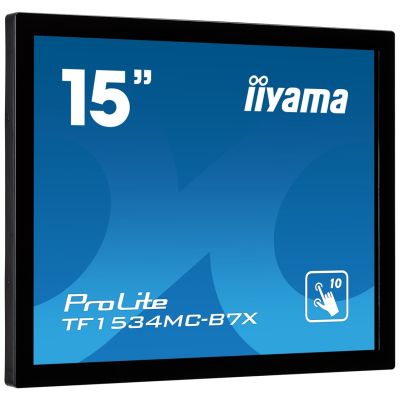

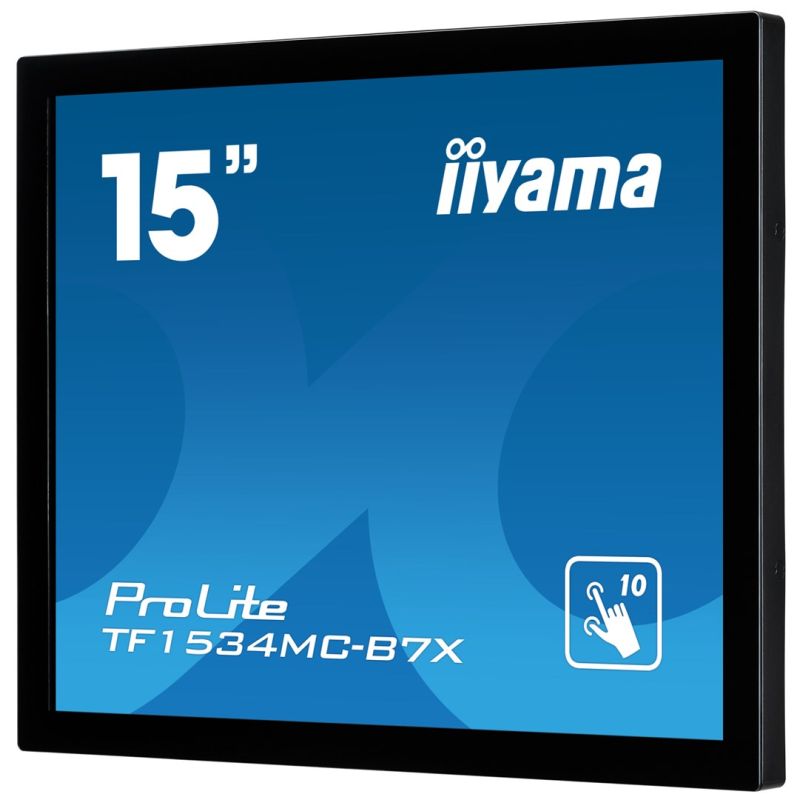

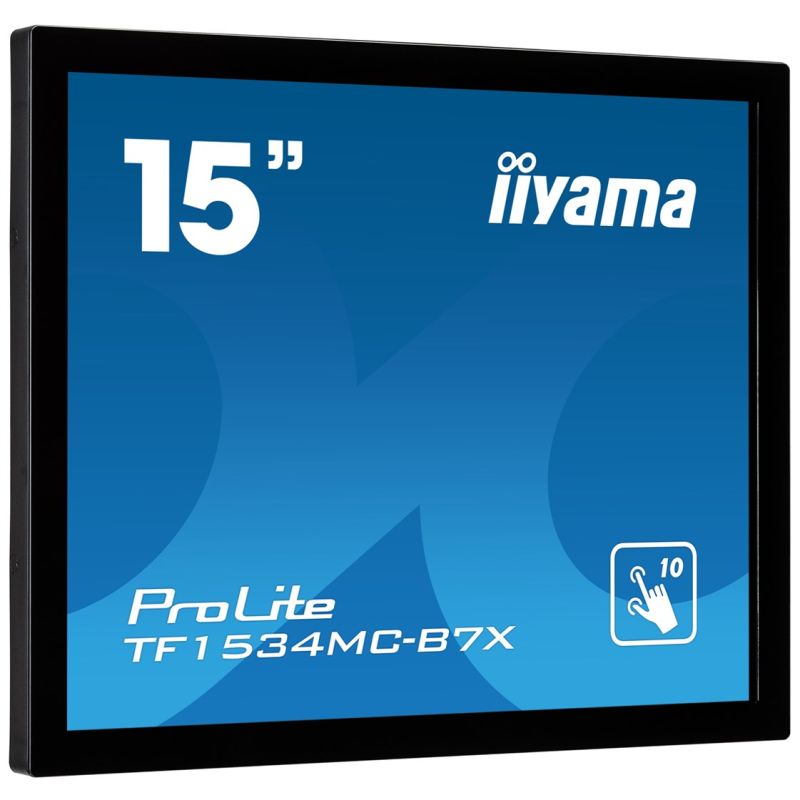

iiyama TF1534MC-B7X computer monitor 38.1 cm (15") 1024 x 768 px XGA LED Touchscreen Multi-user Black
iiyama TF1534MC-B7X computer monitor 38.1 cm (15") 1024 x 768 px XGA LED Touchscreen Multi-user Black
Sign up and unlock up to 10% off!
- Design
- Front cover: Black
- Product color: Black
- Power
- Energy efficiency class (HDR): Not available
- AC adapter output voltage: 12V
- Power consumption: 9 W
- Power supply type: External
- Energy efficiency class (SDR): E
- Energy Efficiency Scale: From A to G
- Power consumption in standby mode: 0.7 W
- Energy consumption (SDR) per 1000 hours: 10 kWh
- Off mode: 0.3 W
- Weight and dimensions
- Depth (without base): 44.5 mm
- Device width (with base): 337.5 mm
- Height (without base): 265.5 mm
- Device height (with base): 265.5 mm
- Width (without base): 337.5 mm
- Weight (without stand): 2.7 kg
- Device depth (with base): 44.5 mm
- Weight (with base): 2.7 kg
- Efficiency
- NVIDIA G-SYNC: No
- Hand rejection: Yes
- AMD FreeSync: No
- Packaging data
- Package depth: 165 mm
- Package width: 435 mm
- Package height: 335 mm
- Weight with packaging: 4 kg

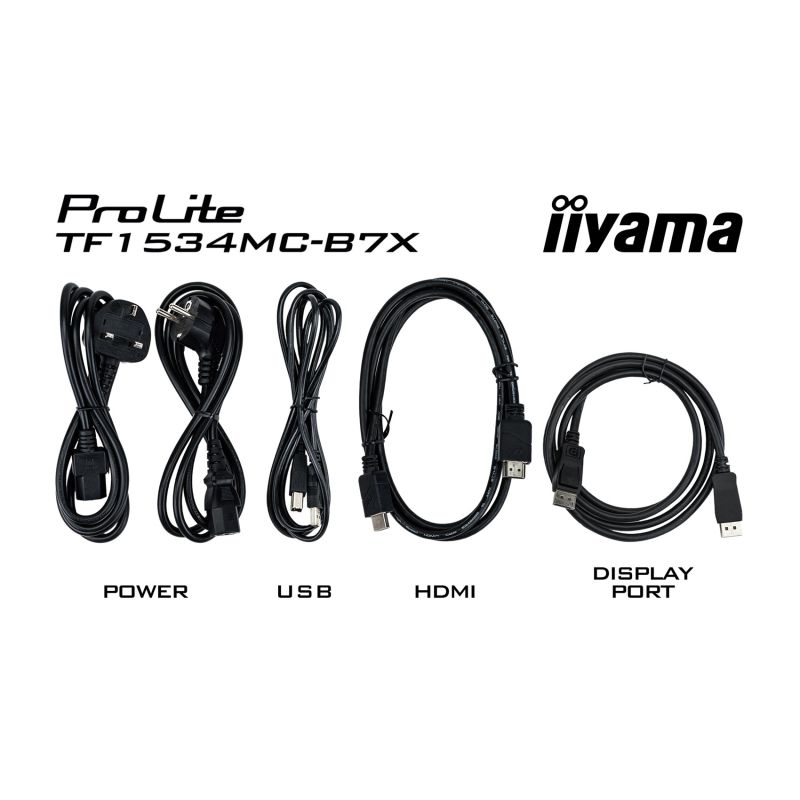

- Package contents
- Wires
- USB
- DisplayPort
- HDMI
- Alternating current
- Quick Start Guide: Yes
- Wires
- Display
- Image size (horizontal): 30.4 cm
- Touchscreen Type: Multi-user
- Spot size: 0.297 x 0.297 mm
- Brightness: 330 cd/m²
- Screen shape: Flat
- Surface hardness: 7H
- Horizontal scanning range: 31.4 - 60 kHz
- Number of simultaneous touch points: 10
- Contrast ratio (typical): 700:1
- Screen diagonal length (cm): 38 cm
- Touchscreen: Yes
- Matrix type: TN
- Touchscreen technology: Capacitive
- Viewing angle (vertical): 160°
- Native aspect ratio: 4:3
- Response time (typical): 8 ms
- HD type: XGA
- Image size (vertical): 22.8 cm
- Display technology: LED
- Display colors: 16.2 million colors
- Touch technology: Multi-touch
- Horizontal viewing angle: 170°
- Screen diagonal: 15"
- Display brightness (typical): 370 cd/m²
- Resolution: 1024 x 768 px
- Ergonomics
- Wall mountable: Yes
- Panel mounting interface: 100 x 100
- On-screen menu languages
- Italian
- Chinese traditional
- English
- Japanese
- Spanish
- French
- German
- VESA Standard: Yes
- OSD: Yes
- Number of OSD languages: 7
- Ports and interfaces
- HDMI: Yes
- USB Touch Port: Yes
- Number of HDMI ports: 1
- Number of VGA (D-Sub) ports: 1
- DisplayPort Quantity: 1
- HDCP: Yes
- Other functions
- Touch method: stylus, finger, glove (latex)
- Certificates of conformity
- REACH
- CE
- EAC
- cULus
- RoHS
- WEEE
- Visible part of the screen: 304 x 228 mm
- Product height: 265.5 mm
- Brightness: 330 cd/m²
- Product depth: 44.5 mm
- AC adapter: Yes
- Product width: 337.5 mm
- Product weight: 2.7 kg
- IP protection class: IP65

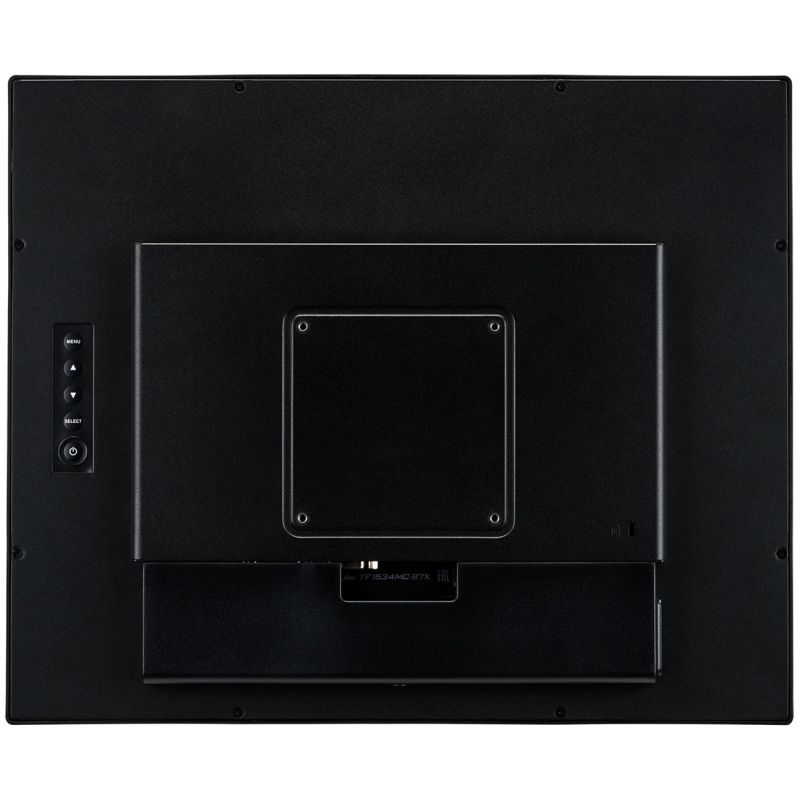

- Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
- Active screen area (W x H): 304 x 228 mm
- Logistics data
- Harmonized System (HS) code: 85285210
- Net pallet height: 114 cm
- Products per pallet: 78 pcs.
- Net pallet width: 91 cm
- Net pallet depth: 198.7 cm
- Sustainable development
- Environmental (sustainability) certification: ErP
