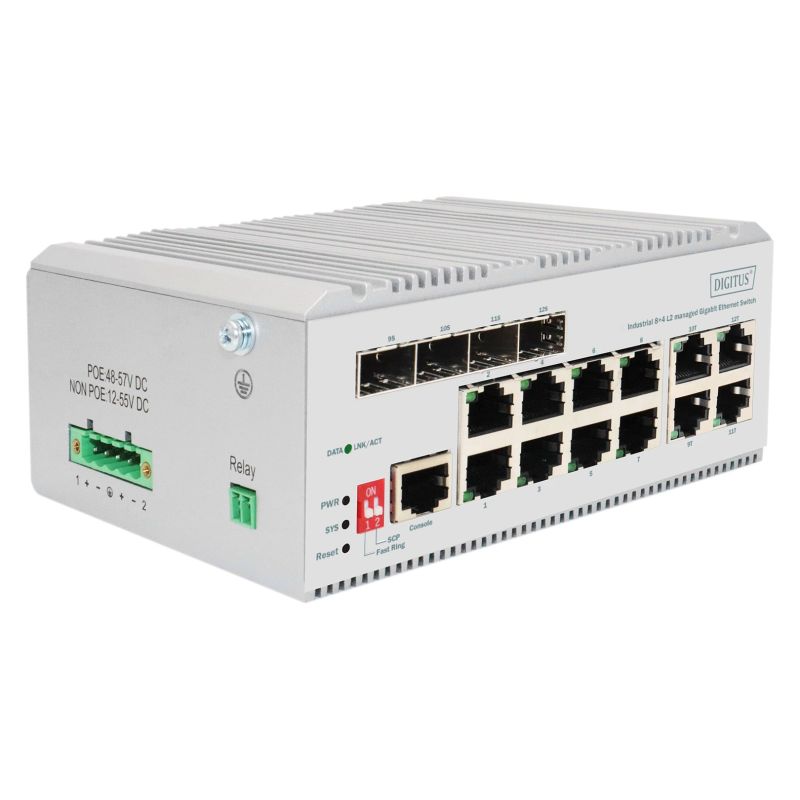

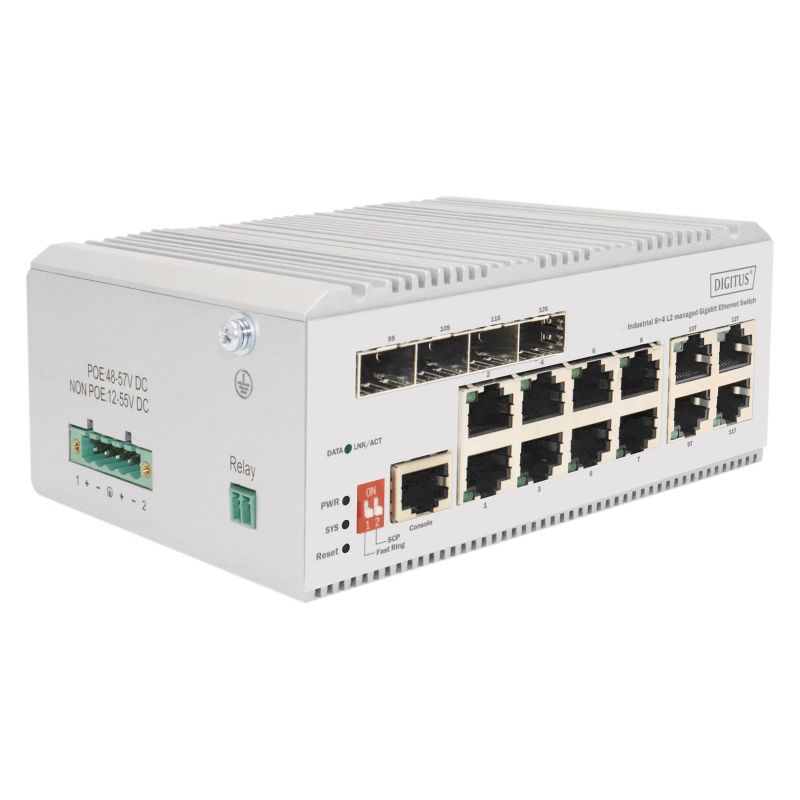

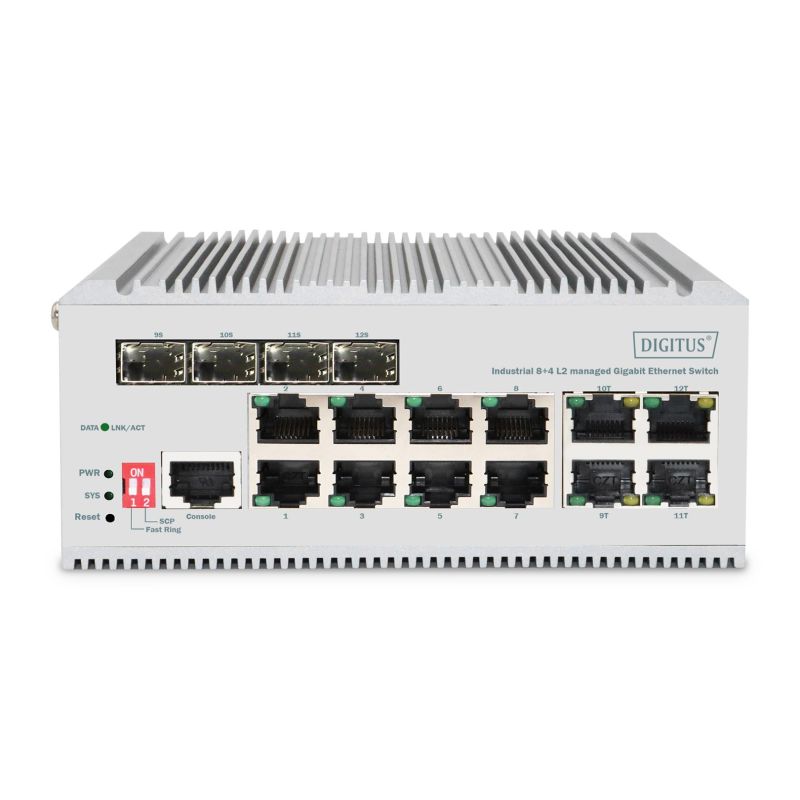

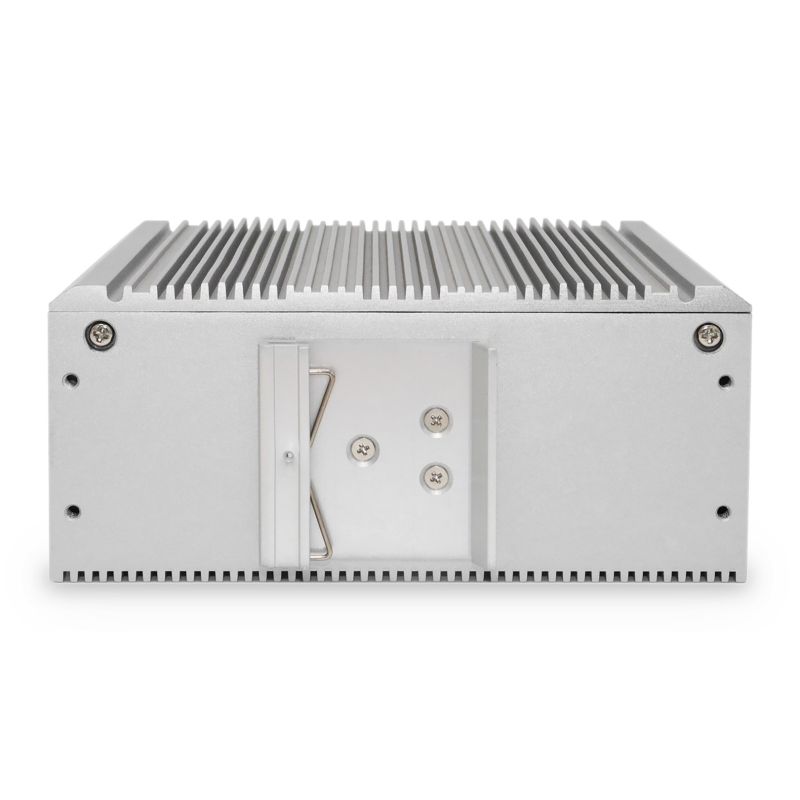

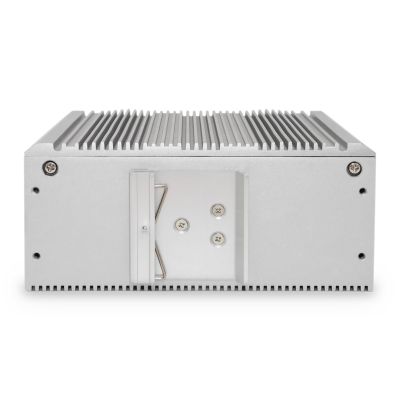

Industrial Ethernet 8+4 L2 Managed Switch
Industrial Ethernet 8+4 L2 Managed Switch
Industrial Ethernet 8+4 L2 Managed Switch
PRICE:
686,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Gray
- LED diodes
- Link
- Action
- System
- Power supply
- Suitable for external use: No
- Housing material: Aluminum
- Vandal-resistant: No
- Power
- Protection against sudden voltage increases
- Yes
- 6 kV
- Power source: DC
- DC input voltage: 12 - 55 V
- Protection against sudden voltage increases
- Weight and dimensions
- Product height: 145 mm
- Product width: 109 mm
- Product depth: 62 mm
- Security
- Access Control List (ACL): Yes
- DHCP functions
- DHCP snooping
- DHCP relay
- Supports SSH/SSL: Yes
- IGMP snooping: Yes
- Authentication type: RADIUS, TACACS+
- Management features
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- Switch type: Managed
- System Event Report: Yes
- Switch Layer: L2
- ARP Inspection: Yes
- Working conditions
- Temperature range (operation): -40 - 75 °C
- Relative humidity range: 5 - 95%
- Temperature range (storage): -40 - 80 °C
- Permissible relative humidity: 0 - 95%
- Network
- Communication standards
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- 10G Support: No
- Flow Control Support: Yes
- Copper Ethernet cabling technology
- 10BASE-T
- 1000BASE-T
- 100BASE-TX
- Full duplex: Yes
- Traffic Growth Control: Yes
- VLAN Support: No
- Half-duplex: Yes
- Supported cable types
- Cat5
- Cat3
- Cat5e
- Cat4
- Spanning Tree Protocol: Yes
- MAC address auto-learning supported: Yes
- Virtual LAN Features
- MAC address-based VLAN
- Voice VLAN
- Protocol-based VLAN
- Private VLAN
- Communication standards
- Efficiency
- MTBF (Mean Time Between Failures): 100000 h
- No fan: Yes
- Packaging data
- Weight with packaging: 1.41 kg
- Package height: 234 mm
- Package depth: 234 mm
- Packaging capacity: 3823.56 cm³
- Package width: 190 mm
- Ports and interfaces
- Number of SFP Combo Ports: 4
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Console port: RJ-45
- Number of Gigabit Ethernet ports: 8
- Logistics data
- Country of origin: China
- Mask with serial number: 85176200
- Data transfer
- Address table size: 8000 entries
- Routing/Switching Throughput: 24 Gbit/s
- Packet buffer memory: 4.1 MB
- Jumbo Frame Compatible: Yes
- Store-and-forward: Yes
- Forwarding speed: 17.86 Mpps
- Jumbo Frames Expansion: 9216
- Power over Ethernet (PoE)
- PoE Support: No
- Power over Ethernet (PoE) power per port: 30 W
- Fiber optic
- Transmission distance (maximum): 0.1 km
| Name | Details |
|---|---|
| Producer | DIGITUS |
