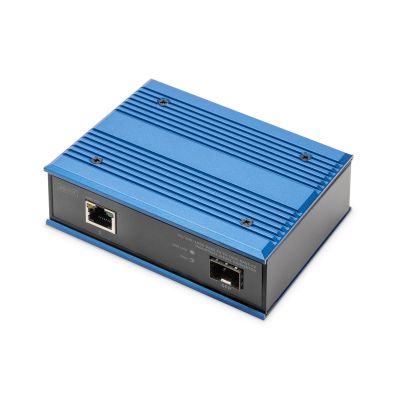

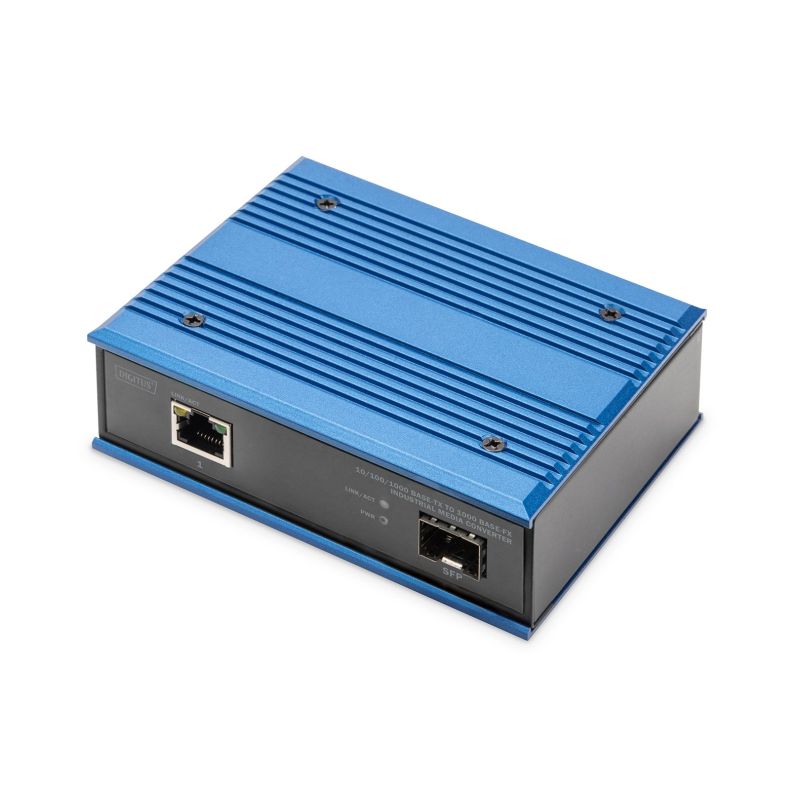

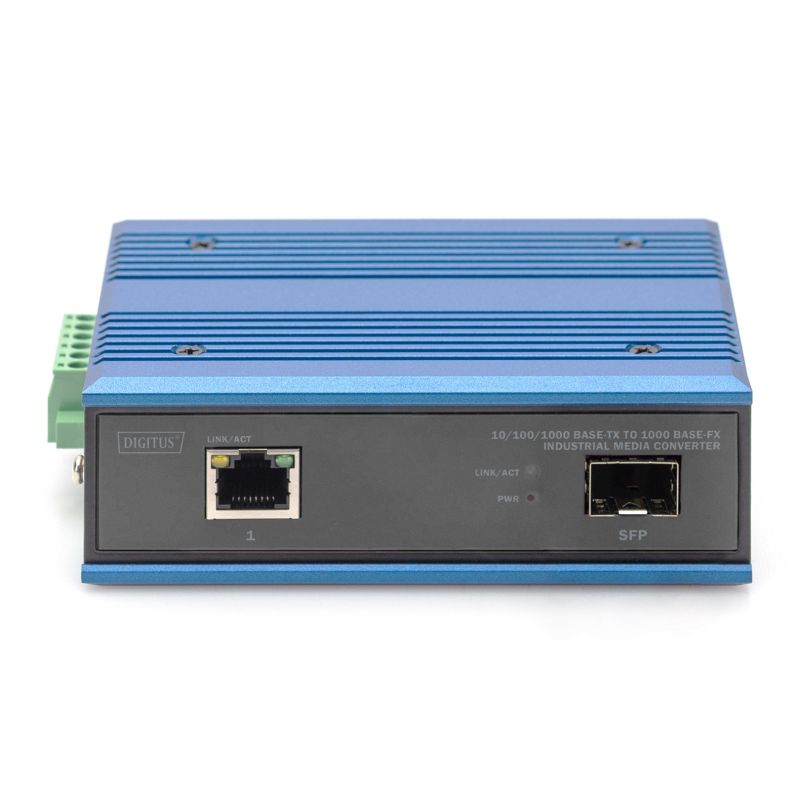

Industrial media converter 1000Base-TX - 1000Base-FX SFP (without module) DIN extended temperature range
Industrial media converter 1000Base-TX - 1000Base-FX SFP (without module) DIN extended temperature range
Industrial media converter 1000Base-TX - 1000Base-FX SFP (without module) DIN extended temperature range
PRICE:
135,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- LED diodes
- Link
- Power supply

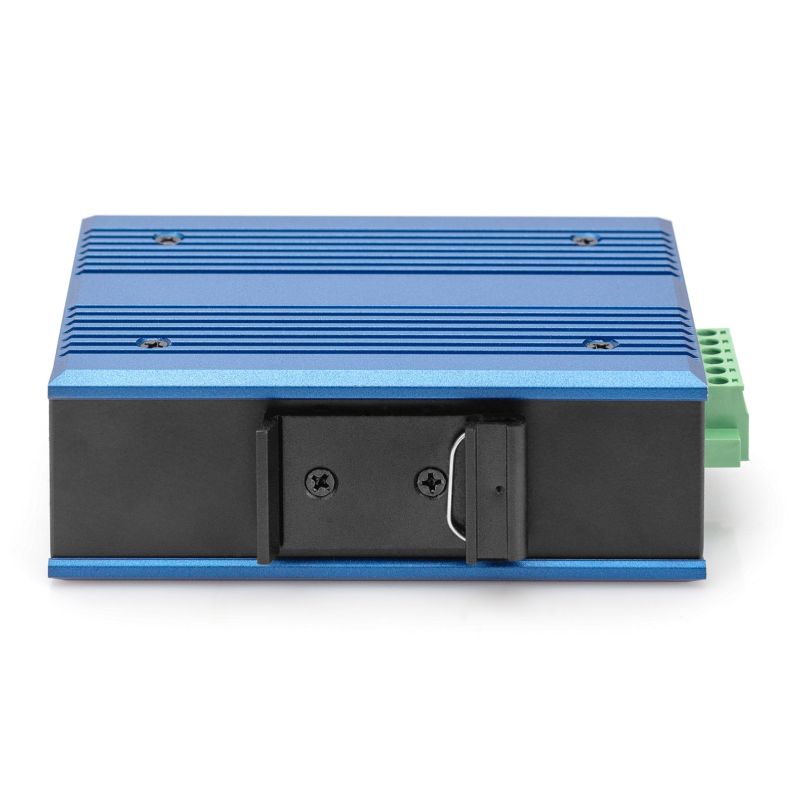

- DIN rail mounting: Yes
- Product color
- Blue
- Black
- Internal: No
- IP protection class: IP40
- Digital Diagnostic Monitoring (DDM): No
- Housing material: Aluminum
- LED diodes
- Power

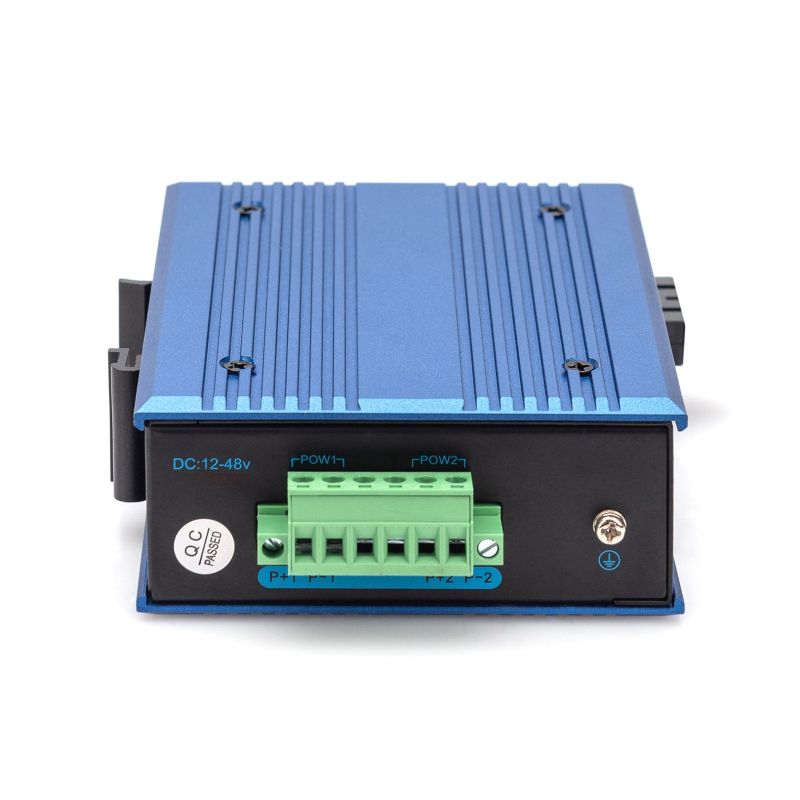

- Voltage: 12 - 48 V
- PoE Support: No
- Power consumption: 3 W
- Weight and dimensions
- Product width: 118 mm
- Product depth: 92.4 mm
- Product height: 40 mm
- Product weight: 400 g
- Working conditions
- Temperature range (operation): -40 - 80 °C
- Temperature range (storage): -40 - 80 °C
- Network
- Output interface converter
- 1000Base-FX
- 1000Base-T
- 100Base-TX
- 1000Base-TX
- 100Base-T
- 10Base-T
- Communication standards
- IEEE 802.3ab
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3i
- Copper Ethernet cabling technology
- 1000BASE-T
- 100BASE-T
- 10BASE-T
- 1000BASE-TX
- 100BASE-TX
- Data transfer speed via Ethernet LAN
- 10 Mbps
- 100 Mbps
- 1000 Mbps
- Ethernet interface type: Gigabit Ethernet
- Supported cable types
- Cat5
- Cat3
- Cat4
- Two-way duplex transmission
- Half-duplex
- Full
- Input Interface Converter: 1000Base-FX
- Real data transfer speed: 1000 Mbit/s
- Fiber Ethernet cabling technology: 1000BASE-FX
- Auto MDI/MDI-X: Yes
- Maximum data transfer speed: 1000 Mbit/s
- Output interface converter
- Efficiency
- MTBF (Mean Time Between Failures): 300000 h
- Buffer size: 1200 KB
- Maximum transfer distance: 80000 m
- Structure of single-mode optical fiber
- Multifunctional
- Single
- Packaging data
- Package height: 165 mm
- Packaging capacity: 1202.85 cm³
- Weight with packaging: 558.333 g
- Package depth: 54 mm
- Package width: 135 mm
- Package contents
- Quick Installation Guide: Yes
- Ports and interfaces
- Fiber optic connector: FX
- Connection method: Wired
- Number of Ethernet LAN ports (RJ-45): 1
- Number of ports: 2
- Logistics data
- Country of origin: China
- Mask with serial number: 85176200
| Name | Details |
|---|---|
| Producer | DIGITUS |
