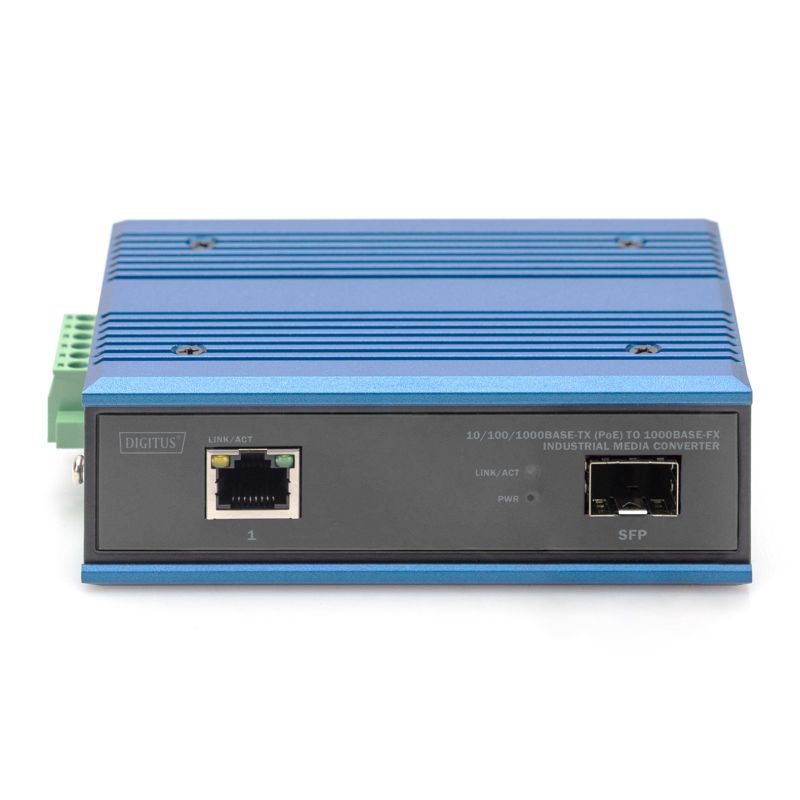

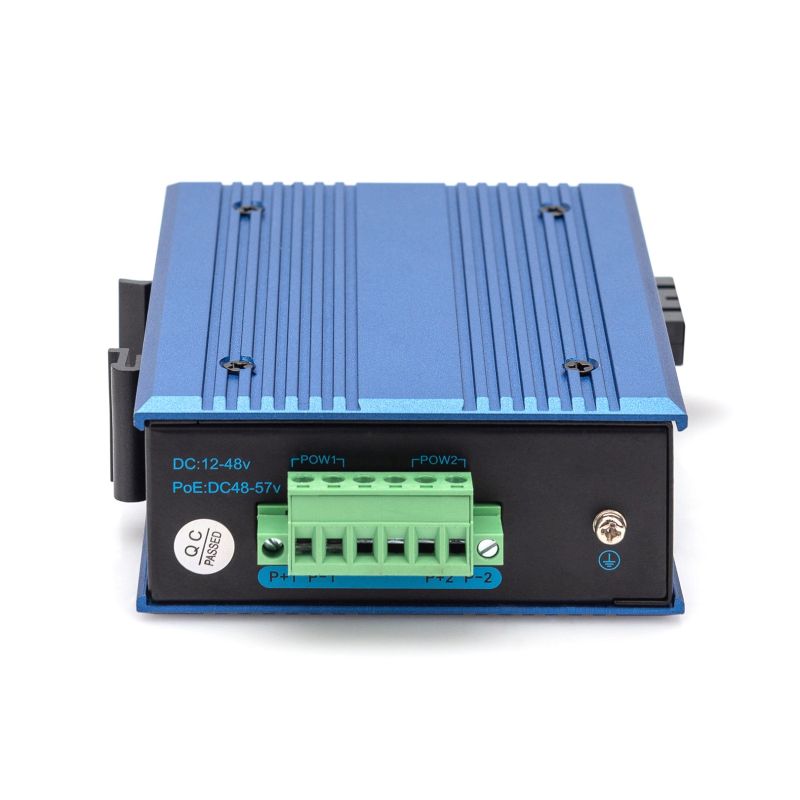

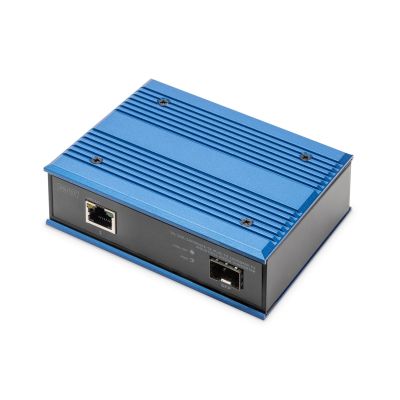

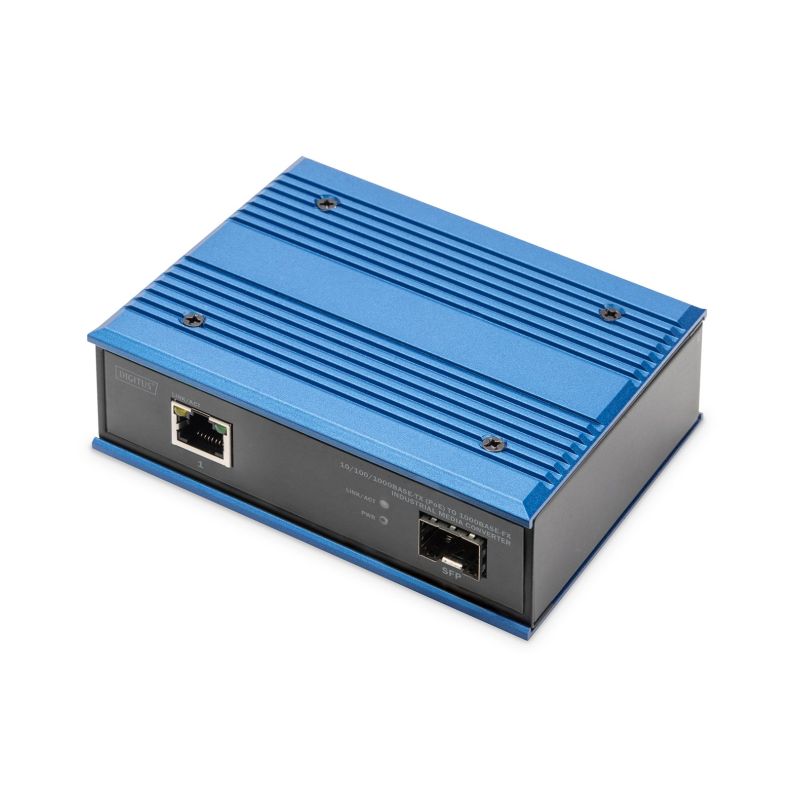

Industrial media converter 1000Base-TX PoE 30W - 1000Base-FX SFP (without module) DIN extended temperature range
Industrial media converter 1000Base-TX PoE 30W - 1000Base-FX SFP (without module) DIN extended temperature range
Industrial media converter 1000Base-TX PoE 30W - 1000Base-FX SFP (without module) DIN extended temperature range
PRICE:
140,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Internal: No
- Product color
- Black
- Blue
- IP protection class: IP40
- LED diodes
- Link
- Power supply

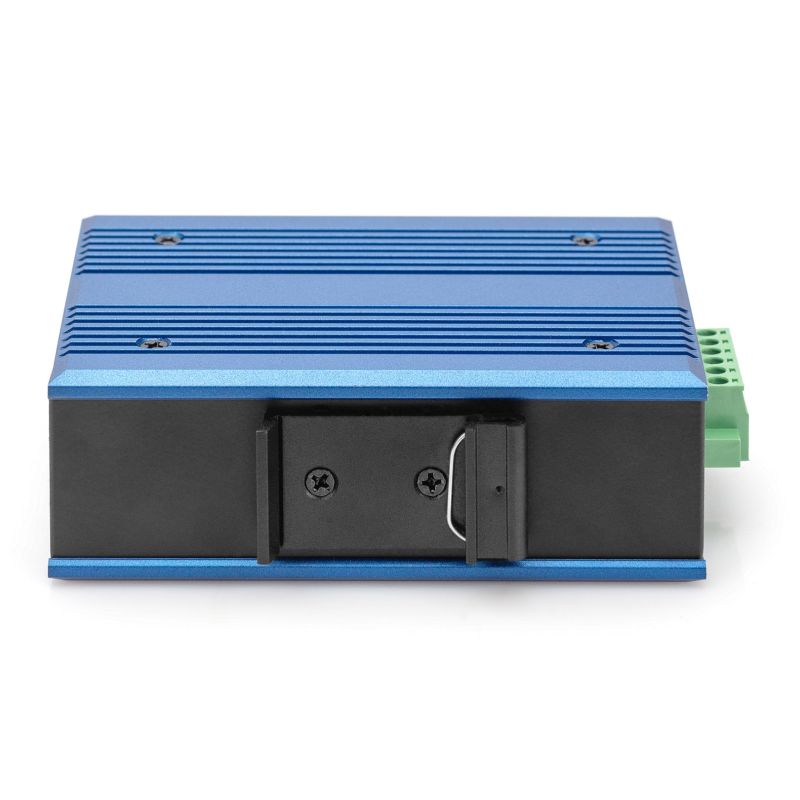

- DIN rail mounting: Yes
- Housing material: Aluminum
- Digital Diagnostic Monitoring (DDM): No
- Power
- Voltage: 48 - 57 V
- Power consumption: 3 W
- Total Power over Ethernet (PoE) budget: 30 W
- PoE Support: Yes
- Weight and dimensions
- Product height: 40 mm
- Product depth: 92.4 mm
- Product width: 118 mm
- Product weight: 400 g
- Working conditions
- Temperature range (operation): -40 - 80 °C
- Temperature range (storage): -40 - 80 °C
- Network
- Communication standards
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3i
- Copper Ethernet cabling technology
- 1000BASE-T
- 100BASE-T
- 1000BASE-TX
- 10BASE-T
- 100BASE-TX
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Output interface converter
- 100Base-T
- 1000Base-T
- 100Base-TX
- 1000Base-TX
- 10Base-T
- Supported cable types
- Cat4
- Cat5
- Cat3
- Real data transfer speed: 1000 Mbit/s
- Auto MDI/MDI-X: Yes
- Ethernet interface type: Gigabit Ethernet
- Input Interface Converter: 1000Base-FX
- Fiber Ethernet cabling technology: 1000BASE-FX
- Two-way duplex transmission
- Half-duplex
- Full
- Maximum data transfer speed: 1000 Mbit/s
- Communication standards
- Efficiency
- MTBF (Mean Time Between Failures): 300000 h
- Buffer size: 1200 KB
- Packaging data
- Package depth: 54 mm
- Package height: 165 mm
- Packaging capacity: 1202.85 cm³
- Weight with packaging: 558.333 g
- Package width: 135 mm
- Package contents
- Quick Installation Guide: Yes
- Ports and interfaces
- Connection method: Wired
- Number of ports: 1
- Fiber optic connector: FX
- Number of Ethernet LAN ports (RJ-45): 1
- Logistics data
- Country of origin: China
- Mask with serial number: 85176200
| Name | Details |
|---|---|
| Producer | DIGITUS |
