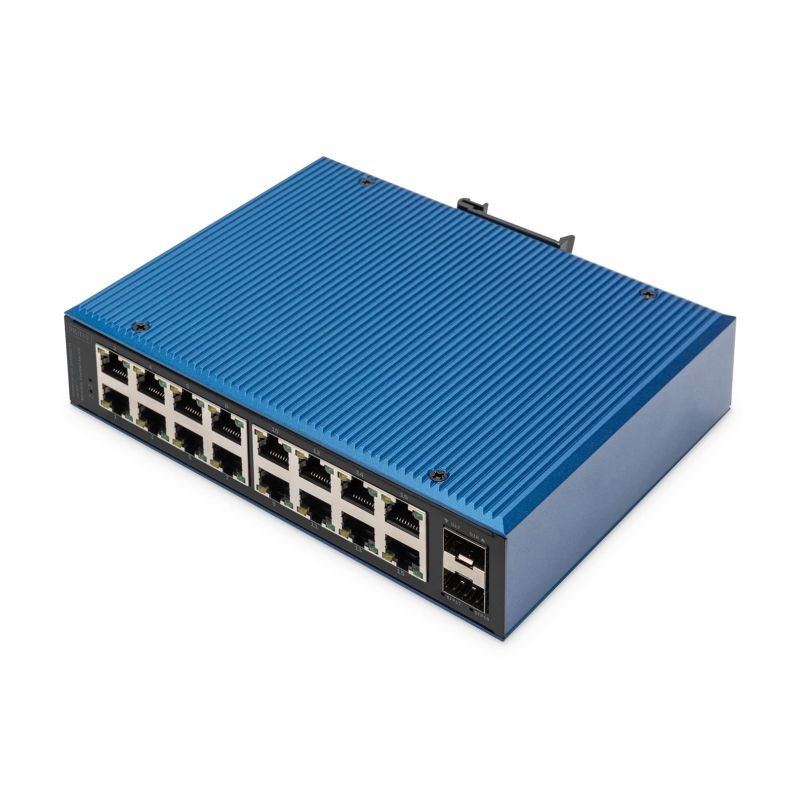

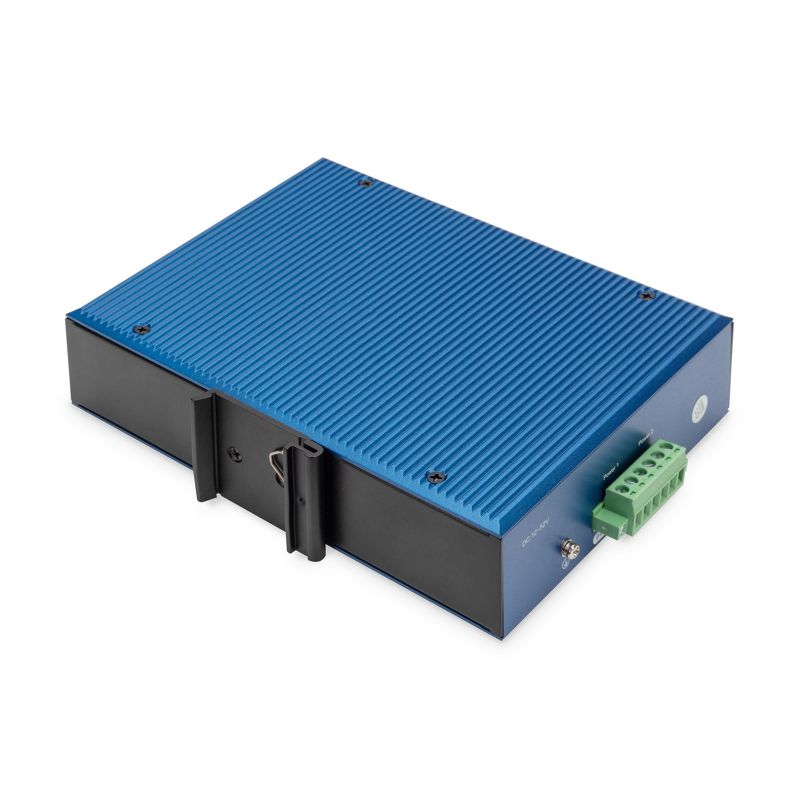

Industrial switch 16x 1000Base-TX + 2x uplink 1000Base-FX (without module) DIN extended temperature range.
Industrial switch 16x 1000Base-TX + 2x uplink 1000Base-FX (without module) DIN extended temperature range.
Industrial switch 16x 1000Base-TX + 2x uplink 1000Base-FX (without module) DIN extended temperature range.
PRICE:
577,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Vandal-resistant: No
- IP protection class: IP40
- Rack mounting options: No
- Product color
- Black
- Blue
- Stackable: No
- LEDs: Yes
- Suitable for external use: No

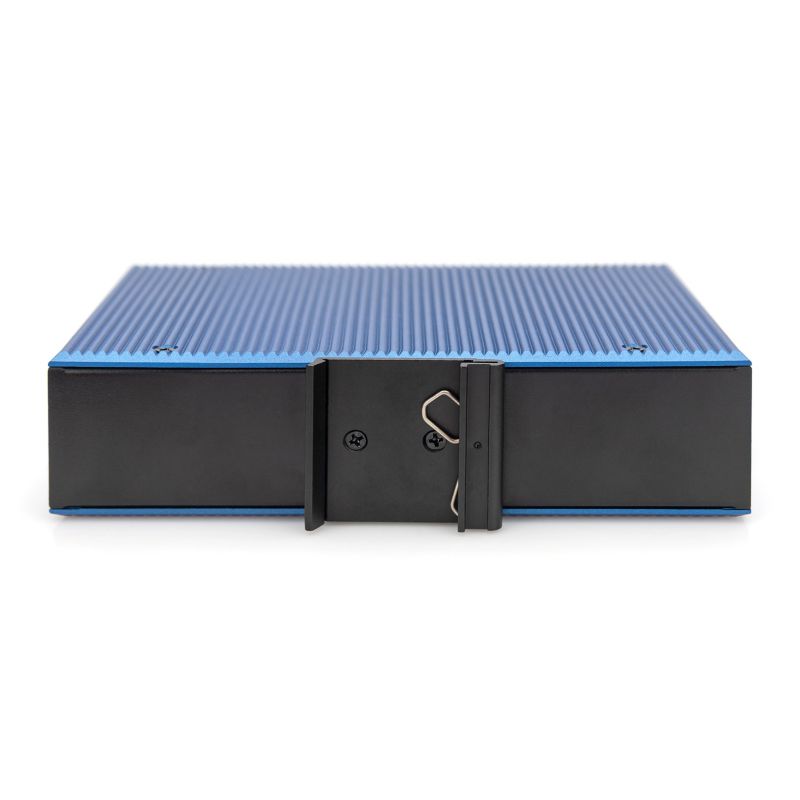

- DIN rail mounting: Yes
- Housing material: Aluminum
- Power
- DC input voltage: 12 - 52 V
- Power source: DC
- Power consumption: 10 W
- Weight and dimensions
- Product depth: 135 mm
- Product width: 175.6 mm
- Product weight: 1 kg
- Product height: 45.5 mm
- Management features
- Switch Type: Unmanaged
- Working conditions
- Temperature range (storage): -40 - 80 °C
- Temperature range (operation): -40 - 80 °C
- Relative humidity range: 5 - 95%
- Permissible relative humidity: 5 - 95%
- Network
- Half-duplex: Yes
- 10G Support: No
- Copper Ethernet cabling technology
- 100BASE-TX
- 1000BASE-TX
- 10BASE-T
- 100BASE-FX
- Communication standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- Flow Control Support: Yes
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
- VLAN Support: No
- Packaging data
- Package depth: 72.5 mm
- Weight with packaging: 1.17 kg
- Package height: 208 mm
- Packaging capacity: 2804.88 cm³
- Package width: 186 mm
- Ports and interfaces
- Number of connection ports: 2
- Number of SFP Module slots: 2

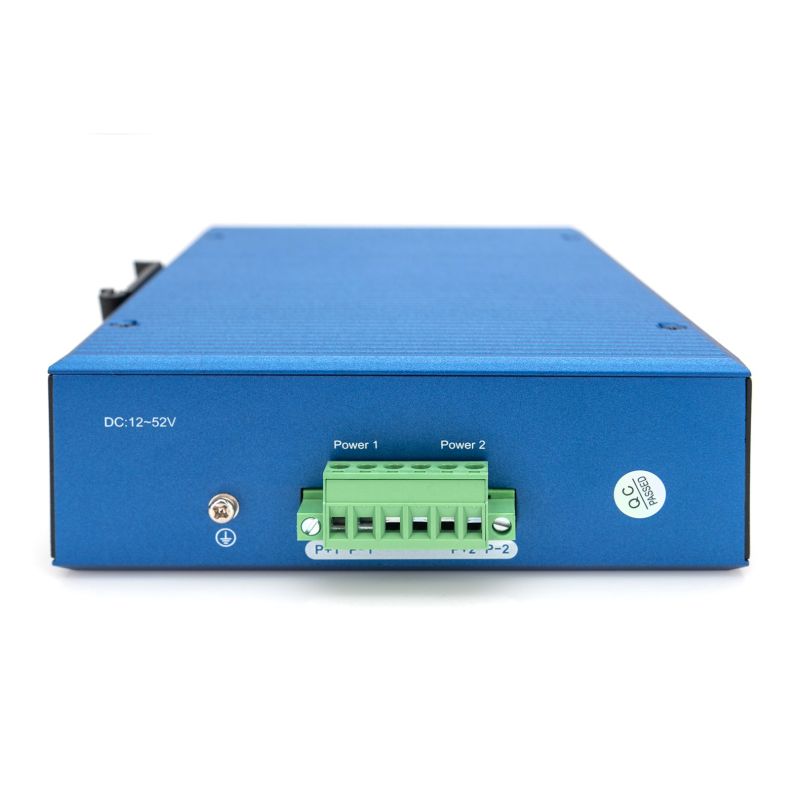

- Power connector: Terminal block (6-pin)

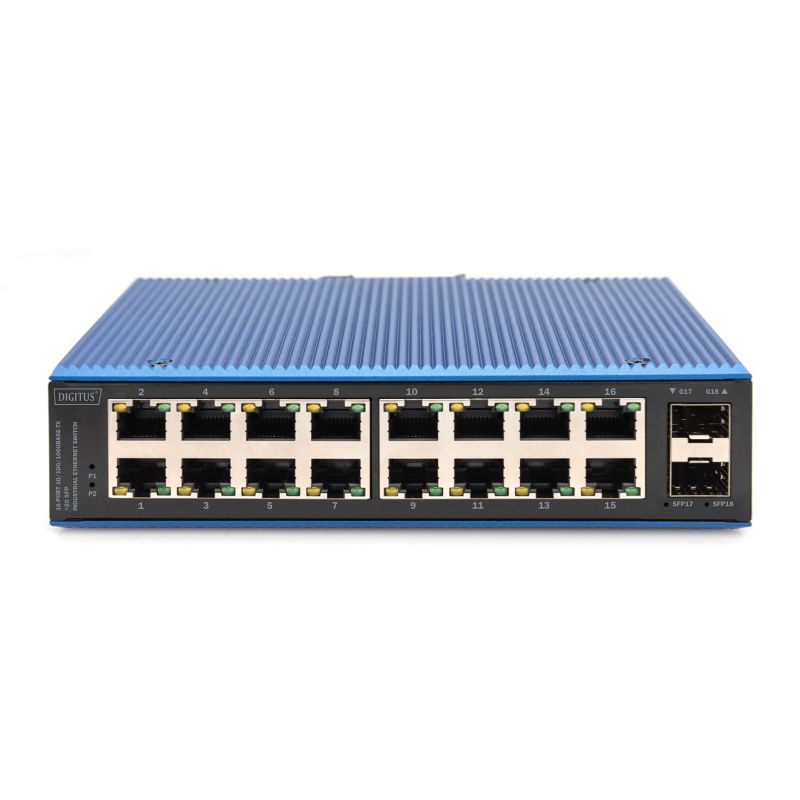

- Number of Gigabit Ethernet ports: 16
- Basic RJ-45 Switching Number of Ethernet Ports: 16
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Other functions
- Ethernet interface type: Gigabit Ethernet
- Bandwidth: 56 Gbit/s
- Logistics data
- Mask with serial number: 85176200
- Country of origin: China
- Data transfer
- Transfer speed: 42 Mpps
- Address table size: 8000 entries
- Packet buffer memory: 4.1 MB
- Routing/switching capacity: 1 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: No
| Name | Details |
|---|---|
| Producer | DIGITUS |
