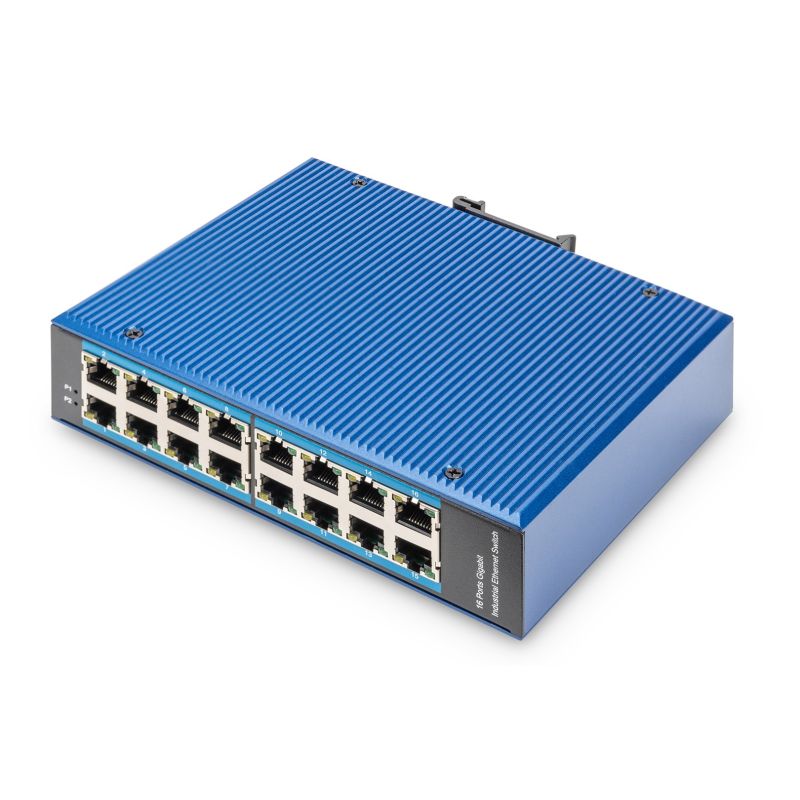

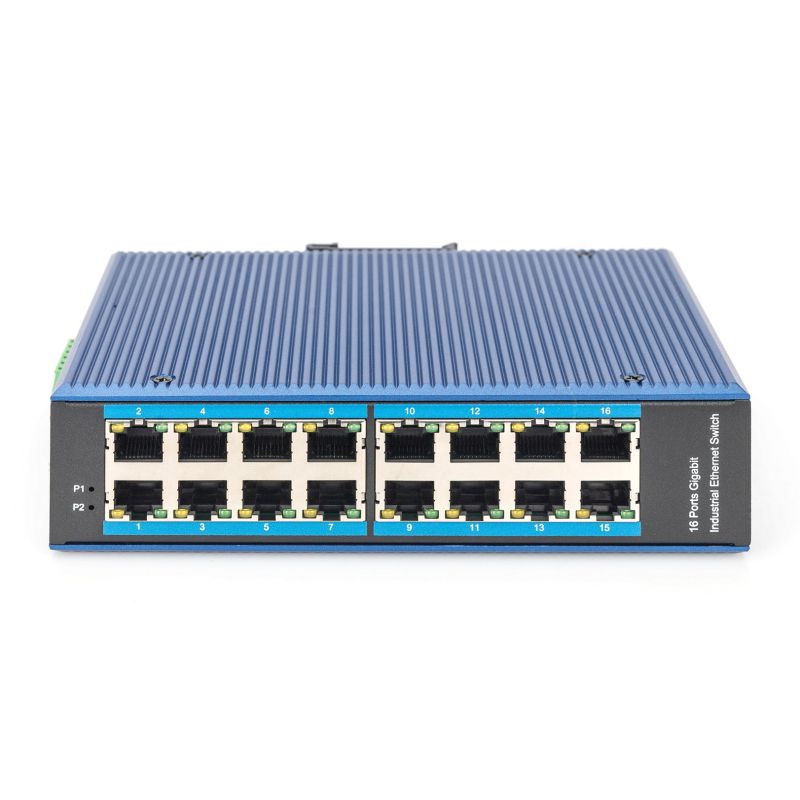

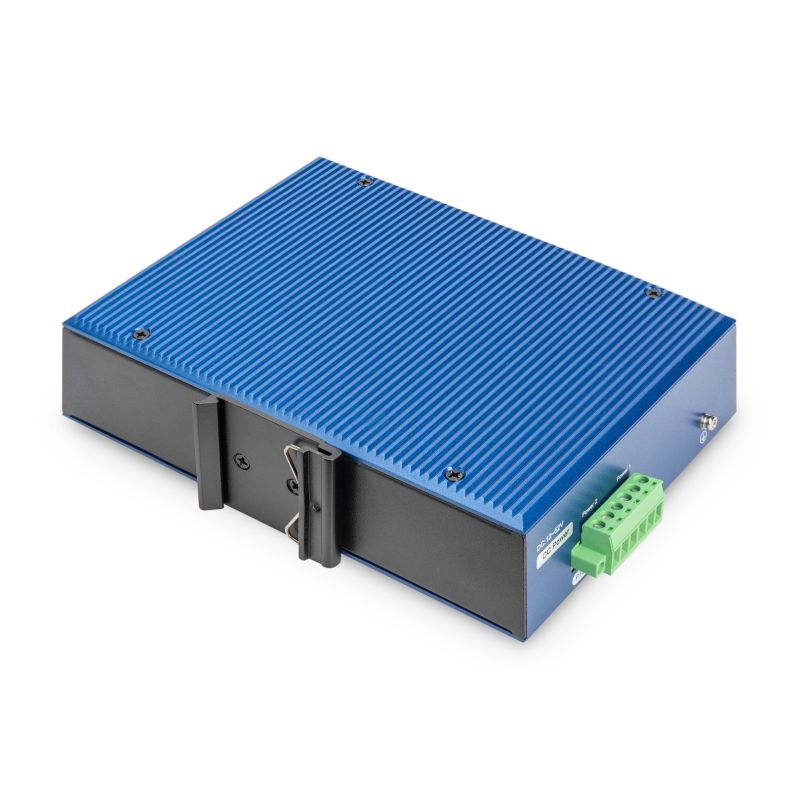

Industrial switch 16x 1000Base-TX DIN extended temperature range
Industrial switch 16x 1000Base-TX DIN extended temperature range
Industrial switch 16x 1000Base-TX DIN extended temperature range
PRICE:
417,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Blue
- IP protection class: IP40
- Stackable: No
- Vandal-resistant: No
- Suitable for external use: No

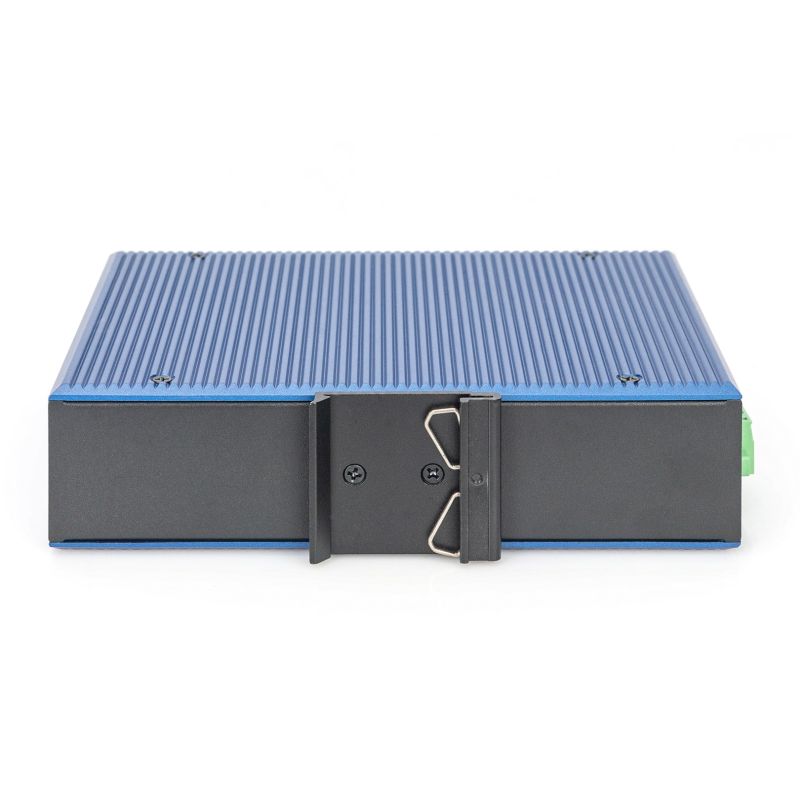

- DIN rail mounting: Yes
- Housing material: Aluminum
- Rack mounting options: No
- Power
- DC input voltage: 12 - 52 V
- Protection against sudden voltage increases
- Yes
- 4 kV
- Power source: DC
- Backup Power Supply (RPS) Support: Yes
- Power Supply Included: No
- Power consumption: 10 W
- Weight and dimensions
- Product height: 45.5 mm
- Product width: 175.6 mm
- Product depth: 135 mm
- Product weight: 900 g
- Management features
- Switch Type: Unmanaged
- Working conditions
- Temperature range (storage): -40 - 80 °C
- Temperature range (operation): -40 - 80 °C
- Relative humidity range: 5 - 95%
- Network
- Communication standards
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3i
- IEEE 802.3ab
- IEEE 802.3u
- IEEE 802.3
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- Flow Control Support: Yes
- 10G Support: No
- VLAN Support: No
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
- Communication standards
- Efficiency
- No fan: Yes
- MTBF (Mean Time Between Failures): 300000 h
- Packaging data
- Package height: 72.5 mm
- Package depth: 186 mm
- Packaging capacity: 2804.88 cm³
- Weight with packaging: 1.08 kg
- Package width: 208 mm
- Package contents
- User Manual: Yes
- Ports and interfaces
- Number of Gigabit Ethernet ports: 16

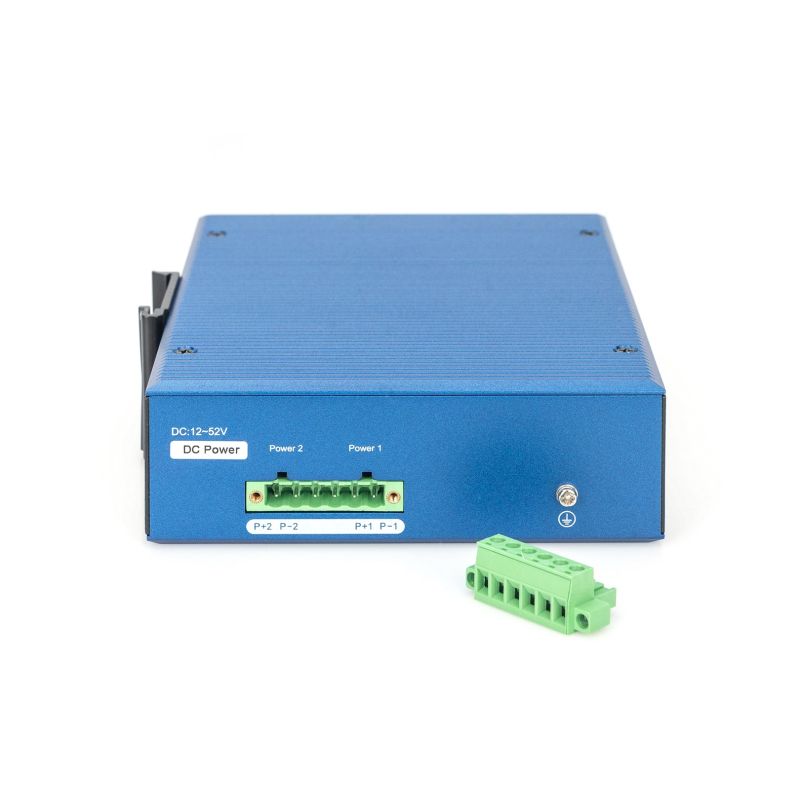

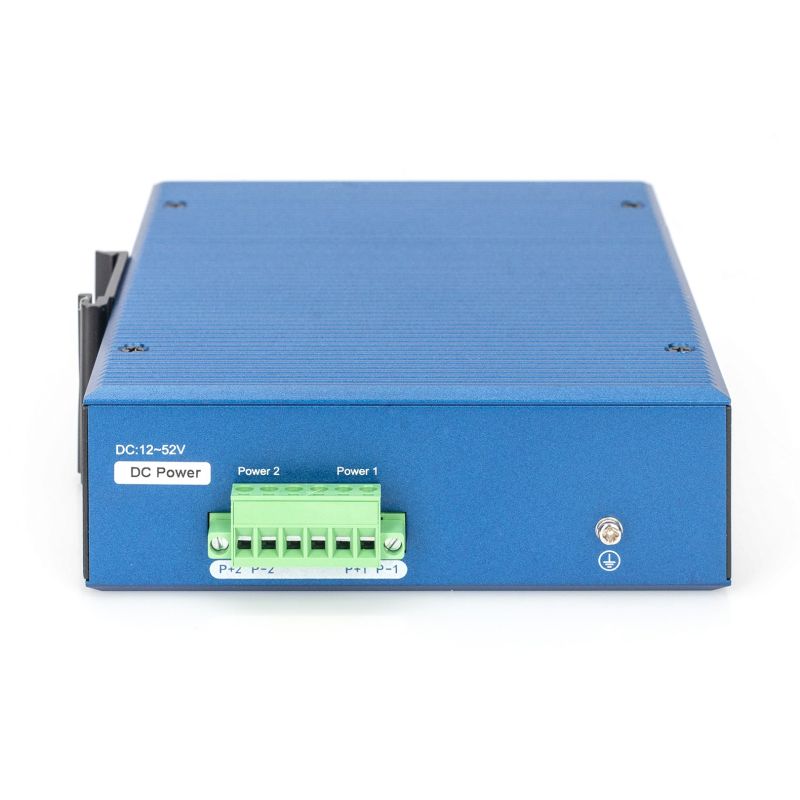

- Power connector: DC-in jack
- Basic RJ-45 Switching Number of Ethernet Ports: 16
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Other functions
- Ethernet interface type: Gigabit Ethernet
- Bandwidth: 56 Gbit/s
- Logistics data
- Country of origin: China
- Mask with serial number: 85176200
- Data transfer
- Transfer speed: 42 Mpps
- Packet buffer memory: 4.1 MB
- Address table size: 8000 entries
- Routing/switching capacity: 1 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: No
| Name | Details |
|---|---|
| Producer | DIGITUS |
