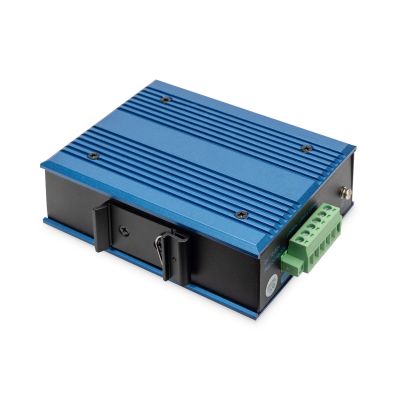

Industrial switch 4x 100 Base-TX + 1x uplink 100Base-FX (without module) DIN extended temperature range.
Industrial switch 4x 100 Base-TX + 1x uplink 100Base-FX (without module) DIN extended temperature range.
Industrial switch 4x 100 Base-TX + 1x uplink 100Base-FX (without module) DIN extended temperature range.
PRICE:
145,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Vandal-resistant: No

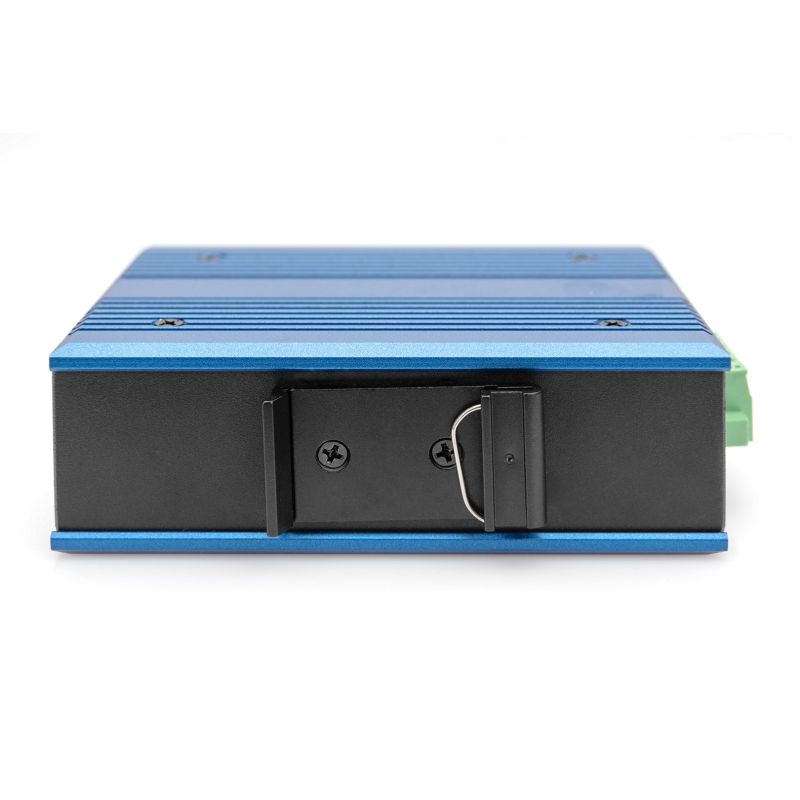

- DIN rail mounting: Yes
- Product color
- Blue
- Black
- LEDs: Yes
- IP protection class: IP40
- Housing material: Aluminum
- Rack mounting options: No
- Stackable: No
- Suitable for external use: No
- Power
- DC input voltage: 12 - 52 V
- Power consumption: 3 W
- Power source: DC
- Weight and dimensions
- Product width: 128 mm
- Product weight: 450 g
- Product height: 34 mm
- Product depth: 86 mm
- Management features
- Switch Type: Unmanaged
- Working conditions
- Temperature range (operation): -40 - 80 °C
- Relative humidity range: 5 - 95%
- Temperature range (storage): -40 - 80 °C
- Permissible relative humidity: 5 - 95%
- Network
- Half-duplex: Yes
- Communication standards
- IEEE 802.3u
- IEEE 802.3
- Auto MDI/MDI-X: Yes
- Data transfer speed via Ethernet LAN: 10,100 Mbit/s
- Full duplex: Yes
- 10G Support: No
- Copper Ethernet cabling technology
- 10BASE-T
- 100BASE-FX
- 100BASE-TX
- Flow Control Support: Yes
- VLAN Support: No
- Packaging data
- Package depth: 54 mm
- Package height: 165 mm
- Package width: 135 mm
- Weight with packaging: 541.667 g
- Packaging capacity: 1202.85 cm³
- Package contents
- User Manual: Yes
- Ports and interfaces
- Number of connection ports: 1

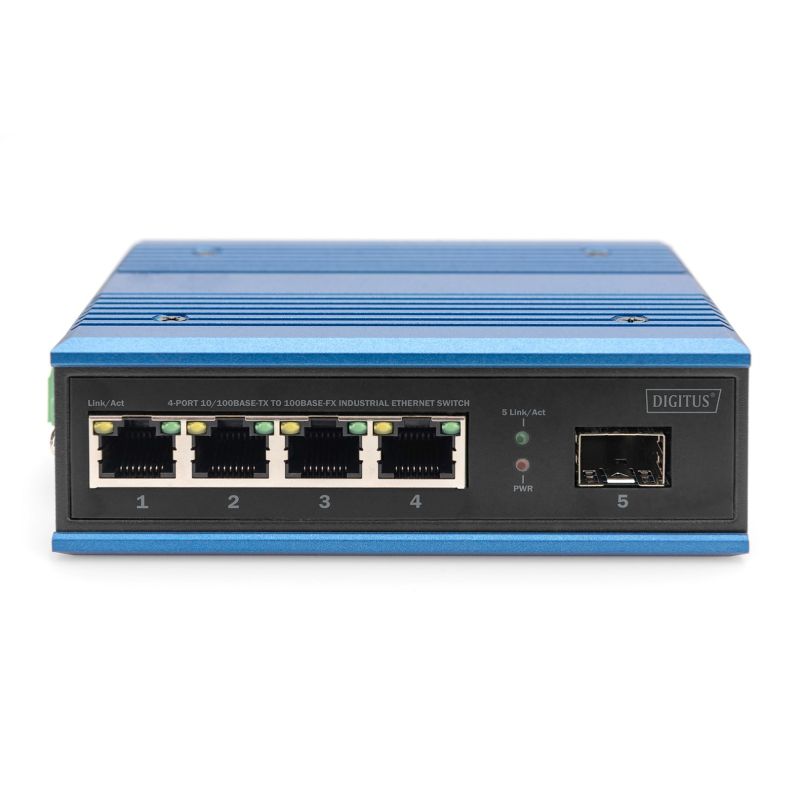

- Number of Fast Ethernet ports (copper): 4

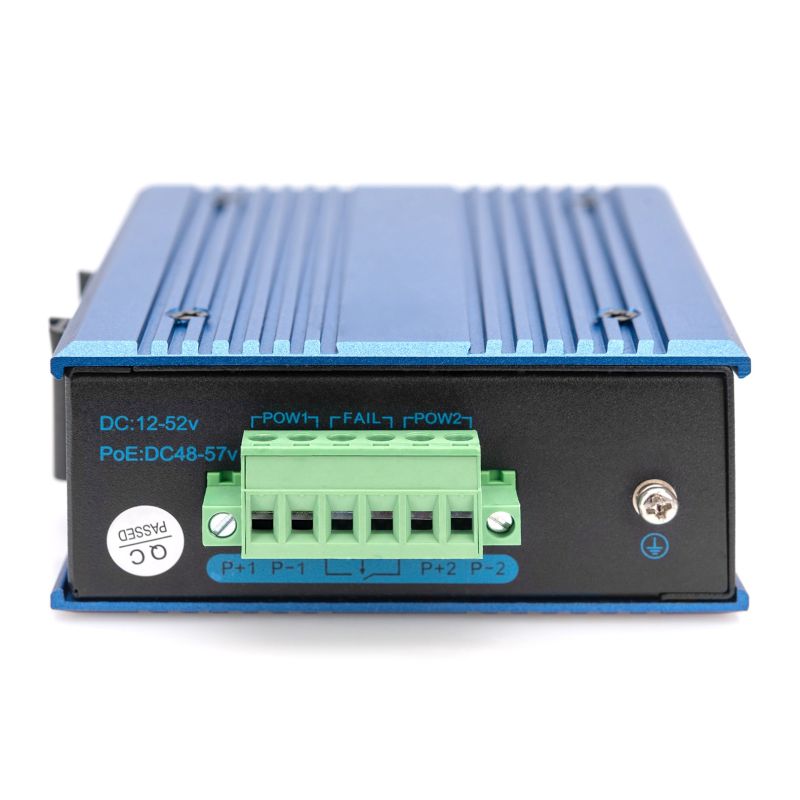

- Power connector: Terminal block (6-pin)
- Basic Ethernet switching RJ-45 ports type: Fast Ethernet (10/100)
- Basic RJ-45 Switching Number of Ethernet Ports: 4
- Number of SFP Module slots: 1
- Other functions
- Bandwidth: 1.6 Gbps
- Ethernet interface type: Fast Ethernet
- Logistics data
- Mask with serial number: 85176200
- Country of origin: China
- Data transfer
- Transfer speed: 1.2 Mpps
- Address table size: 2000 entries
- Packet buffer memory: 1 MB
- Routing/Switching Throughput: 0.1 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: No
| Name | Details |
|---|---|
| Producer | DIGITUS |
