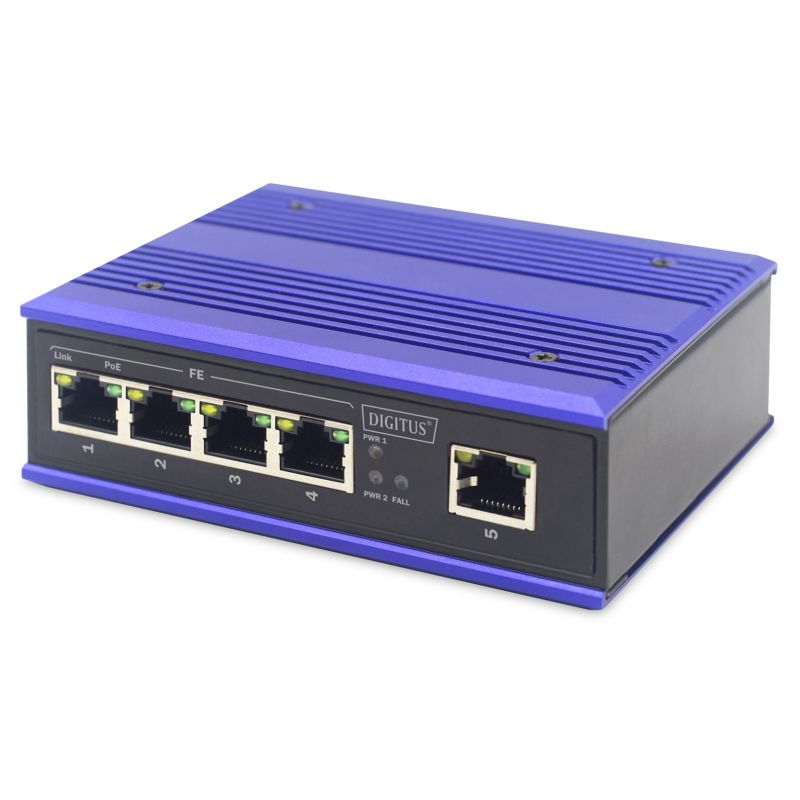

Industrial switch 4x 100 Base-TX PoE 120W + 1x uplink 100 Base-TX DIN extended temperature range.
Industrial switch 4x 100 Base-TX PoE 120W + 1x uplink 100 Base-TX DIN extended temperature range.
Industrial switch 4x 100 Base-TX PoE 120W + 1x uplink 100 Base-TX DIN extended temperature range.
PRICE:
95,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 100 EUR!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Wall mountable: Yes
- LEDs: Yes
- Product color
- Blue
- Black
- Number of fans: 0 fans
- DIN rail mounting: Yes
- Housing material: Metal
- Power
- Backup Power Supply (RPS) Support: Yes
- DC input voltage: 48 - 57 V
- Power Supply Included: No
- Weight and dimensions
- Product width: 86 mm
- Product height: 34 mm
- Product depth: 128 mm
- Working conditions
- Temperature range (operation): -40 - 85 °C
- Temperature range (storage): -40 - 85 °C
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 5 - 95%
- Network
- Auto MDI/MDI-X: Yes
- Communication standards
- IEEE 802.3
- IEEE 802.3at
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3x
- Copper Ethernet cabling technology
- 10BASE-T
- 100BASE-TX
- 10G Support: No
- Full duplex: Yes
- Flow Control Support: Yes
- MAC address auto-aging supported: Yes
- Supported cable types
- Cat4
- Cat5
- Cat3
- MAC address auto-learning supported: Yes
- Efficiency
- MTBF (Mean Time Between Failures): 300000 h
- Package contents
- User Guide: Yes
- Ports and interfaces
- Basic Ethernet switching RJ-45 ports type: Fast Ethernet (10/100)
- Basic RJ-45 Switching Number of Ethernet Ports: 5
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Address table size: 2000 entries
- Store-and-forward: Yes
- Routing/switching capacity: 1 Gbit/s
- Power over Ethernet (PoE)
- Power over Ethernet (PoE) power per port: 30 W
- Number of Fast Ethernet (PoE) ports: 4
- PoE Support: Yes
| Name | Details |
|---|---|
| Producer | DIGITUS |
