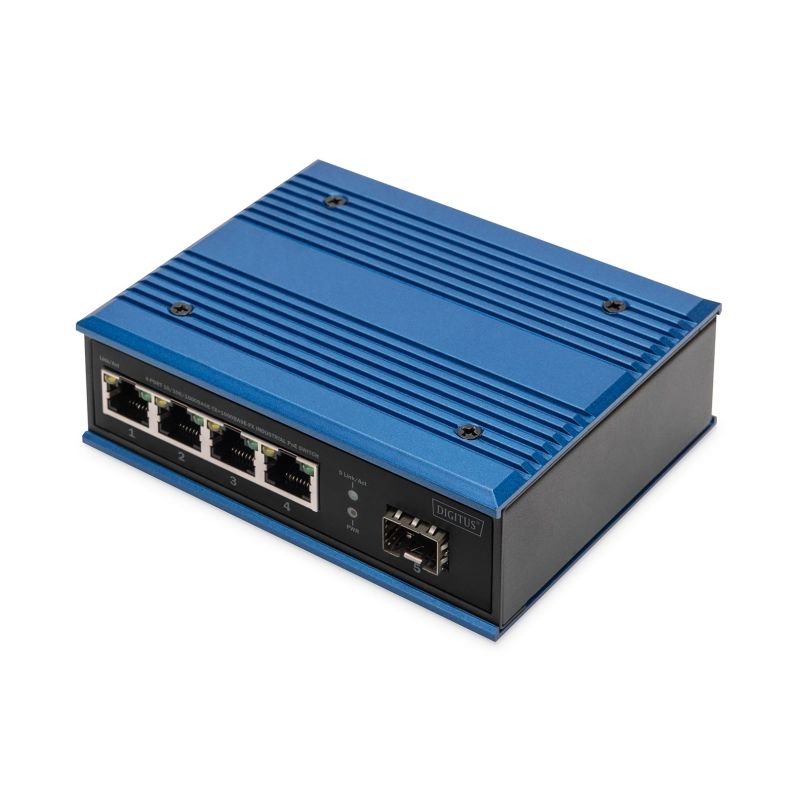

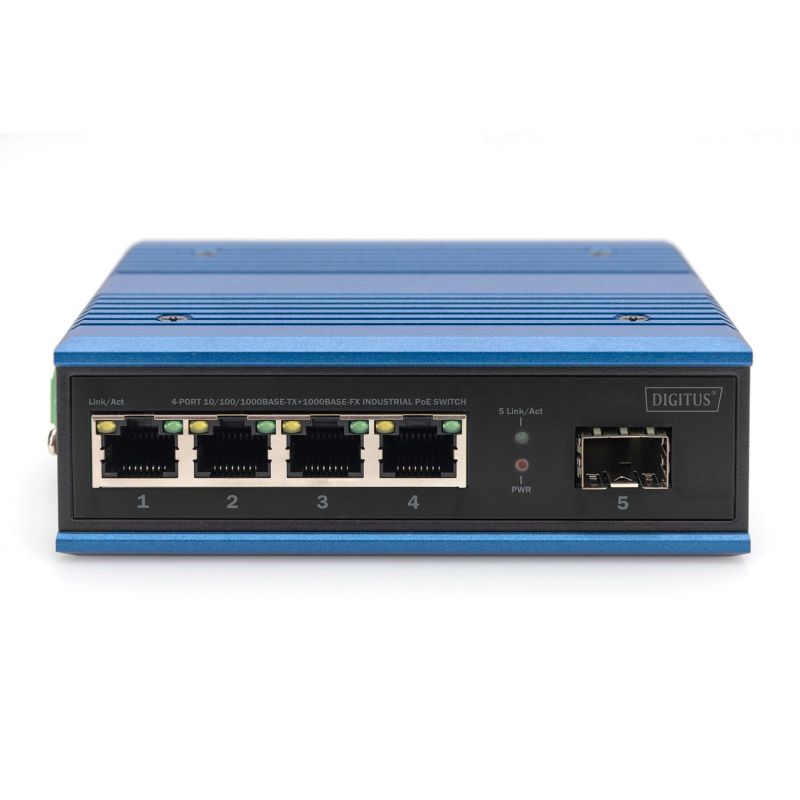

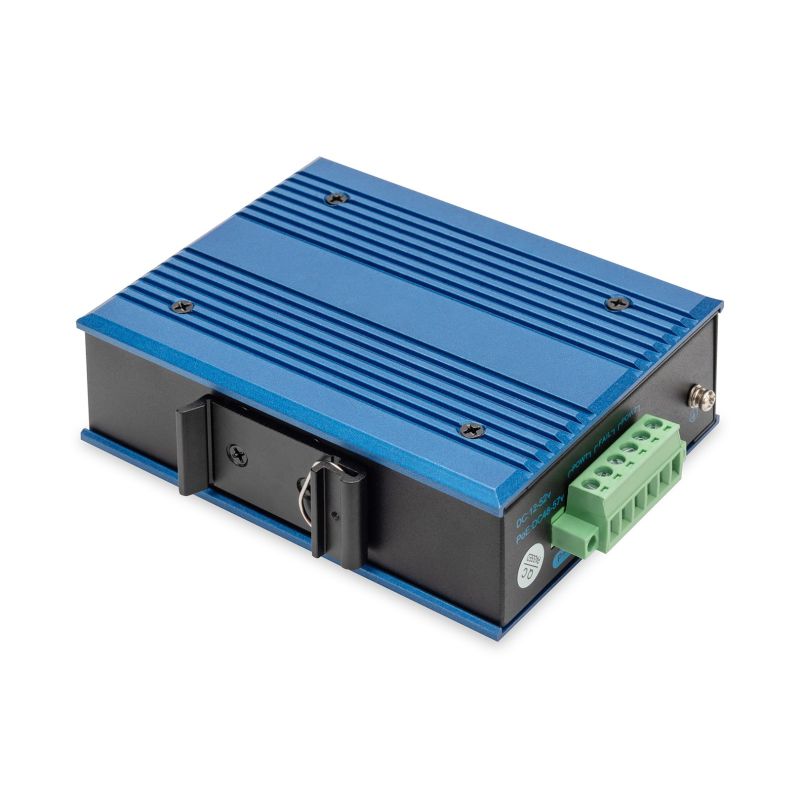

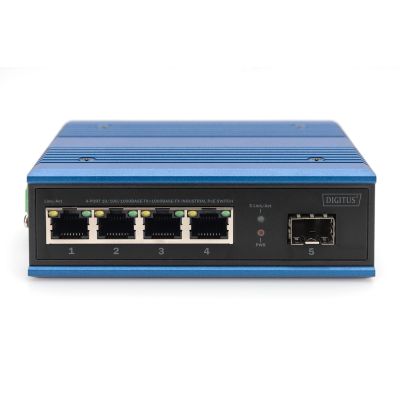

Industrial switch 4x 1000Base-TX PoE 120W + 1x 1000Base-FX (without module) DIN extended temperature range
Industrial switch 4x 1000Base-TX PoE 120W + 1x 1000Base-FX (without module) DIN extended temperature range
Industrial switch 4x 1000Base-TX PoE 120W + 1x 1000Base-FX (without module) DIN extended temperature range
PRICE:
222,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Stackable: No

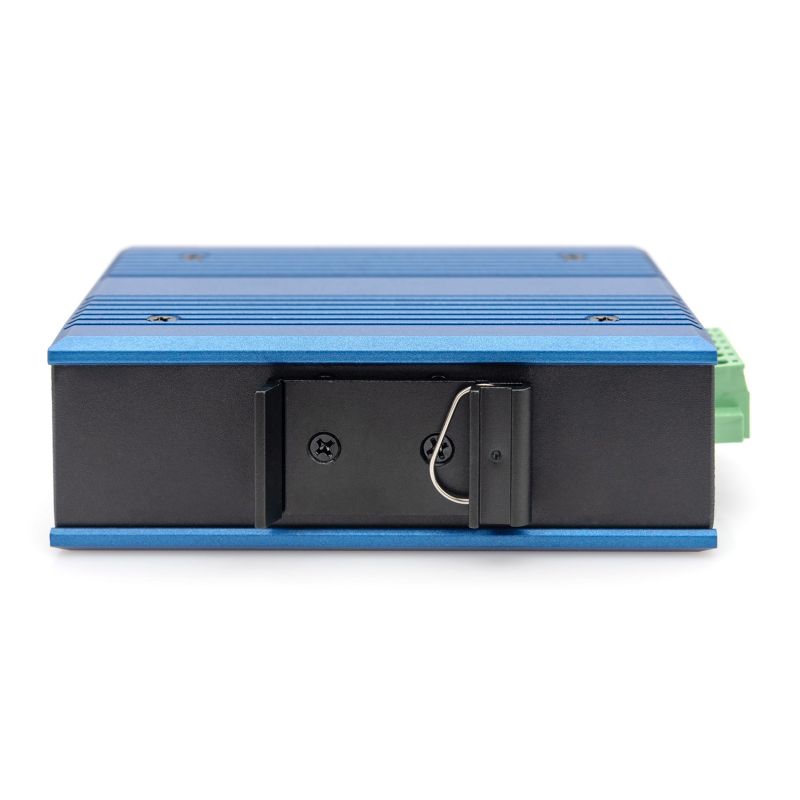

- DIN rail mounting: Yes
- Vandal-resistant: No
- Suitable for external use: No
- Product color
- Blue
- Black
- Housing material: Aluminum
- IP protection class: IP40
- LEDs: Yes
- Rack mounting options: No
- Power
- DC input voltage: 48 - 57 V
- Power consumption: 3 W
- Power source: DC
- Weight and dimensions
- Product height: 34 mm
- Product width: 128 mm
- Product weight: 450 g
- Product depth: 86 mm
- Management features
- Switch Type: Unmanaged
- Working conditions
- Permissible relative humidity: 5 - 95%
- Temperature range (operation): -40 - 80 °C
- Temperature range (storage): -40 - 80 °C
- Relative humidity range: 5 - 95%
- Network
- Half-duplex: Yes
- 10G Support: No
- Flow Control Support: Yes
- Full duplex: Yes
- Copper Ethernet cabling technology
- 100BASE-TX
- 10BASE-TX
- 10BASE-T
- 100BASE-FX
- 1000BASE-TX
- Communication standards
- IEEE 802.3u
- IEEE 802.3
- IEEE 802.3x
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- VLAN Support: No
- Auto MDI/MDI-X: Yes
- Packaging data
- Weight with packaging: 558.333 g
- Package depth: 54 mm
- Package height: 165 mm
- Packaging capacity: 1202.85 cm³
- Package width: 135 mm
- Package contents
- User Manual: Yes
- Ports and interfaces
- Number of Gigabit Ethernet ports: 4
- Number of connection ports: 1
- Number of SFP Module slots: 1

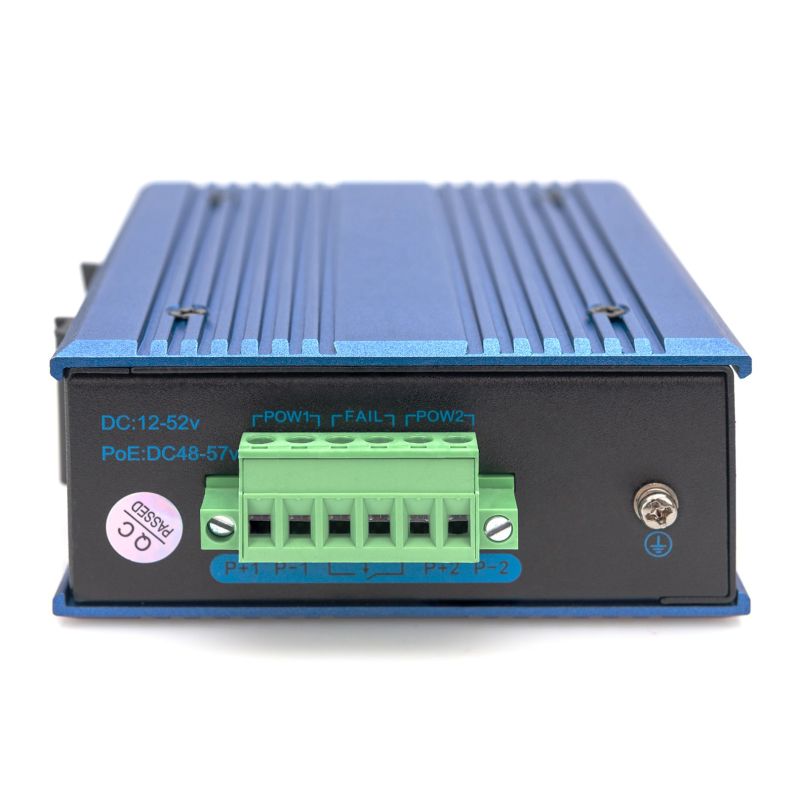

- Power connector: Terminal block (6-pin)
- Basic RJ-45 Switching Number of Ethernet Ports: 4
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Other functions
- Bandwidth: 14 Gbit/s
- Ethernet interface type: Gigabit Ethernet
- Logistics data
- Mask with serial number: 85176200
- Country of origin: China
- Data transfer
- Transfer speed: 10.5 Mpps
- Address table size: 2000 entries
- Routing/switching capacity: 1 Gbit/s
- Packet buffer memory: 1.2 MB
- Power over Ethernet (PoE)
- Total Power over Ethernet (PoE) budget: 30 W
- PoE Support: No
| Name | Details |
|---|---|
| Producer | DIGITUS |
