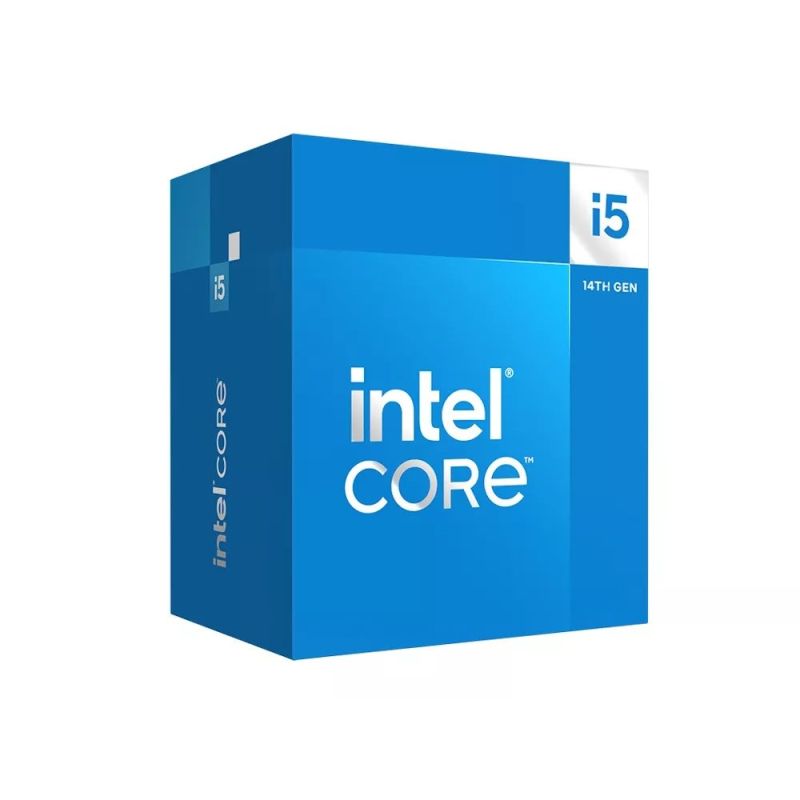

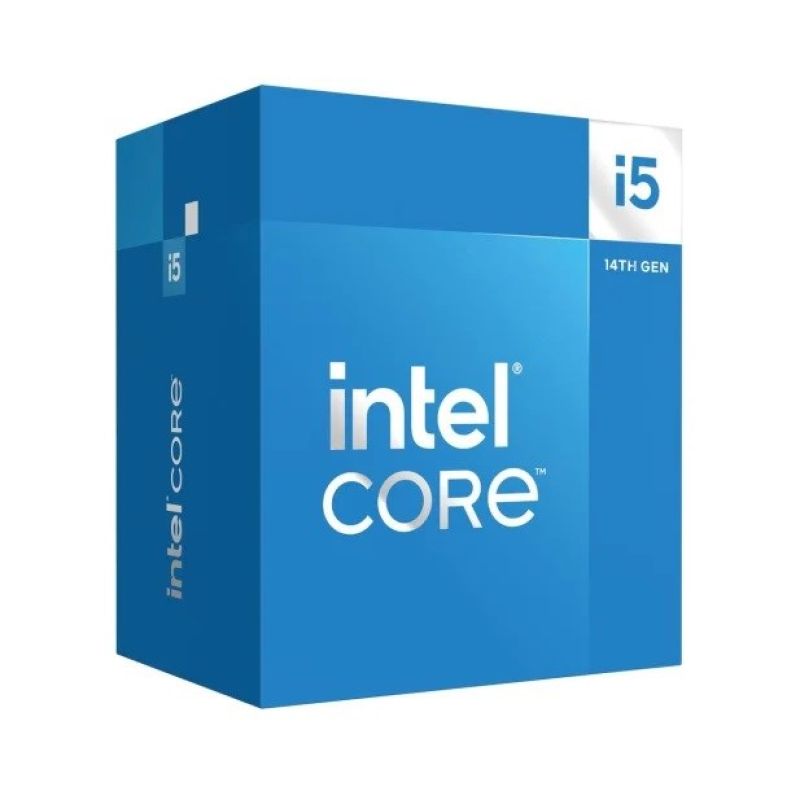

Intel Core i5-14500 Processor, 5.0 GHz, 11.5 MB, LGA1700
Intel Core i5-14500 Processor, 5.0 GHz, 11.5 MB, LGA1700
Intel Core i5-14500 Processor, 5.0 GHz, 11.5 MB, LGA1700
PRICE:
407,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- OpenCL version: 3.0
- Status: Launched
- Release date: Q1'24
- Processor
- Processor model: i5-14500
- Maximum number of DMI lanes: 8
- Bus type: DMI4
- Processor codename: Raptor Lake
- Number of threads: 20
- Processor type: Intel® Core™ i5
- Box: Yes
- Processor memory type: Smart Cache
- Processor socket: LGA 1700
- Processor base power: 65 W
- Core boost frequency: 5 GHz
- Number of processor cores: 14
- Performance cores: 6
- Processor manufacturer: Intel
- Processor cache: 24 MB
- Processor-supported memory bandwidth (max): 76.8 GB/s
- Maximum turbo power: 154 W
- Processor generation: 14th-generation Intel® Core™ i5
- Performance-core base frequency: 2.6 GHz
- Efficient cores: 8
- Processor operating mode: 64-bit
- Graphics
- Dedicated graphics card model: Not available
- Supported outputs of the integrated graphics card
- HDMI 2.1
- DisplayPort 1.4a
- Embedded DisplayPort (eDP) 1.4b
- Integrated graphics card: Yes
- Number of execution units: 32
- Dedicated graphics card: No
- OpenGL version of the integrated graphics card: 4.5
- Integrated graphics card model: Intel UHD Graphics 770
- Integrated base processor frequency: 300 MHz
- DirectX version of the integrated graphics card: 12.0
- Number of supported monitors (integrated graphics card): 4
- Integrated graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
- Integrated graphics card refresh rate at maximum resolution (HDMI): 60 Hz
- Maximum resolution of the integrated graphics card (eDP – embedded display): 5120 x 3200 px
- Integrated graphics card refresh rate at maximum resolution (eDP – embedded display): 120 Hz
- Dynamic frequency of the integrated graphics card (max): 1550 MHz
- Maximum resolution of the integrated graphics card (HDMI): 4096 x 2160 px
- Maximum resolution of the integrated graphics card (DisplayPort): 7680 x 4320 px
- Memory
- Memory bandwidth: 76.8 GB/s
- Memory channels supported: Dual-channel
- Maximum internal memory supported by the processor: 192 GB
- Memory types supported by the processor
- DDR5-SDRAM
- DDR4-SDRAM
- Features
- Scalability: 1S
- PCI Express configurations
- 1x16+1x4
- 2x8+1x4
- Maximum number of PCI Express lanes: 20
- Slot versions (PCI Express)
- 5.0
- 4.0
- Supported instruction sets
- AVX 2.0
- SSE4.1
- SSE4.2
- Embedded options available: Yes
- Market segment: Desktop
- Maximum CPU configuration: 1
- Usage conditions
- PC/Client/Tablet
- Workstation
- Direct Media Interface (DMI) revision: 4.0
- Execute Disable Bit (EDB) technology: Yes
- Thermal Monitoring technologies: Yes
- Idle states: Yes
- Weight and dimensions
- Processor package size: 45 x 37.5 mm
- Operating conditions
- T-junction: 100 °C
- Processor special features
- Intel® Hardware Shield Eligibility: Yes
- Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
- Intel® vPro™ Platform Eligibility: Yes
- Intel® OS Guard: Yes
- Intel® Turbo Boost Technology: 2.0
- Intel® One-Click Recovery: Yes
- Intel® Boot Guard: Yes
- Intel® Hyper-Threading Technology (Intel® HT Technology): Yes
- Enhanced Intel SpeedStep Technology: Yes
- Intel® Volume Management Device (VMD): Yes
- Intel vPro® Essentials Platform Eligibility: Yes
- Intel® Clear Video HD Technology (Intel® CVT HD): Yes
- Intel® Quick Sync Video Technology: Yes
- Intel® Virtualization Technology for Directed I/O (VT-d): Yes
- Intel® Speed Shift Technology: Yes
- Intel® 64: Yes
- Intel® Trusted Execution Technology: Yes
- New AES Instructions (Intel® AES-NI): Yes
- Intel® Turbo Boost Max 3.0 Technology: No
- Intel vPro® Enterprise Platform Eligibility: Yes
- Intel® Stable Image Platform Program (SIPP): Yes
- Intel® VT-x with Extended Page Tables (EPT): Yes
- Intel® Secure Key: Yes
- Intel® Threat Detection Technology (TDT): Yes
- Mode-Based Execution (MBE): Yes
- Intel® Remote Platform Erase (RPE): Yes
- Intel® Total Memory Encryption – Multi-Key: Yes
- Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0: Yes
- Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
- Intel® Thread Director: Yes
- Intel® Active Management Technology (Intel® AMT): Yes
- Intel® Control-flow Enforcement Technology (CET): Yes
- Intel® Virtualization Technology (VT-x): Yes
- Intel® Standard Manageability (ISM): Yes
- Other features
- Maximum memory capacity: 192 GB
- Graphics: eDP 1.4b, DP 1.4a, HDMI 2.1
- Safety warning
- Warnings
- Processors must not be disposed of with regular household waste – they require special disposal due to their potential environmental impact.
- Make sure that the processor is properly installed in the CPU socket to avoid damage.
- Handle the processor with care to avoid damaging the delicate pins.
