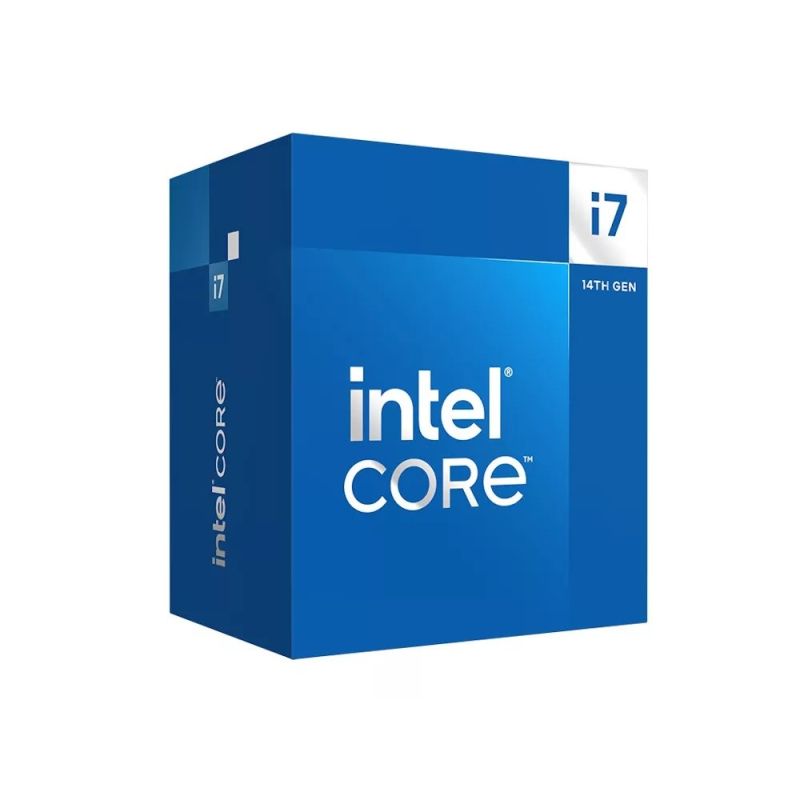

Intel Core i7-14700 5.4 GHz 28 MB LGA1700 Processor
Intel Core i7-14700 5.4 GHz 28 MB LGA1700 Processor
Intel Core i7-14700 5.4 GHz 28 MB LGA1700 Processor
PRICE:
585,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- OpenCL version: 3.0
- Release date: Q1'24
- Status: Launched
- Processor
- Processor memory type: Smart Cache
- Box: Yes
- Number of processor cores: 20
- ARK Processor ID: 236781
- Efficient cores: 8
- Processor Codename: Raptor Lake
- Processor socket: LGA 1700
- Processor type: Intel® Core™ i7
- Processor model: i7-14700
- Stepping: B0
- High-performance core base frequency: 2.1 GHz
- Processor manufacturer: Intel
- Memory bandwidth supported by the processor (max): 89.6 GB/s
- Maximum number of DMI paths: 8
- Core Boost Frequency: 5.3 GHz
- Effective cores: 12
- Processor operating mode: 64-bit
- Processor Cache: 33 MB
- Base CPU power: 65 W
- Includes cooling system: Yes
- Number of threads: 28
- Maximum turbo power: 219 W
- Processor generation: Intel Core i7-14xxx
- Graphics
- Built-in graphics card model: Intel UHD Graphics 770
- Number of monitors supported (built-in graphics card): 4
- Dedicated graphics card: No
- Built-in graphics card: Yes
- Built-in graphics device ID: 0xA780
- Integrated graphics refresh rate at maximum resolution (DisplayPort): 60 Hz
- DirectX version of the built-in graphics card: 12.0
- Onboard graphics card OpenGL version: 4.5
- Dynamic clock speed of the built-in graphics card (max): 1600 MHz
- Supported integrated graphics card outputs
- HDMI 2.1
- Embedded DisplayPort (eDP) 1.4b
- DisplayPort 1.4a
- Integrated graphics refresh rate at maximum resolution (HDMI): 60 Hz
- Integrated graphics refresh rate at maximum resolution (eDP - built-in display): 120 Hz
- Maximum resolution of the integrated graphics card (eDP - built-in display): 5120 x 3200 px
- Maximum resolution of the integrated graphics card (DisplayPort): 7680 x 4320 px
- Built-in processor base frequency: 300 MHz
- Maximum resolution of the built-in graphics card (HDMI): 4096 x 2160 px
- Multi-format codec engines: 2
- Dedicated graphics card model: Not available
- Number of execution units: 32
- Memory
- Maximum internal memory supported by the processor: 192 GB
- ECC Correction: Yes
- Memory bandwidth: 89.6 GB/s
- Memory Channel Support: Dual Channel
- Memory types supported by the processor
- DDR5-SDRAM
- DDR4-SDRAM
- Characteristics
- Slot version (PCI Express)
- 4.0
- 5.0
- Built-in options available: Yes
- Market segment: Desktop
- Terms of Use
- Position
- PC/Client/Tablet
- Supported instruction sets
- AVX 2.0
- SSE4.1
- SSE4.2
- Scalability: 1S
- PCI Express configurations
- 2x8+1x4
- 1x16+1x4
- Execute Disable Bit (EDB) Technology: Yes
- Thermal Monitoring Technologies: Yes
- Maximum CPU configuration: 1
- Idle: Yes
- Export Control Classification Number (ECCN): 5A992C
- Commodity Classification Automated Tracking System (CCATS): 740.17B1
- Maximum PCI Express lanes: 20
- Direct Media Interface (DMI) Revision: 4.0
- Slot version (PCI Express)
- Weight and dimensions
- Processor package size: 45 x 37.5 mm
- Working conditions
- T-Splitter: 100 °C
- Special features of the processor
- Intel® Speed Shift Technology: Yes
- Intel® Clear Video HD Technology (Intel® CVT HD): Yes
- Intel® OS Guard: Yes
- Intel® Secure Key: Yes
- Intel® Thread Director: Yes
- Intel® Turbo Boost Technology: 2.0
- Intel® Control-flow Enforcement Technology (CET): Yes
- Mode Based Control System (MBE): Yes
- Intel® Quick Sync Video Technology: Yes
- Intel® Hyper Threading Technology (Intel® HT Technology): Yes
- Enhanced Intel SpeedStep Technology: Yes
- Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
- Intel® Turbo Boost Max Technology 3.0 Frequency: 5.4 GHz
- Intel® Virtualization Technology (VT-x): Yes
- Intel® Turbo Boost Max 3.0 Technology: Yes
- New AES Instructions (Intel® AES-NI): Yes
- Intel® VT-x with Extended Page Tables (EPT): Yes
- Intel® Volume Management Device (VMD): Yes
- Intel® Virtualization Technology (Directed I/O) (VT-d): Yes
- Intel® 64: Yes
- Intel® Boot Guard: Yes
- Intel® Standard Management (ISM): Yes
- Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0: Yes
- Other functions
- L2 Cache: 28672 KB
- Maximum memory capacity: 192 GB
- Graphics: eDP 1.4b, DP 1.4a, HDMI 2.1
- Logistics data
- Harmonized System (HS) code: 8542310001
- Safety warning
- Warnings
- Avoid shocks and falls to avoid damaging delicate components.
- Ensure the processor is adequately cooled to prevent overheating.
- Do not touch the processor pins to avoid electrostatic damage.
- Warnings
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Intel |
