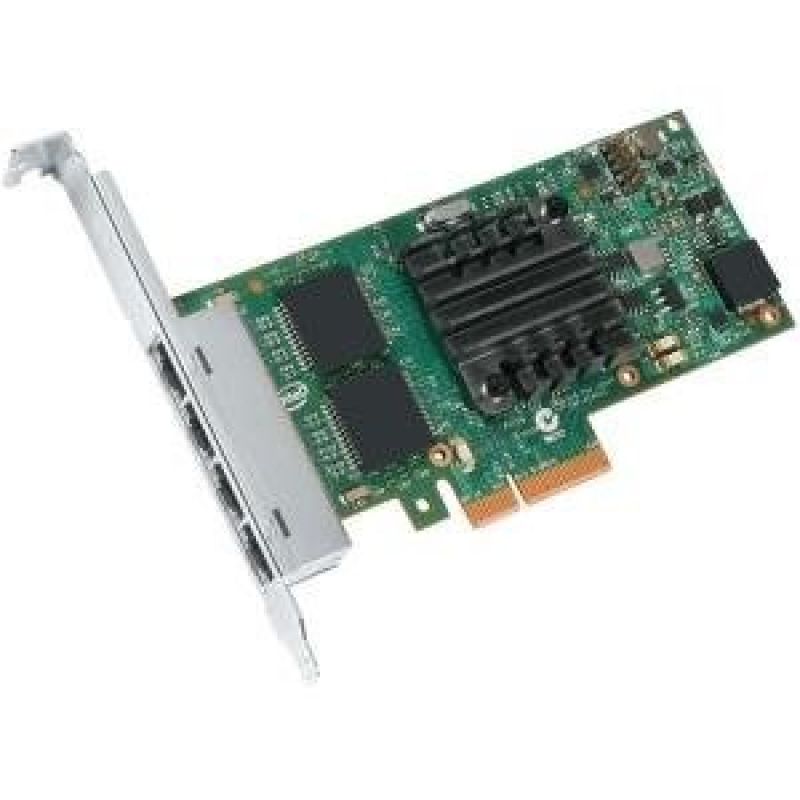

Intel I350T4V2 network card Internal Ethernet 1000 Mbit/s
Intel I350T4V2 network card Internal Ethernet 1000 Mbit/s
Intel I350T4V2 network card Internal Ethernet 1000 Mbit/s
PRICE:
303,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Chipset: Intel® I350
- Product color
- Silver
- Green
- Internal: Yes
- LEDs: LAN
- Purpose: Server
- Power
- Power consumption: 5 W
- Weight and dimensions
- Product depth: 135.4 mm
- Product height: 120 mm
- Product width: 68.9 mm
- Working conditions
- Permissible relative humidity: 35 - 90%
- Temperature range (storage): -40 - 70 °C
- Temperature range (operation): 0 - 55 °C
- Network
- Full duplex: Yes
- Copper Ethernet cabling technology
- 1000BASE-T
- 10BASE-T
- 100BASE-TX
- Maximum operating range: 100 m
- Communication standards
- IEEE 802.1as
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.1Q
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3az
- Maximum data transfer speed: 1000 Mbit/s
- Supported network protocols: TCP, UDP, IP
- LAN Controller: Intel® I350
- Cabling technology: 10/100/1000BaseT(X)
- Wired LAN: Yes
- Data transfer speed via Ethernet LAN
- 10 Mbps
- 100 Mbps
- 1000
- System requirements
- Supported server operating systems
- Windows Server 2003 R2
- Windows Server 2008 R2
- Supported Linux operating systems
- SuSE Linux 11
- RedHat EL Linux 6.0
- SuSE Linux 10
- RedHat EL Linux 5.0
- Supported server operating systems
- Ports and interfaces
- Host interface: PCI Express
- PCI card size: Half-height (low profile)
- PCI version: 2.1
- Number of Ethernet LAN ports (RJ-45): 4
- Connection method: Wired
- Interface: Ethernet
- Other functions
- Ethernet Adapter ARK ID: 84805
- Release date: Q3'14
- iWARP/RDMA: No
- Slot Speed and Width: 5.0 GT/s, x4 Lane
- Intel® Virtualization Technology for Connectivity (VT-c): Yes
- Low halogen options available: No
- Status: Launched
- Product Series: Intel® I350
- Product Code Name: Powerville
- On-chip QoS and Traffic Management: Yes
- Bracket Height: Low-Profile (LP) / Full-Height (FH)
- Intel® Flexible Port Partitioning: Yes
- Market segment: Server
- Fiber over Ethernet: No
- Number of QPI links: Quad
- Cabling type: Cat 5 up to 100m
- URL to the manual: http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
- Cable type: Cat 5 up to 100m
- Born: Q3'14
- Controller Type: Intel I350
- Storage-over-Ethernet: Yes
- Intel® Ethernet Power Management: Yes
- Last change: 63903513
- Message Tone Interruption: No
- PCI-SIG* SR-IOV Compliant: Yes
- Product family: Intel Gigabit server adapter
- Intelligent load shedding system: Yes
- Network card cable: Copper
- Network card type: Server
- Thermal power: 5 W
- Product name: Intel Ethernet Server Adapter I350-T4V2
- Intel® Virtual Machine Device Queues (VMDq): Yes
- Export Control Classification Number (ECCN): 5A991
- Automated Commodity Classification Tracking System (CCATS): NA
- Storage Over Ethernet: iSCSI, NFS
- Intel® Data Direct I/O Technology: No
- Thermal Design Power (TDP): 5 W
- Built-in options available: No
- Product type: Network Interface Card
- Intel® Trusted Execution Technology: No
- Interface type: PCIe v2.1 (5.0 GT/s)
- Processor Type: Gigabit Ethernet Adapters (up to 2.5GbE) - Gigabit Ethernet Adapters (up to 2.5GbE)
- Logistics data
- Harmonized System (HS) code: 85176990
| Name | Details |
|---|---|
| Producer | Intel |
